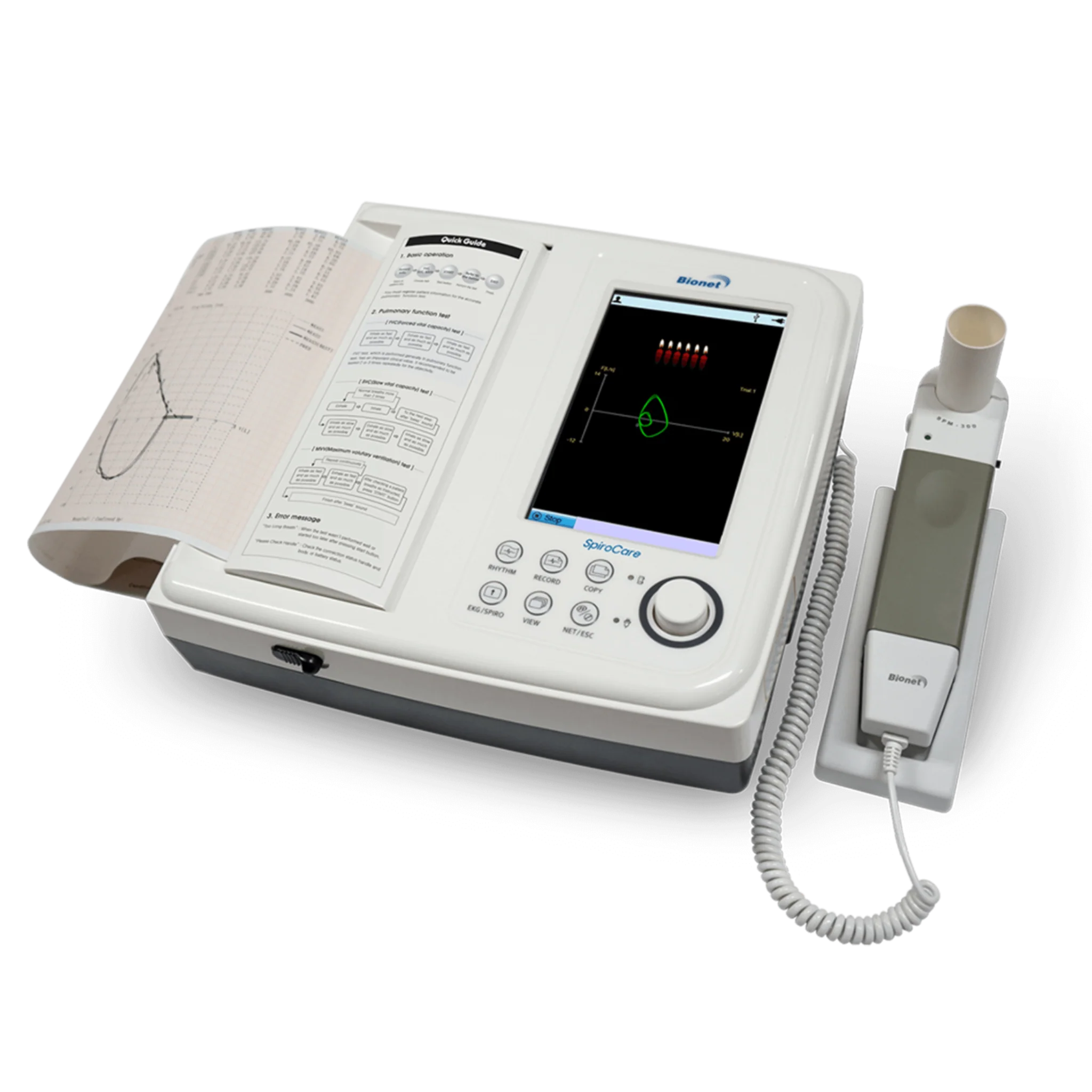

Bionet SpiroCare – Pulmonary Function Testing Touch Screen Spirometer

Smart Pulmonary Function Testing with SpiroCare

The SpiroCare is a precise and hygienic spirometer designed for fast, reliable pulmonary function testing. It features a 7-inch color touch screen, real-time measurement display, and supports FVC, SVC, MVV, and pre- and post-bronchodilator testing.

The system includes a built-in printer, rechargeable battery, and intuitive touch interface for easy patient data entry. Up to 200 tests can be stored internally and exported via USB in JPEG, PDF, or DICOM formats. Disposable mouthpieces with a patented sensor ensure accurate results while eliminating cleaning, delivering efficient workflow and dependable clinical performance with a 3-year warranty.

Features

7-Inch Color Touch Display

A bright TFT LCD touch screen provides clear, real-time visualization of test results with simple and intuitive navigation.

Comprehensive Lung Function Testing

Supports FVC, SVC, and MVV testing modes to deliver complete and accurate pulmonary function assessments.

Interpreted PFT Reporting

Automatically generates detailed PFT test reports with clinical interpretation to support confident diagnosis.

Pre- and Post-Bronchodilator Comparison

Easily compare lung function results before and after bronchodilator use for enhanced clinical evaluation.

Portable with Built-In Printer

Integrated thermal printer and rechargeable battery allow convenient, on-the-go testing and instant report printing.

Flexible Data Storage and Export

Store up to 200 test records internally and export patient data quickly via USB for efficient record management.

Specifications

PHYSICAL
Dimensions 296 (W) × 305.5 (H) × 34 (D) mm
Weight Approx. 250 kg
MEASUREMENT VALUES
FVC Metrics FVC, FEV 1.0, FEV 1/FVC, FEF 0.2–1.2 L, FEF 25–75%, FEF 75–85%, PEF, FEF 25%, FEF 50%, FEF 75%, FIVC, FEV6, PEFT, FET100%, extrapolated volume
SVC Metrics SVC, ERV, IRV, TV, EC
MVV Metrics MVV, FB, TV
PRESENTATION
Display Formats Flow volume loop, MVV (MVV, FB, TV), measurement values table
MEASUREMENT PERFORMANCE
Measuring Range Flow: 0 to ± 14 L/s, volume: 0 to ± 12 L
Measuring Method Differential pressure method
Prediction Equations Morris-Polgar, ECCS-Quanjer, Knudson-ITS, Pereira, Korea CJK
Sample Rate 200 samples/sec
Flow Impedance < 0.2 mbar s/L at 12 L/s
Measuring Accuracy Complies with ATS (American Thoracic Society)
ENVIRONMENTAL
Ambient Temperature 15 to 40°C (59 to 104°F)
Relative Humidity 10 to 90% (non-condensing)
Atmospheric Pressure 700 to 1060 hPa

What's Included

  • SpiroCare Main Unit with Spirometer Handle
  • 1 Medi-Graph Paper Roll
  • 20 Disposable Mouthpieces
  • 1 Nose Clip
  • 1 Mouthpiece Adapter
  • Hospital Grade Power Cord
  • Operation Manual
  • Diagnostics Guide Book
  • 3-Year Warranty Card
  • WiFi USB Dongle
  • USB Flash Drive with BMS-Plus Software Included
