Integrated ECG and Spirometry Diagnostics Made Simple

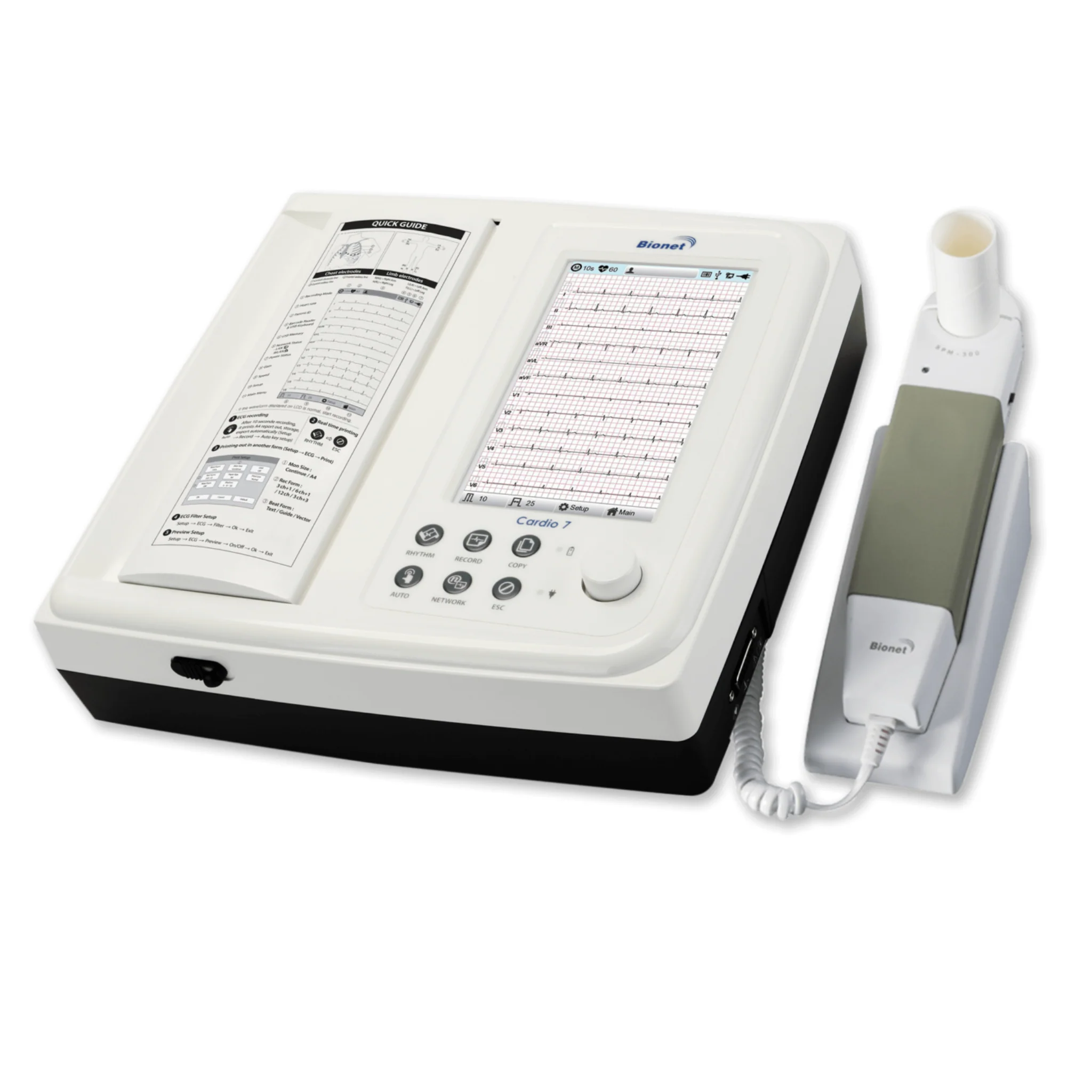

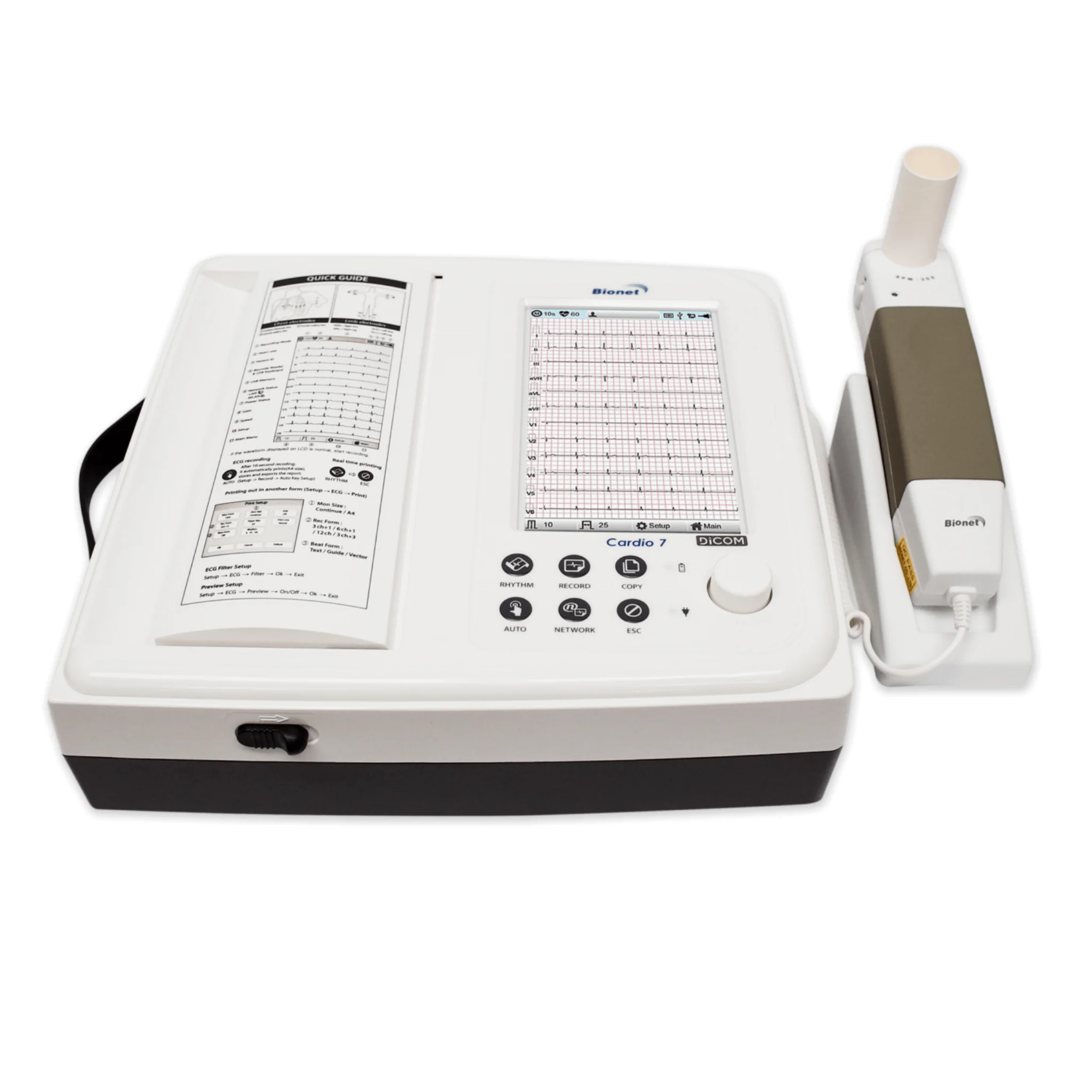

The Cardio7-S is an interpretive touchscreen ECG EKG machine with integrated spirometry, designed to deliver complete cardiac and pulmonary diagnostics in one system. It features a 7 inch TFT LCD touchscreen with built-in Wi-Fi connectivity and supports USB devices, QWERTY keyboard input, and multiple export formats including JPEG, PDF, XML, MFER, and DICOM.
The system performs simultaneous 12-lead ECG acquisition and stores up to 200 ECG and pulmonary function tests. Its full disclosure ECG function displays the most recent 5-minute full-channel ECG, helping identify missed abnormal waveforms. Long-term ECG recording, automatic arrhythmia detection, and HRV analysis support accurate clinical evaluation.
Integrated spirometry testing includes FVC, SVC, and MVV with pre- and post-bronchodilator comparison. The Cardio7-S produces clear full-size A4 ECG and PFT reports and connects seamlessly to EMR and PACS systems through BMS-Plus software via LAN or Wi-Fi.
Simultaneous 12-Channel ECG
Captures all 12 leads at the same time for accurate resting ECG recordings and reliable clinical analysis.
Spirometer Function Included
Integrated spirometry supports fast and reliable pulmonary function assessment.
7" Color TFT Touchscreen Display
Large, high-resolution touchscreen provides clear real-time ECG waveform preview for accurate monitoring.
Long-Term Recording with Arrhythmia Detection
Supports 3, 5, and 10 minute recordings with automatic arrhythmia detection for extended cardiac evaluation.
Full-Size A4 Printing
Supports multiple print formats on full-size A4 paper, improving readability and making chart filing easier.
BMS Plus Software Connectivity
Transfers digital ECG data to Windows-based PCs for storage, review, and seamless patient record management.
| ECG PERFORMANCE | |
|---|---|
| ECG Leads | 12 channel simultaneous ECG acquisition |
| Recording Modes | Auto, rhythm, disclosure, arrhythmia detect |
| Recording Channels | 3 channels + 1 rhythm, 3 channels + 3 rhythm, 6 channels + 1 rhythm, 12 channels, 1 channel long time (1 min, 3 min, 5 min, 10 min), special reports (text, guide, vector) |
| Sensitivity | 2.5, 5, 10, 20, auto (I–aVF: 10, V1–V6: 5) mm/mV |
| Print Speed | 5, 12.5, 25, 50, 100 mm/s |
| Sampling Rate | 2,000 samples per second |
| Filters | AC (50/60 Hz, -20 dB or better) Muscle (25–35 Hz, -3 dB or better) Baseline drift (0.05, 0.1, 0.2 Hz, -3 dB or better) Low pass (off, 40 Hz, 100 Hz, 150 Hz) |
| DISPLAY AND INTERFACE | |
| Display | 7" color TFT wide display (800 × 480) |
| Monitor Info | HR, ID, date, AC or battery state, sensitivity, speed, number of saved data, printing form, rhythm lead |
| User Interface | Touch screen, hot key, barcode scanner, USB keyboard |
| PATIENT DATA AND MEASUREMENTS | |
| Patient Data | ID, name, age, sex, height, weight, smoke, race |
| Measurements | Heart rate, PR, QRS, QT/QTc, P–R–T axis |
| RECORDER AND PAPER | |
| Recorder | Thermal print head, thermal roll paper |
| Paper Size | A4 215 mm (8.5") × 297 mm (11.7"), Letter 215 mm (8.5") × 280 mm (11") |
| Resolution | Vertical: 8 dot/mm Horizontal: 16 dot/mm |
| ELECTRICAL AND SIGNAL | |
| Internal Noise | 20 uV (p-p) max |
| Input Impedance | More than 50 MΩ |
| Input Voltage Range | ±5 mV |
| CMRR | +105 dB |
| DC Offset | ≥ ±400 mV |
| Protection | Isolated, defibrillation and ESU protected |
| Frequency Response | 0.05–150 Hz (within -3 dB) |
| Leakage Current | < 10 uA |
| Signal Quality | Pacemaker pulse detection, lead fault detection, signal saturation detection |
| DATA AND CONNECTIVITY | |
| ECG Storage | Internal storage for 200 ECGs, external USB flash drive |
| External Link | LAN, 2 USB ports |
| File Formats | PDF, JPG, XML, MFER, DCM |
| Communication | RS232, LAN, WiFi, USB flash drive, USB barcode scanner |
| POWER AND BATTERY | |
| Power Input | 100–240 VAC, 2–1 A, 50/60 Hz |
| Power Output | 60 VA max |
| Battery Type | Replaceable and rechargeable lithium ion |
| Battery Capacity | 6 hours continuous operation without printing, or approximately 3 hours for 200 ECG printouts |
| SAFETY AND ENVIRONMENT | |
| Certifications | Class 1, Type CF, CE, FDA, KFDA, CFDA, NCC |
| Operating Humidity | 30–85% |
| Operating Temperature | 10°–40°C |
| PHYSICAL | |
| Dimensions | 300 mm (W) × 299 mm (H) × 123 mm (D) |
| Weight | Approximately 4 kg |
