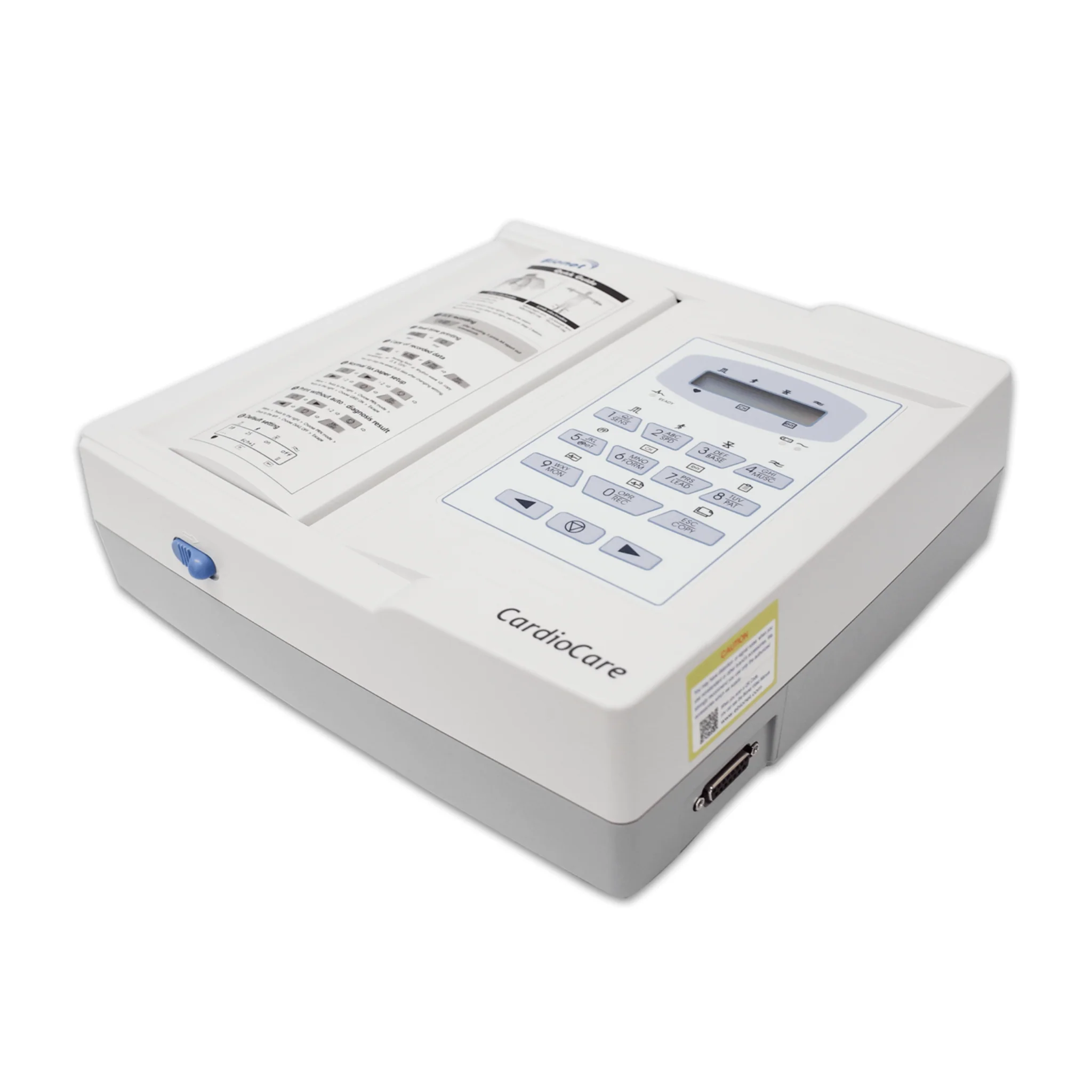

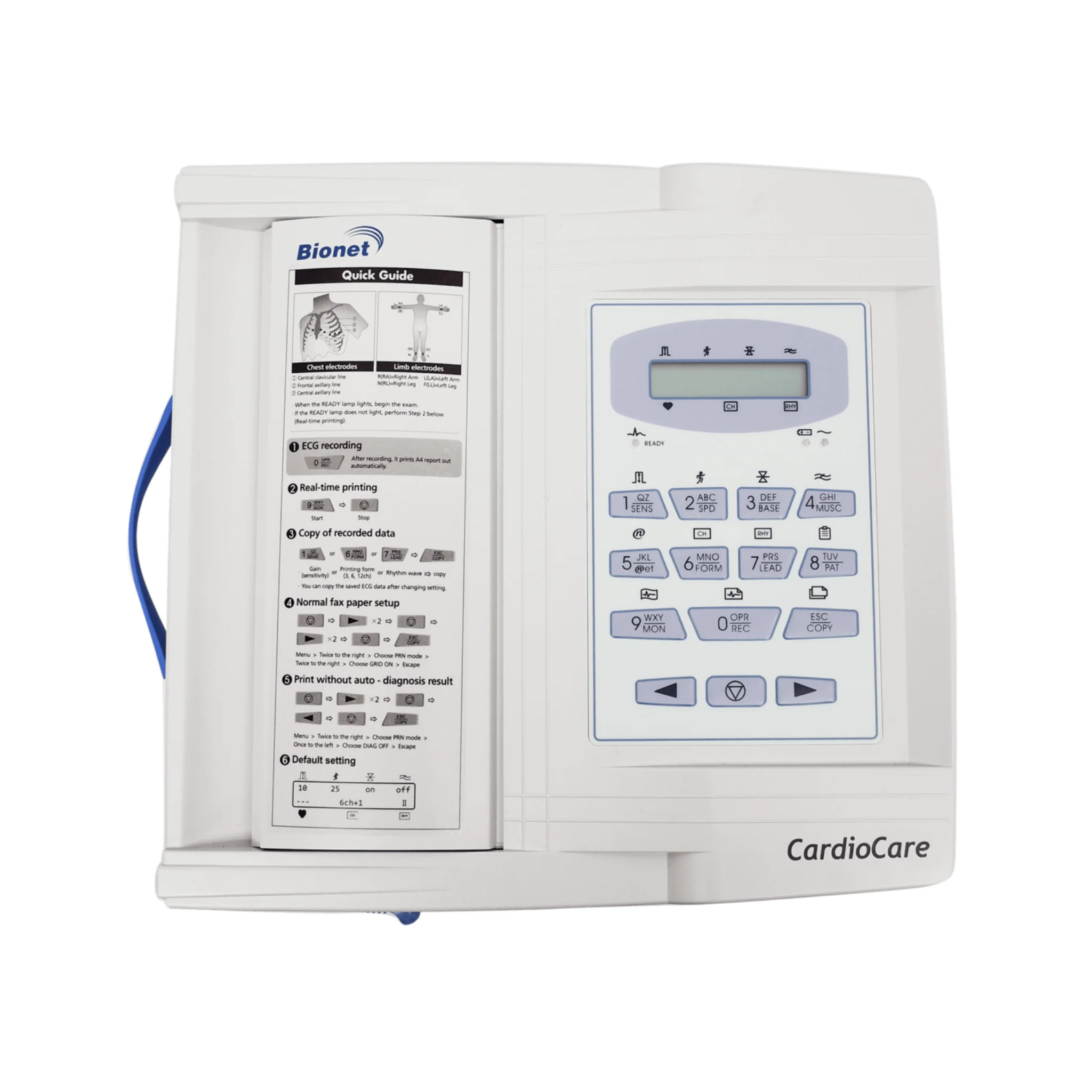

Bionet CardioCare 2000 12-Channel ECG EKG Machine

Reliable 12-Channel ECG Diagnostics Made Simple

The Bionet CardioCare 2000 is a cost-effective interpretive 12-channel ECG EKG machine designed to deliver reliable performance without unnecessary complexity. Ideal for private practices, emergency departments, and hospital settings, it combines clinical accuracy with everyday usability to support confident cardiac assessment.

This system captures a full 10 seconds of ECG data simultaneously from 10 leads, producing precise 12-channel waveforms with automated analysis. Its advanced interpretation program delivers over 80 diagnostic results based on the Minnesota Code, with algorithms that continue to improve through regular software updates.

The CardioCare 2000 prints clear, full-size A4 reports in 1, 3, 6, or 12-channel formats for easy review and chart filing. With LAN connectivity and BMS-Plus software compatibility, ECG data can be stored, reviewed, and exported in ECG, JPEG, or PDF formats. User-upgradeable software ensures the system remains current as your diagnostic needs evolve.

Features

Simultaneous 12-Channel ECG

Captures all 12 leads at the same time for accurate resting ECG recordings and reliable clinical analysis.

Advanced ECG Interpretation

Built-in interpretation program delivers automated diagnostic results to support faster, more confident evaluations.

One-Touch Operation

Simple controls allow instant monitoring and recording with a single button press.

Full-Size A4 Printing

Supports multiple print formats on full-size A4 paper, improving readability and making chart filing easier.

BMS Plus Software Connectivity

Transfers digital ECG data to Windows-based PCs for storage, review, and seamless patient record management.

Specifications

ECG PERFORMANCE
ECG Leads	12 lead, simultaneous ECG acquisition
Recording Channels	3, 6, 12 channel and 1 channel (60 sec)
Sensitivity	5, 10, 20, auto (µV = AVF: 10, V1–V6: 5 mm/mV)
Print Speed	12.5, 25, 50 mm/s
Sampling Rate	500 samples/sec
Filters	AC (50/60 Hz, -20 dB or better) Muscle (25–35 Hz, -3 dB or better) Baseline drift (0.1 Hz, -3 dB or better) Low pass (off, 40 Hz, 100 Hz, 150 Hz)
DISPLAY AND CONTROLS
Display	2 × 16 character LCD display
On-Screen Info	Sensitivity, speed, filter status, HR, printing format, rhythm lead, signal quality, power source, battery
LED Indicator	Status indication
Keyboard	Membrane keyboard, alphanumeric and symbol available
PATIENT DATA AND MEASUREMENTS
Patient Data	ID, name, age, sex, height, weight
Measurements	Heart rate, PR interval, QRS duration, QT/QTc, P–R–T axis
RECORDER AND OUTPUT
Recorder	Thermal print head, thermal roll paper
Paper Width	A4 210 mm (8.5")
Paper Length	A4 300 mm (11")
Writing Width	204 mm
Resolution	Vertical: 8 dots/mm Horizontal: 16 dots/mm
ELECTRICAL SPECIFICATIONS
Internal Noise	20 µV (p-p) max
Input Circuit	Floating input
Protection	Isolated and defibrillation protected
Input Impedance	≥ 10 MΩ
Input Voltage Range	≥ ±5 mV
Common Mode Rejection	≥ +100 dB
DC Offset Voltage	≥ ±300 mV
Time Constant	3.2 sec
Leakage Current	< 10 µA
Frequency Response	0.05–150 Hz
POWER AND CONNECTIVITY
Signal Quality Control	Disconnected lead detection
Power Source	AC power or built-in battery (optional)
Power Requirement	100–240 Vac, 50/60 Hz, 1.0–0.5 A
Power Consumption	60 W max
Battery Capacity	1 hour normal use (approximately 100 automatic ECG printouts)
Communication	PC connection via RS-232 interface and LAN
SAFETY, COMPLIANCE, AND ENVIRONMENT
Safety Class	Class I, Type BF
Certifications	CE, CSA, FDA, KFDA, SFDA, CCC
Operating Humidity	30–85%
Operating Temperature	10°–40°C
Atmospheric Pressure	70–106 kPa
PHYSICAL
Dimensions	296 mm (W) × 305.5 mm (H) × 92.5 mm (D)
Weight	Approx. 2.98 kg

What's Included

• CardioCare 2000 main unit
• 10-lead ECG patient cable
• Alligator clips
• Electrodes
• Medi-Graph paper
• Hospital-grade power cord
• Operation manual
• Diagnostics guide book
• Quick reference guide
• 3-year warranty card
