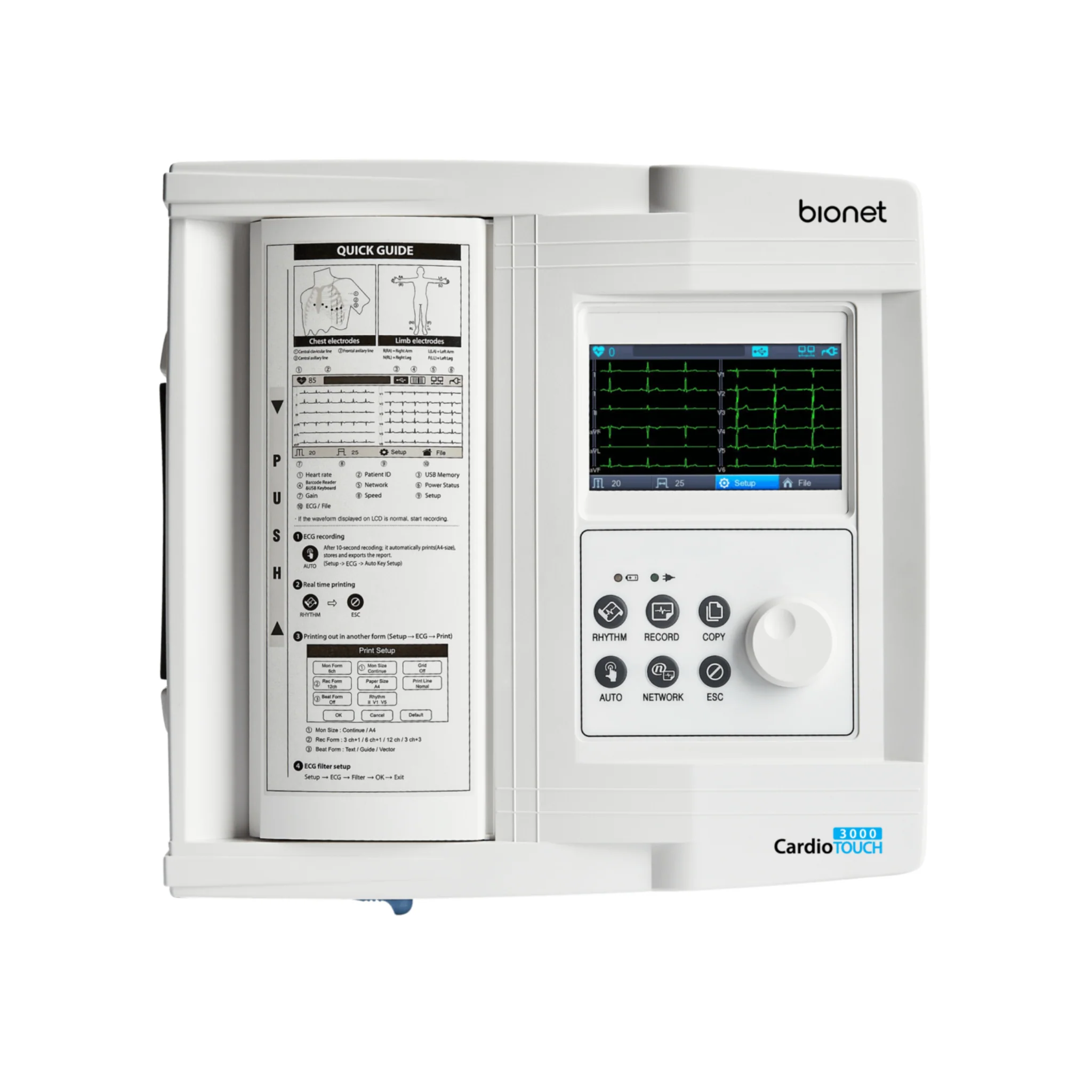

Bionet CardioTouch 3000 Premium Interpretive 12-Channel ECG EKG Machine
Premium 12-Channel ECG Diagnostics Made Simple
The CardioTouch 3000 is a premium interpretive 12-channel ECG EKG machine designed to deliver high-performance cardiac diagnostics with exceptional ease of use. Ideal for private practices, emergency departments, and hospital environments, it combines clinical accuracy with an intuitive ECG workflow to support fast and confident evaluations.
Featuring a 4.3 inch touchscreen ECG display with rotary control, the CardioTouch 3000 enables simple operation through one-touch AUTO ECG acquisition. The system completes ECG recording, data storage, and A4 ECG printout in approximately three seconds. Its high-speed ECG sampling rate ensures precise waveform capture, while full-size 12-lead ECG reports improve readability and documentation.
With over 120 ECG interpretation algorithms, a rechargeable lithium-ion battery, and wired and wireless ECG connectivity, the CardioTouch 3000 integrates seamlessly into modern clinical settings. The included BMS-Plus ECG management software allows ECG data transfer to Windows PCs and EMR systems, supporting multiple formats including ECG, JPEG, and PDF for efficient patient record management.
Features
Simultaneous 12-Channel ECG
Captures all 12 leads at the same time for accurate resting ECG recordings and reliable clinical analysis.
Advanced ECG Interpretation
Built-in interpretation program delivers automated diagnostic results to support faster, more confident evaluations.
One-Touch Operation
Simple controls allow instant monitoring and recording with a single button press.
Full-Size A4 Printing
Supports multiple print formats on full-size A4 paper, improving readability and making chart filing easier.
BMS Plus Software Connectivity
Transfers digital ECG data to Windows-based PCs for storage, review, and seamless patient record management.
Specifications
| ECG PERFORMANCE | |
|---|---|
| ECG Leads | Simultaneous 10 leads resting ECG (12 channel) |
| Recording Channels | 3CH+1RHY, 3CH+3RHY, 6CH+1RHY, 12CH, 1CH long time (1 min), beat report |
| Sensitivity | 2.5, 5, 10, 20, auto (I–aVF: 10, V1–V6: 5) mm/mV |
| Print Speed | 5, 12.5, 25, 50, 100 mm/sec |
| Sampling Rate | Analysis: 500 sample/sec Digital: 8,000 sample/sec |
| Filters | AC (50/60 Hz, -20 dB or better) Muscle (25–35 Hz, -3 dB or better) Baseline drift (off, 0.05, 0.1, 0.2 Hz, -3 dB or better) Low pass (off, 40 Hz, 100 Hz, 150 Hz) |
| DISPLAY AND INTERFACE | |
| Display | 272 × 480 pixels, 4.3" color TFT display |
| Screen Info | 12 channels preview, ID, HR, gain, speed, power status |
| User Interface | Touch screen, rotary push-knob |
| OUTPUT AND FILES | |
| Export Formats | ECG, XML, PDF, JPEG, MFER |
| Recorder | Thermal print head, roll paper |
| Paper Width | A4 or Letter, 215 mm (8.5") |
| Paper Length | A4 297 mm (11.7"), Letter 279 mm (11") |
| Resolution | 8 dot/mm (0.125 mm pitch) |
| PATIENT DATA AND MEASUREMENTS | |
| Patient Data | ID, name, age, gender, height, weight |
| Heart Rate | 30–300 bpm (±3 bpm) |
| Measurements | PR, QRS, QT/QTc, P–R–T axis |
| ECG Storage | Internal storage for 200 ECGs (built-in memory), external memory available |
| ELECTRICAL AND SIGNAL | |
| Internal Noise | 20 uV (p-p) max |
| Input Impedance | More than 50 MΩ |
| Input Voltage Range | ±5 mV |
| CMRR | Greater than 105 dB |
| DC Offset | ≥ ±400 mV |
| Leakage Current | < 10 uA |
| Frequency Response | 0.05–150 Hz (within -3 dB) |
| Protection | Isolated, defibrillation and ESU protected |
| Signal Quality | Pacemaker pulse detection, lead fault detection, signal saturation detection |
| POWER AND CONNECTIVITY | |
| Power Input | 100–240 Vac, 1.5–0.75 A, 50–60 Hz |
| Power Output | 15 Vdc, 4.2 A |
| Battery Type | Replaceable and rechargeable lithium ion, 11.1 V, 2600 mA |
| Battery Capacity | 6 hours normal use (without recording, 200 ECGs) with 12 channel, charge time 3 hours |
| Communication | LAN, USB, WiFi (option) |
| SAFETY AND ENVIRONMENT | |
| Safety Class | Class I, Type CF (defibrillation-proof applied part) |
| Operating Temperature | 5–40°C |
| Operating Humidity | 10–90% RH |
| Atmospheric Pressure | 70–106 kPa |
| PHYSICAL | |
| Dimensions | 290 mm (W) × 300 mm (D) × 97.5 mm (H) |
| Weight | Approximately 3.5 kg (main body) |
What's Included
- CardioTouch 3000 main unit
- 10-lead ECG patient cable
- Alligator clips
- Electrodes
- Medi-Graph paper
- Hospital-grade power cord
- Operation manual
- Diagnostics guide book
- Quick reference guide
