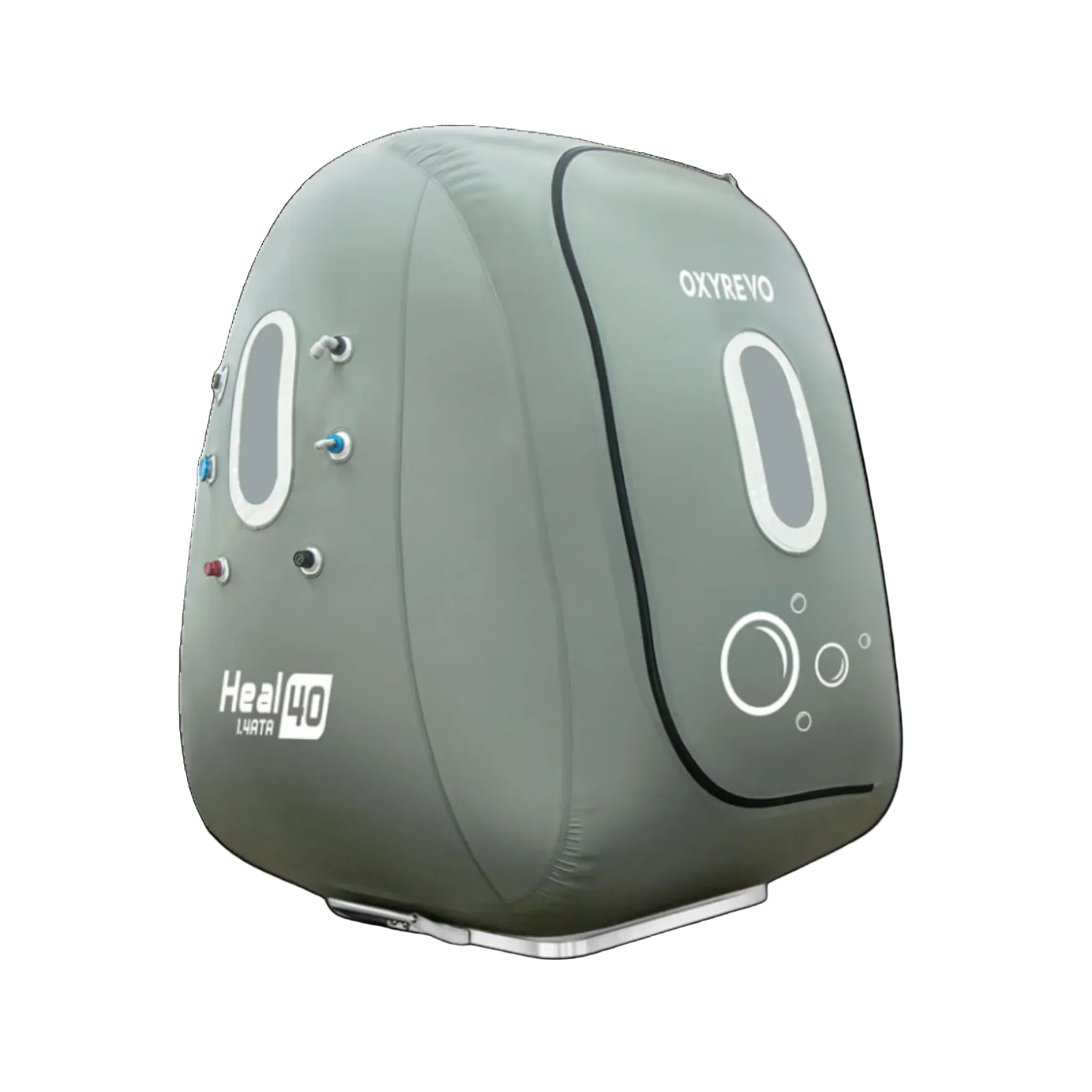

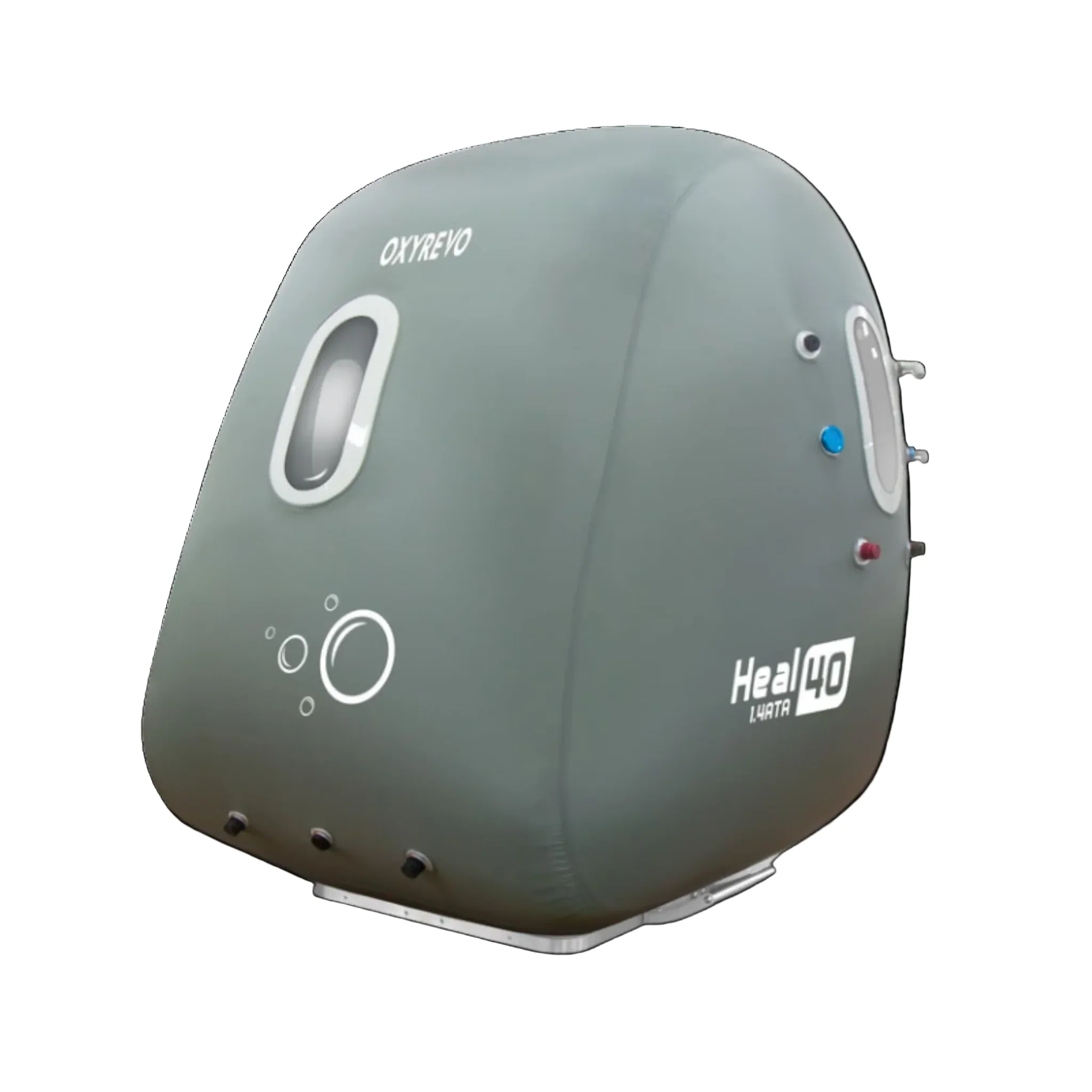

OXYREVO Heal40 1.4 ATA Wheelchair Hyperbaric Chamber

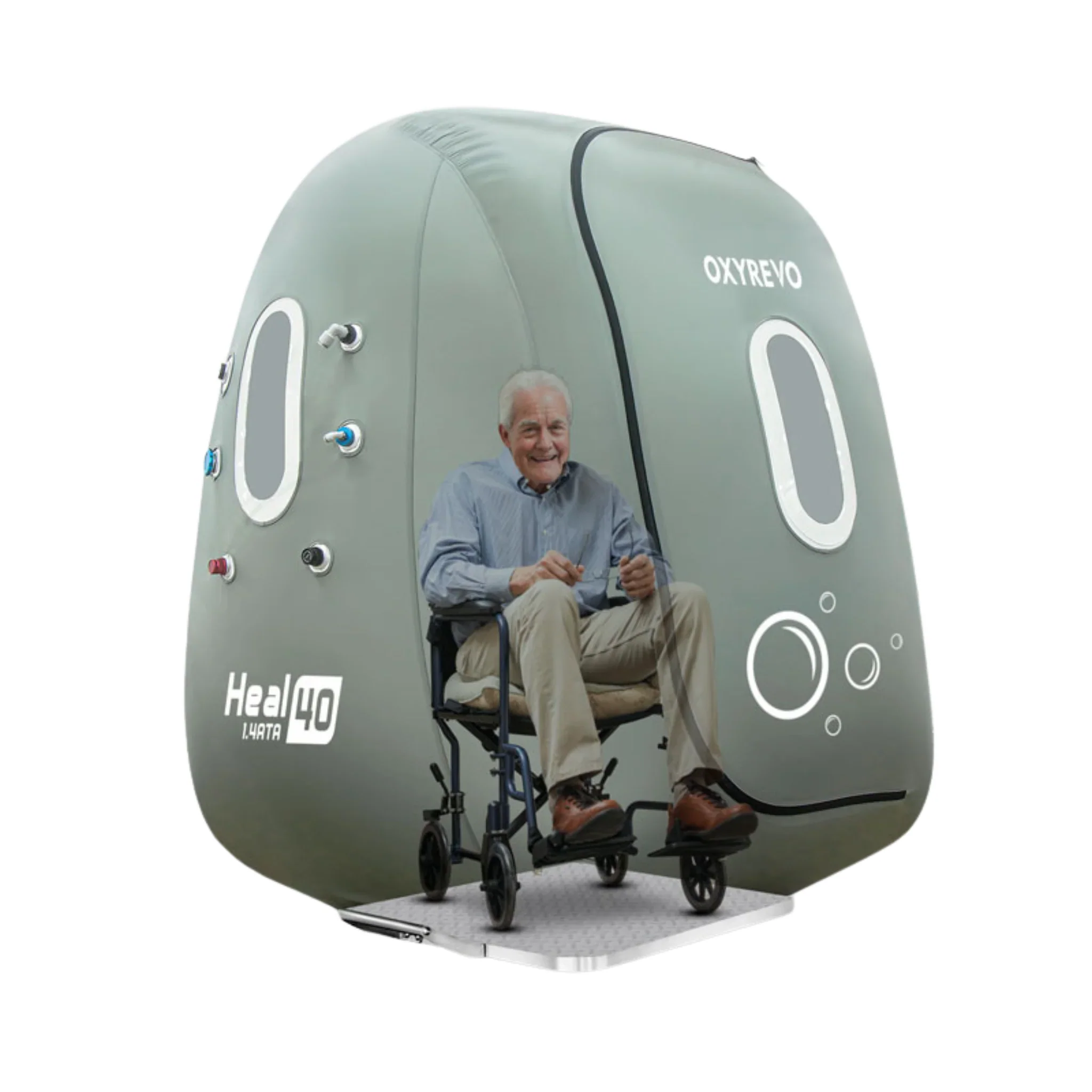

The OxyRevo Heal 40 is designed for wheelchair users, with a size of 67” L × 62” W × 75” H, The wheelchair ramp is about 26" wide. Its aluminum base and slope make entry simple, and it can also fit a regular chair for seated therapy.

Built with eco-friendly, non-toxic materials, it features custom valves, dual YKK zippers, dual air filters, and a sturdy internal frame for stability. Large windows bring in natural light.

A 10L oxygen concentrator delivers 90–97% oxygen purity, with dual pressure displays and release controls inside and outside for safe, easy use.

What’s the AC Upgrade?
Your chamber includes a basic air cooler, keeping it just a bit cooler than room temperature (about 2–4°F warmer inside).

Upgrade to the Water Chiller AC Unit to:

• Control temperature actively
• Keep the chamber cool, even in warm rooms
• Stay comfortable during longer sessions

Want flexibility?
Choose “AC-Ready” ports are pre-cut so you can add AC later without modifications. Perfect backup for hot days.

Why Combine Red Light Therapy and HBOT?

HBOT increases oxygen delivery to tissues, supporting repair, circulation, and reducing inflammation, while RLT stimulates mitochondria to boost energy production and collagen. When combined, they complement each other by improving oxygen use at the cellular level, leading to faster healing, better recovery, and more effective overall results.

Every chamber from Morelli Medical includes a free Protocol Book with step-by-step instructions, expert tips, and guidance for using your chamber safely for 20+ conditions.

Features, Benefits & Applications

• 67" L x 62" W x 75" H, ideal for wheelchair users or a chair.

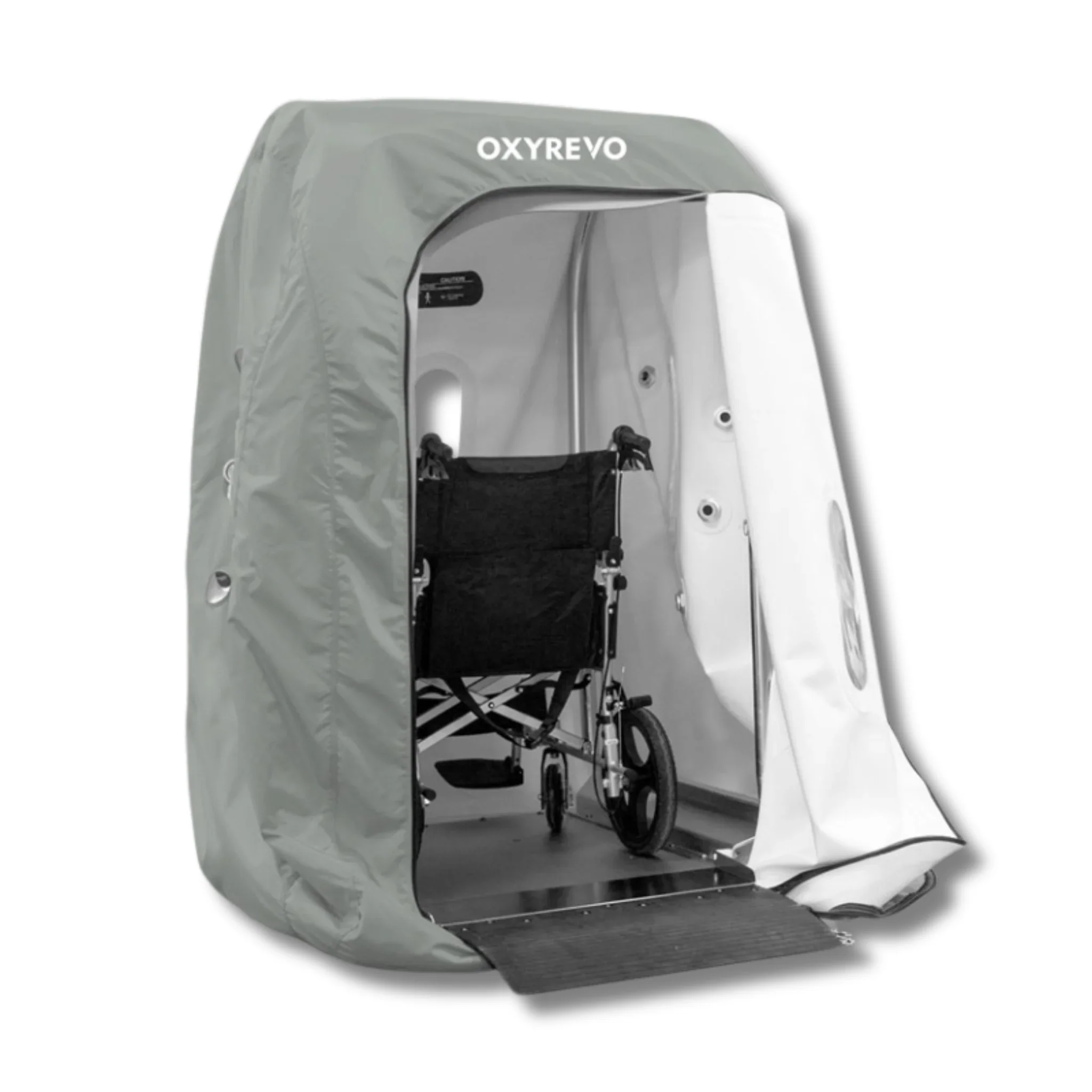

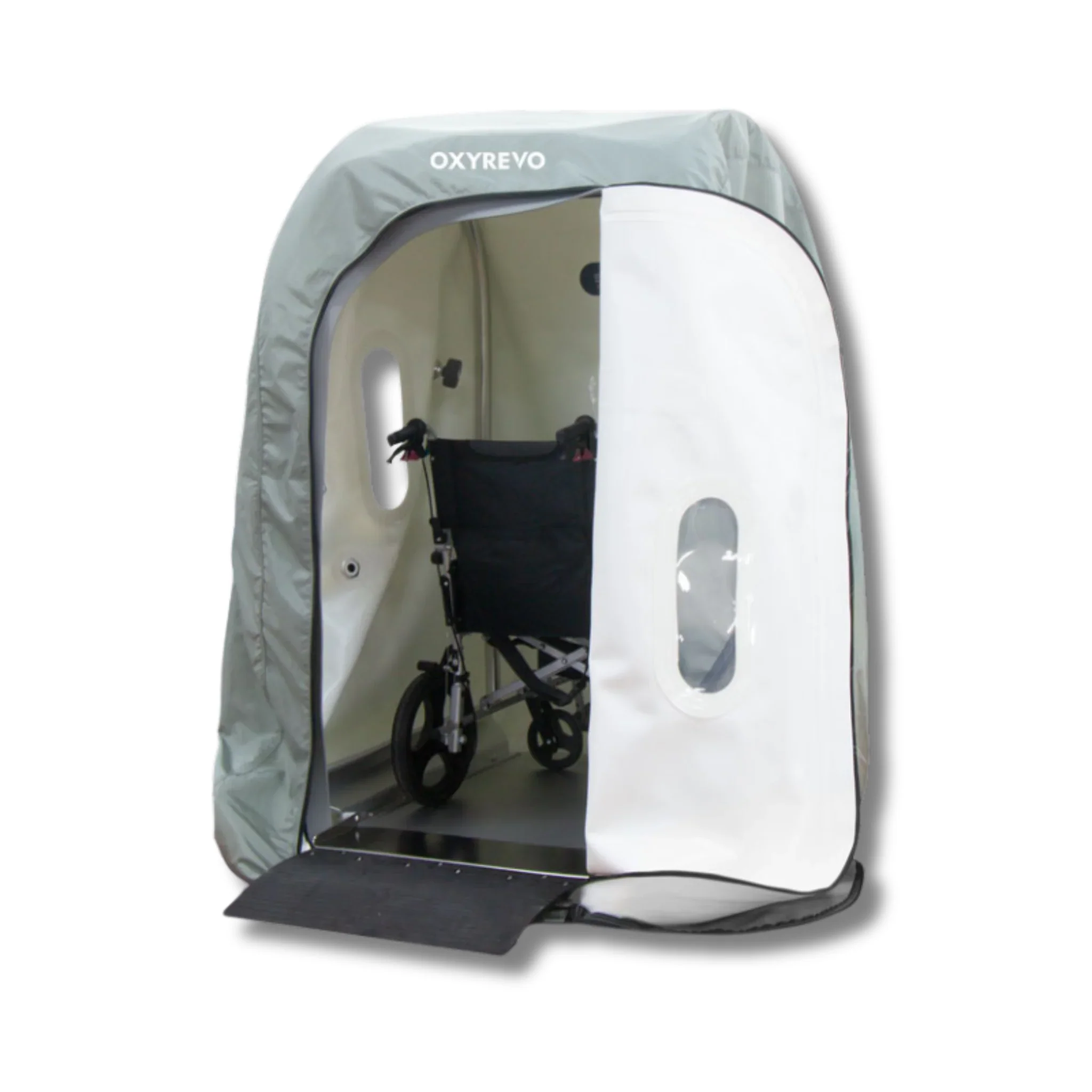

• Sturdy aluminum base with a gentle slope for smooth wheelchair entry.
• Four large double-layered windows for light, visibility, and reduced claustrophobia.
• Operates at ≤50 dB for a peaceful therapy experience.
• Dual YKK zippers for smooth inside and outside access.
• Custom valves and dual air filters remove PM2.5 particles for a safe environment.

• Includes a 10L oxygen concentrator delivering 90-97% pure oxygen.
• Dual pressure displays for accurate, inside-and-outside monitoring.

Benefits

Faster healing, reduced inflammation, stronger immunity, stress relief, improved skin and energy, enhanced recovery for athletes, and support for chronic conditions.

Applications

Ideal for post-surgery, sports injuries, migraines, stroke, TBI, chronic fatigue, autism, diabetes, and overall wellness recovery.

Specifications

Chamber
	Working Pressure: 1.4 ATA Weight: 43 kg / 95 lbs Dimensions: 67" L × 62" W × 75" H (5.58 ft × 5.17 ft × 6.25 ft) Wheelchair Ramp Width: 26" wide Windows: 4 large double-layered windows Sound Level: ≤50 dB Cover Color: Grey / OEM available
Standard Version
	Air Compressor: Model AE01, 110V/220V, 19.29" L × 11.42" W × 15.75" H, 550W, 72 L/min, 35 lbs Air Cooler: Model ZLA01, 110V/220V, 11.81" L × 7.48" W × 13.39" H, 210W, 120 L/min, 13 lbs Oxygen Concentrator: Model HG10, 110V/220V, 18.11" L × 17.32" W × 30.71" H, 500W, 10 L/min, 66 lbs Operation: Separate units, individual setup and control Efficiency: Dehumidifying and cooling, continuous oxygen, double input/output filters Additional Features: Lower cost, portable, lightweight, economical transport

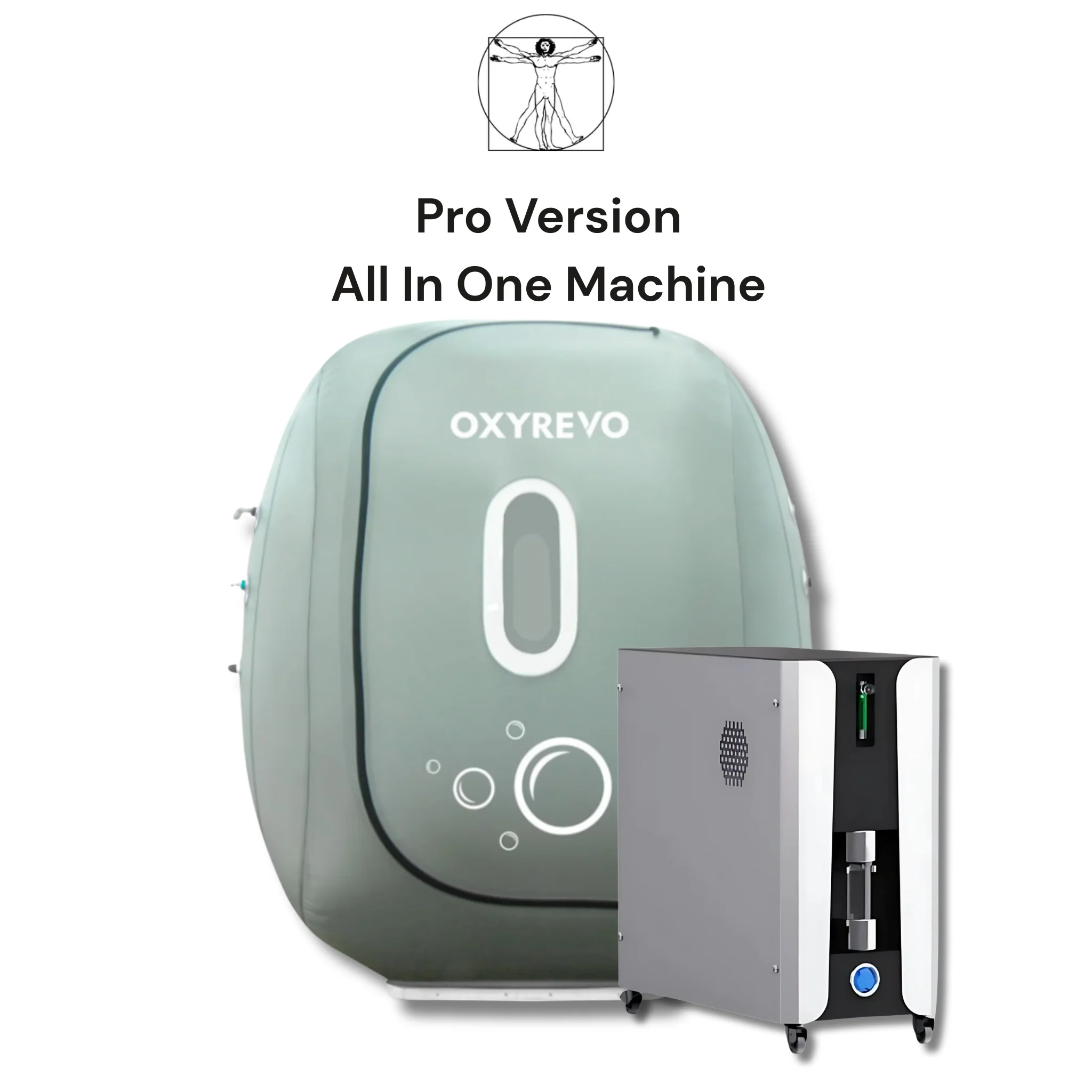

Pro Version Specifications
	All-in-One Machine Unit: Air Compressor (1), Oxygen Concentrator 10L, Cooling Machines (2), Anion Generator, Timing Alarm, Oxygen Meter, Water Container, Air Filters Dimensions & Weight: 27.56" L × 13.78" W × 29.53" H, 176.37 lbs Operation: Integrated functions, one-press activation Efficiency: Enhanced dehumidifying and cooling, continuous oxygen, double activated carbon filters Additional Features: Nano Water Ion Technology, 99% virus sterilization rate

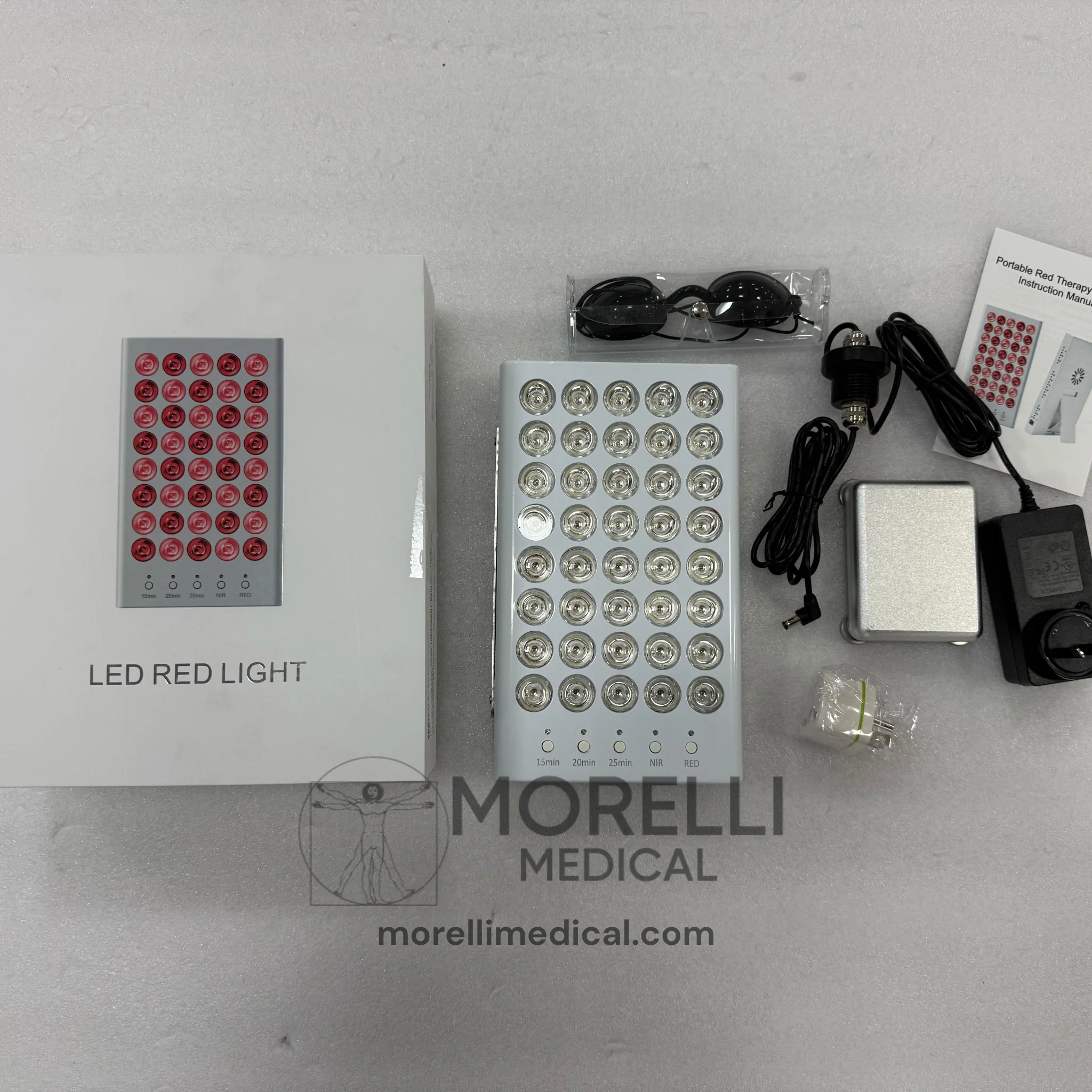

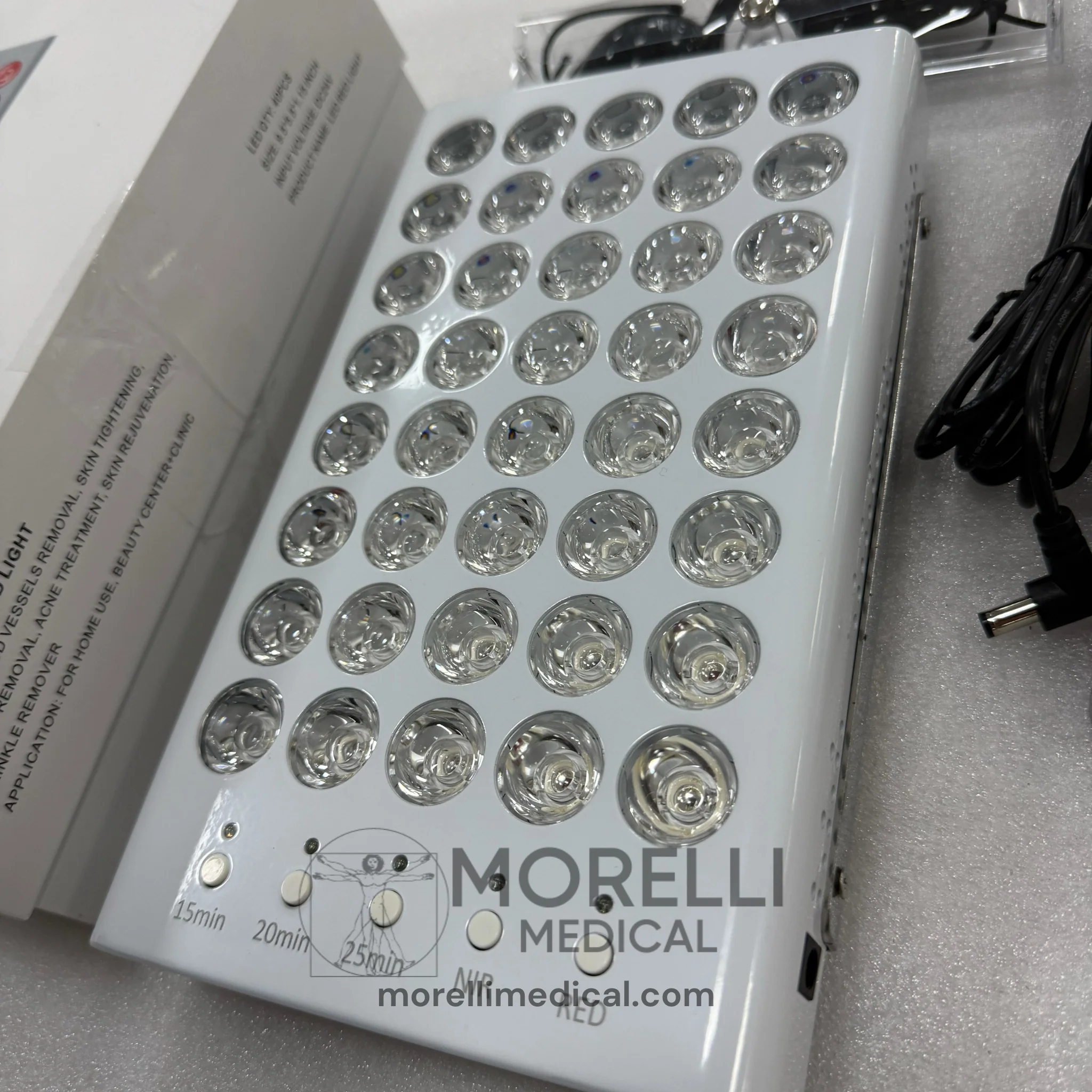

Optional Add-On: Red Light Therapy
	Red Light Wavelength: 660 nm Near-Infrared Wavelength: 850 nm Power Supply: DC 24V Power Rating: 200W LEDs: 40 pcs Panel Dimensions: 9.45" × 5.51" × 1.18"
Water Chiller AC
	Input Power: AC220V / 50Hz Total Power: 230W – 900W (varies by model) Tank Capacity: 4L – 5L (≈ 1.0 – 1.3 gallons) Cooling Capacity: 1,875 BTU – 6,480 BTU Temperature Control Range: 14°F to –40°F (model dependent) Accuracy: ±1.8°F (±1°C) Display Resolution: 0.1°F (0.1°C) Sensor Type: PT100 Flow Rate: 2.6 – 4.0 gallons/min (10 – 15 L/min) Lift Height: 10 – 23 ft (3 – 7 m) Cooling Tank Size: ~7" × 6" (Φ18×16 cm) up to 8.7" × 7" (Φ22×18 cm) Net Weight: 66 – 121 lbs (30 – 55 kg) Dimensions: 15.7" × 11" × 21" up to 18.5" × 14.5" × 26.8"

What's in the Box?

The OXYREVO Heal 40 Portable Wheelchair Hyperbaric Chamber includes everything you need to start your hyperbaric oxygen therapy journey. The package includes:

Chamber:

• Internal/external pressure gauges
• Pressure deflate valves
• Control panels
• Display screen
• Communication system
• Pressure relief valves


Operating Unit:

• Oil-free air compressor
• 10L oxygen concentrator
• Cooling machines
• Anion air purifier
• Air sterilizer
• Air filter
• Humidity water container
• All-in-One Machine (For Pro Version)

Accessories:

• Oxygen mask
• Spare Activated Carbon Cotton Filters
• Fuses
• Air/oxygen tubes
• Power cable

Education:

• FREE Protocol Book ($1000 Value)
