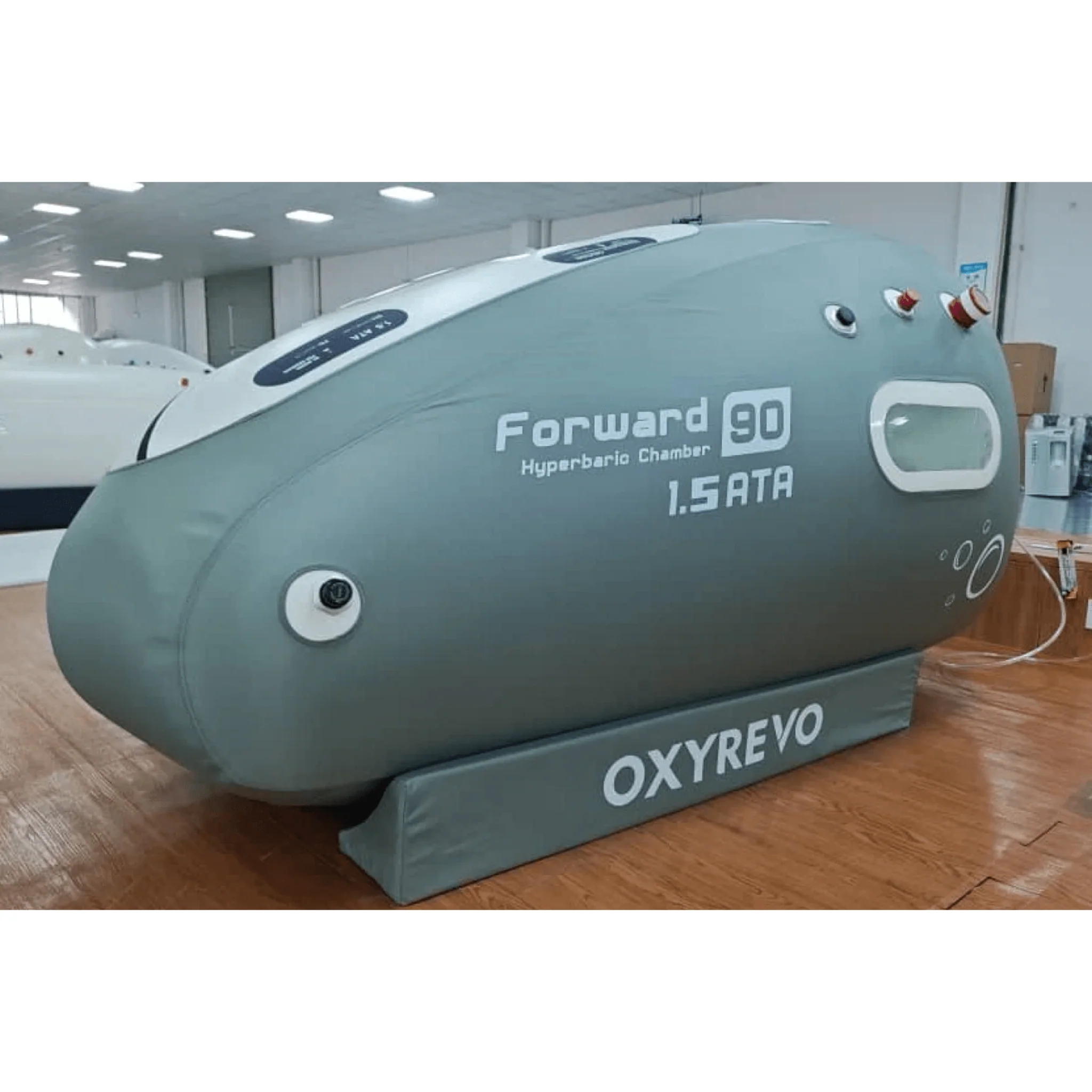

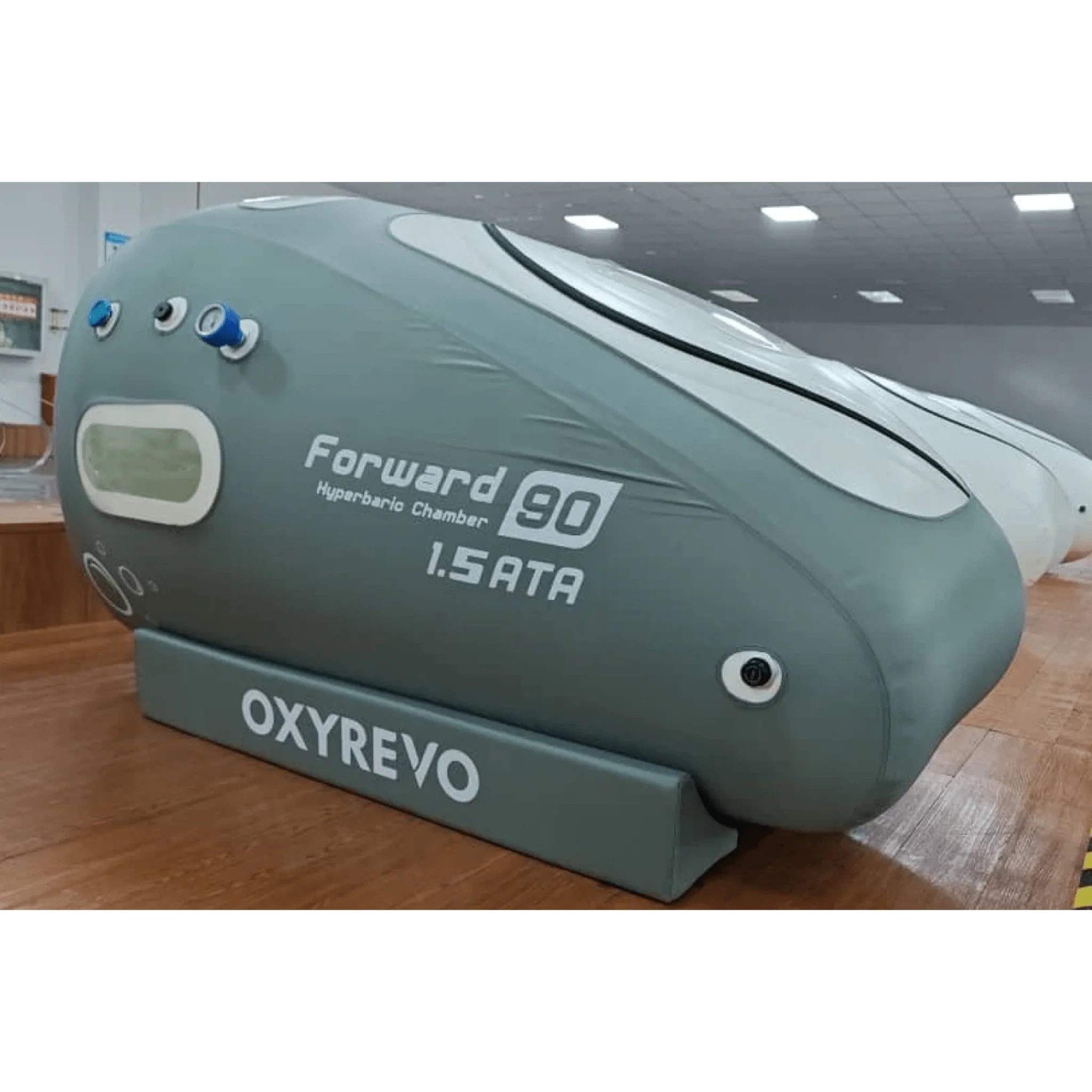

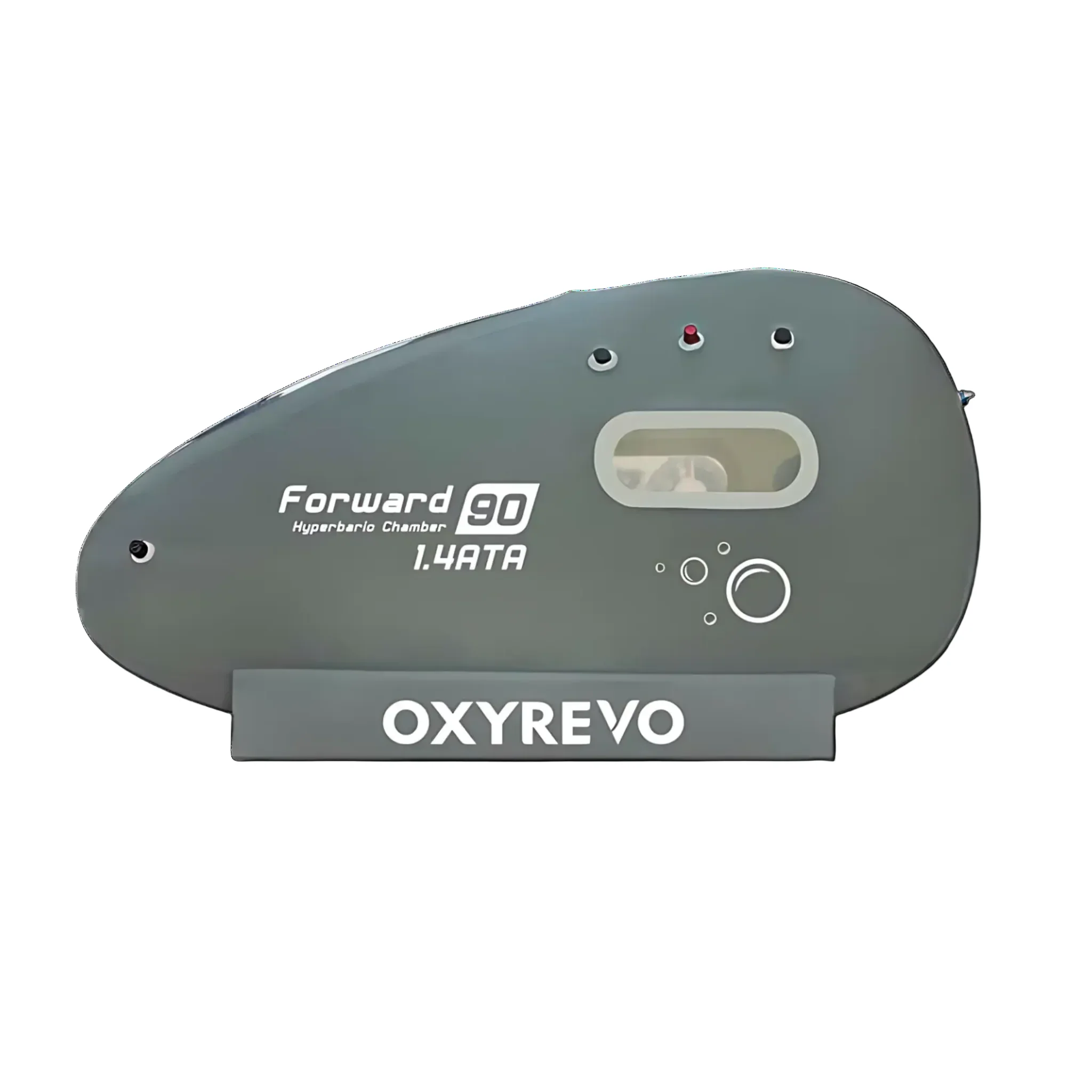

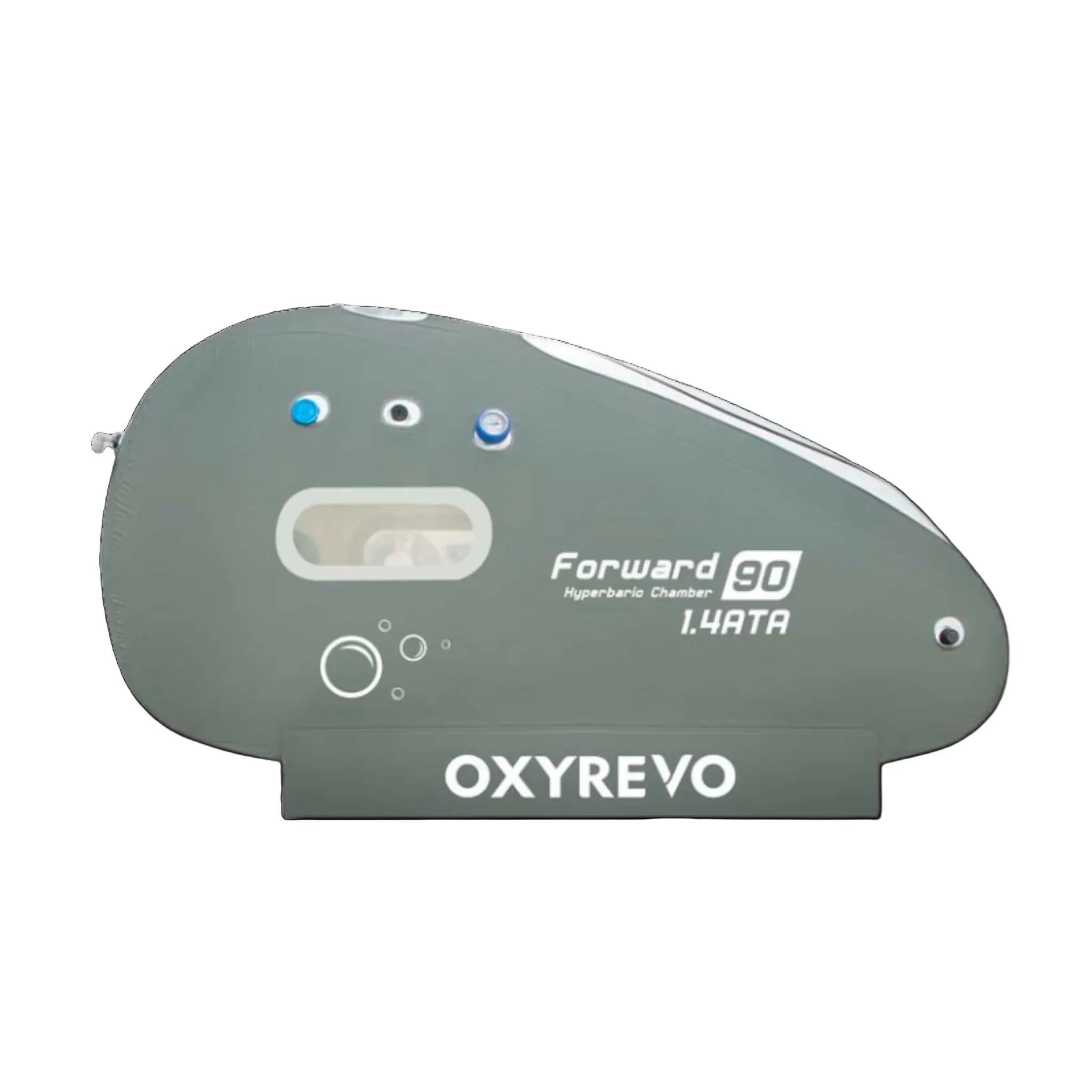

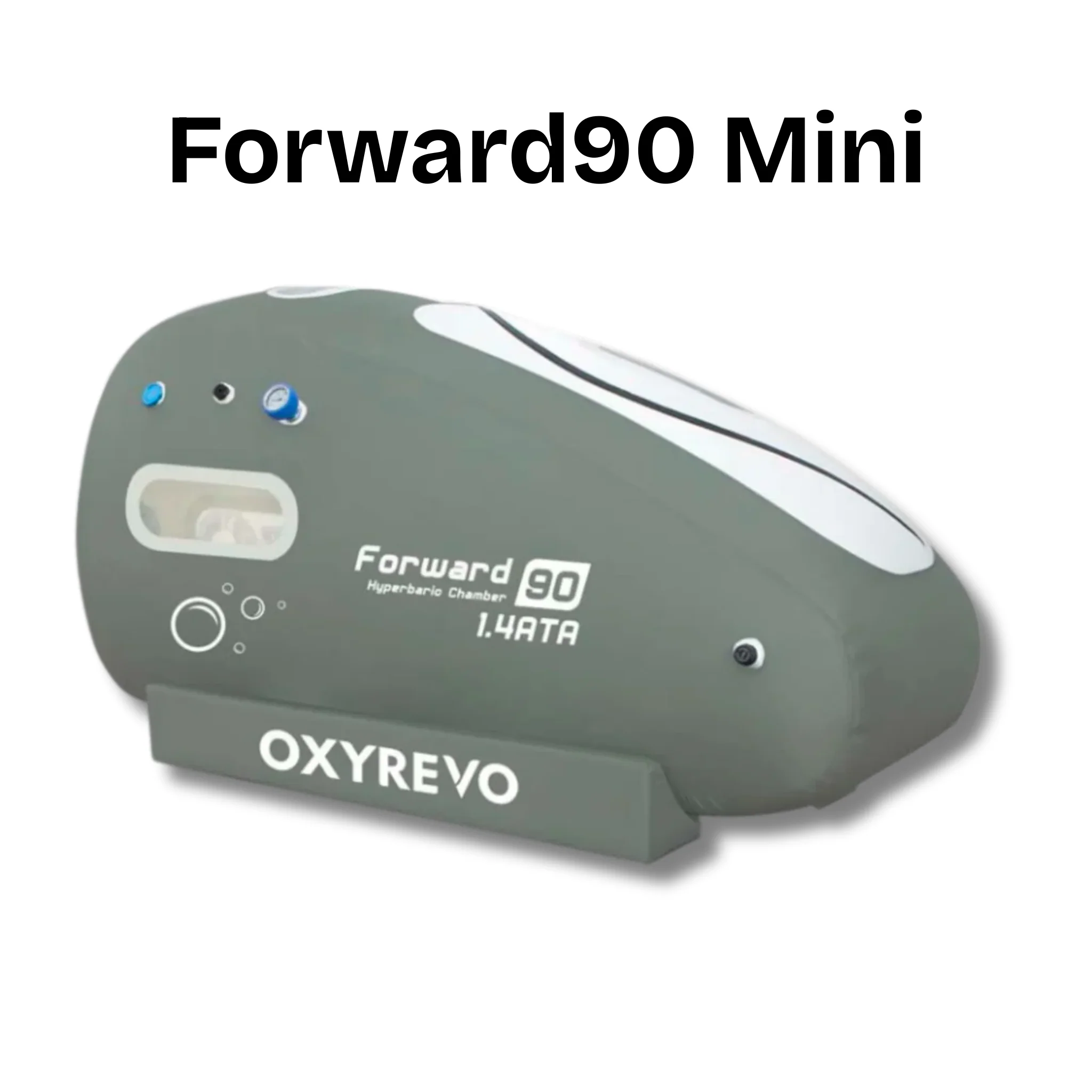

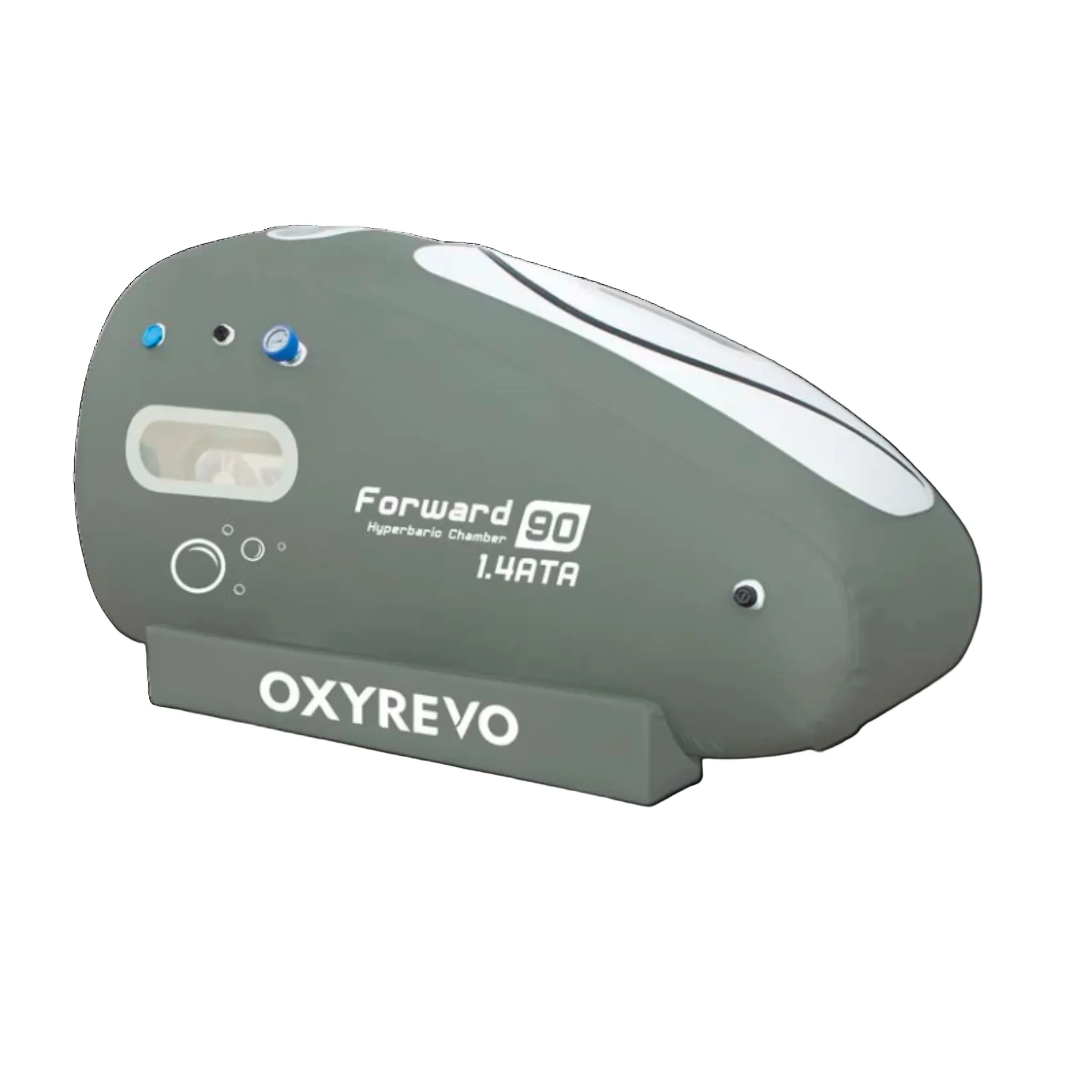

OXYREVO Forward90 1.4 to 1.5 ATA Portable Sitting Hyperbaric Chamber

Sit, recline, or lie down inside your Hyperbaric Chamber.

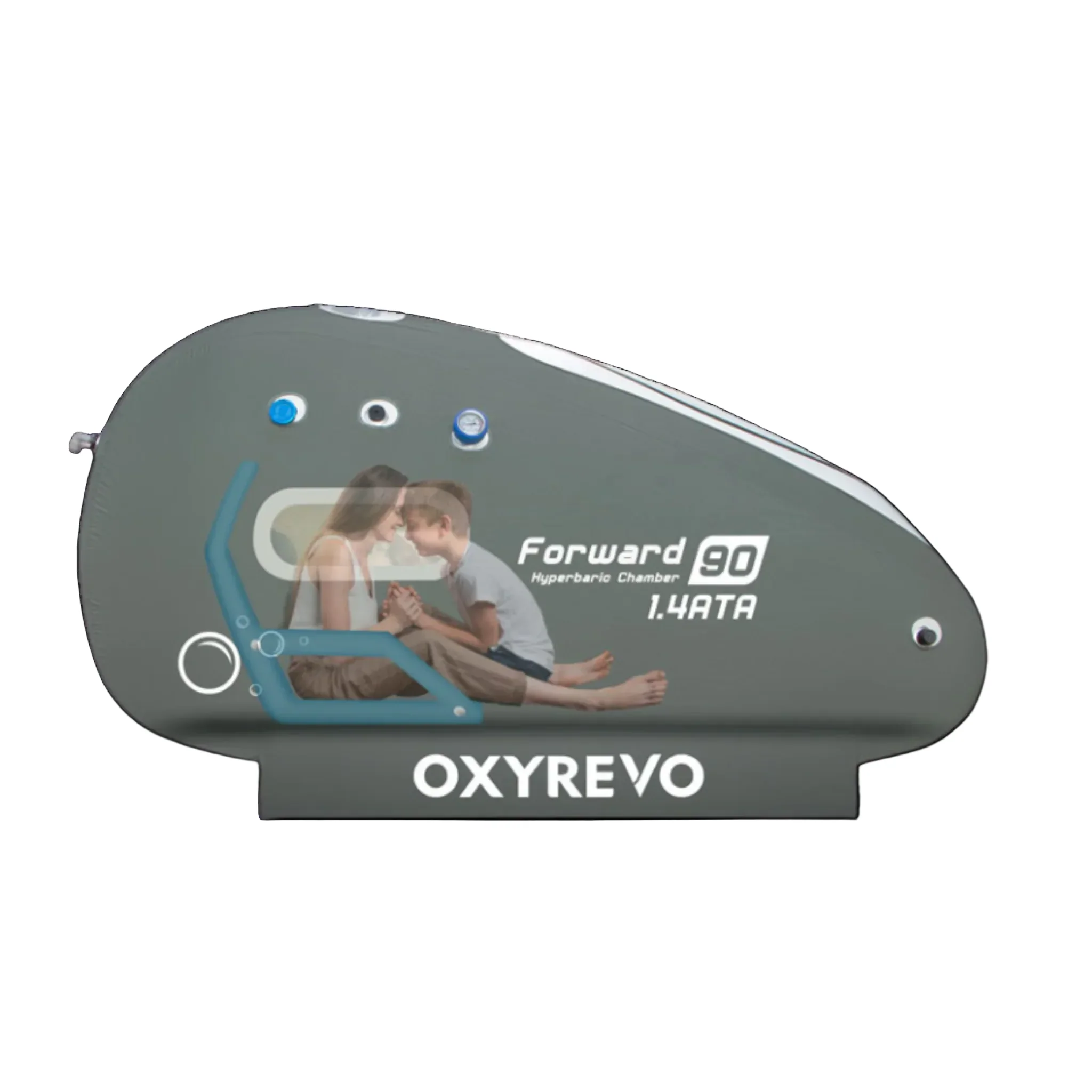

The Forward90 is a spacious, portable soft chamber that lets you sit or recline comfortably with its adjustable folding chair. It operates at a safe 1.4 ATA or 1.5 ATA and can even fit one adult plus a child.

Equipped with a 10L oxygen concentrator (90–97% purity) and an adjustable pressure knob that lets you control the pressure inside.

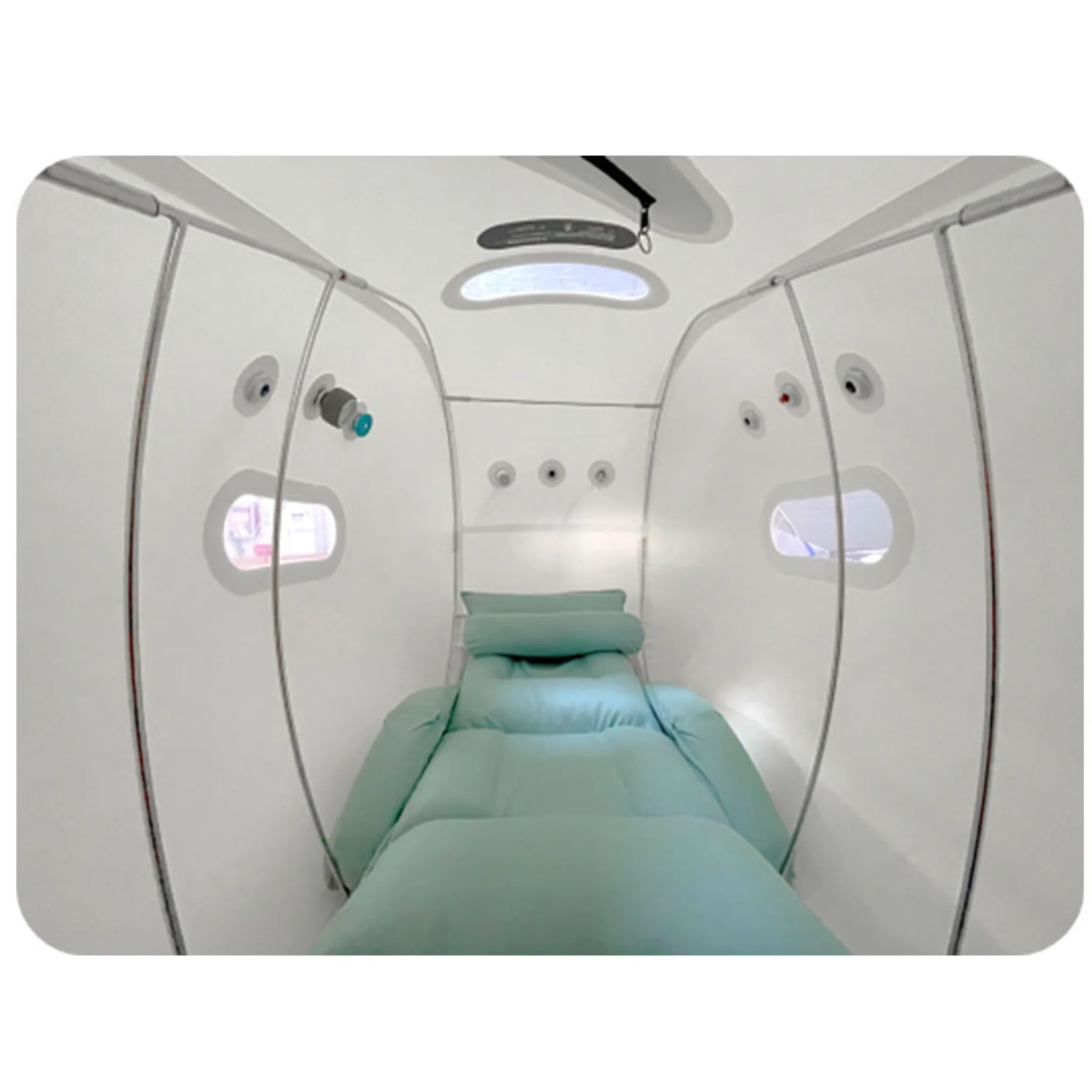

Built with eco-friendly, non-toxic materials, it features custom valves, dual YKK zippers, and dual air filters for clean, safe sessions. The internal frame keeps its shape, while the memory foam mattress adds comfort and supports better sleep.

What’s the AC Upgrade?
Your chamber includes a basic air cooler, keeping it just a bit cooler than room temperature (about 2–4°F warmer inside).

Upgrade to the Water Chiller AC Unit to:

• Control temperature actively
• Keep the chamber cool, even in warm rooms
• Stay comfortable during longer sessions

Want flexibility?
Choose “AC-Ready” ports are pre-cut so you can add AC later without modifications. Perfect backup for hot days.

Why Combine Red Light Therapy and HBOT?

HBOT increases oxygen delivery to tissues, supporting repair, circulation, and reducing inflammation, while RLT stimulates mitochondria to boost energy production and collagen. When combined, they complement each other by improving oxygen use at the cellular level, leading to faster healing, better recovery, and more effective overall results.

Every chamber from Morelli Medical includes a free Protocol Book with step-by-step instructions, expert tips, and guidance for using your chamber safely for 20+ conditions.

Features, Benefits & Applications

• Unique Curved Zipper Shape Design
• Heat Welded, NO Toxic Glues Or Sewing
• Durable Laser Printing, NO Paper Glued
• 1.2-1.5ATA Pressure Adjustable
• Extra Quiet Pressure Relief Valves
• Dual Pressure Data Display In And Out

Benefits

Faster healing, reduced inflammation, stronger immunity, stress relief, improved skin and energy, enhanced recovery for athletes, and support for chronic conditions.

Applications

Ideal for post-surgery, sports injuries, migraines, stroke, TBI, chronic fatigue, autism, diabetes, and overall wellness recovery.

Specifications

Chamber
	Working Pressure: 1.4 ATA / 1.5 ATA Weight: 15 kg / 30 lbs Dimensions: 90" L × 47" W × 47" H (7.5 ft × 3.9 ft × 3.9 ft) Windows: 4 large, multi-layered windows Sound Level: ≤50 dB Folding Chair: Adjustable Cover Color: Grey, OEM available

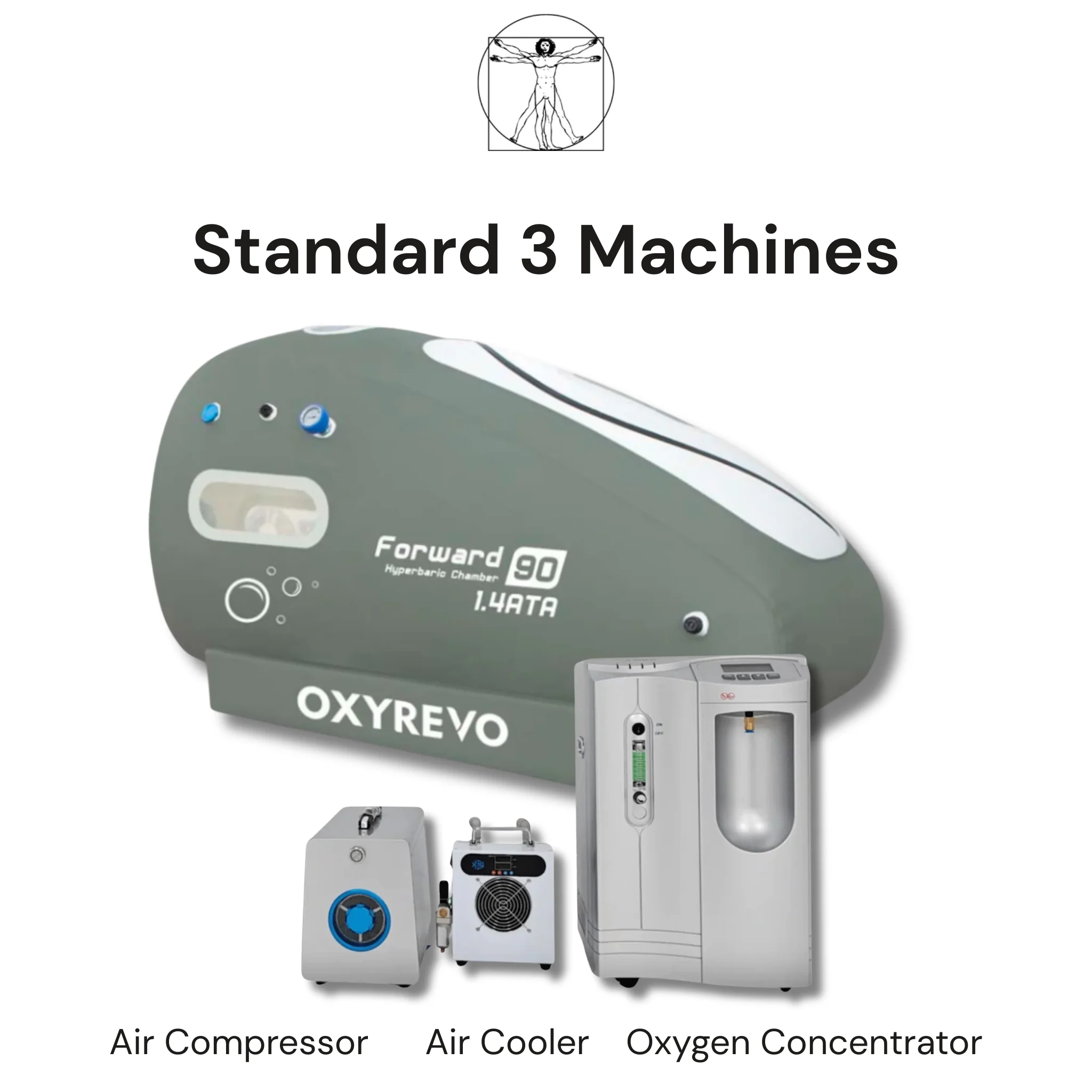

Standard Version
	Air Compressor: Model AE01, 110V/220V, 19.29" L × 11.42" W × 15.75" H, 550W, 72 L/min, 35 lbs Air Cooler: Model ZLA01, 110V/220V, 11.81" L × 7.48" W × 13.39" H, 210W, 120 L/min, 13 lbs Oxygen Concentrator: Model HG10, 110V/220V, 18.11" L × 17.32" W × 30.71" H, 500W, 10 L/min, 66 lbs Operation: Separate units, individual setup, manual control Efficiency: Dehumidifying and cooling, continuous oxygen, double input/output filters Notes: Lower cost, lightweight, portable, economical transport

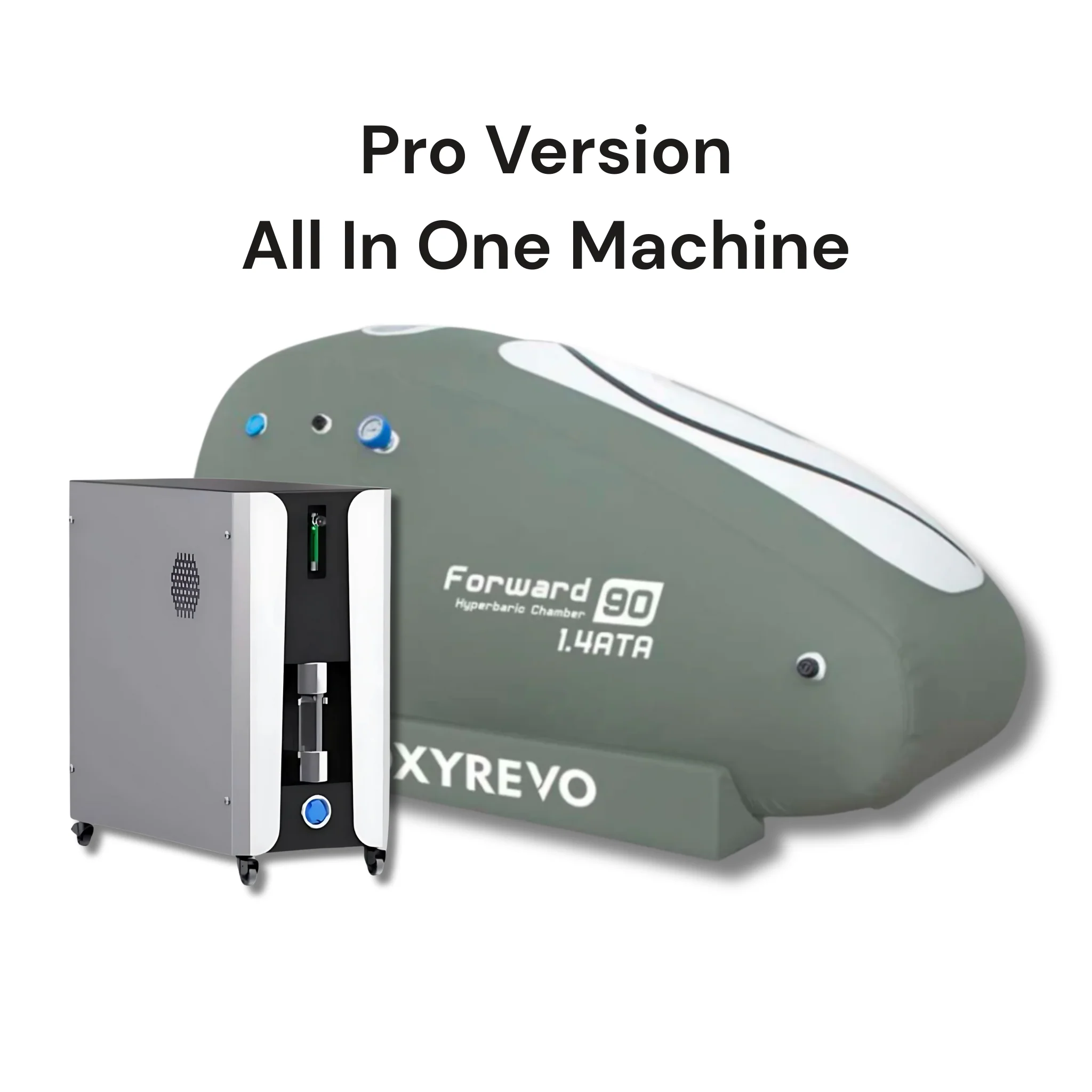

Pro Version
	All-in-One Unit: Air Compressor, 10L Oxygen Concentrator, 2 Cooling Machines, Anion Generator, Timing Alarm, Oxygen Meter, Water Container, Air Filters Dimensions & Weight: 27.56" L × 13.78" W × 29.53" H, 176.37 lbs Operation: One-press activation, integrated control System: Enhanced dehumidifying and cooling, continuous oxygen Feature: Nano Water Ion Technology, 99% virus sterilization

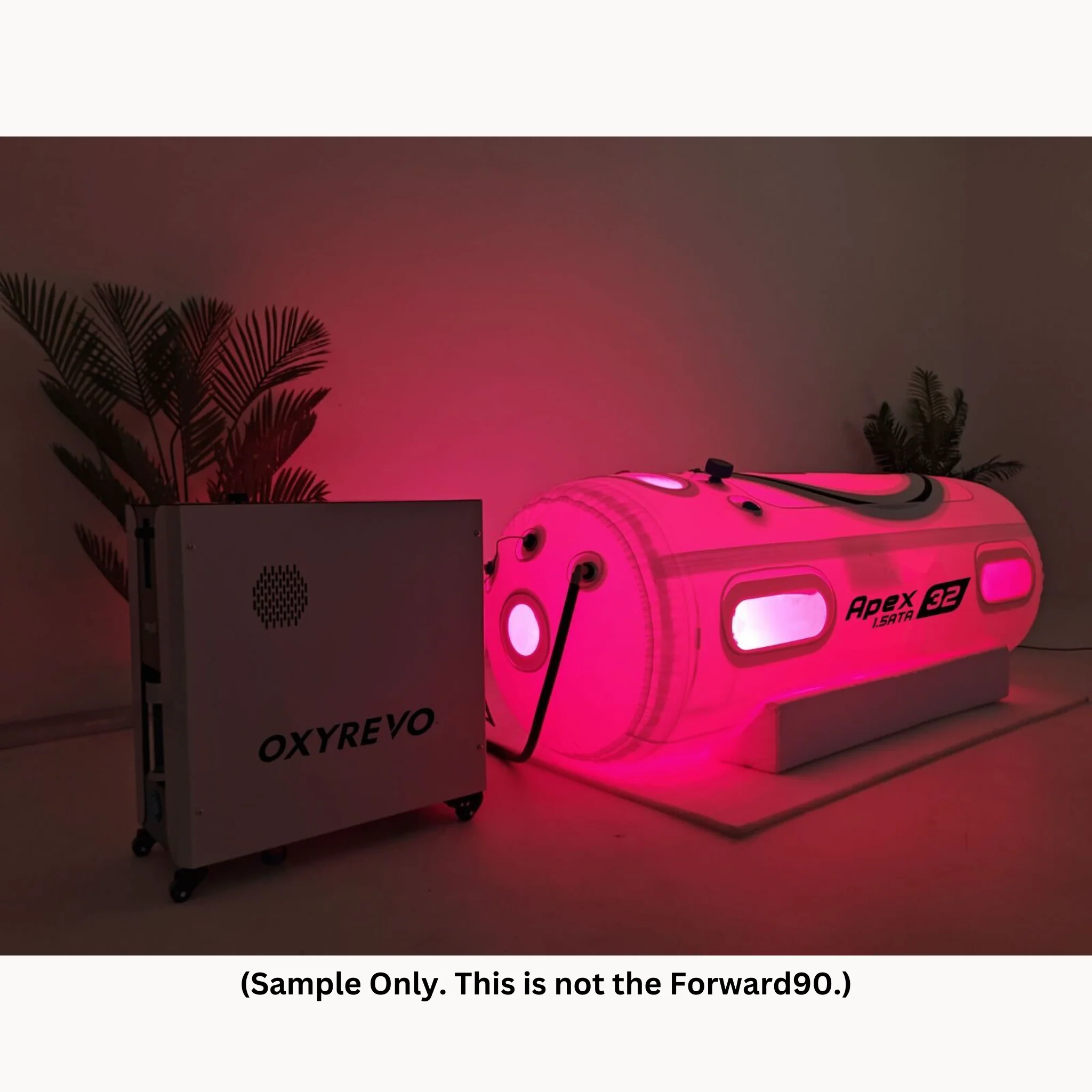

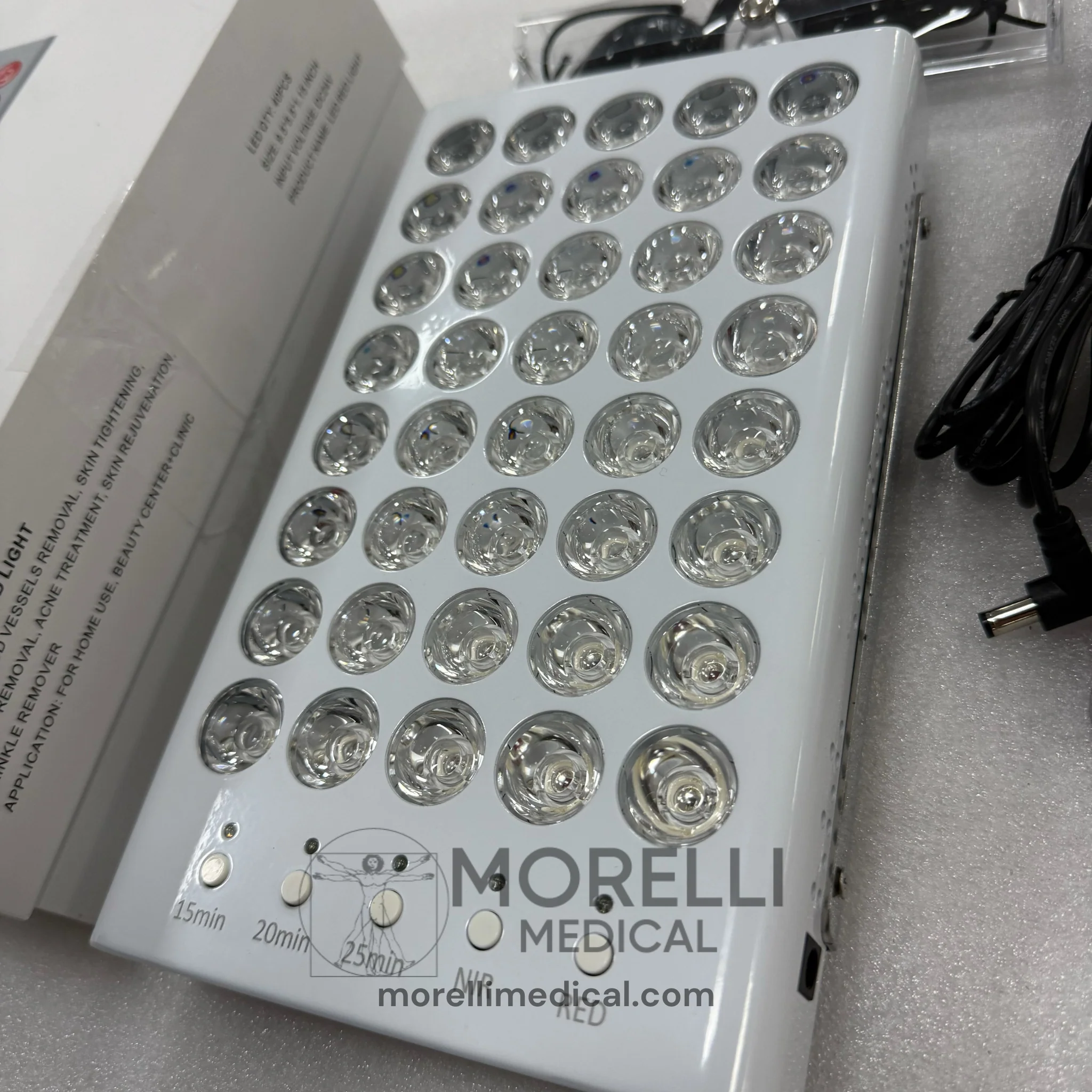

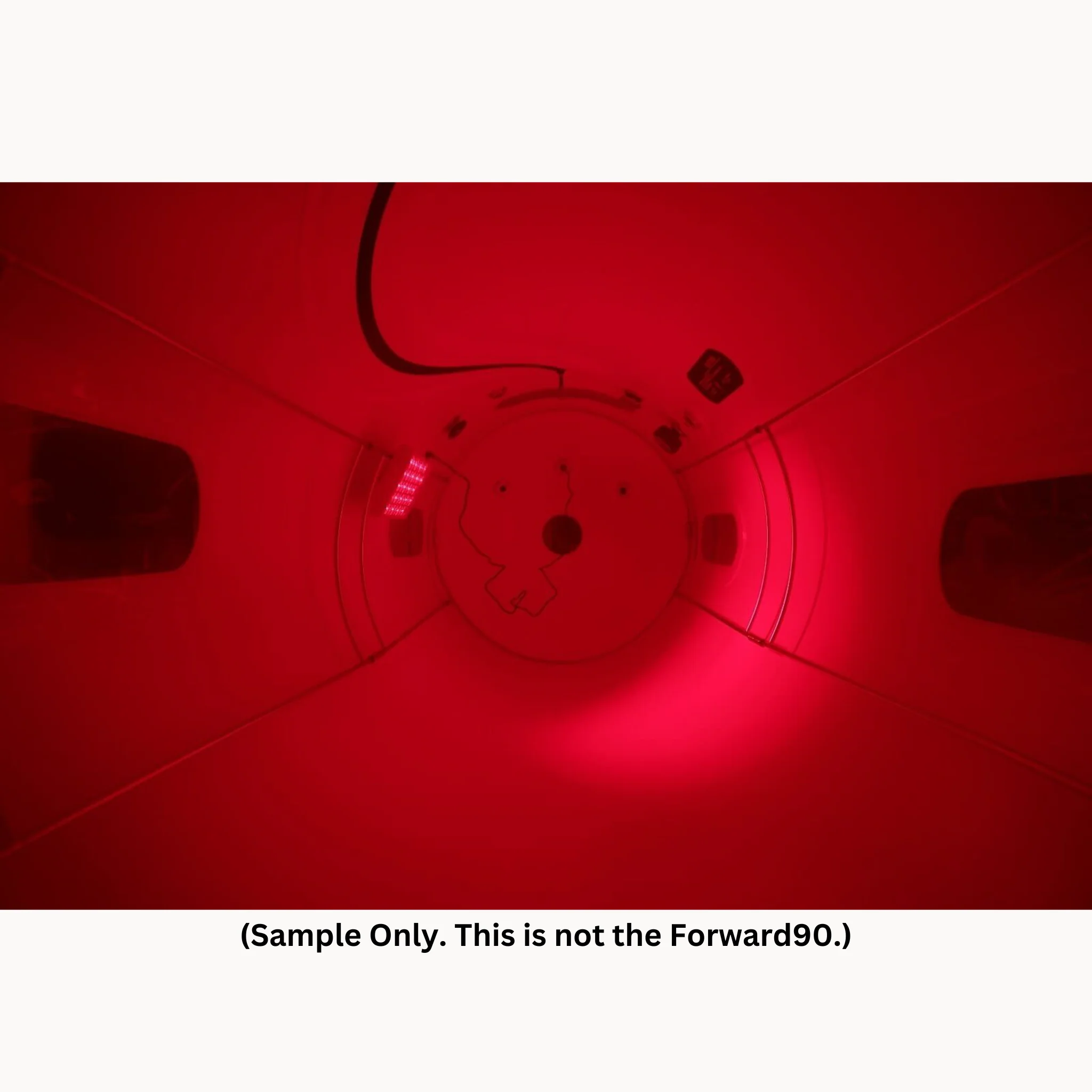

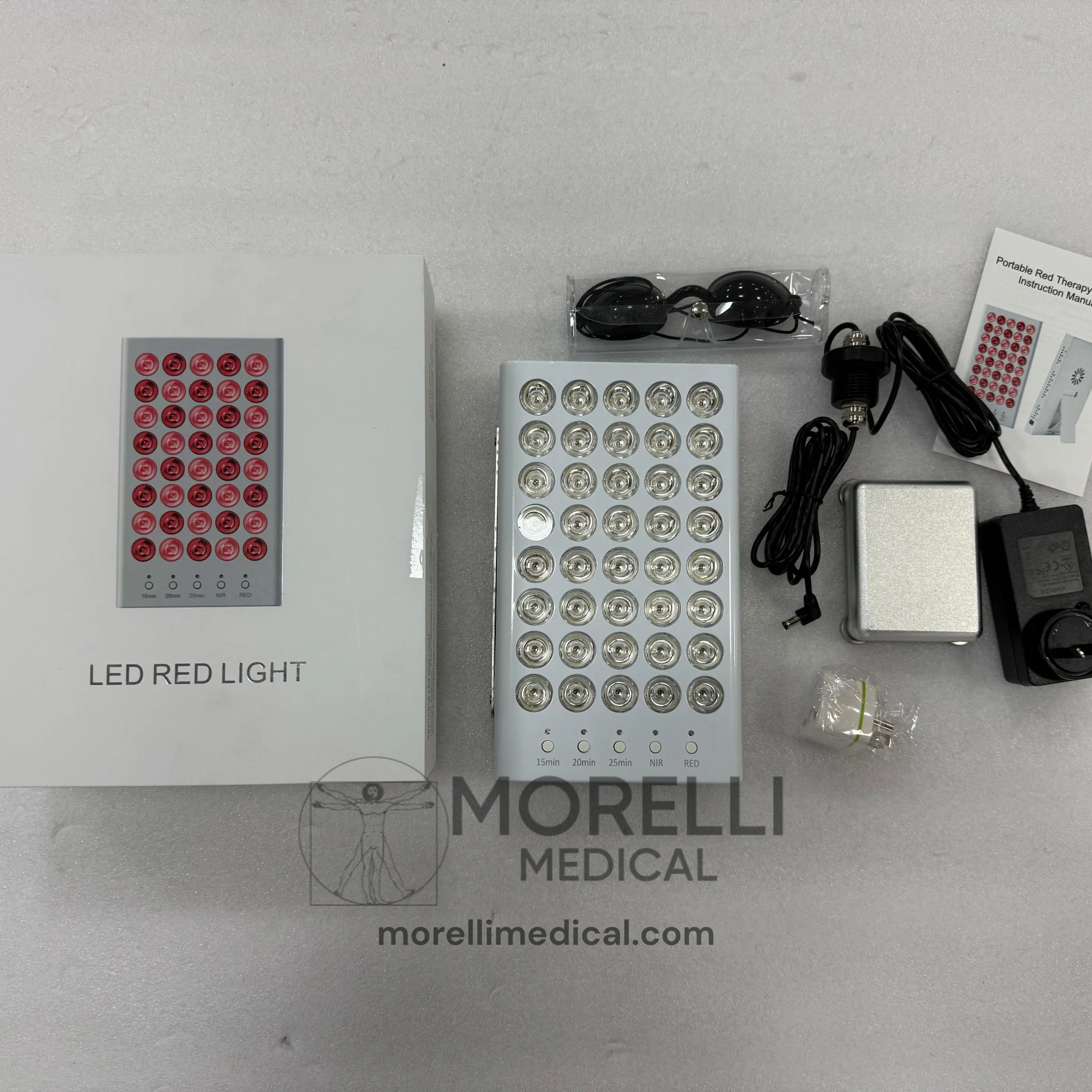

Optional Add-On: Red Light Therapy
	Red Light: 660 nm Near Infrared: 850 nm Power Supply: DC 24V Power Rating: 120W LEDs: 40 pcs Panel Dimensions: 9.45" × 5.51" × 1.18"
Water Chiller AC
	Input Power: AC220V / 50Hz Total Power: 230W – 900W (by model) Tank Capacity: 4L – 5L (≈ 1.0 – 1.3 gal) Cooling Capacity: 1,875 BTU – 6,480 BTU Temp Control Range: 14°F to –40°F (model dependent) Accuracy: ±1.8°F (±1°C) Display Resolution: 0.1°F (0.1°C) Sensor Type: PT100 Flow Rate: 2.6 – 4.0 gal/min (10 – 15 L/min) Lift Height: 10 – 23 ft (3 – 7 m) Cooling Tank Size: ~7" × 6" (Φ18×16 cm) up to 8.7" × 7" (Φ22×18 cm) Net Weight: 66 – 121 lbs (30 – 55 kg) Dimensions: 15.7" × 11" × 21" up to 18.5" × 14.5" × 26.8"

What's in the Box?

The OXYREVO Forward 90 Portable Sitting Hyperbaric Chamber includes everything you need to start your hyperbaric oxygen therapy journey. The package includes:

Chamber:

• Internal/external pressure gauges
• Pressure deflate valves
• Control panels
• Display screen
• Communication system
• Pressure relief valves

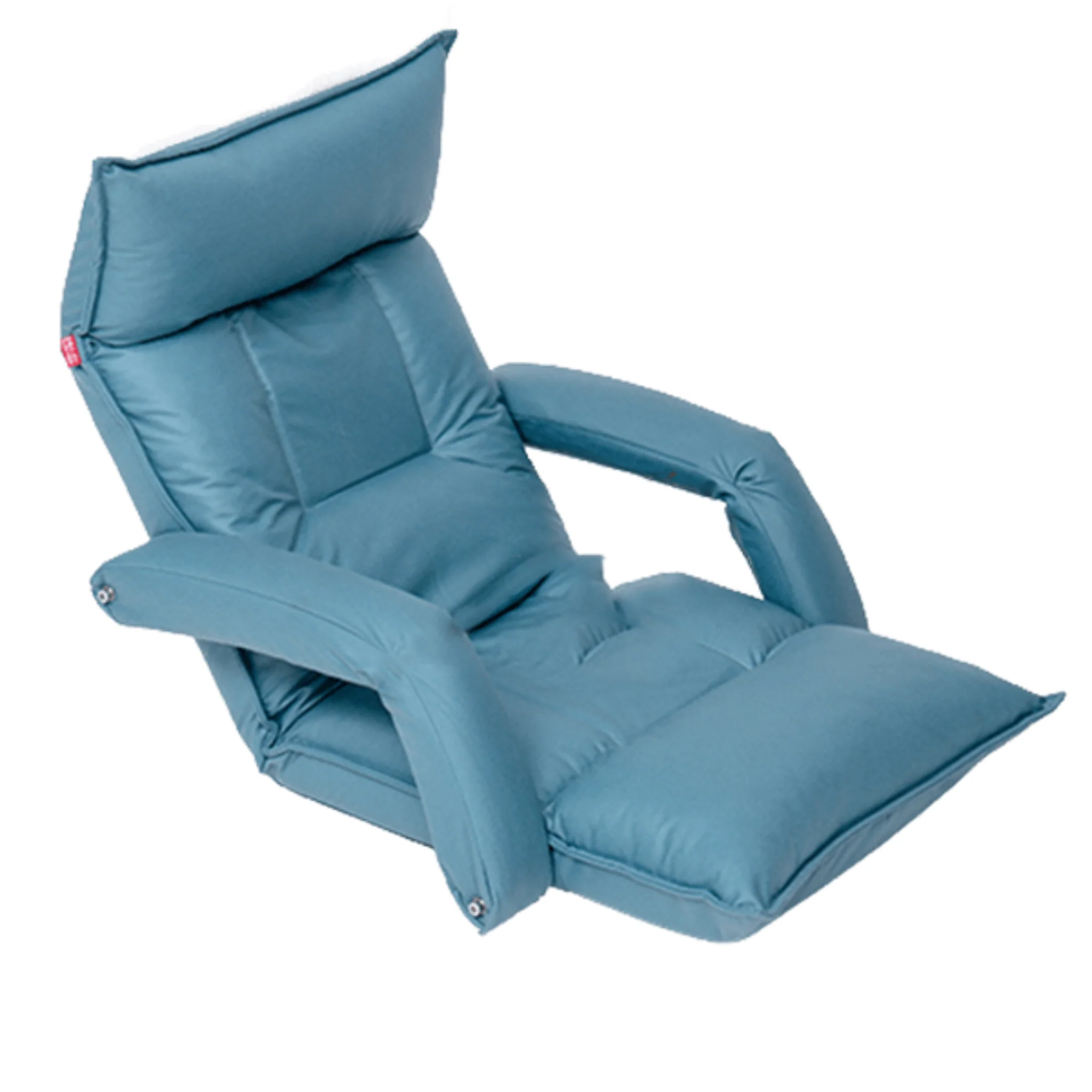

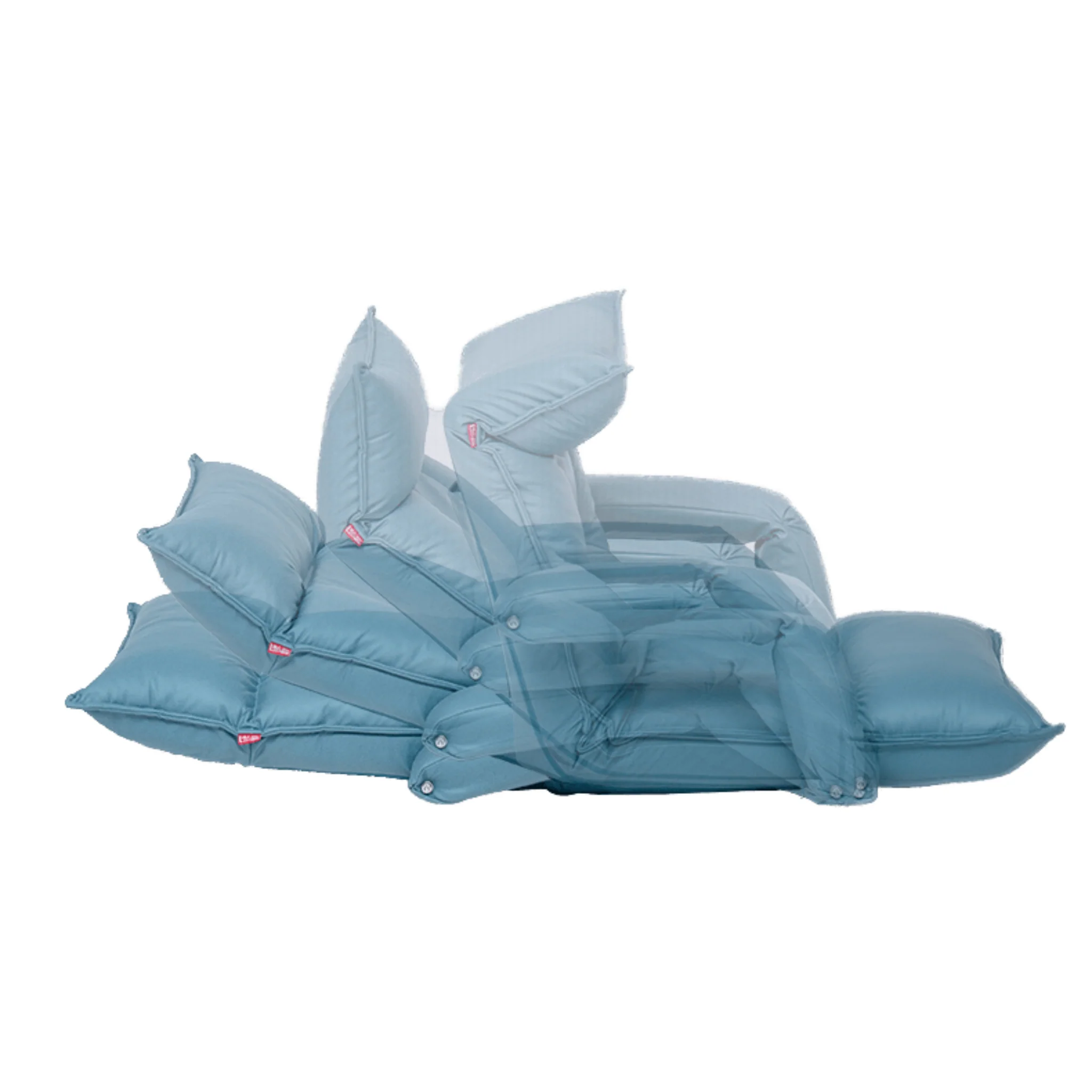

• Folding Chair

Operating Unit:

• Oil-free air compressor
• 10L oxygen concentrator
• Cooling machines
• Anion air purifier
• Air sterilizer
• Air filter
• Humidity water container
• All-in-One Machine (For Pro Version)

Accessories:

• Oxygen mask
• Spare Activated Carbon Cotton Filters
• Fuses
• Air/oxygen tubes
• Power cable

Education:

• FREE Protocol Book ($1000 Value)
