OXYREVO Elite36 1.4 ATA Portable Hyperbaric Chamber

Big Interior Mild HBOT

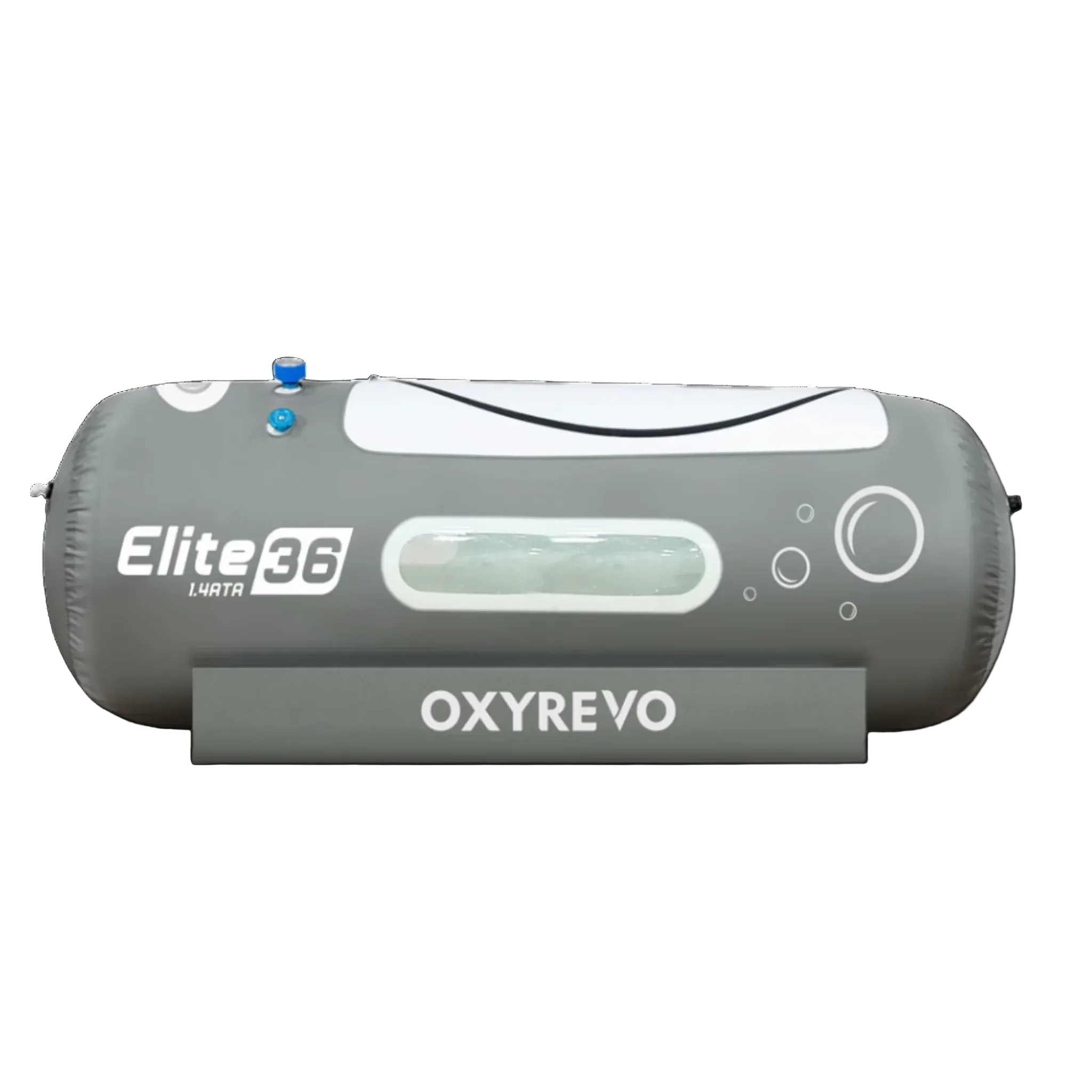

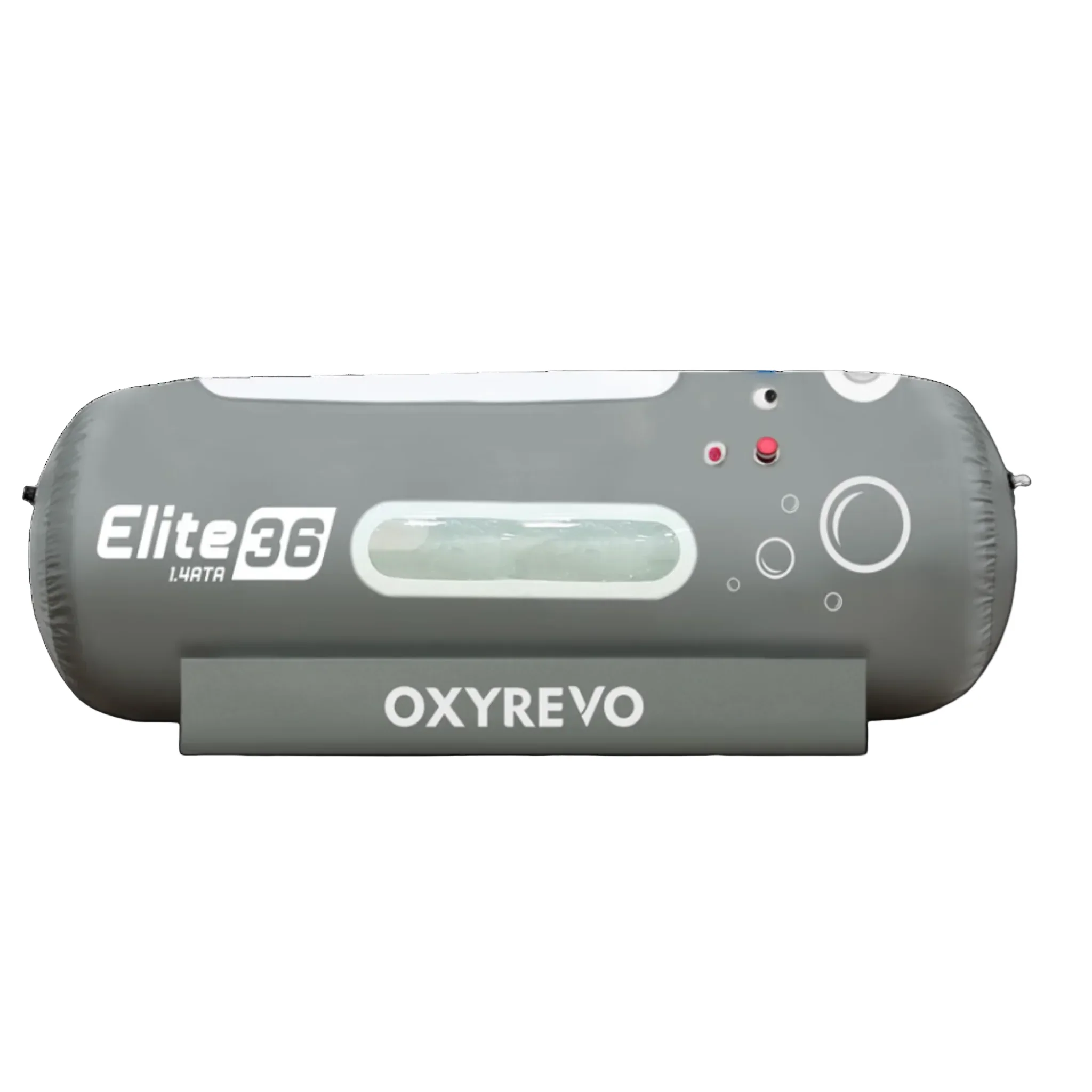

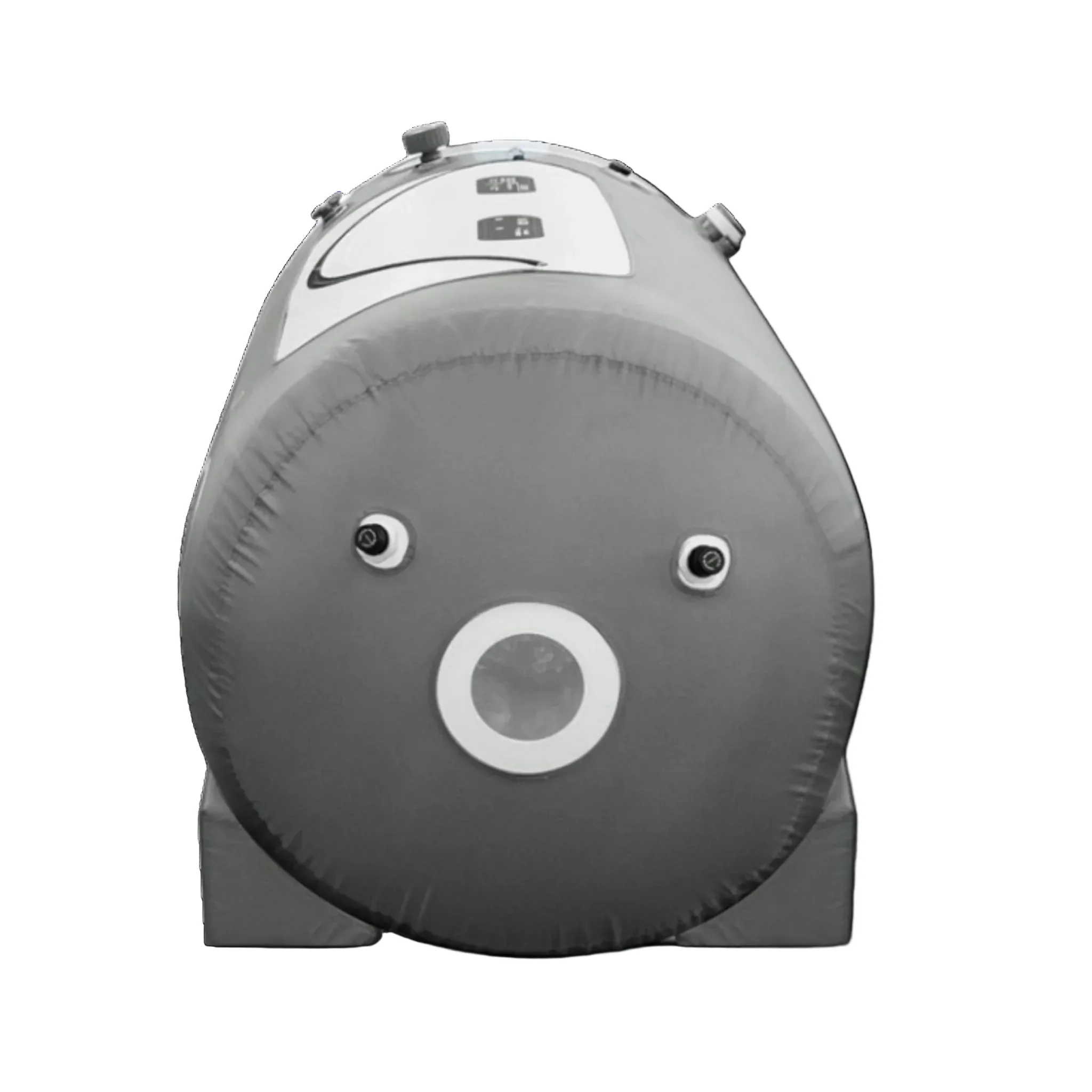

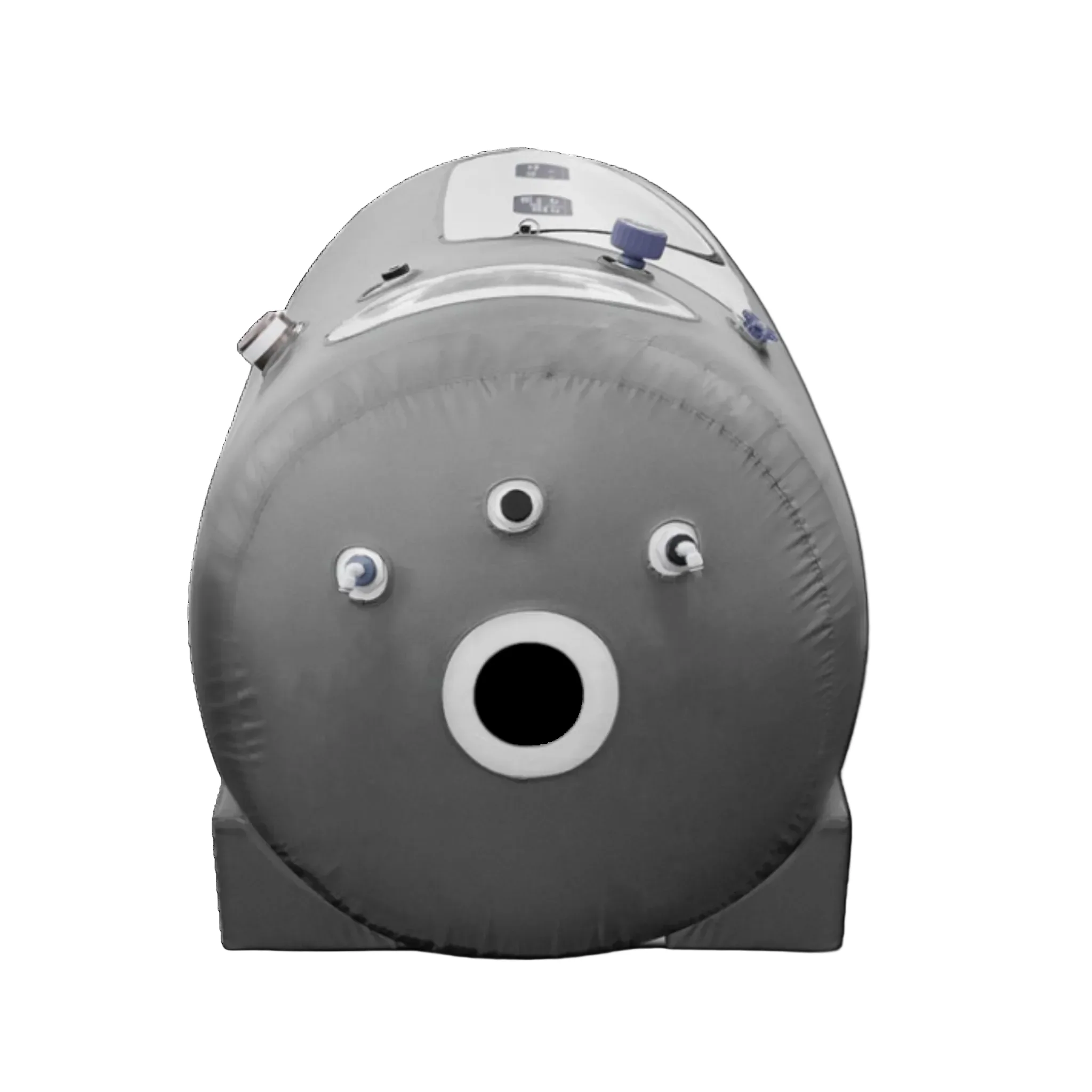

The OxyRevo Elite36 is our largest portable lying chamber, running at 1.4 ATA. At 90” long and 36” wide, it offers enough room for two users or a parent and child, making it great for home use or athletes who want more space.

Built with eco-friendly materials, it features custom valves, dual YKK zippers, dual air filters, and a strong internal frame. Large windows bring in light, while curved zippers make entry and exit easier.

For comfort, it includes a memory foam mattress and a 10L oxygen concentrator (90–97% purity). Dual pressure displays and controls allow safe, simple use, with an emergency valve for extra protection.

What’s the AC Upgrade?
Your chamber includes a basic air cooler, keeping it just a bit cooler than room temperature (about 2–4°F warmer inside).

Upgrade to the Water Chiller AC Unit to:

• Control temperature actively
• Keep the chamber cool, even in warm rooms
• Stay comfortable during longer sessions

Want flexibility?
Choose “AC-Ready” ports are pre-cut so you can add AC later without modifications. Perfect backup for hot days.

Why Combine Red Light Therapy and HBOT?

HBOT increases oxygen delivery to tissues, supporting repair, circulation, and reducing inflammation, while RLT stimulates mitochondria to boost energy production and collagen. When combined, they complement each other by improving oxygen use at the cellular level, leading to faster healing, better recovery, and more effective overall results.

Every chamber from Morelli Medical includes a free Protocol Book with step-by-step instructions, expert tips, and guidance for using your chamber safely for 20+ conditions.

UAE Racer Aliyyah Koloc is an OxyRevo User!

Features, Benefits & Applications

• Works at 1.4 ATA pressure
• Operates at 1.4 ATA mild hyperbaric oxygen therapy

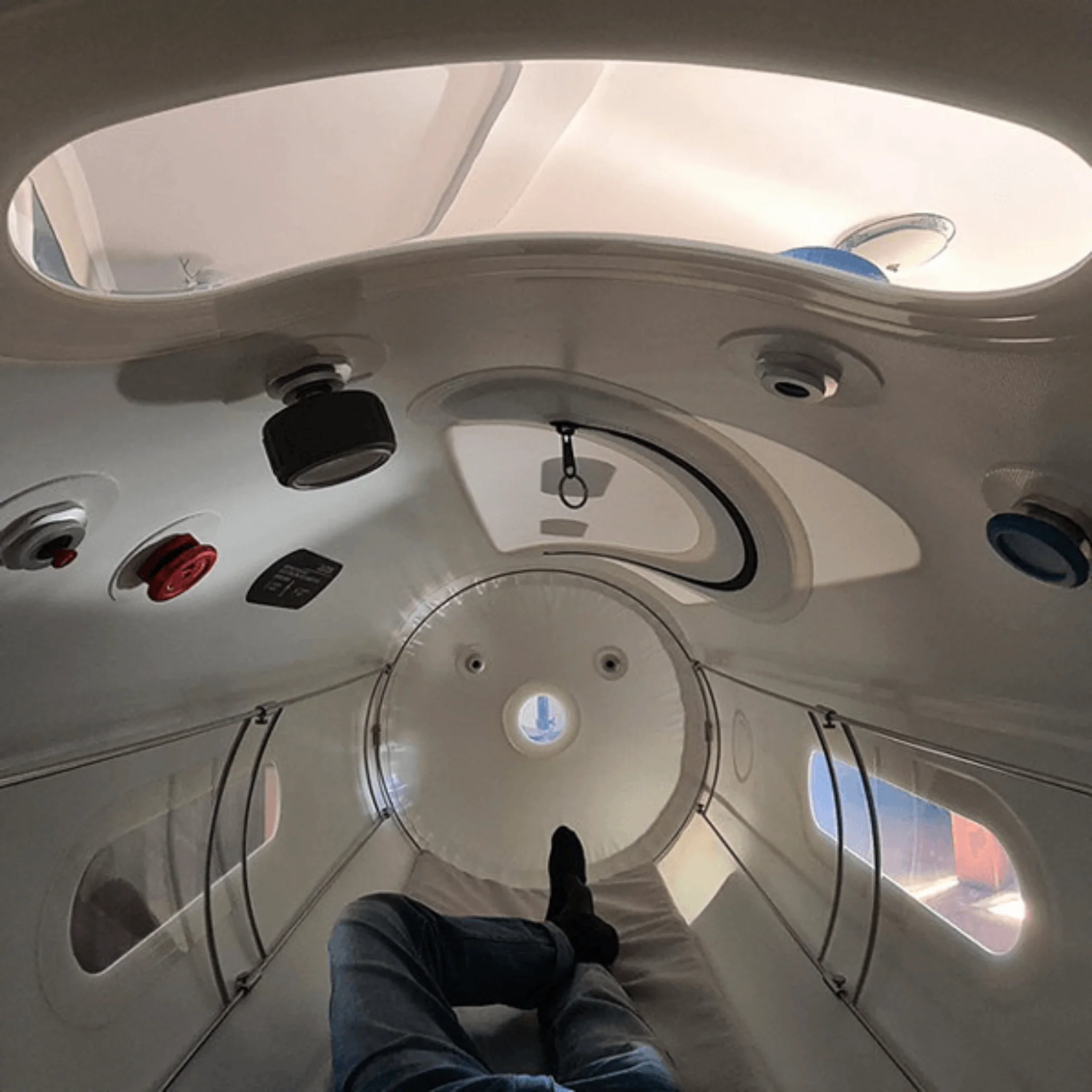

• 7 large windows for light and comfort
• 10L oxygen concentrator (90–97% purity)
• Dual pressure gauges and controls inside and outside
• Dual air filters to keep air clean
• Made with eco-friendly, non-toxic materials
• Emergency valve for quick release

Specifications

Chamber
	Pressure: 1.4 ATA Material: Environmentally friendly, non-toxic Dimensions: 90" L × 36" W (7.5 ft × 3 ft) Weight: 33 lbs (15 kg) Dual Pressure Gauges: Internal and external Emergency Valve: Quick release in 30 seconds Mattress: Memory foam
Standard Version
	Air Compressor: Model AE01, 110V/220V, 19.29" L × 11.42" W × 15.75" H, 550W, 72 L/min, 35 lbs Air Cooler: Model ZLA01, 110V/220V, 11.81" L × 7.48" W × 13.39" H, 210W, 120 L/min, 13 lbs Oxygen Concentrator: Model HG10, 110V/220V, 18.11" L × 17.32" W × 30.71" H, 500W, 10 L/min, 66 lbs Operation: Separate units, individual setup and control Efficiency: Dehumidifying and cooling, continuous oxygen, double filters Additional Features: Lower cost, portable, lightweight, economical transport

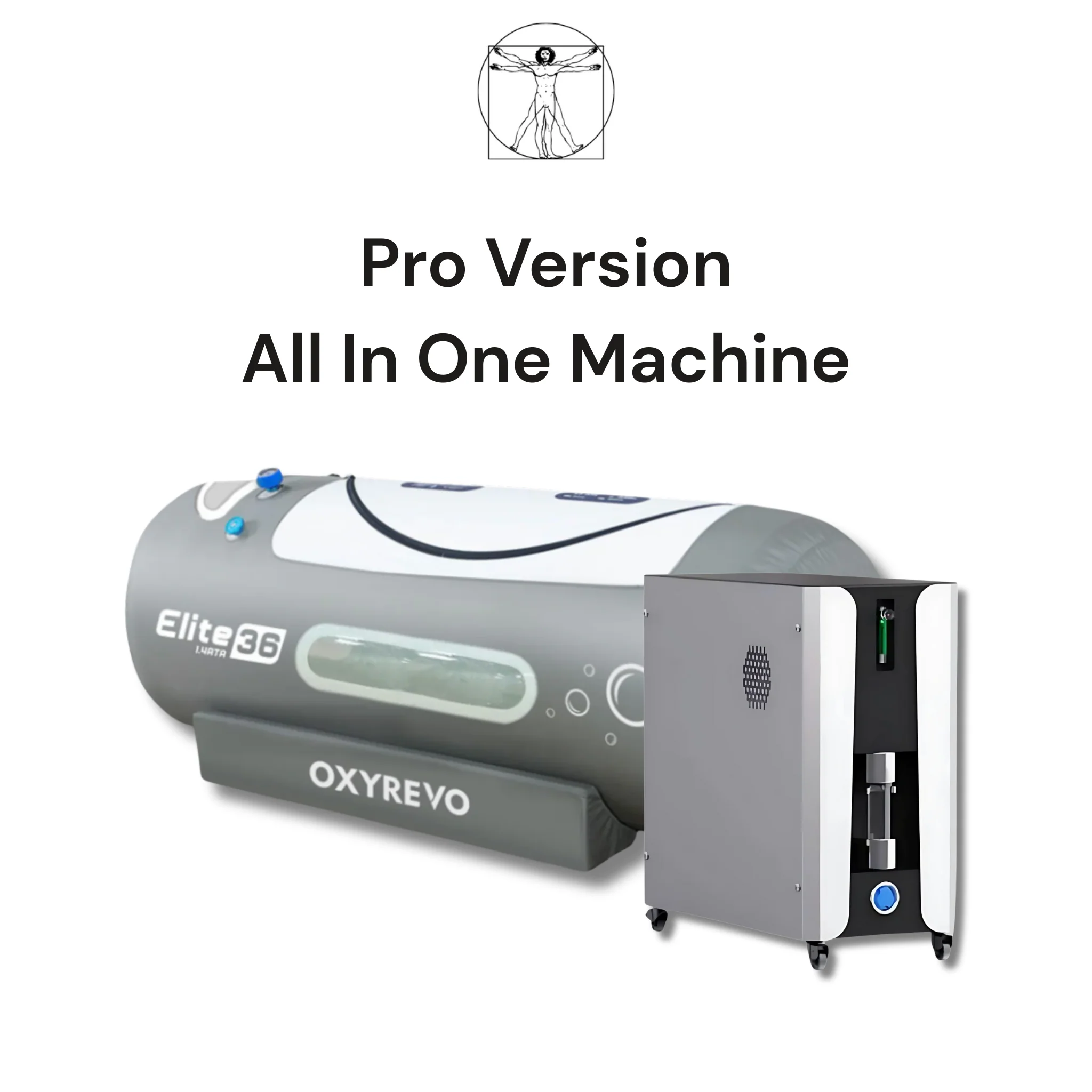

Pro Version
	All-in-One Unit: Air Compressor (1), Oxygen Concentrator 10L, Cooling Machines (2), Anion Generator, Timing Alarm, Oxygen Meter, Water Container, Air Filters Dimensions & Weight: 27.56" L × 13.78" W × 29.53" H, 176.37 lbs Operation: Integrated functions, one-press activation Efficiency: Enhanced dehumidifying and cooling, continuous oxygen, double activated carbon filters Additional Features: Nano Water Ion Technology, 99% virus sterilization rate
Optional Add-On: Red Light Therapy
	Red Light Wavelength: 660 nm Near-Infrared Wavelength: 850 nm Power Supply: DC 24V Power Rating: 200W LEDs: 40 pcs Panel Dimensions: 9.45" × 5.51" × 1.18"
Water Chiller AC
	Input Power: AC220V / 50Hz Total Power: 230W – 900W (varies by model) Tank Capacity: 4L – 5L (≈ 1.0 – 1.3 gallons) Cooling Capacity: 1,875 BTU – 6,480 BTU Temperature Control Range: 14°F to –40°F (model dependent) Accuracy: ±1.8°F (±1°C) Display Resolution: 0.1°F (0.1°C) Sensor Type: PT100 Flow Rate: 2.6 – 4.0 gallons/min (10 – 15 L/min) Lift Height: 10 – 23 ft (3 – 7 m) Cooling Tank Size: ~7" × 6" (Φ18×16 cm) up to 8.7" × 7" (Φ22×18 cm) Net Weight: 66 – 121 lbs (30 – 55 kg) Dimensions: 15.7" × 11" × 21" up to 18.5" × 14.5" × 26.8"

What's in the Box?

The OXYREVO Elite36 Portable Lying Type Hyperbaric Chamber includes everything you need to start your hyperbaric oxygen therapy journey. The package includes:

Chamber:

• Internal/external pressure gauges
• Pressure deflate valves
• Control panels
• Display screen
• Communication system
• Pressure relief valves
• Mattress

Operating Unit:

• Oil-free air compressor
• 10L oxygen concentrator
• Cooling machines
• Anion air purifier
• Air sterilizer
• Air filter
• Humidity water container
• All-in-One Machine (For Pro Version)

Accessories:

• Oxygen mask
• Spare Activated Carbon Cotton Filters
• Fuses
• Air/oxygen tubes
• Power cable

Education:

• FREE Protocol Book ($1000 Value)
