DPE - DST8000 Dynamic Stair Trainer | Adjustable Staircase for Gait Rehabilitation

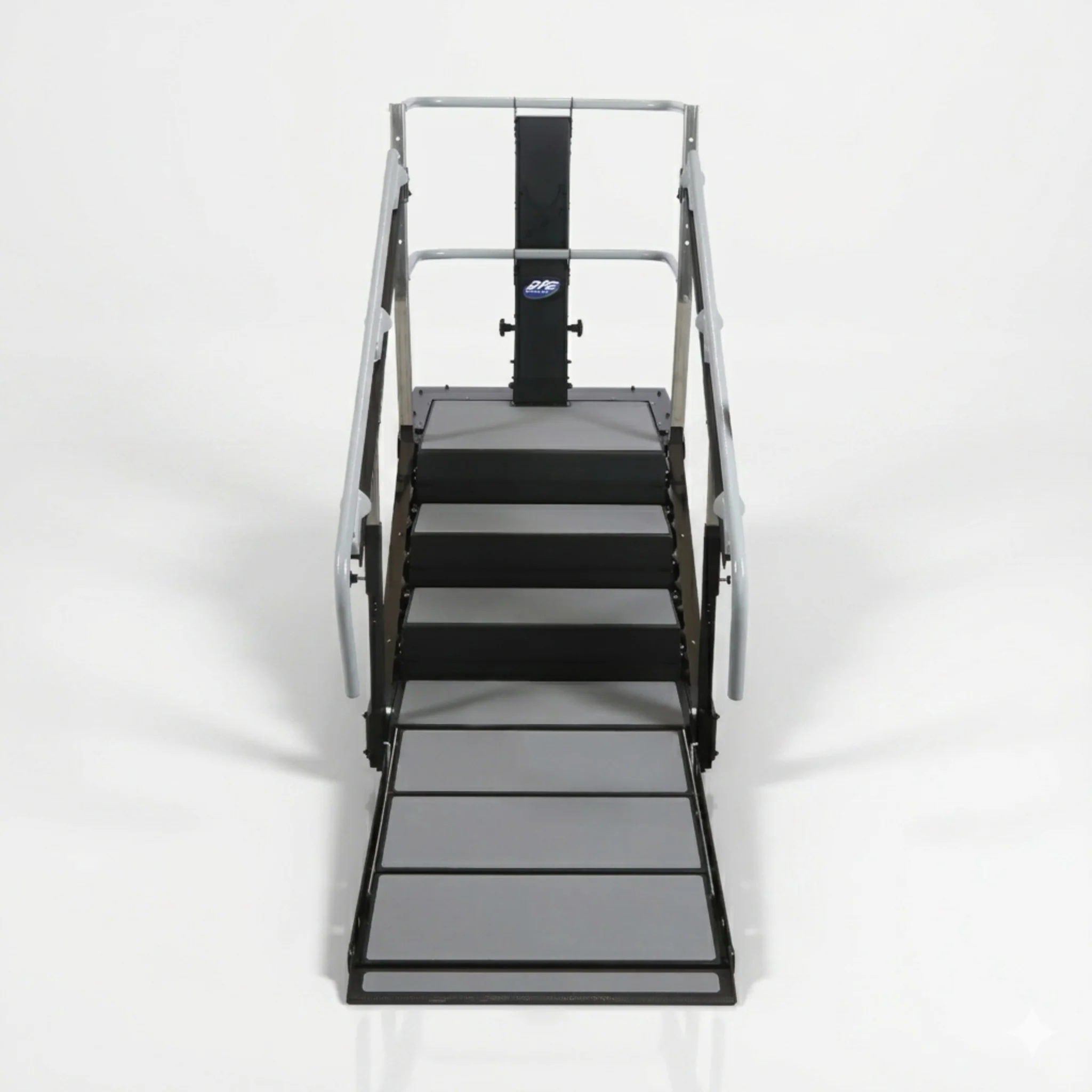

Dynamic Stair Trainer

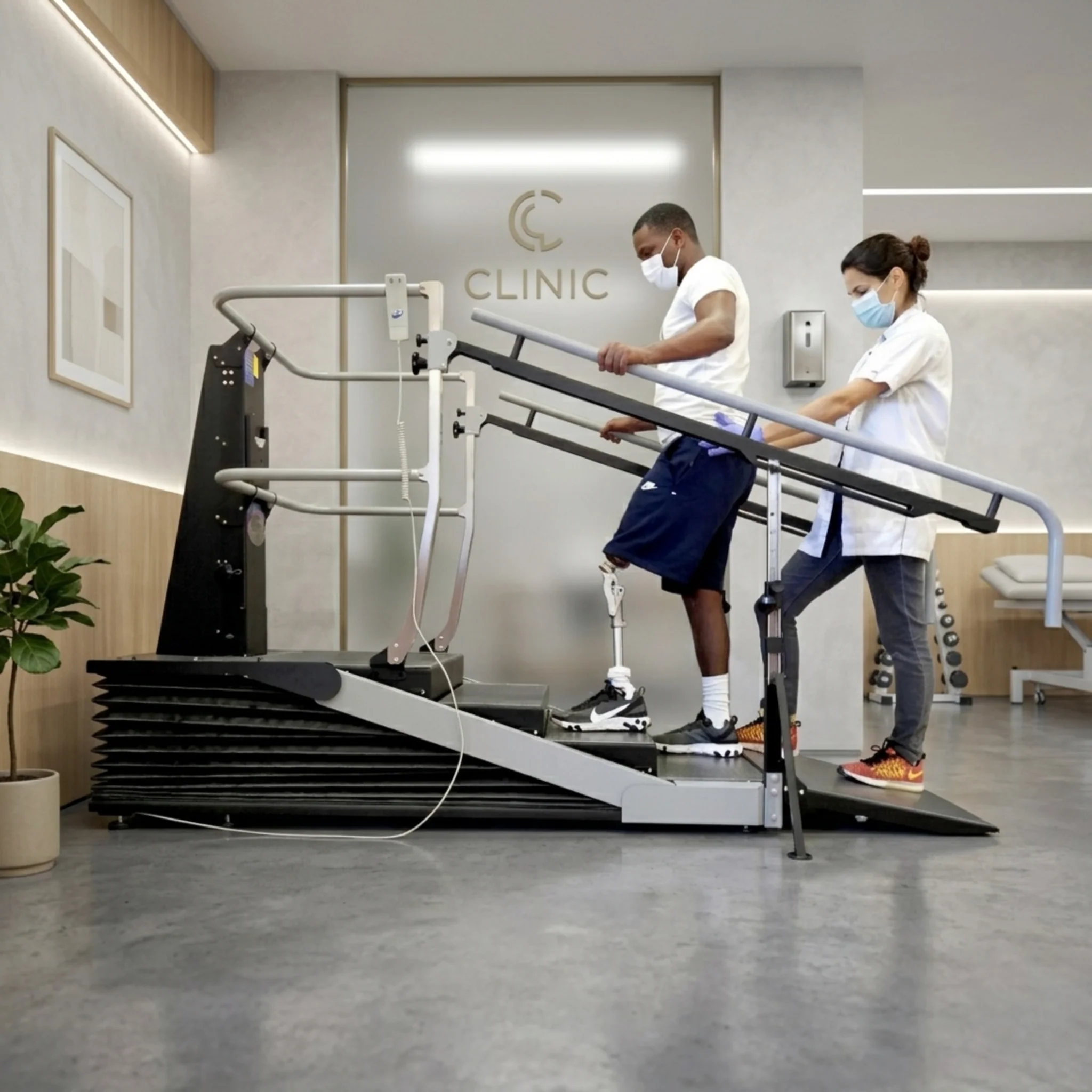

The DST8000 is an electronically adjustable staircase for clinical gait rehabilitation, with over 15 years of deployment across rehabilitation centers worldwide. Stair height adjusts continuously from 0 to 16.5 cm (0 to 6.5 inches) via single-button controls, allowing therapists to match step height to each patient's current ability and gradually increase elevation as motor function progresses across neurological, orthopedic, and geriatric stair-rehab protocols.
Hardware specifications include a 74 cm (29-inch) regular stair width, 90 cm (35.5-inch) device width, 300 kg (660 lbs.) static capacity, and 100 to 240V, 50/60Hz, 4A max electrical input. The device meets IEC 601-1 CE and UL compliance for motor and controls. Operating interval is 2 minutes on / 18 minutes off.
The DST8000 is a worldwide-patented system from DPE Medical. For built-in session tracking, progress charts, and the DST Factor metric, see the DST8000 Pro.
Features
Benefits
- Promotes reciprocal stair-climbing patterns
- Enhances patient motivation throughout therapy
- Supports independent practice between sessions
Specifications
| MODEL | |
|---|---|
| Model | DST8000 |
| DIMENSIONS | |
| Shipment dimensions | 210 × 104 × 72 cm (83" × 42" × 30") |
| Stair width (regular) | 74 cm (29 inches) |
| Stair height range | 0 to 16.5 cm (0 to 6.5 inches) |
| Max width | 90 cm (35.5 inches) |
| Max length (regular slope) | 250 cm (98.5 inches) |
| Max length (with RSR) | 280 cm (110 inches) |
| Max length (with LHR) | 310 cm (122 inches) |
| CAPACITY & WEIGHT | |
| Capacity (static) | 300 kg (660 lbs.) |
| Unit weight | 250 kg (550 lbs.) |
| ELECTRICAL | |
| Electrical requirements | 100 to 240V, 50/60Hz, 4A max |
| Operating interval | 2 min on / 18 min off |
| COMPLIANCE | |
| Regulatory compliance | IEC 601-1 CE, UL (motor, controls) |
Original: $17,450.00
-65%$17,450.00
$6,107.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Dynamic Stair Trainer
The DST8000 is an electronically adjustable staircase for clinical gait rehabilitation, with over 15 years of deployment across rehabilitation centers worldwide. Stair height adjusts continuously from 0 to 16.5 cm (0 to 6.5 inches) via single-button controls, allowing therapists to match step height to each patient's current ability and gradually increase elevation as motor function progresses across neurological, orthopedic, and geriatric stair-rehab protocols.
Hardware specifications include a 74 cm (29-inch) regular stair width, 90 cm (35.5-inch) device width, 300 kg (660 lbs.) static capacity, and 100 to 240V, 50/60Hz, 4A max electrical input. The device meets IEC 601-1 CE and UL compliance for motor and controls. Operating interval is 2 minutes on / 18 minutes off.
The DST8000 is a worldwide-patented system from DPE Medical. For built-in session tracking, progress charts, and the DST Factor metric, see the DST8000 Pro.
Features
Benefits
- Promotes reciprocal stair-climbing patterns
- Enhances patient motivation throughout therapy
- Supports independent practice between sessions
Specifications
| MODEL | |
|---|---|
| Model | DST8000 |
| DIMENSIONS | |
| Shipment dimensions | 210 × 104 × 72 cm (83" × 42" × 30") |
| Stair width (regular) | 74 cm (29 inches) |
| Stair height range | 0 to 16.5 cm (0 to 6.5 inches) |
| Max width | 90 cm (35.5 inches) |
| Max length (regular slope) | 250 cm (98.5 inches) |
| Max length (with RSR) | 280 cm (110 inches) |
| Max length (with LHR) | 310 cm (122 inches) |
| CAPACITY & WEIGHT | |
| Capacity (static) | 300 kg (660 lbs.) |
| Unit weight | 250 kg (550 lbs.) |
| ELECTRICAL | |
| Electrical requirements | 100 to 240V, 50/60Hz, 4A max |
| Operating interval | 2 min on / 18 min off |
| COMPLIANCE | |
| Regulatory compliance | IEC 601-1 CE, UL (motor, controls) |
