Dreampod V2 Float Pod

Effortless, Professional-Grade Float Sessions

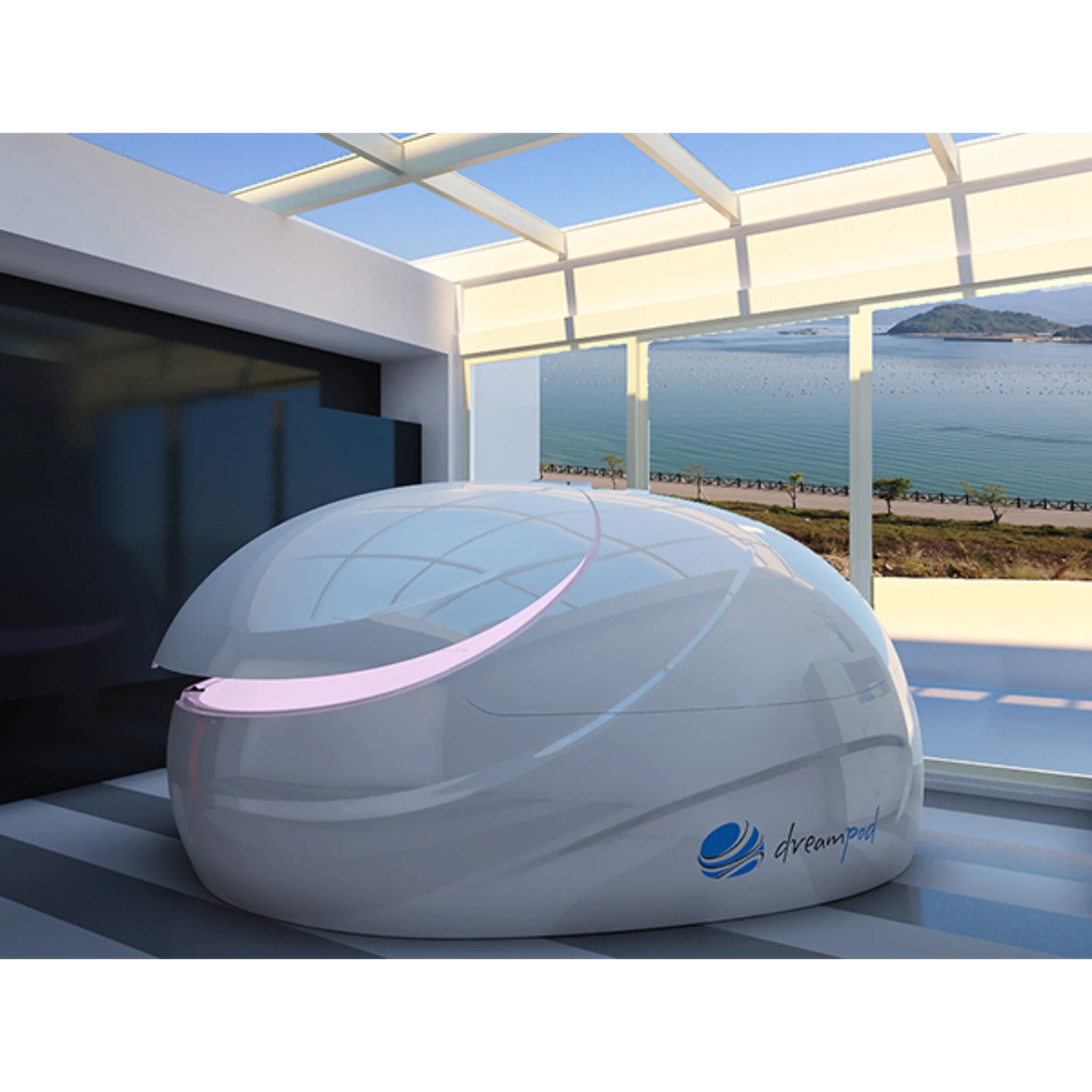

Meet the Dreampod V2 Float Pod, a flagship solution trusted by both new and growing float centers worldwide. Designed to balance a compact footprint with generous internal space, the Dreampod V2 measures 2580 mm L × 1741 mm W × 1326 mm H (8.46 × 5.71 × 4.35 ft), with an internal length of approximately 2270 mm (7.44 ft), comfortably accommodating taller guests.

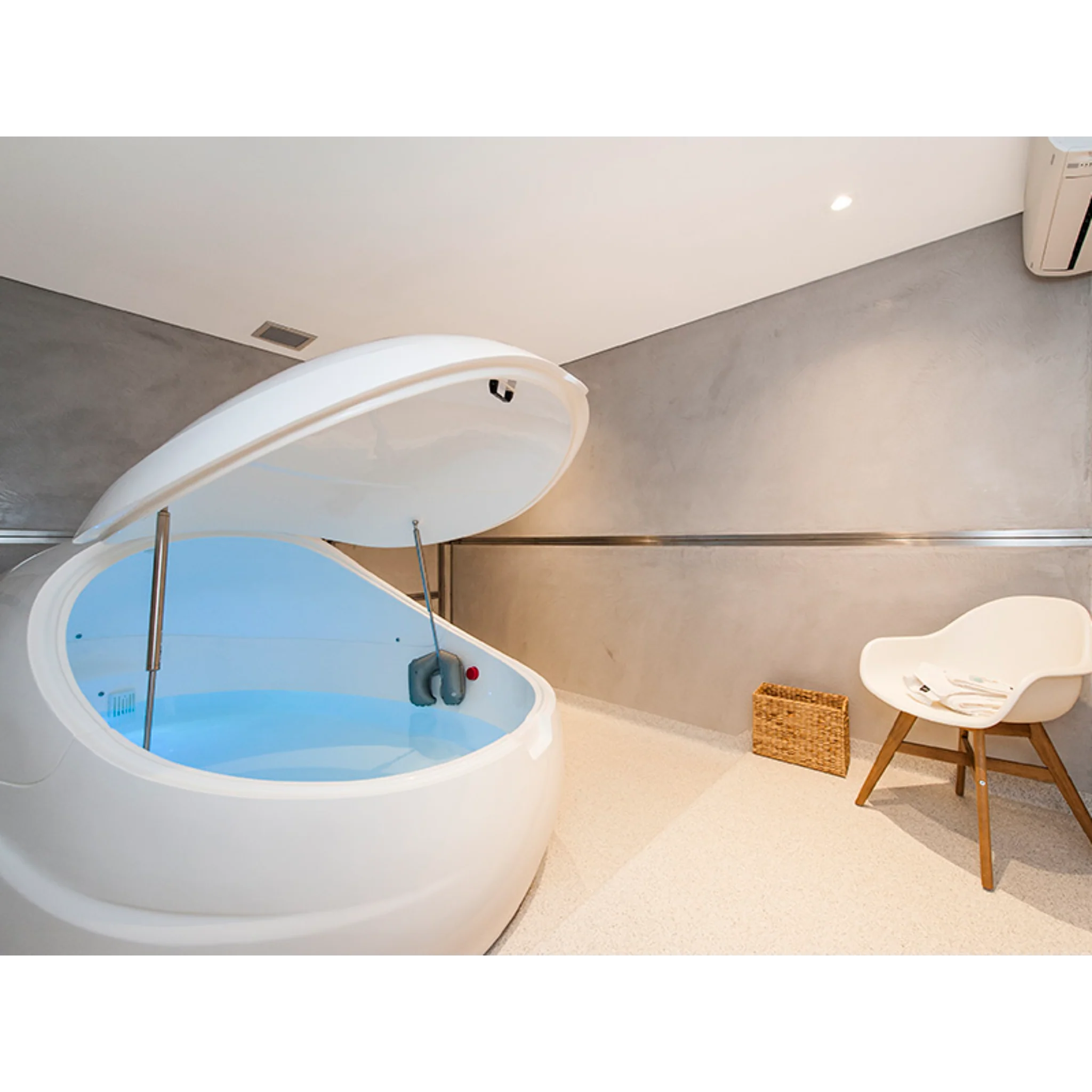

The pod features a high-gloss fiberglass shell with a foam-core construction, providing excellent sound insulation and thermal stability to help reduce energy consumption. A smooth gas-spring assisted door with an aluminum handle ensures effortless entry and exit. Inside the pod, guests enjoy a non-slip floor, gentle multi-color LED lighting, passive air circulation, and an integrated tactile transducer for immersive underwater audio playback.

Features

• Commercial-grade glossy fiberglass shell with foam-core insulation
• Compact footprint with spacious interior for taller users
• Gas-spring assisted door with aluminum handle for smooth, quiet operation
• Passive air circulation for comfort during sessions
• Anti-slip internal floor for safe entry and exit
• Multi-color LED interior lighting controlled by the system
• Integrated tactile transducer for immersive underwater audio
• Magnetic centrifugal recirculation pump for quiet, efficient water flow
• Titanium heating element with built-in safety protections
• Stainless steel filtration system with high-capacity filter bag
• UV germicidal sanitation system for chemical-free water disinfection
• Dual peristaltic pumps for precise, automated chemical dosing
• Waterproof housing for all electronic components
• Computer-controlled system for managing temperature, filtration, lighting, audio, UV, and dosing schedules


Specifications

V2 FLOAT POD

Dimensions: 2580 × 1741 × 1326 mm (8.46 × 5.71 × 4.35 ft) Internal Length: approx. 2270 mm (7.44 ft) Construction: Glossy fiberglass shell with foam-core insulation Power Requirements: 220V AC, 50/60Hz, 15A (20A fused) Pump: Magnetic centrifugal circulation pump Heater: Titanium element heater Filtration: Stainless steel housing with 10-micron filter bag Sanitation: 24W UV germicidal system Chemical Dosing: Dual peristaltic pumps Lighting: Multi-color LED interior lighting Audio: Integrated tactile transducer Controls: Computer-controlled system for temperature, filtration, lighting, audio, UV, and dosing

Room Design & Setup Recommendations

Environment

• Wet, salty space (≈300 kg / 700 lb Epsom salt). Prioritize sound/light control and non-porous finishes.

Move-In & Space

• Breaks into 3 parts: base, lid, back panel.
• Base: 2486 mm / 8 ft L × 705 mm / 2 ft 2 in H × 1488 mm / 4 ft 8 in W.
• Hallway width for 90° turns: 1300 mm (~4 ft 3 in); fits standard doors.
• Room minimum: 3500 × 3000 mm (11.5 × 10 ft); ceiling ≥ 2200 mm / 7 ft.
• Clearance: ≥ 800 mm / 2 ft behind pod for connections.
• Engine box sits directly next to the pod.

Surfaces

• Floors: seamless non-slip vinyl/rubber; if tiled, waterproof subfloor + epoxy grout.
• Walls: epoxy paint; coved base (flooring turned up wall); FRP panels in splash zones.

Air & Temperature

• Mechanical ventilation (HVAC + bath fan).
• Room temp control preferred; target 78–82°F (26–28°C).

Lighting

• Soft/dim for sessions; bright for cleaning.

Water & Drainage

• Shower in-room for pre/post rinse.
• Floor drain between shower and pod (or open shower using its drain).
• Dedicated water hookup; fill/top off via standard garden hose.

Plumbing

• Closed-loop system; no external plumbing needed. Use a submersible pump to drain when required.
• Safety & Guest Flow
• Post instructions; require signed liability waiver (feet toward back wall).
• Keep grooming items (mirrors, blow dryers) outside the float room; include small seating/changing area.
