Accora - Configura Advance Tilt-in-Space Specialist Care Chair – Adjustable Postural Support with Leg Rest
Adaptive Support

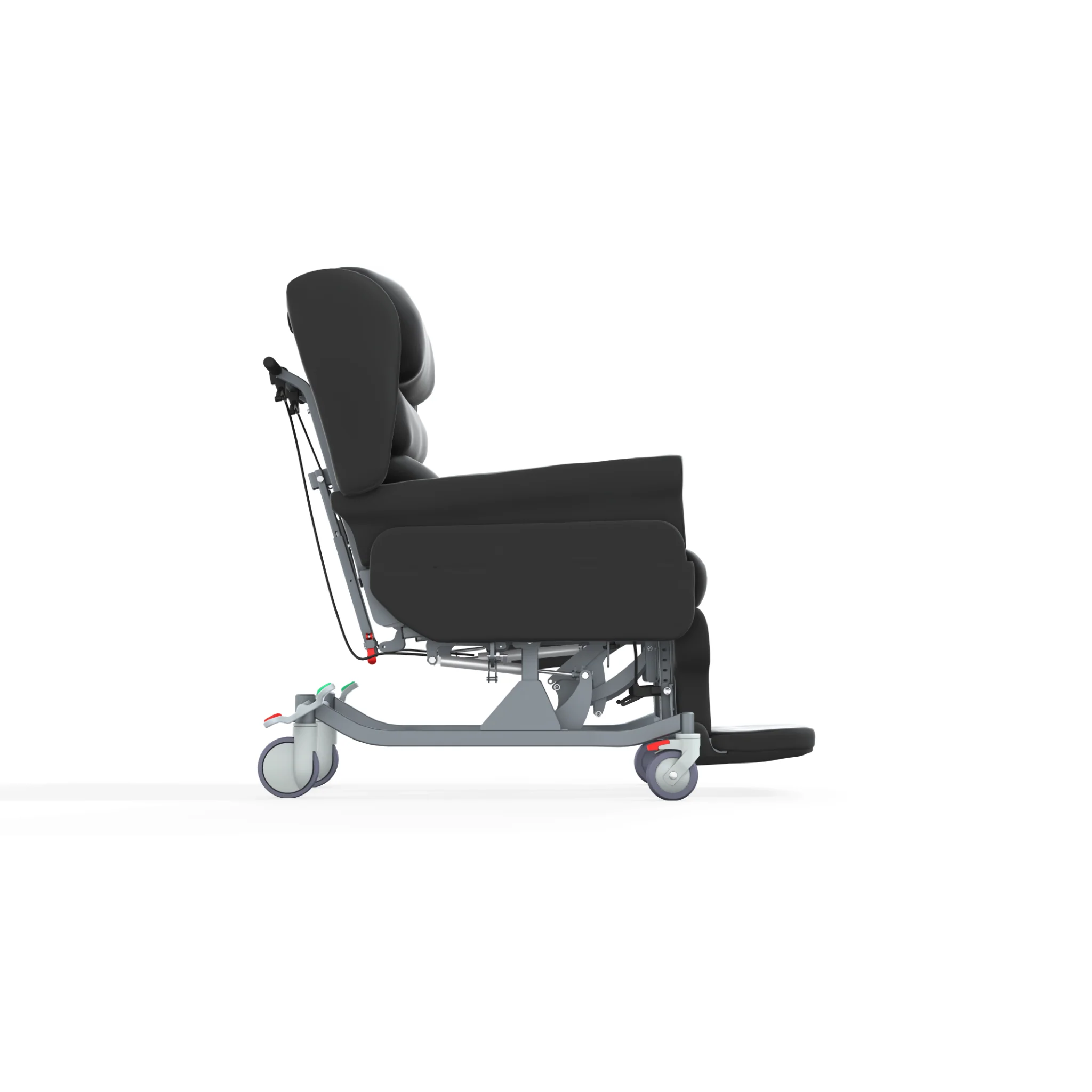

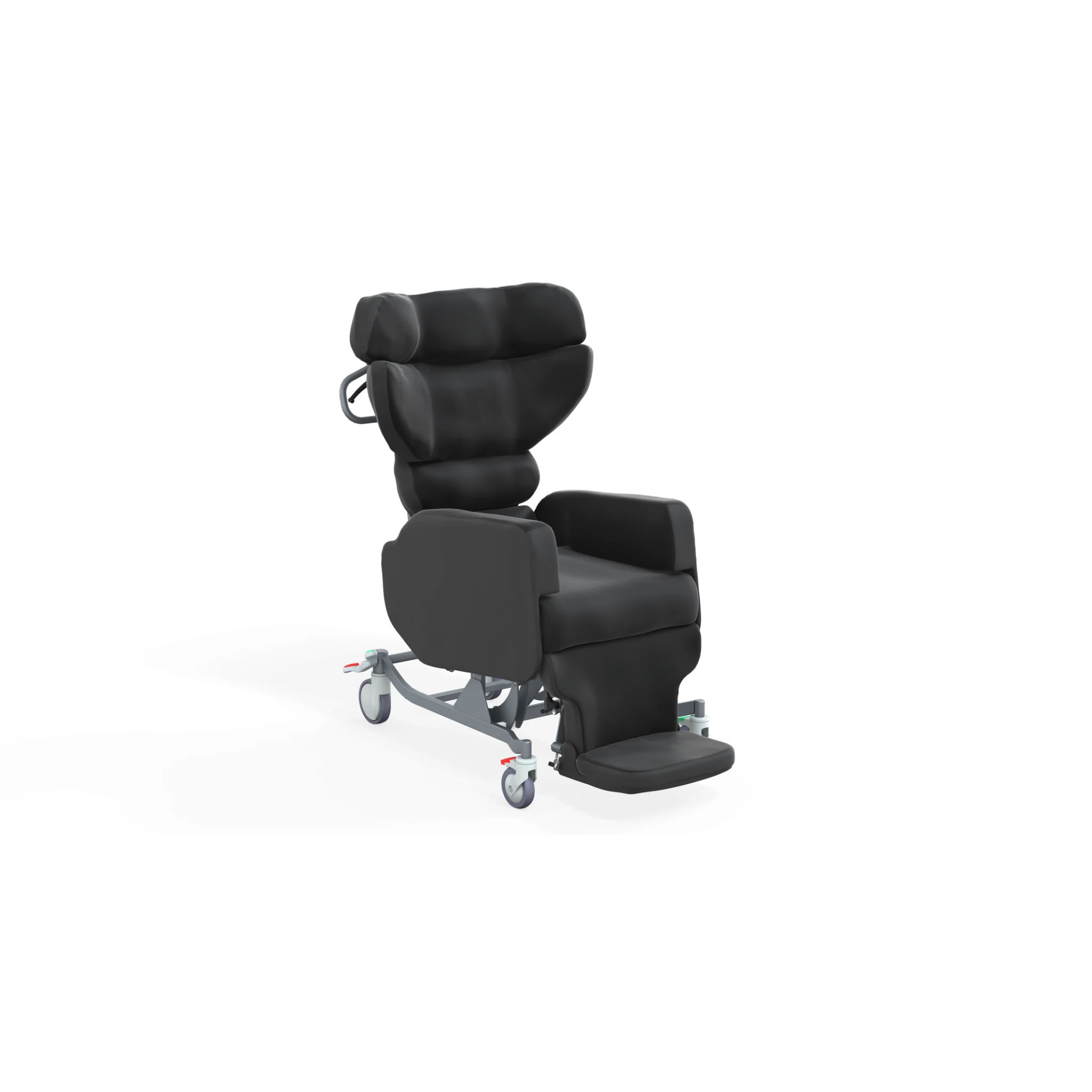

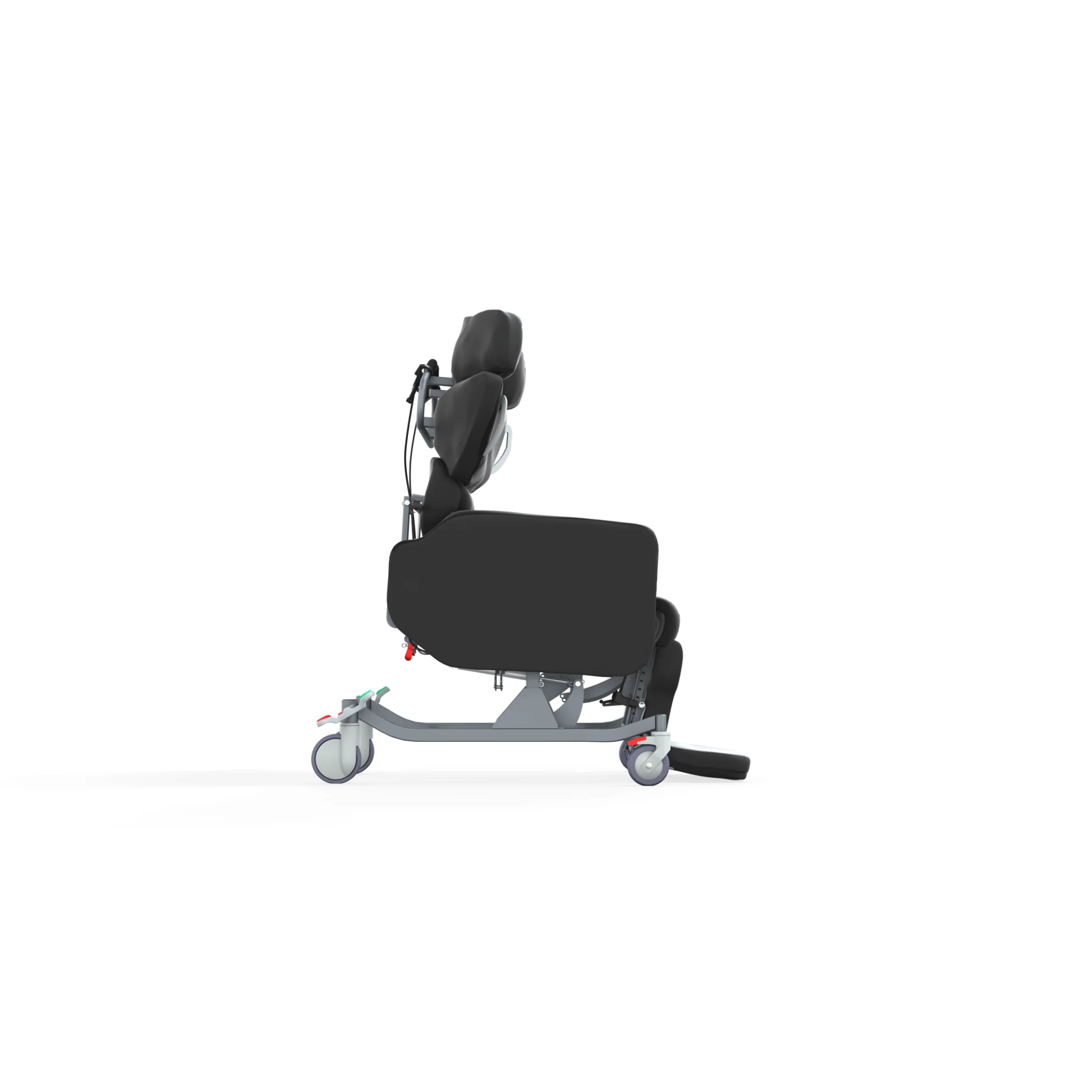

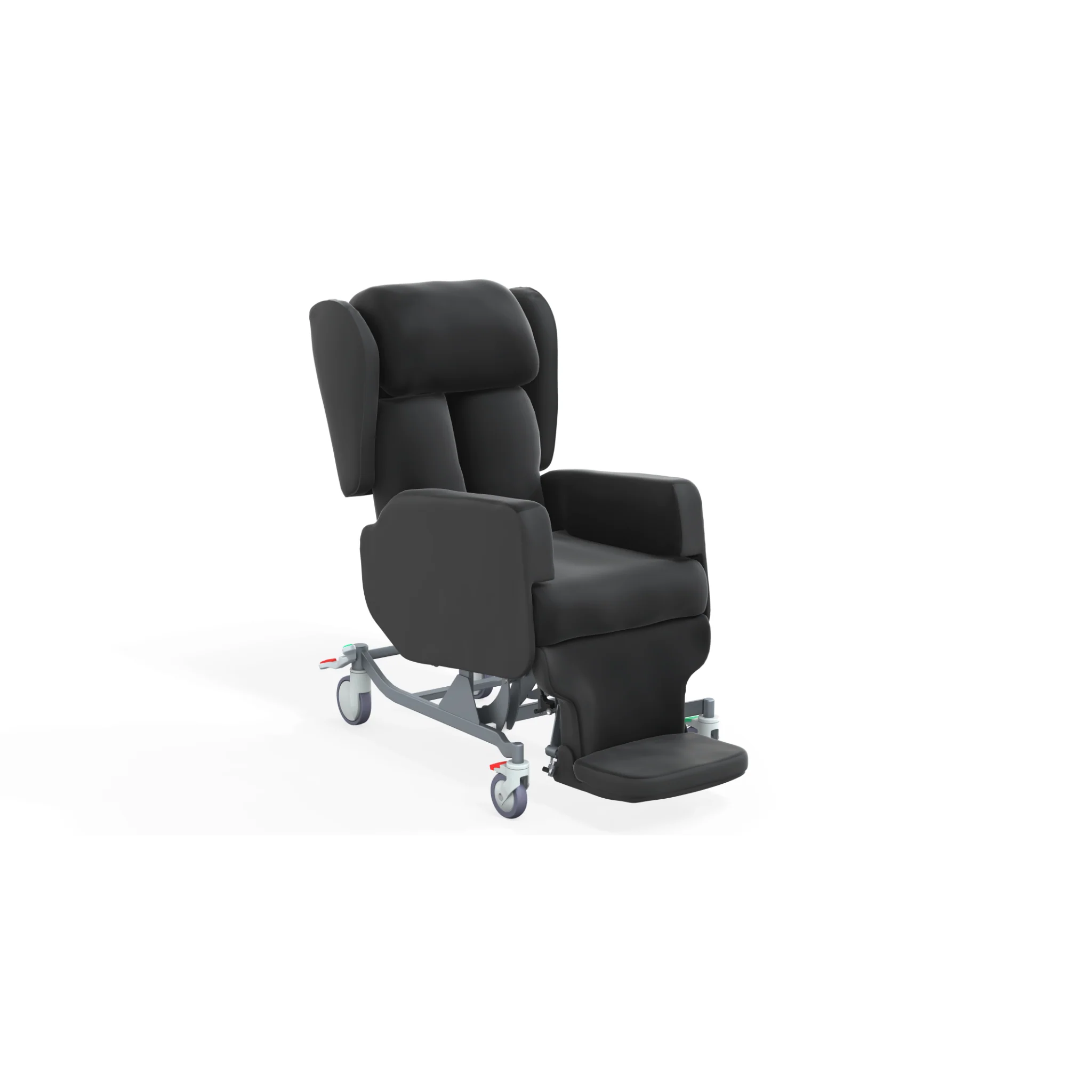

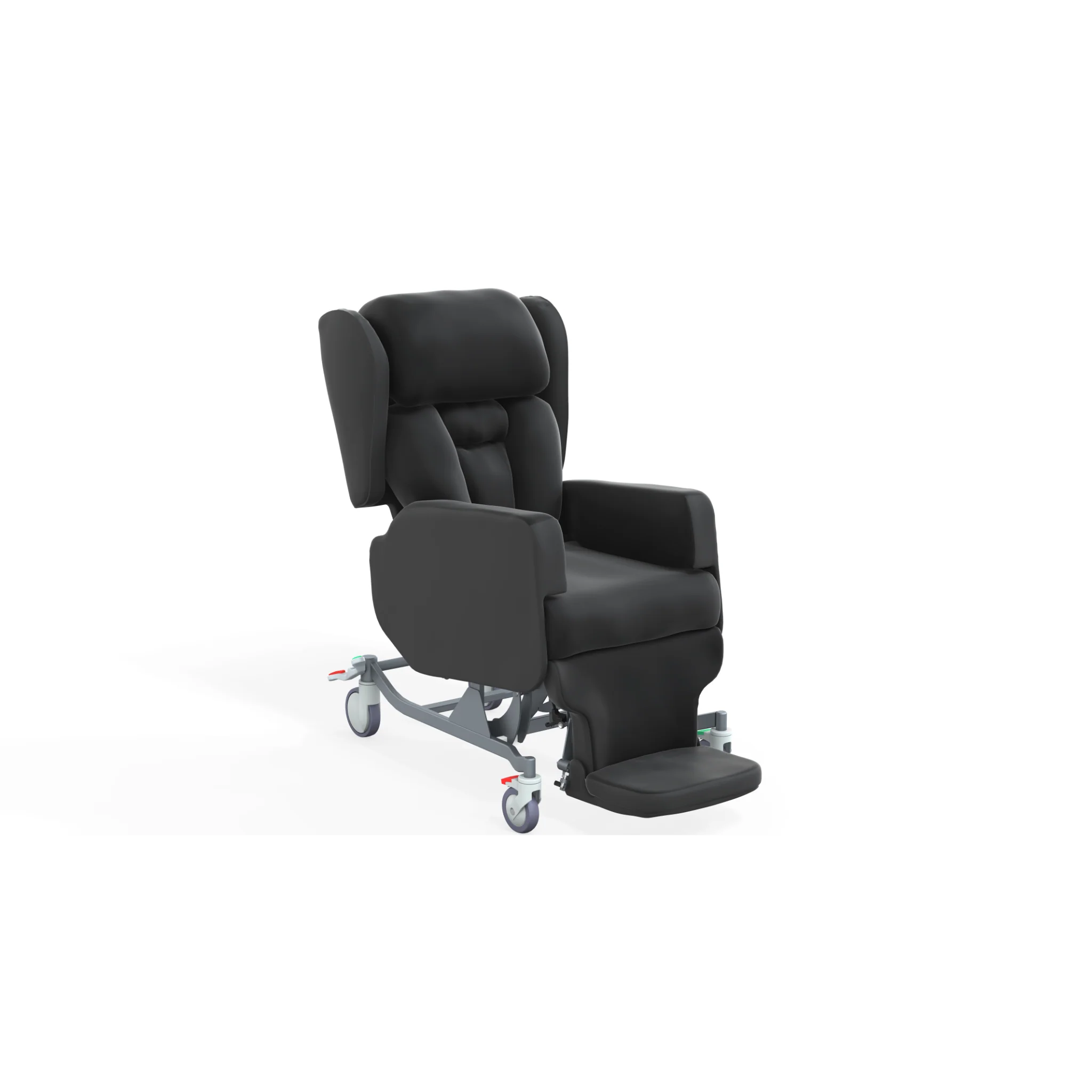

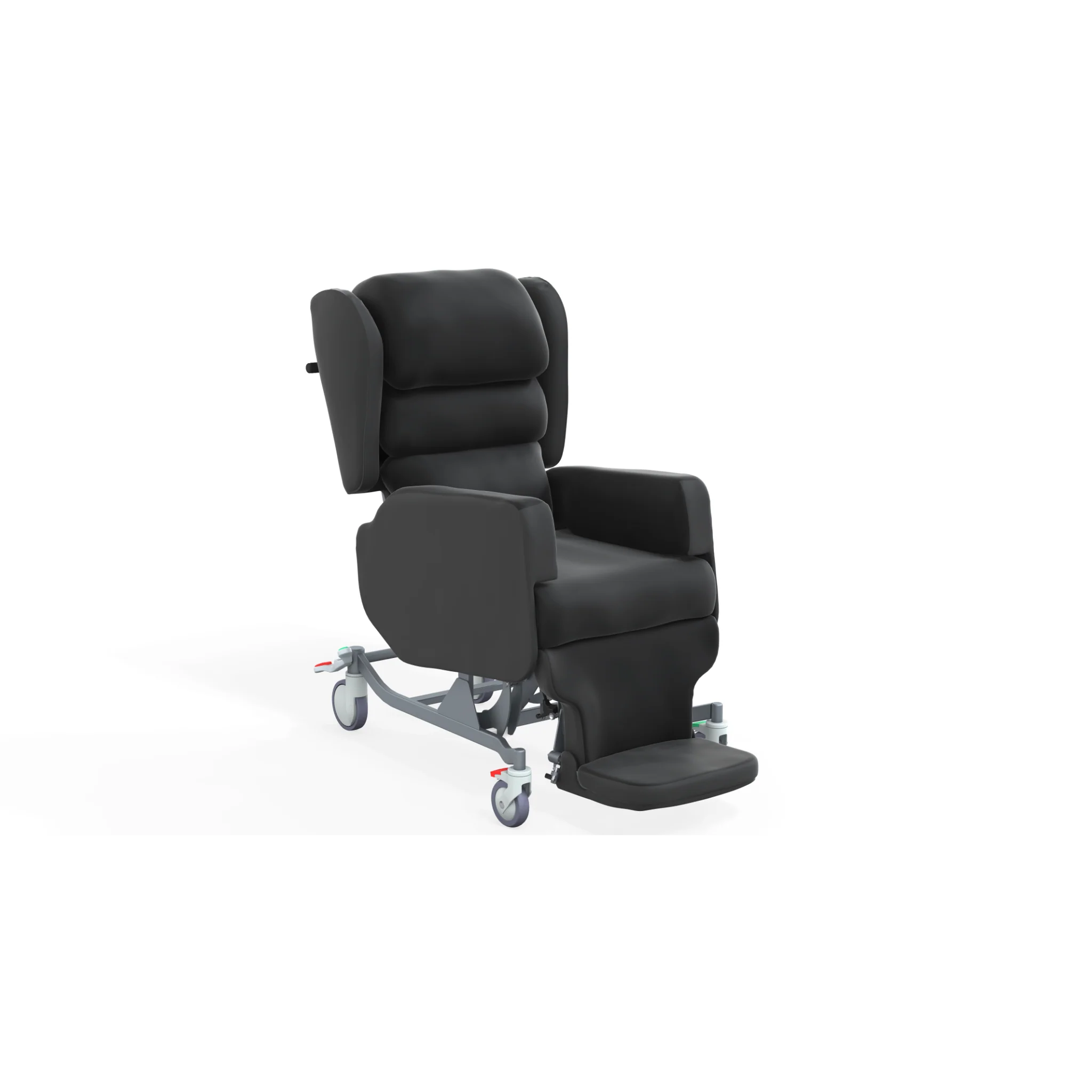

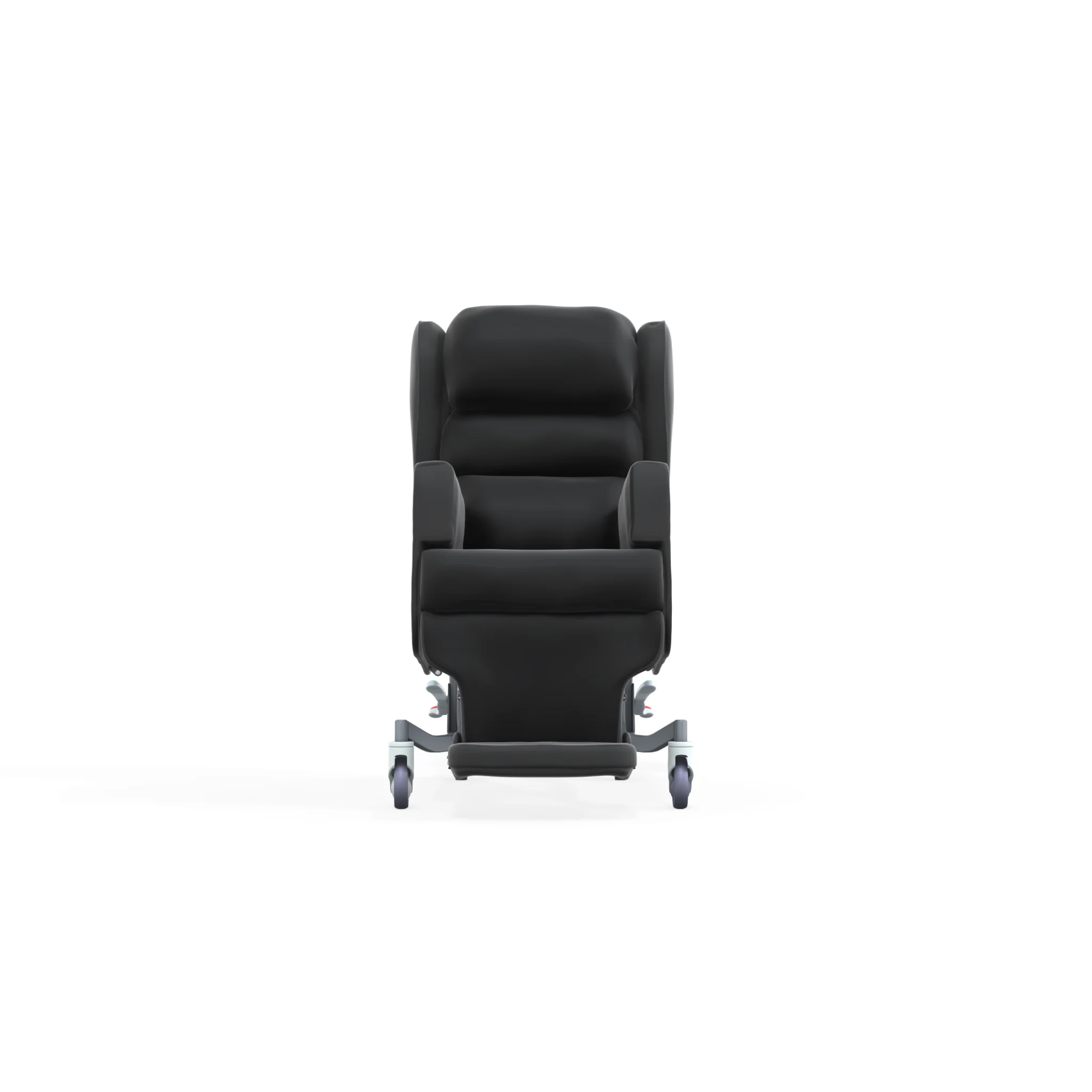

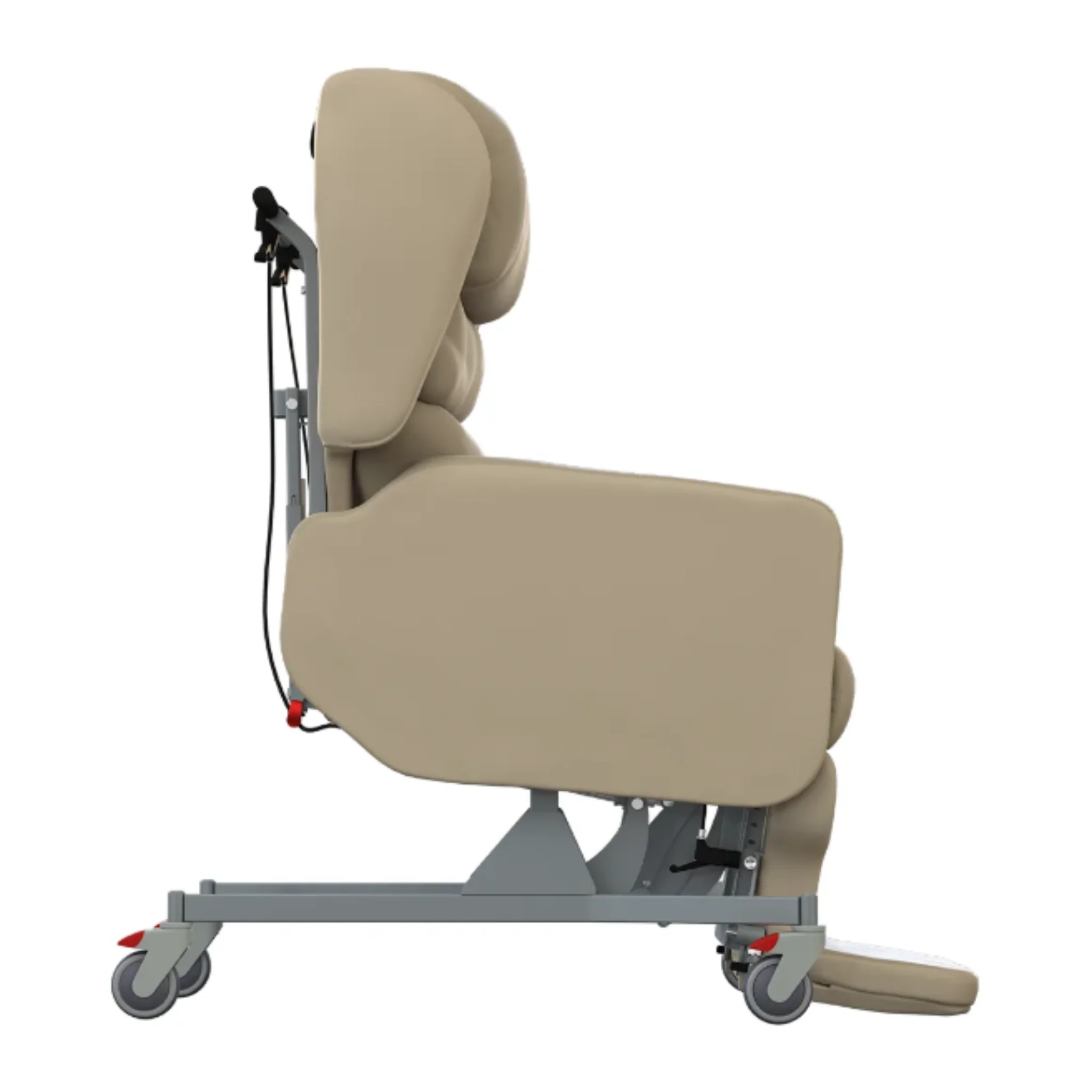

The Configura Advance tilt-in-space chair is a specialist seating system designed for users requiring adjustable postural support and advanced positioning. The chair includes integrated size adjustments across multiple dimensions, allowing configuration for different body profiles and seating requirements. Backrest upgrade options enable compatibility with varying levels of trunk support and positioning needs commonly required in clinical and care environments.

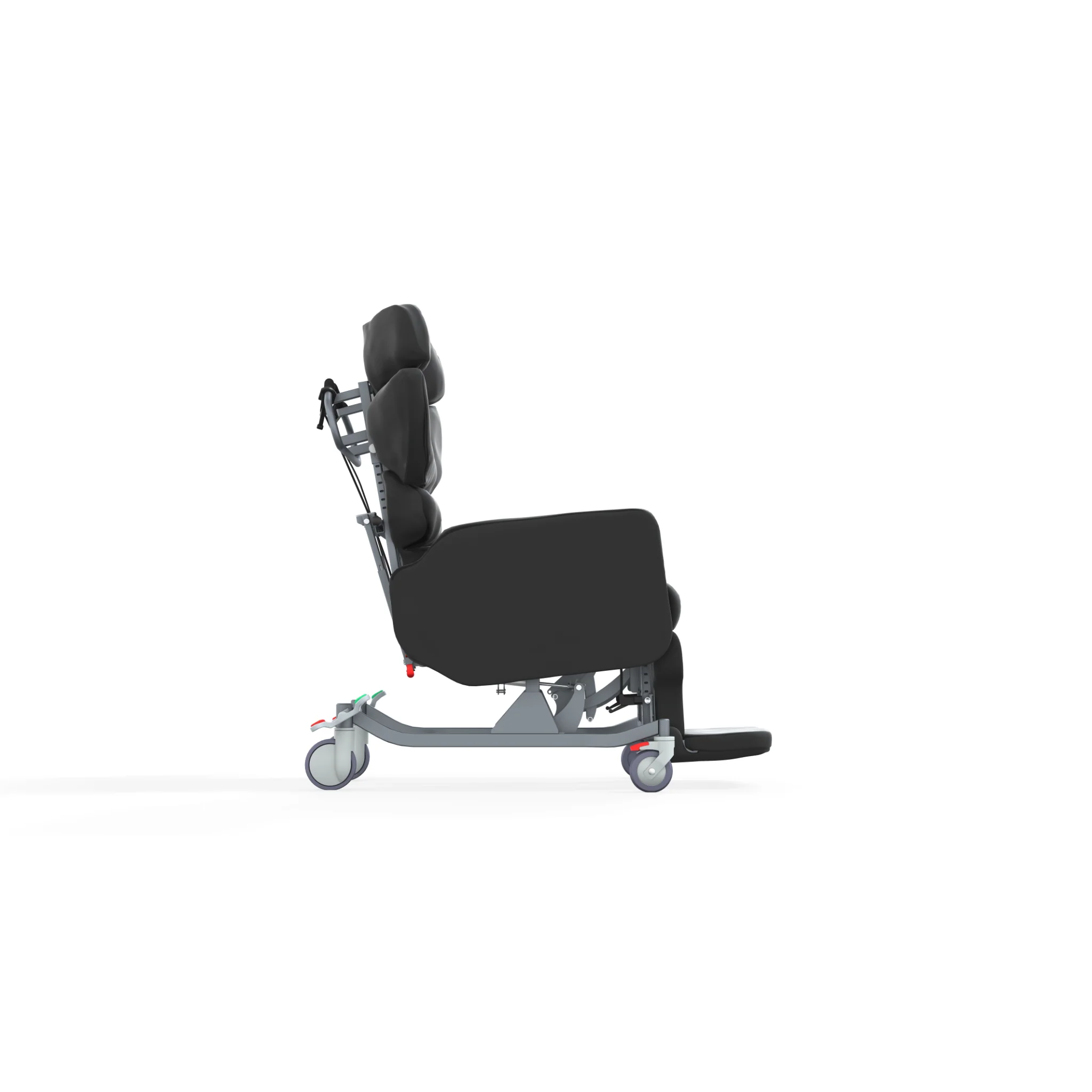

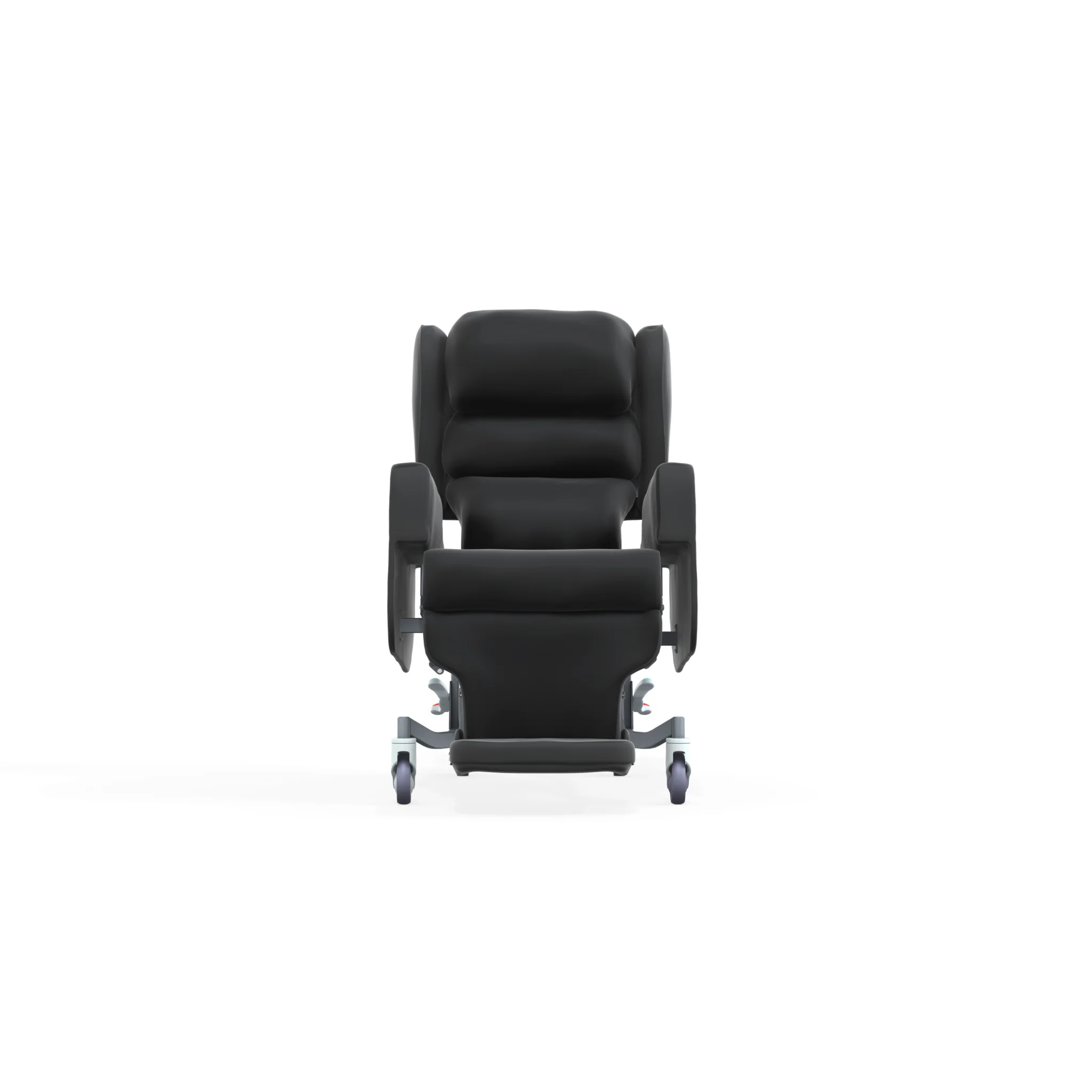

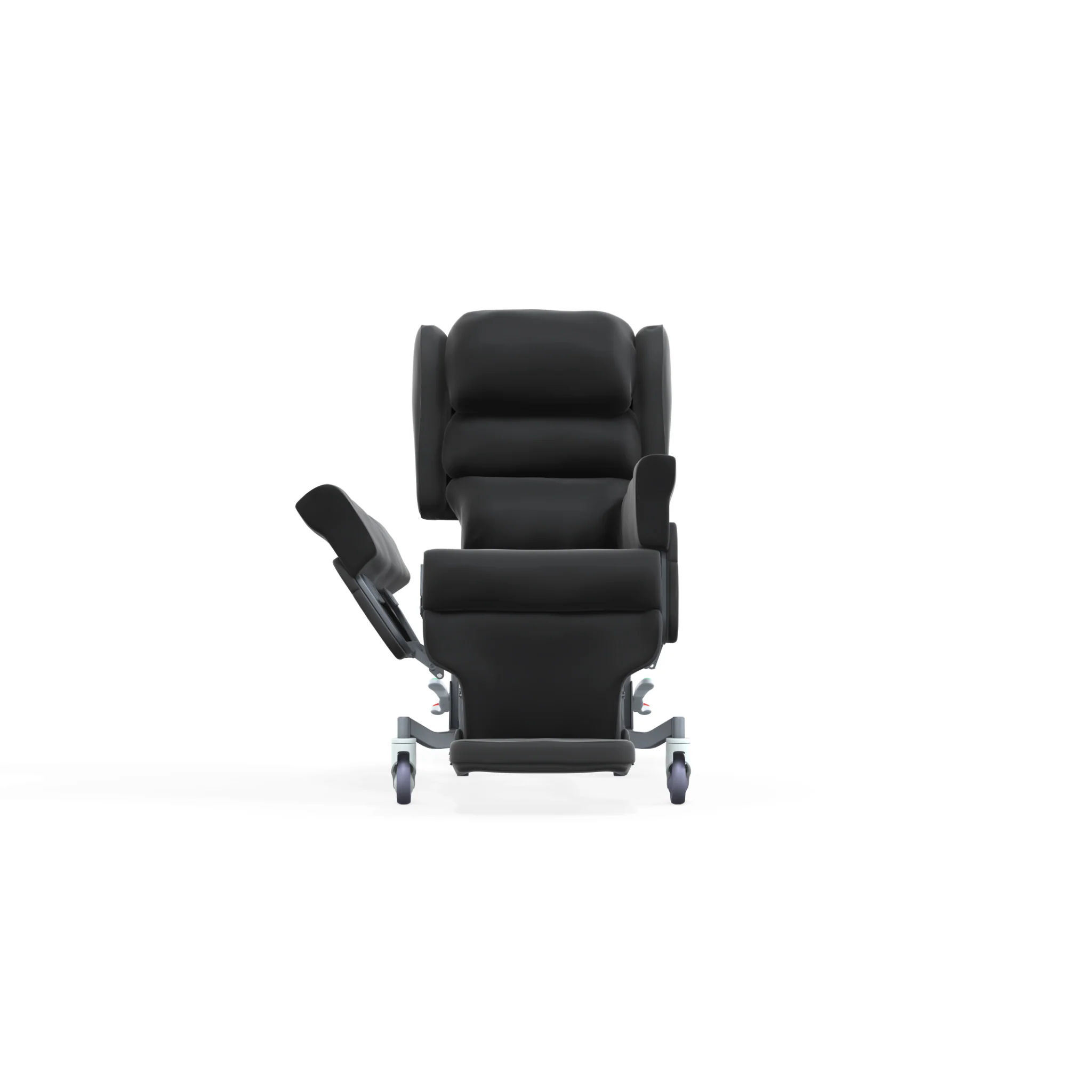

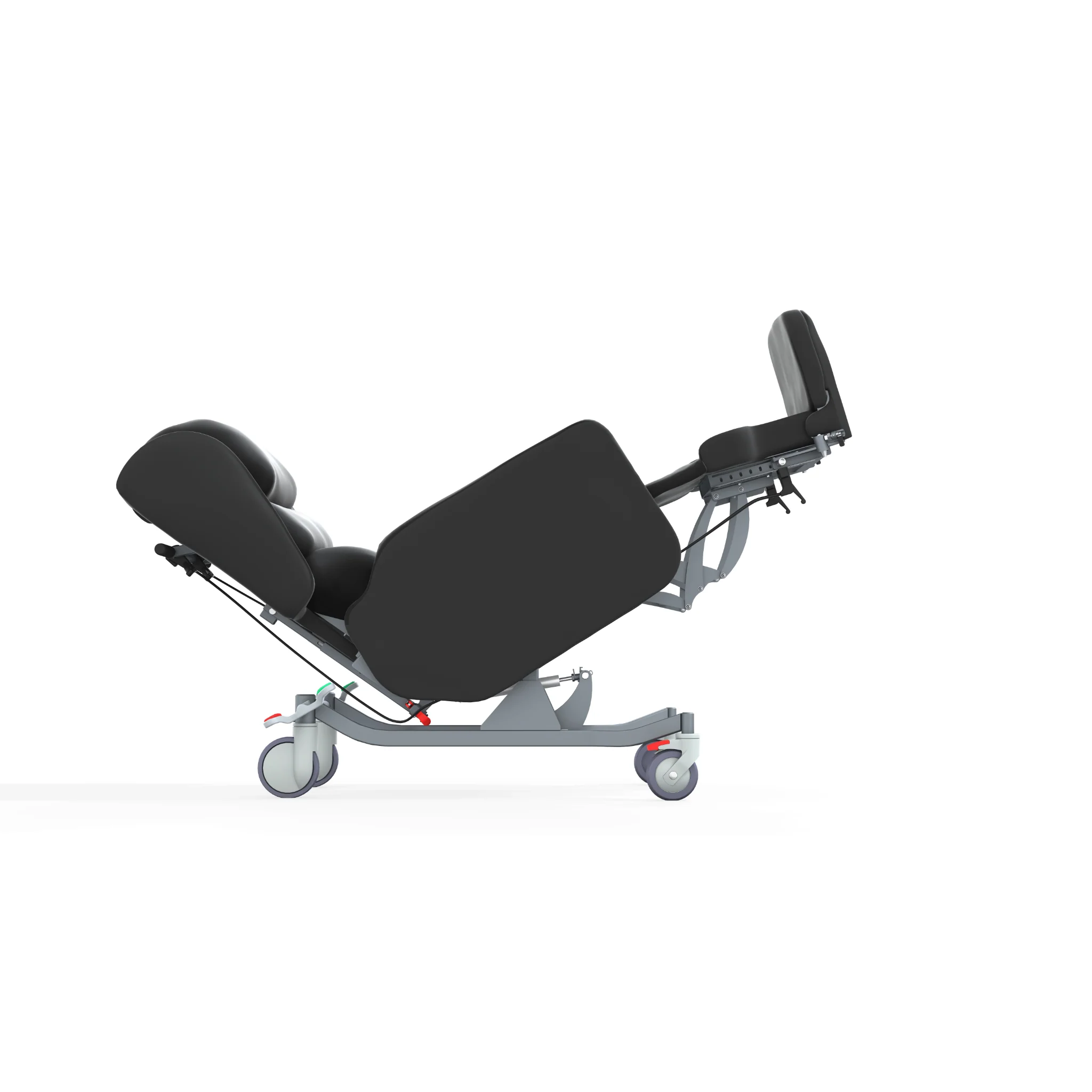

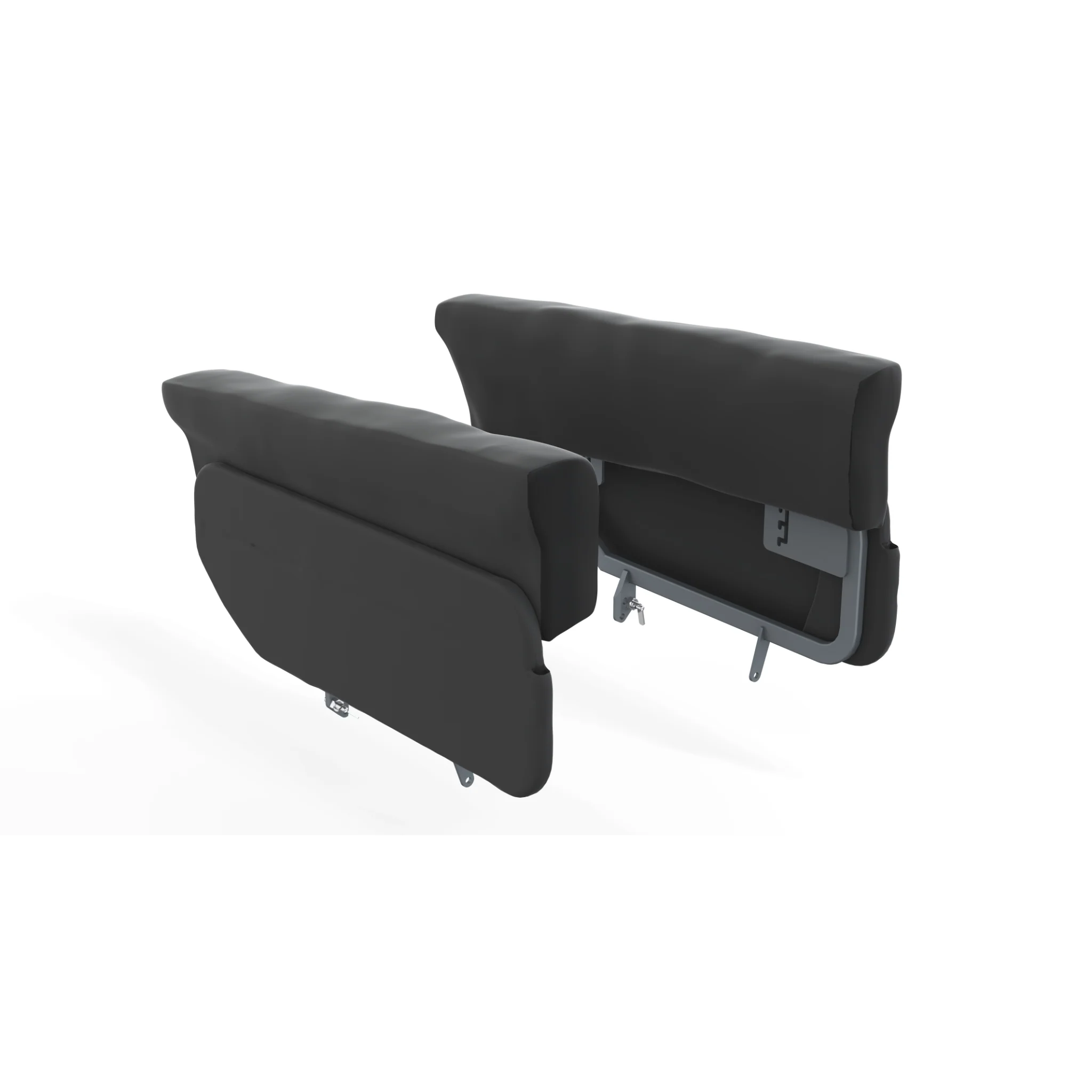

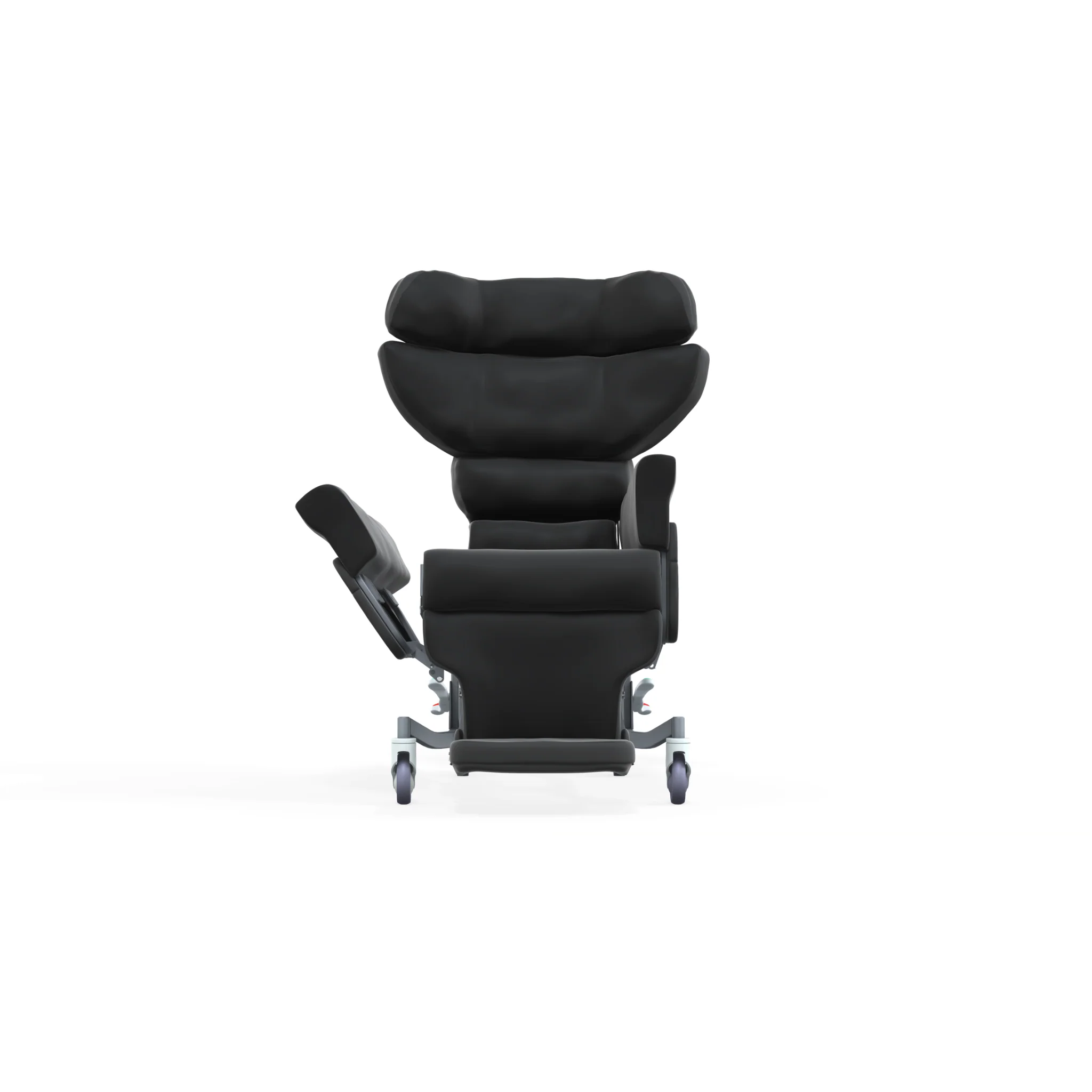

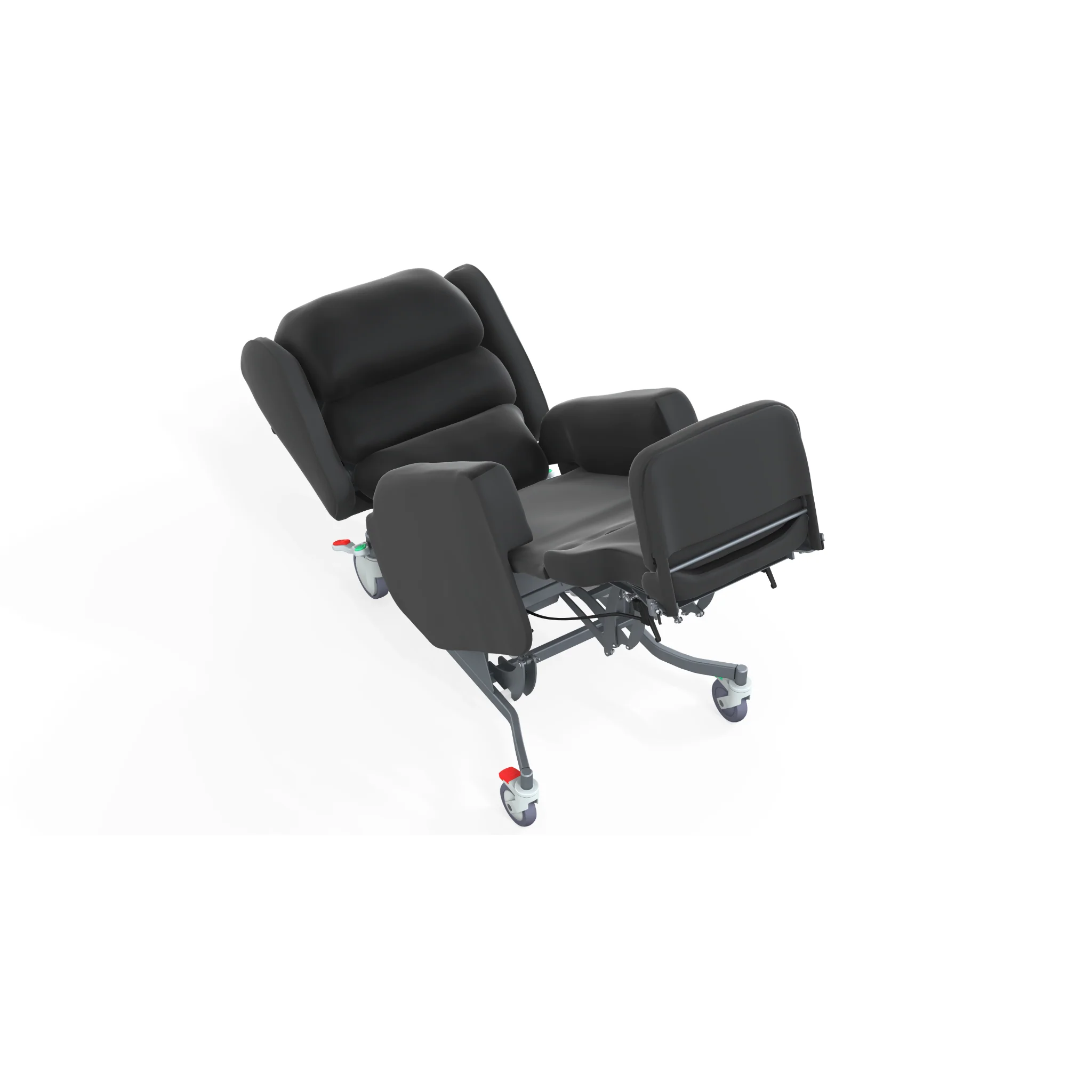

The mechanism provides 37° of manual tilt-in-space with a full-length compensating leg rest, supporting pressure redistribution and lower limb positioning. An optional 10° forward tilt can assist with sit-to-stand transitions and functional repositioning. Optional drop-down armrests allow easier side transfers and sling insertion for hoist compatibility.
An electric upgrade option is available for powered adjustment. The Configura Advance is designed as a postural support chair suitable for high dependency users, offering adaptable seating geometry for long-term care, rehabilitation settings, and mobility support environments.
Features
Advanced Tilt & Adjustment Mechanism
The chair features a 37° manual tilt-in-space system with a full-length compensating legrest to enhance comfort and pressure relief. Optional 10° forward tilt assists with functional positioning, while drop-down armrests make transfers easier. Adjustable seat width, depth, and height provide a customized fit, supporting users up to 160 kg (25 st).
Pressure Management Support

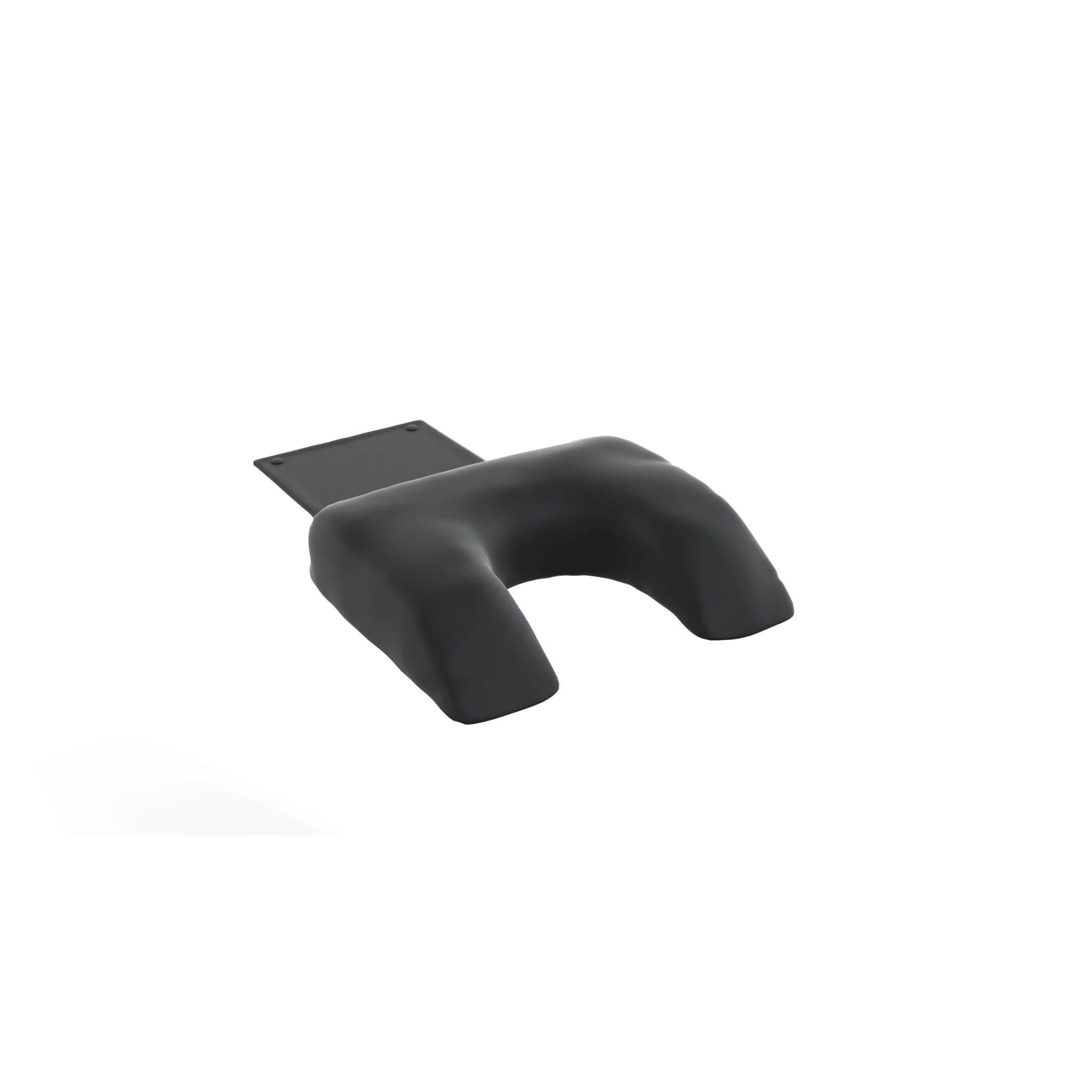

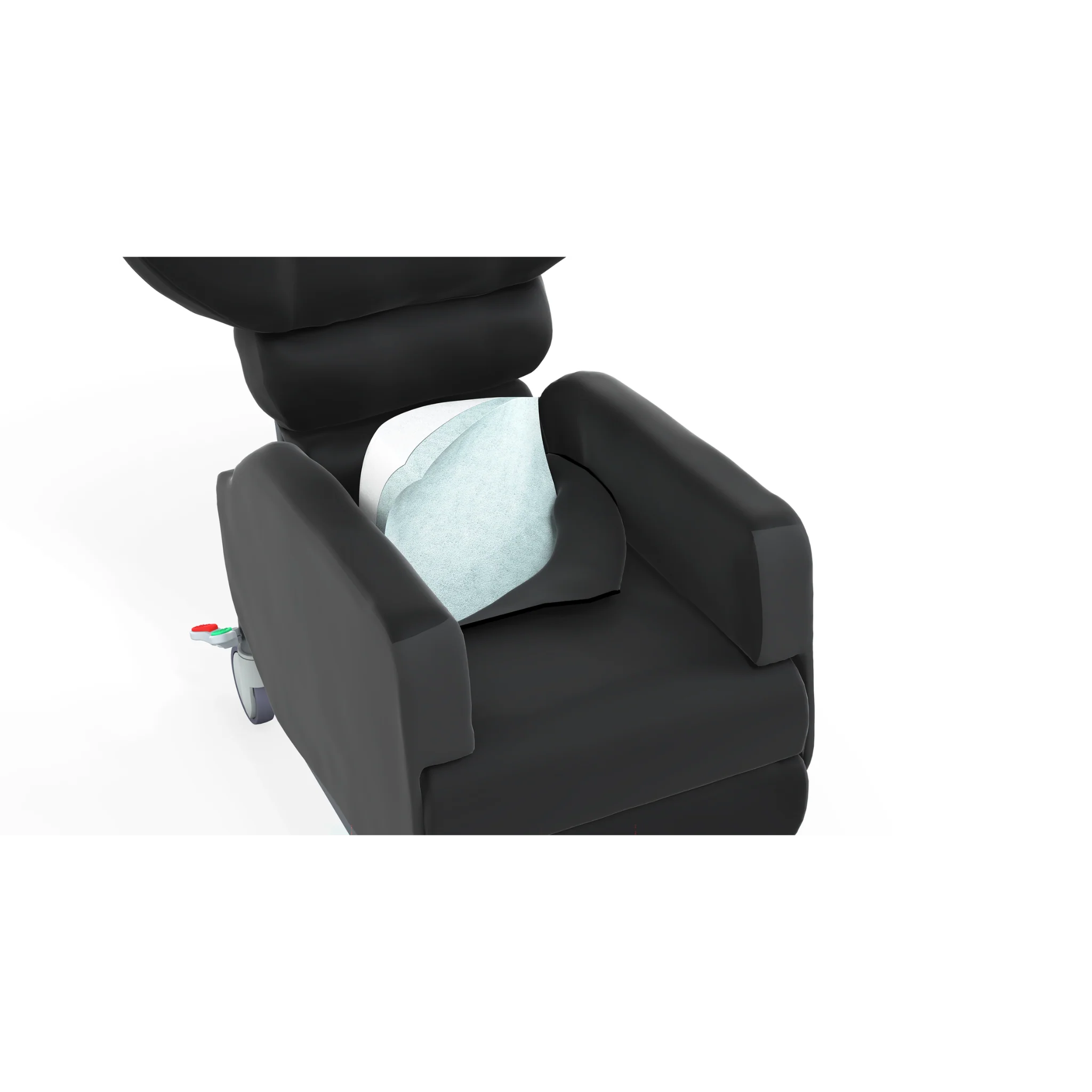

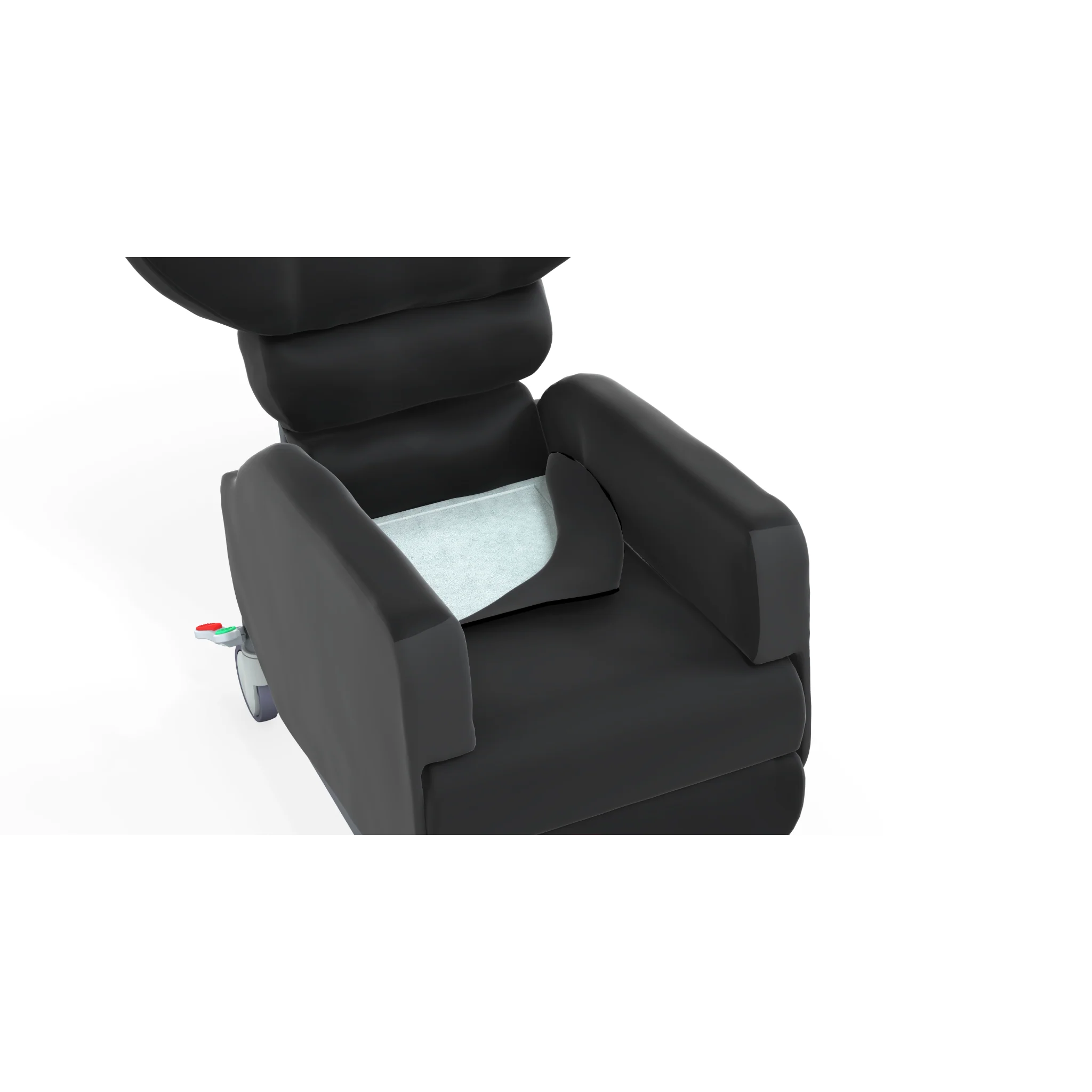

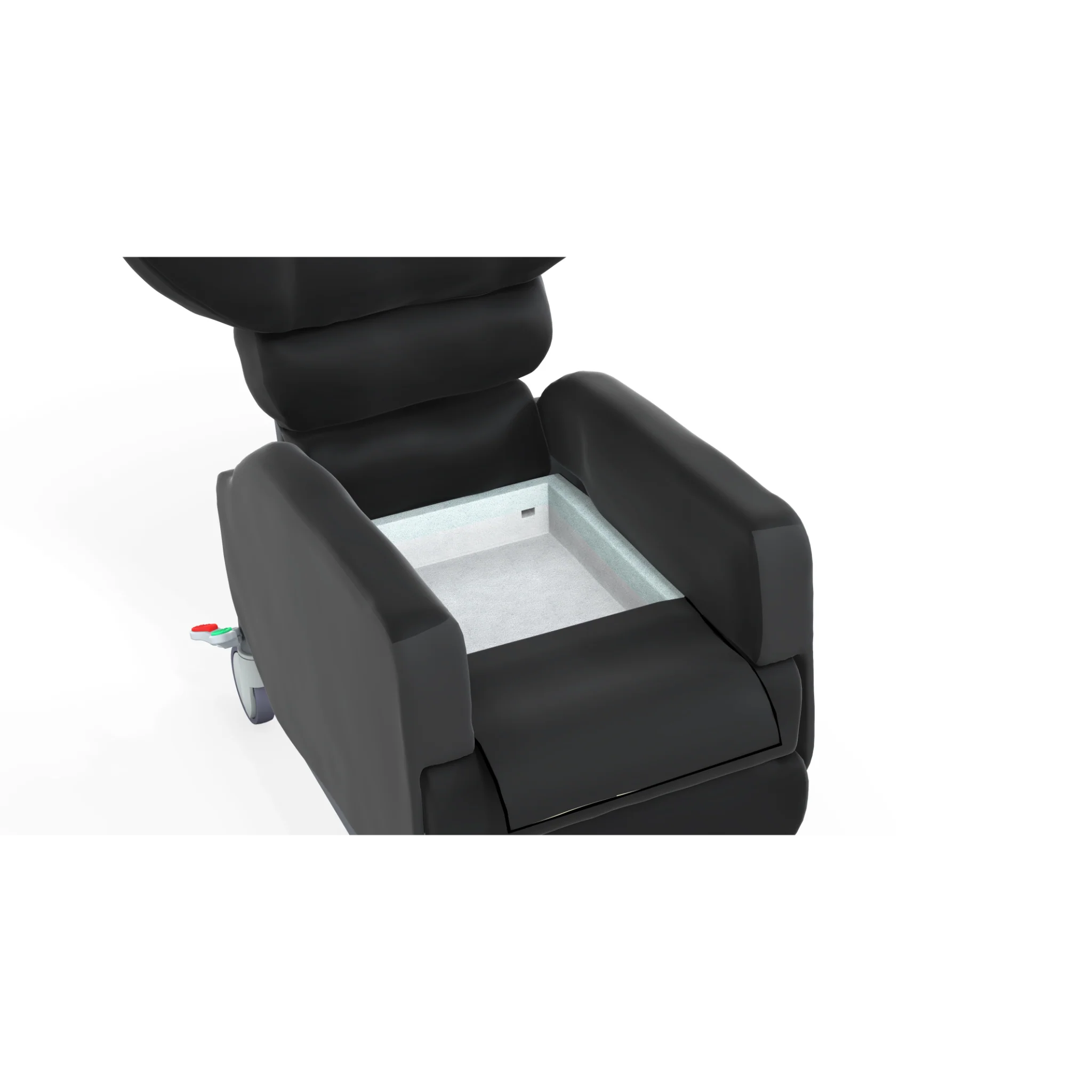

Pressure-reducing fabric and a continuous thigh overlay improve comfort during long sitting periods. The integrated self-supply overlay allows users to add their preferred pressure cushion, while the lockable reduced-shear backrest recline helps minimize friction and maintain pelvic stability.
Posture Management

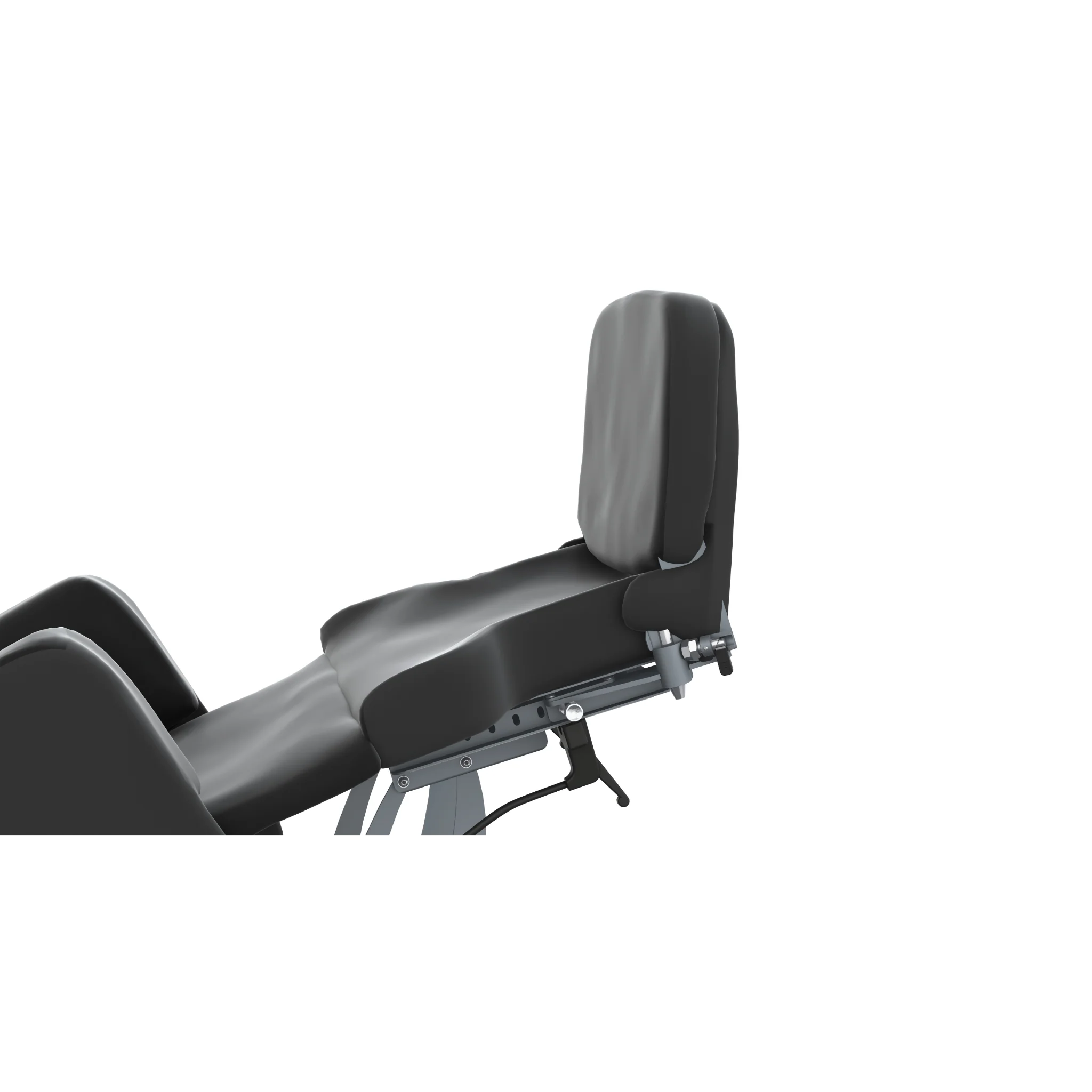

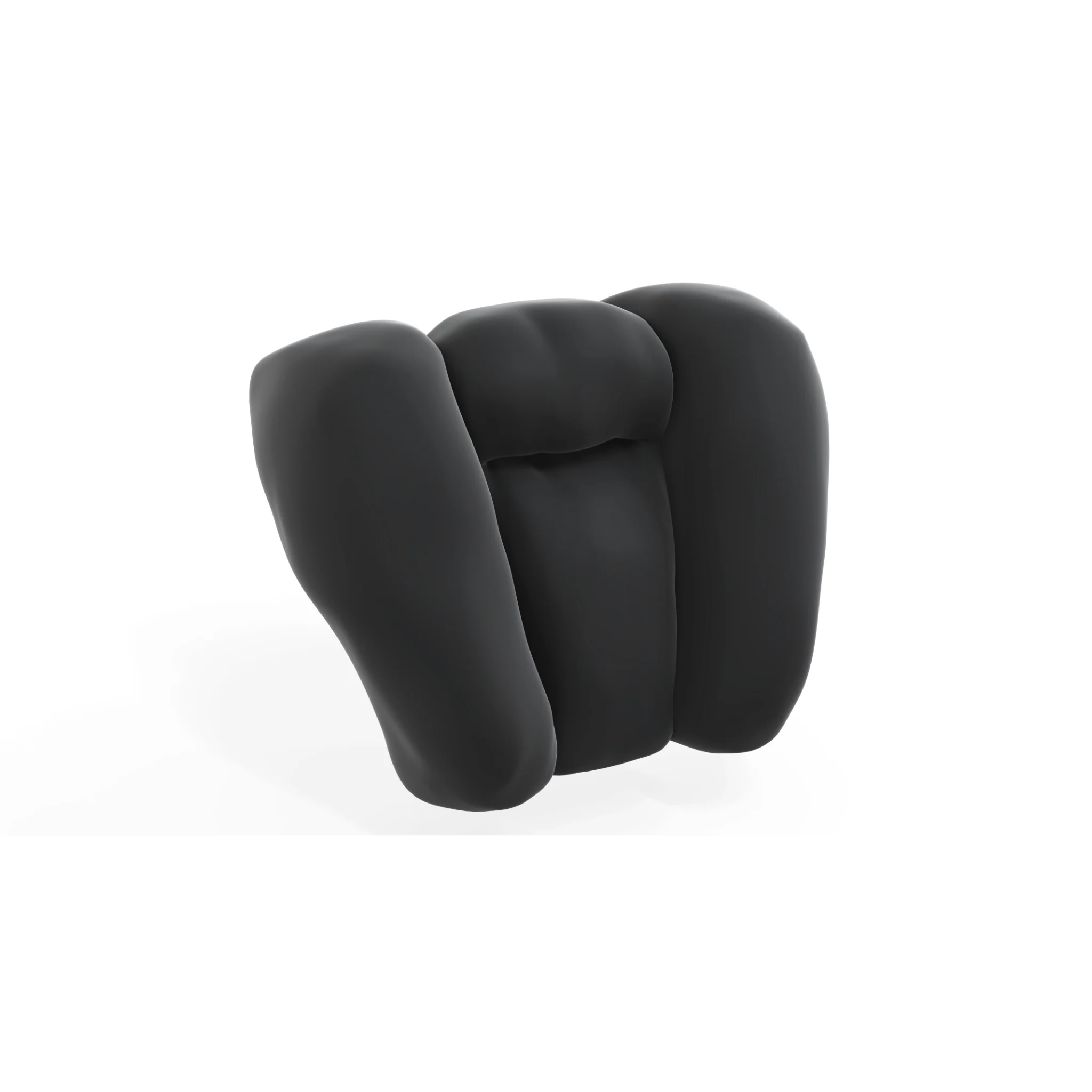

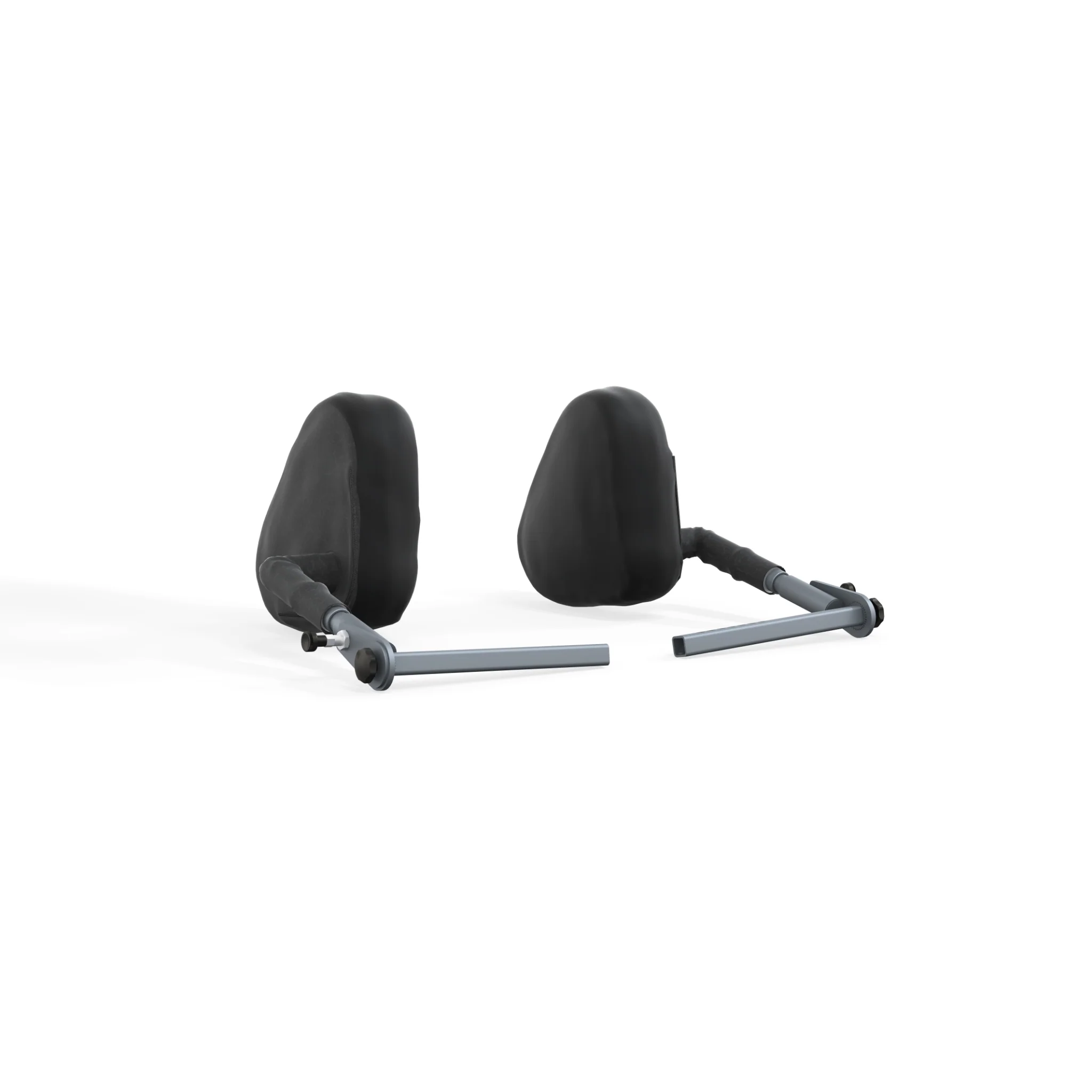

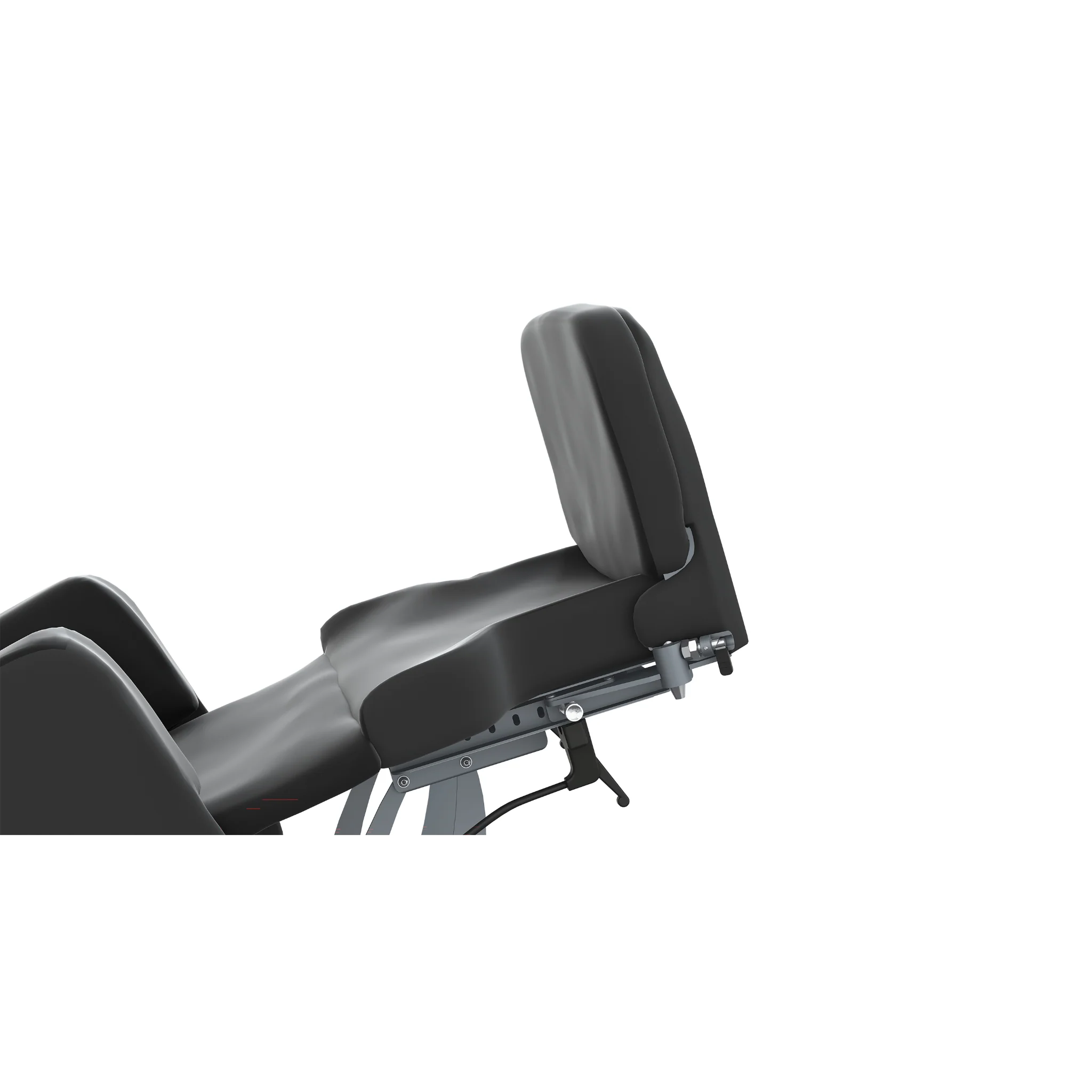

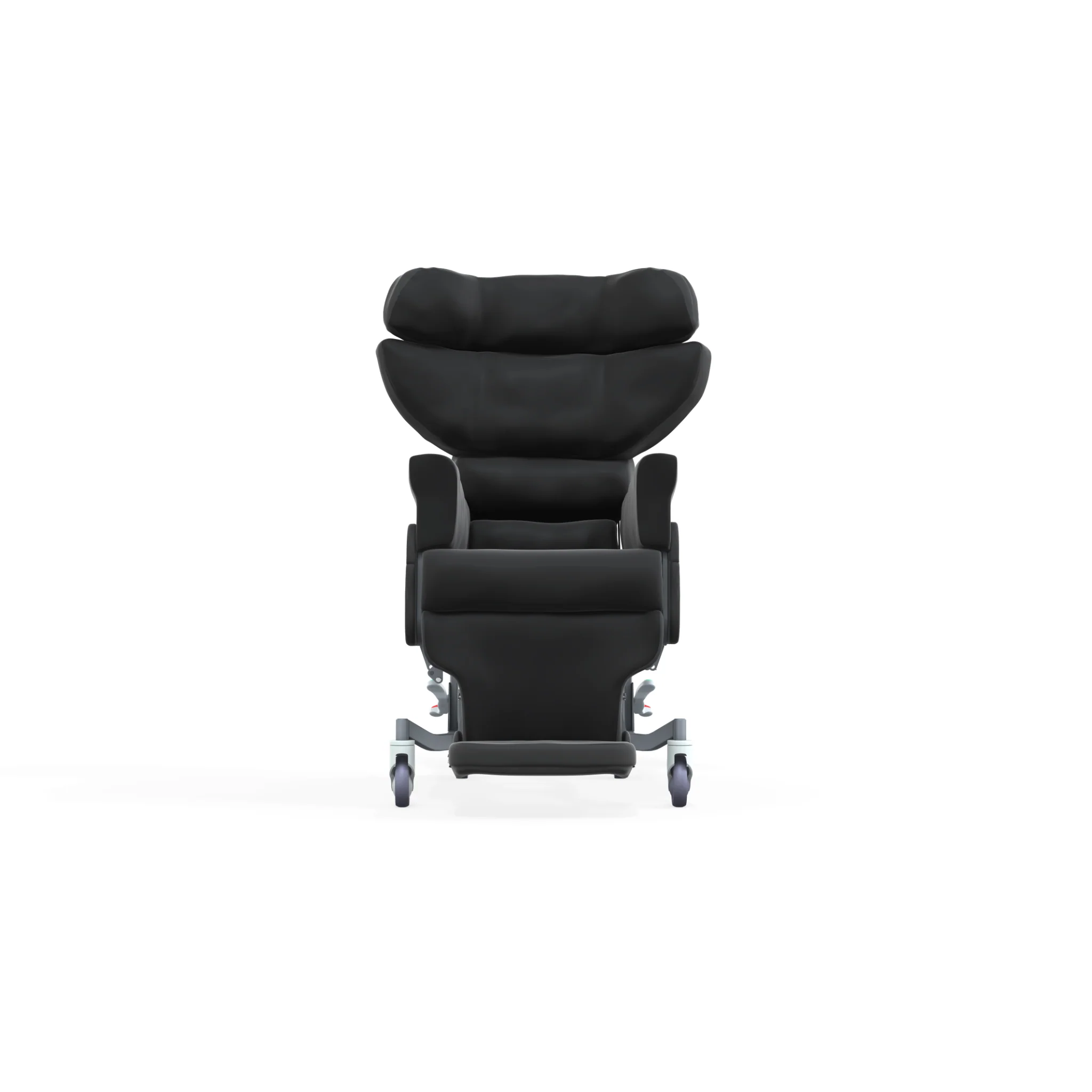

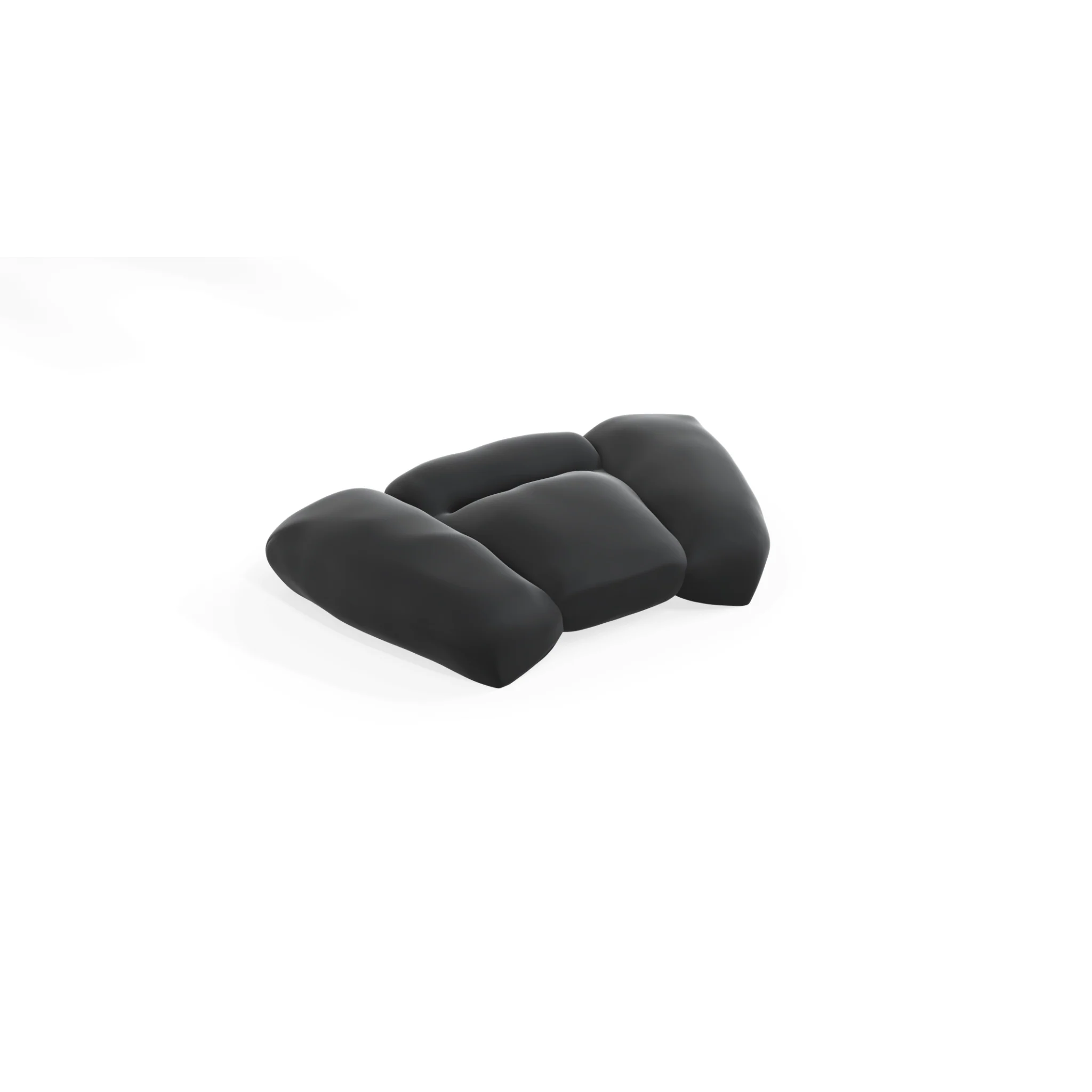

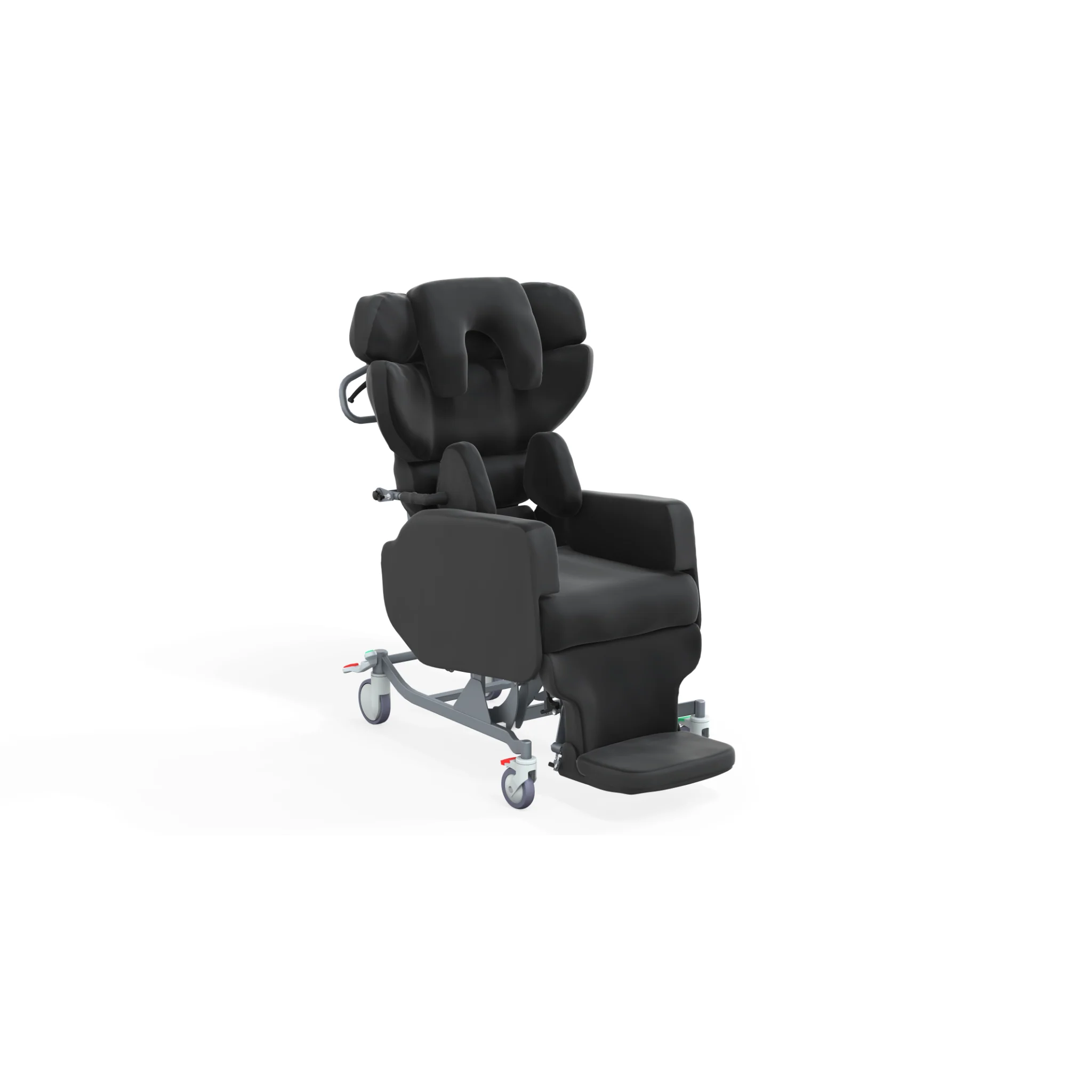

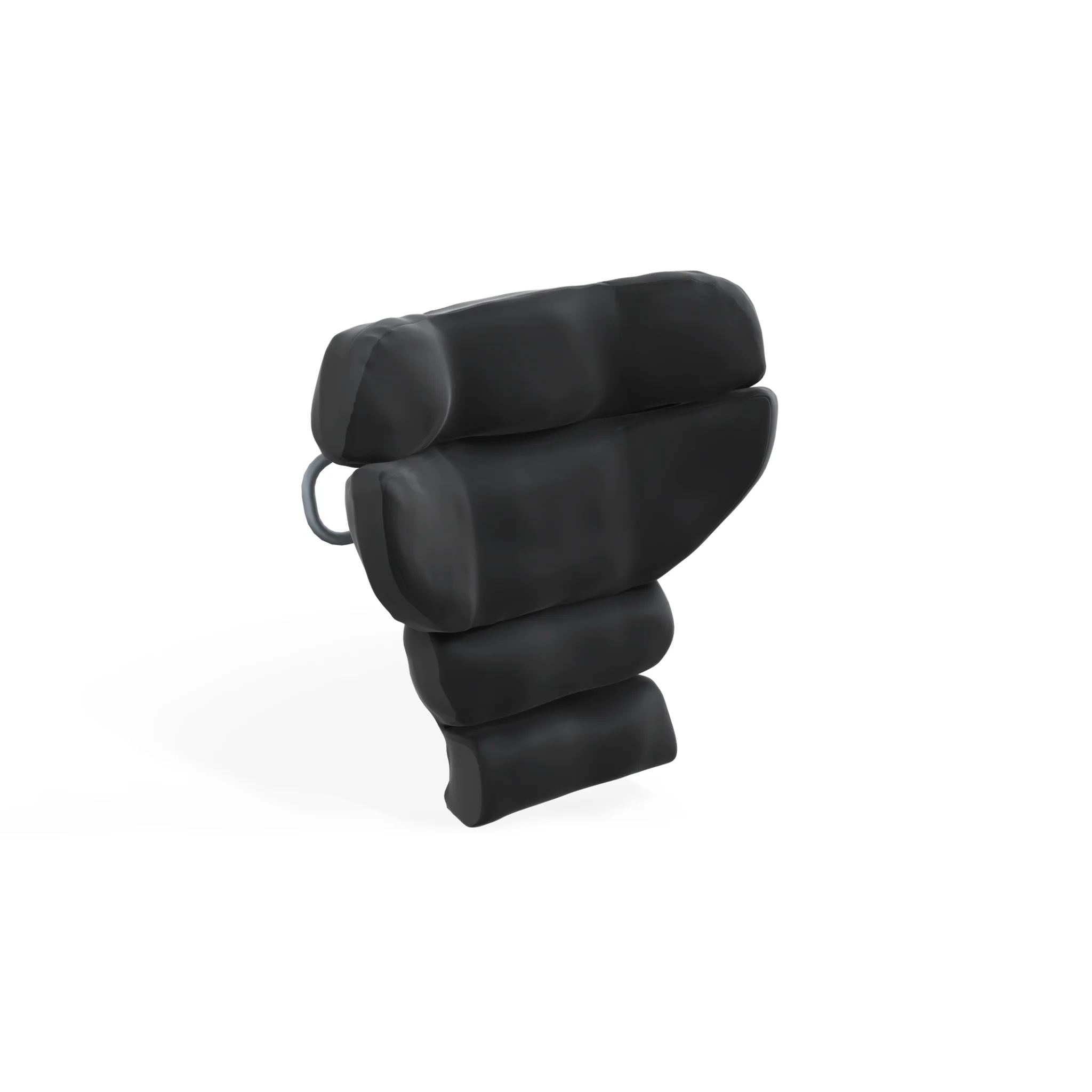

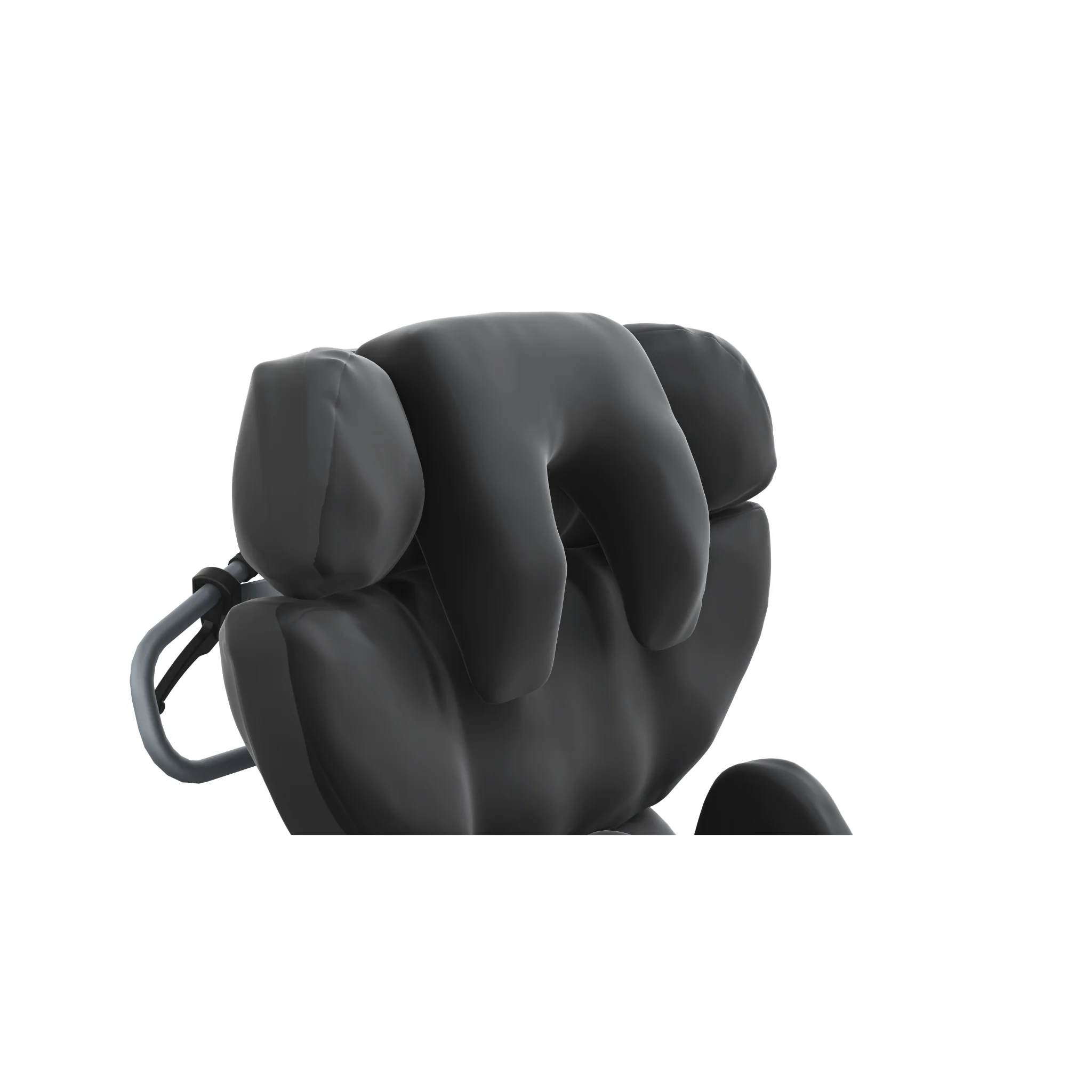

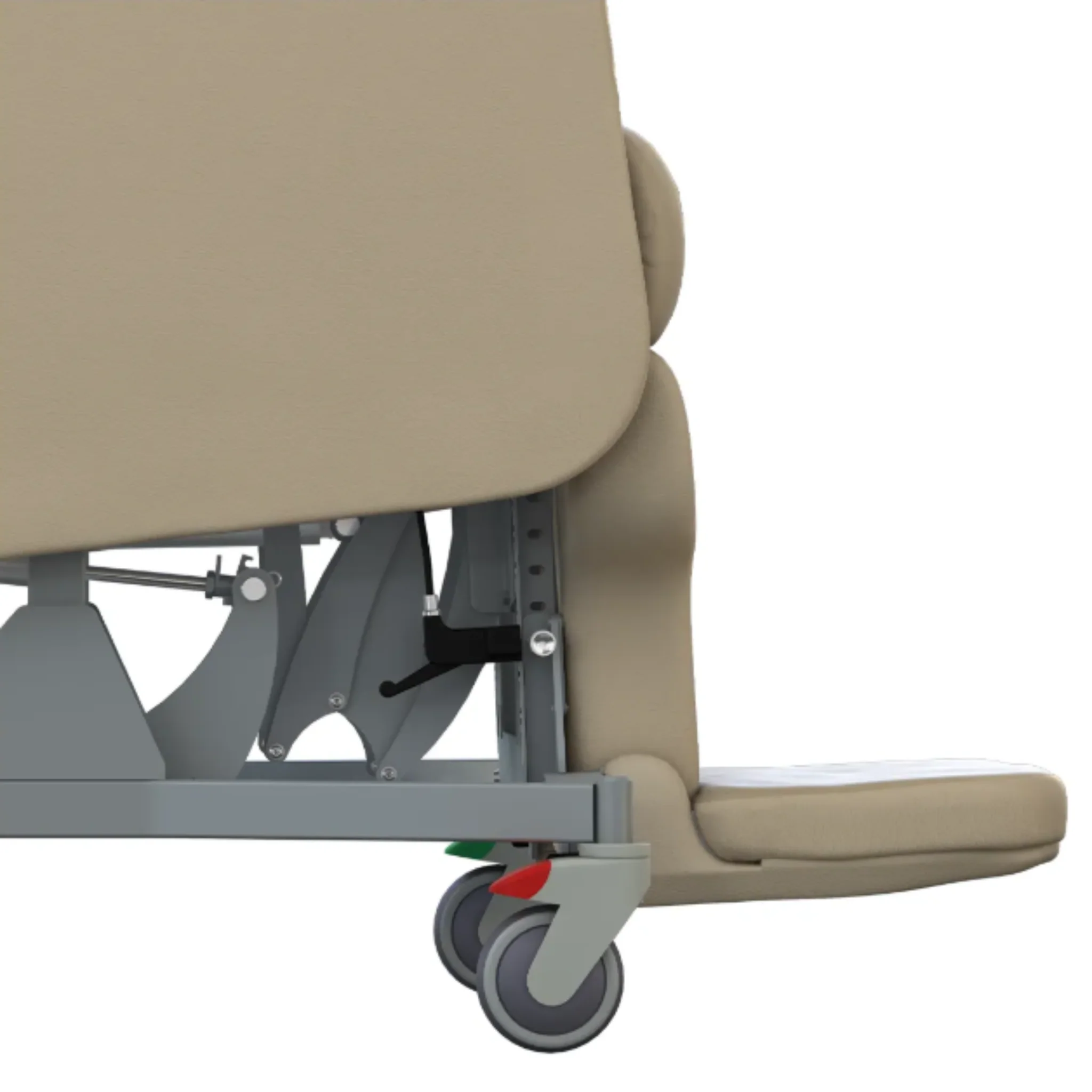

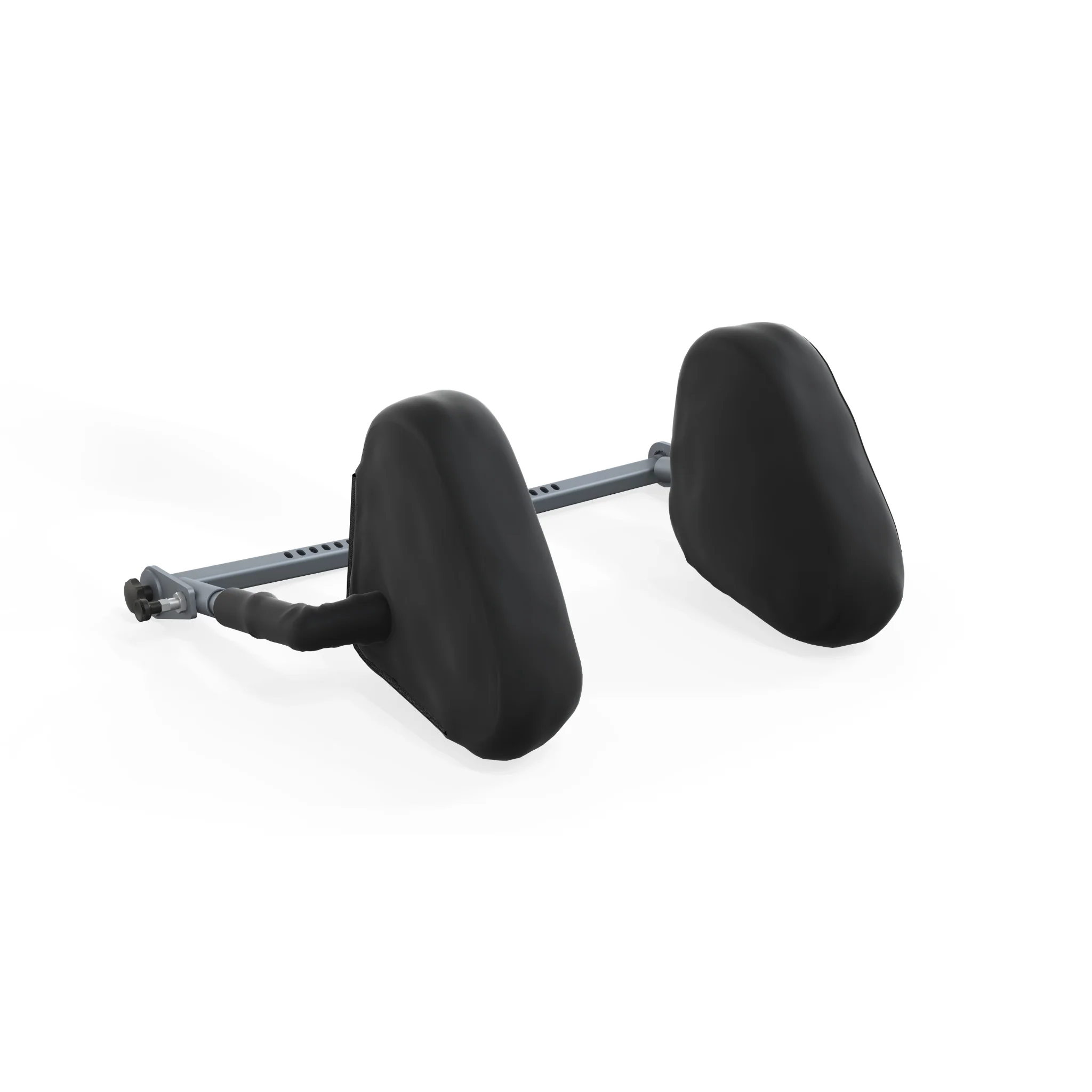

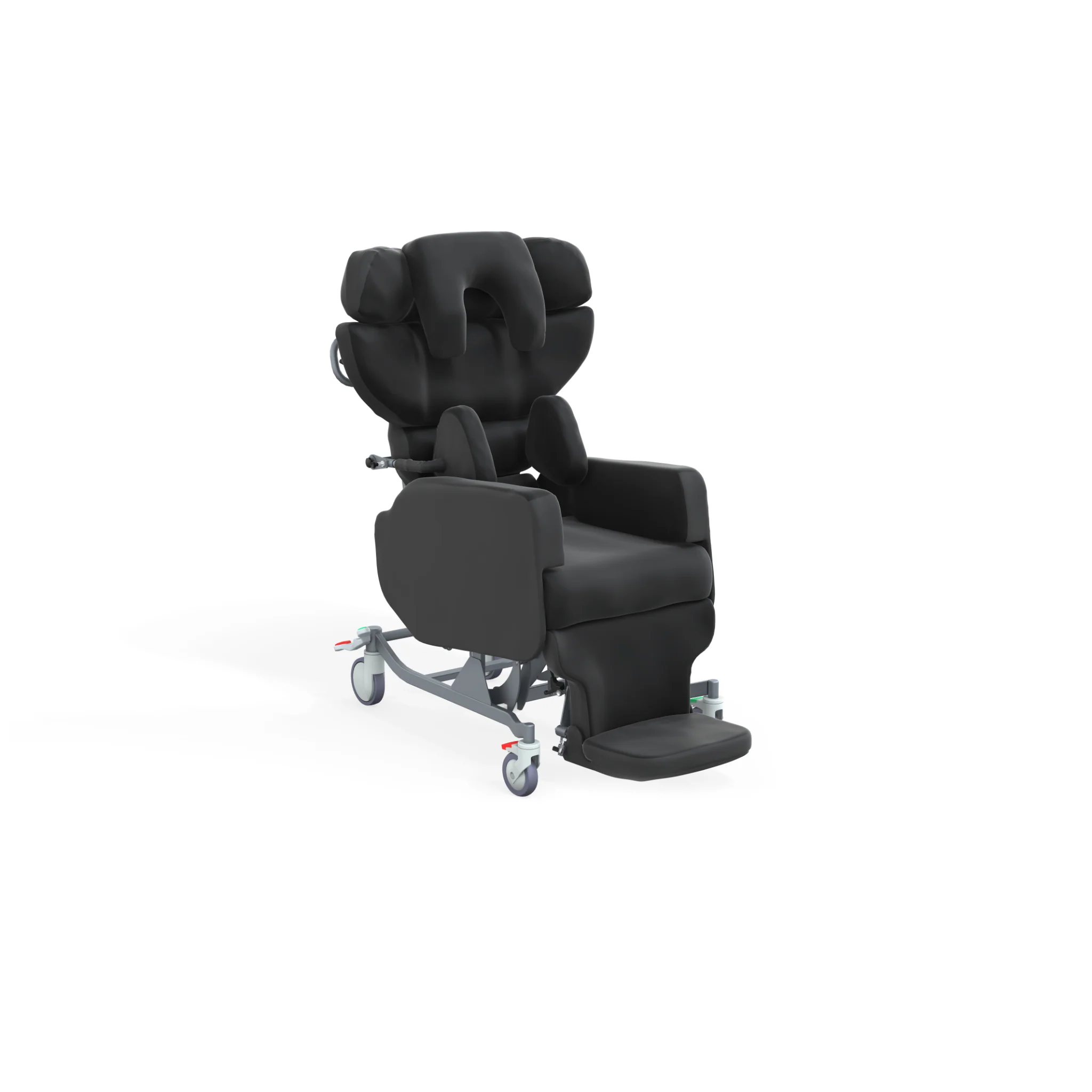

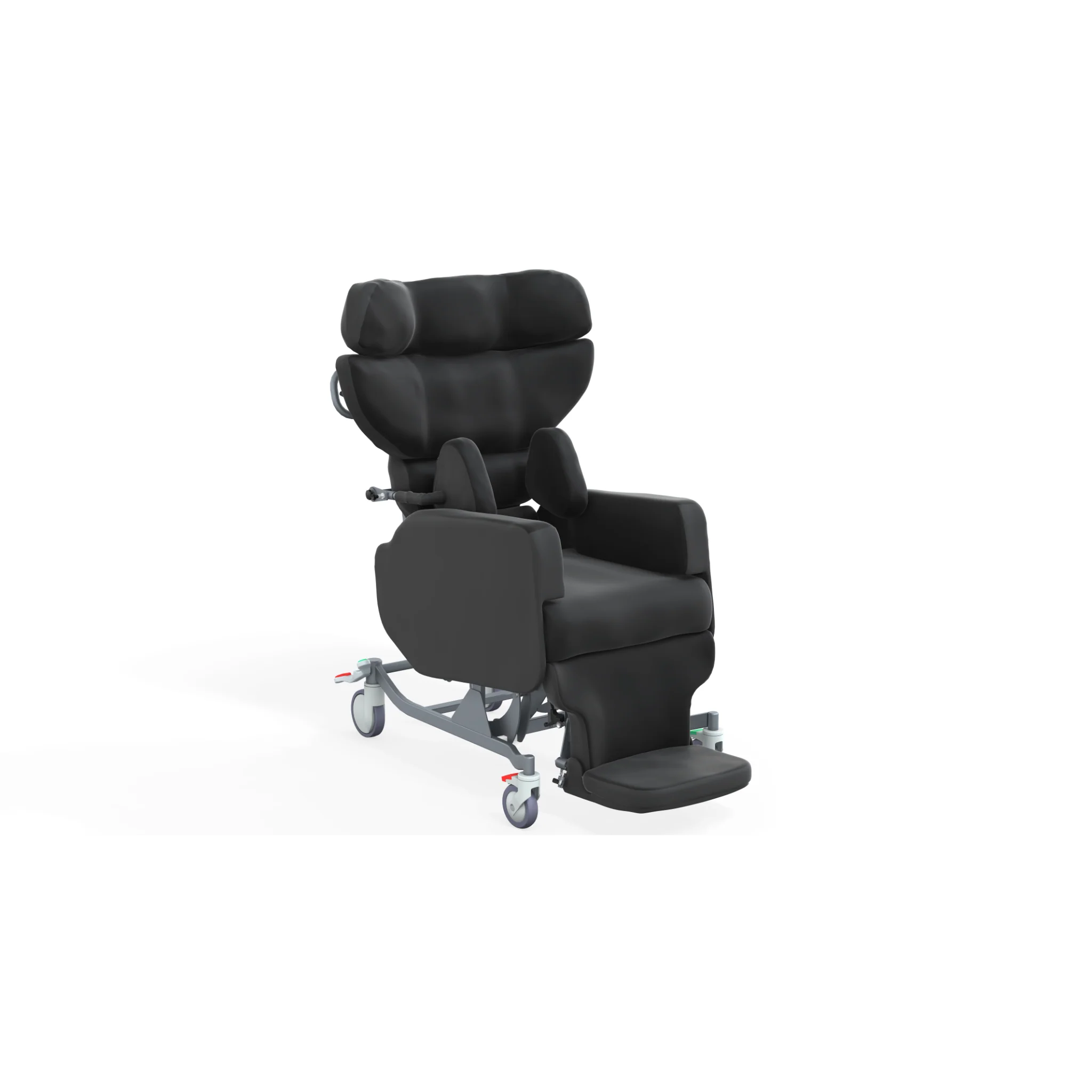

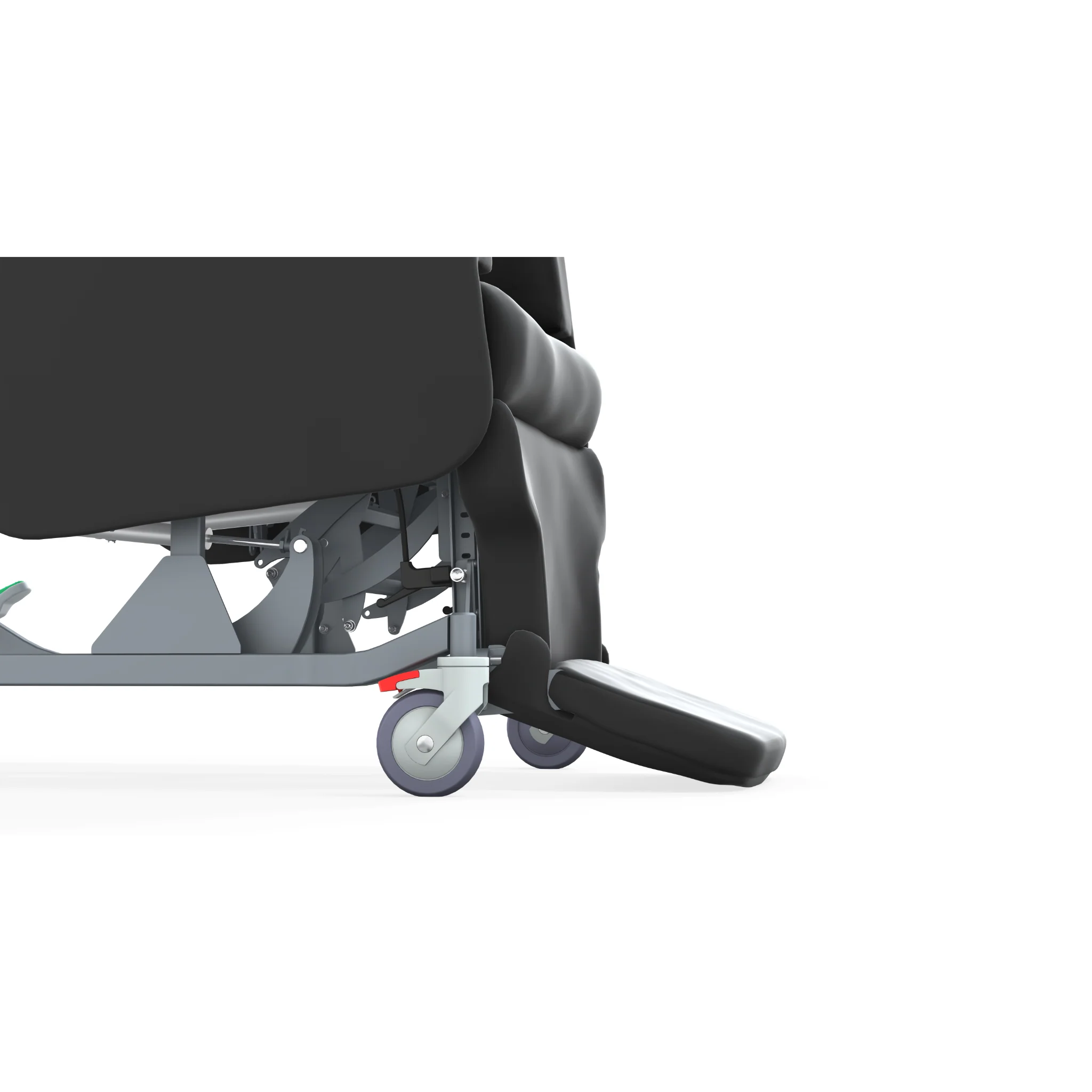

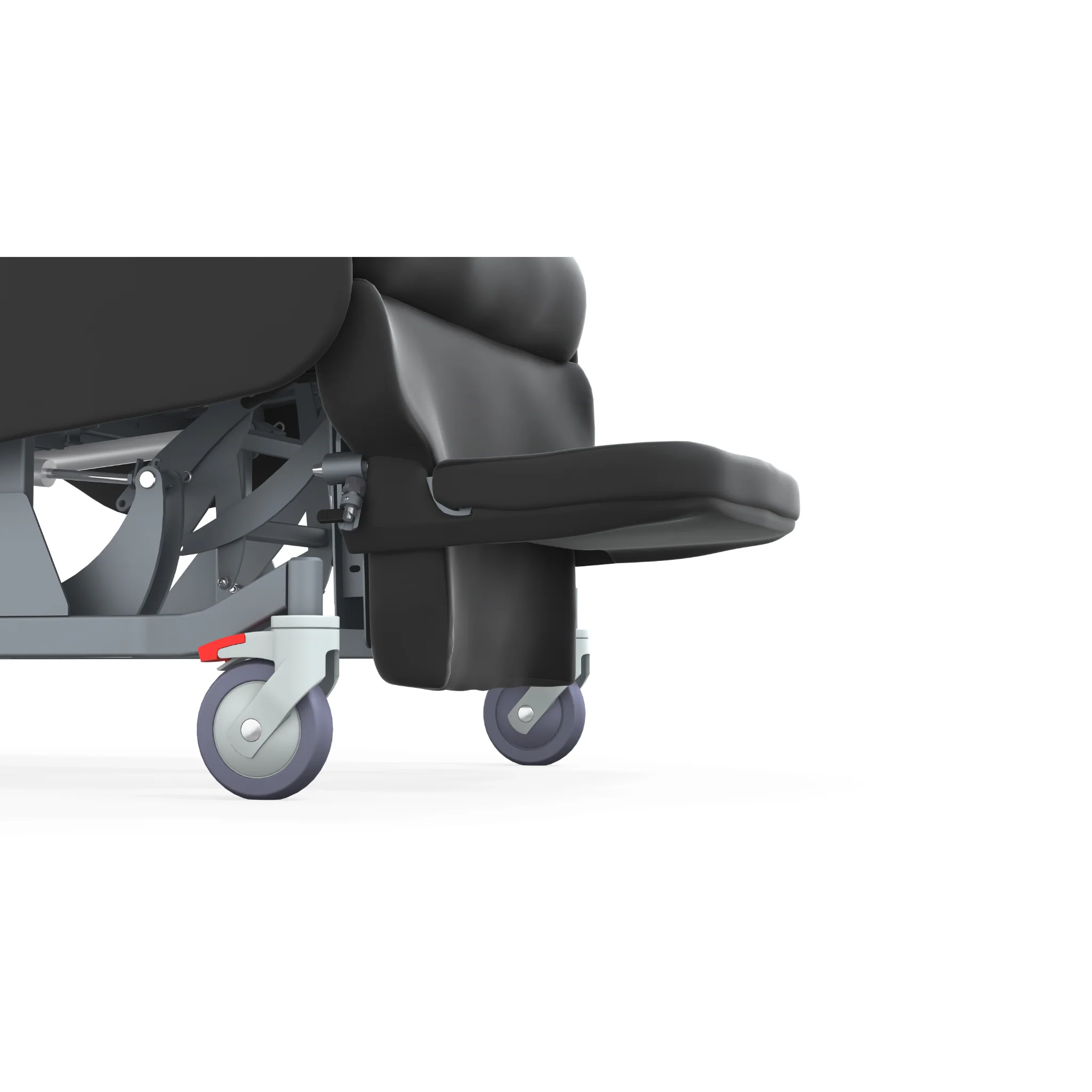

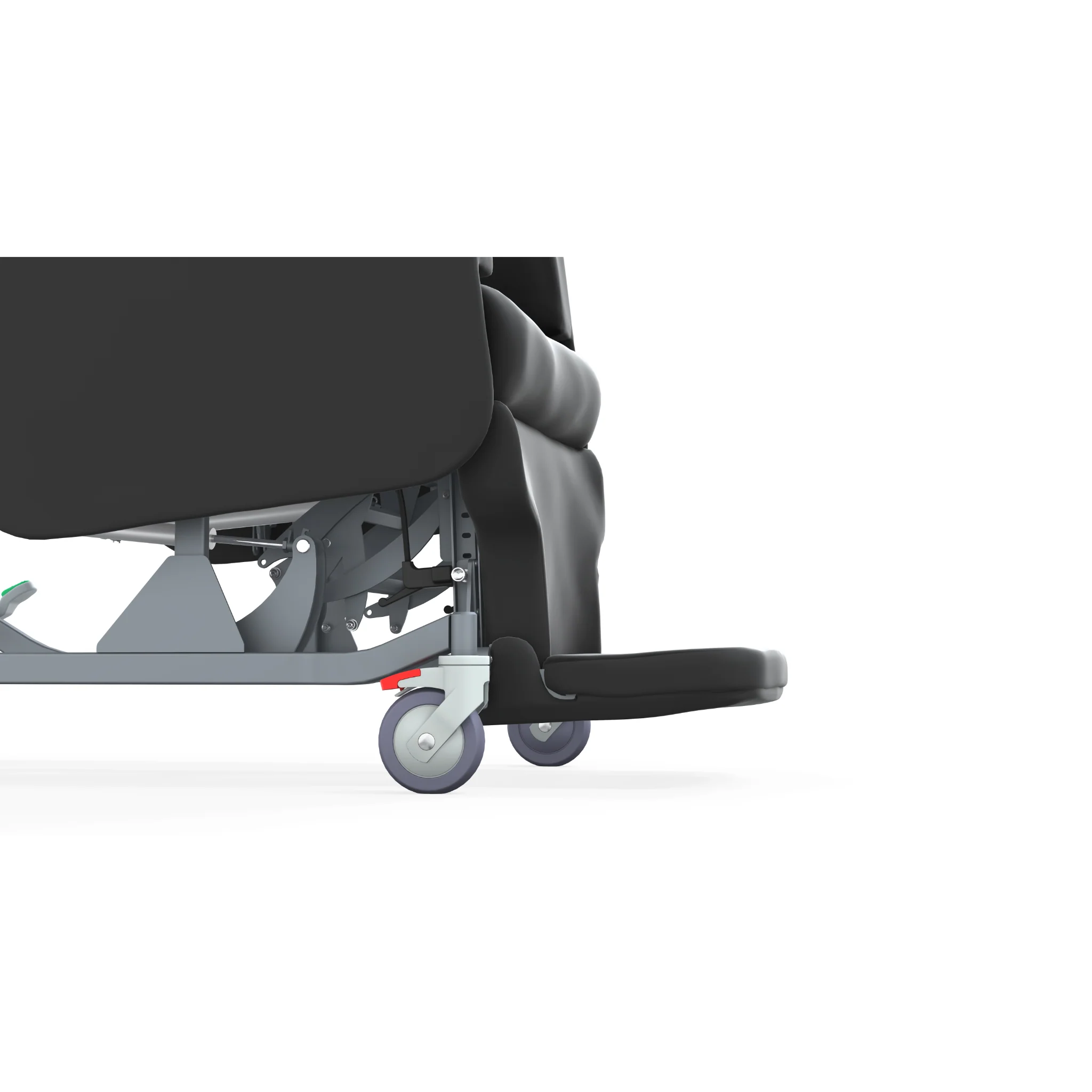

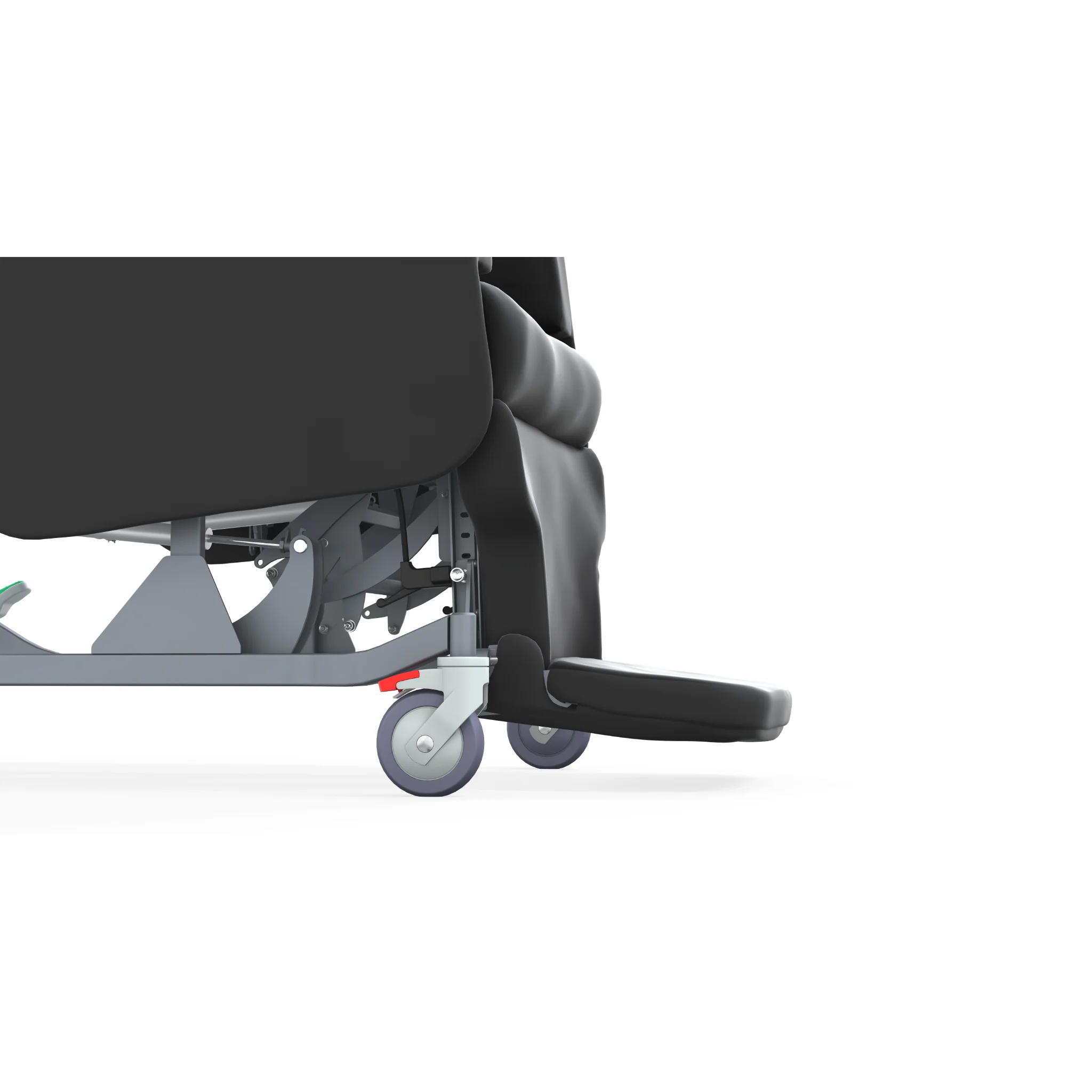

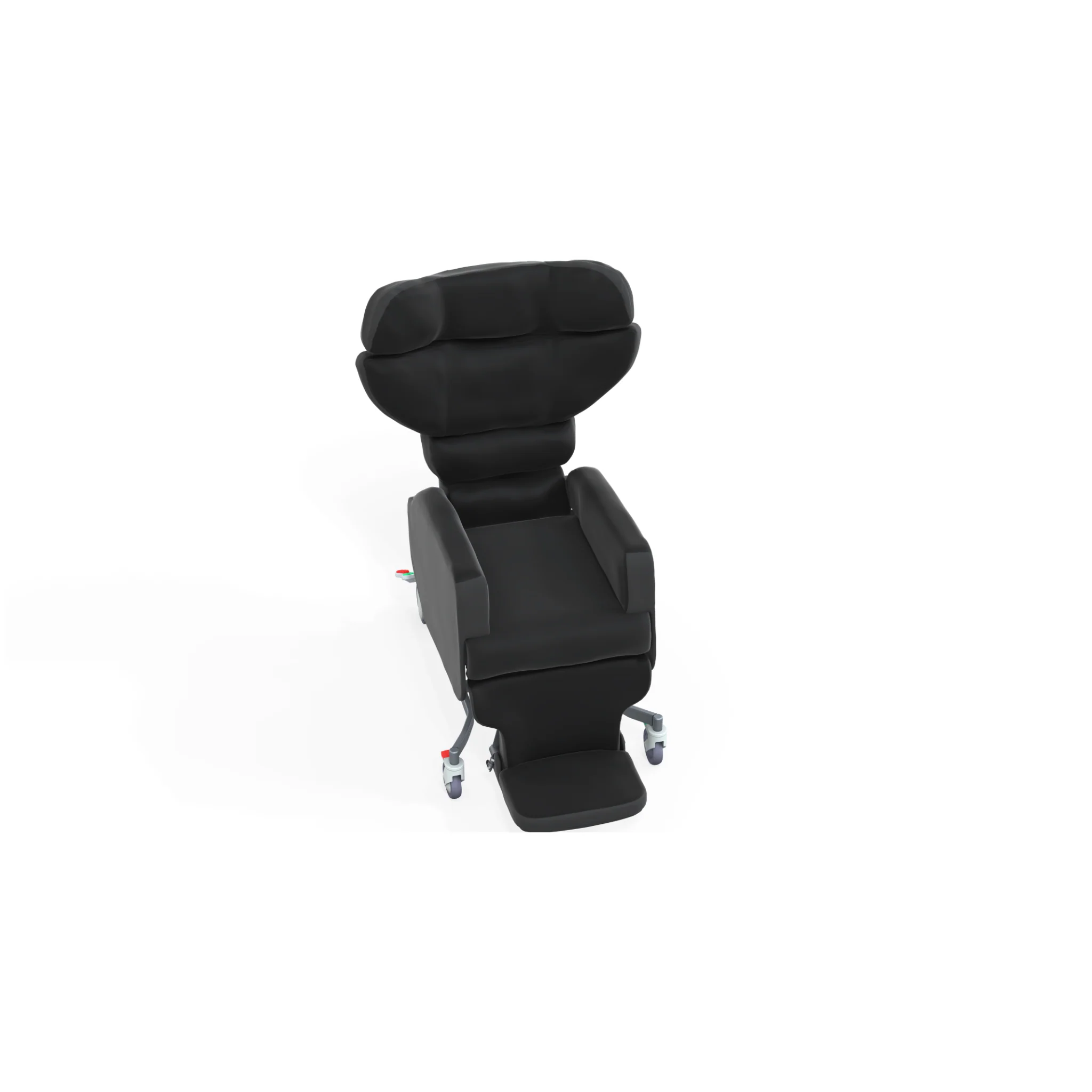

A removable footplate with adjustable height and angle helps maintain proper lower-limb positioning. Optional external lateral supports improve trunk stability, while the postural backrest upgrade provides enhanced support for users with more complex positioning needs.
Specifications
| Standar Configura Advance Chair | |
|---|---|
| Configuration | Advance chair, 125/150 mm castors, standard backrest, manual |
| Measurements and Specifications | |
| Overall Width | 700 mm (28") |
| Overall Depth | 1075 mm (42") |
| Overall Height | 1280 mm (50") |
| Depth with Legs Elevated | 1550 mm (61") |
| Backrest Angle | 90° to 130° |
| TIS Angle | Manual 7° to 37°, Electric 10° to 37° |
| Materials | |
| Fabric | Vinyl fabric with vapour permeable VP fabric on all contact areas |
| Mains Electrical System | |
| Supply Voltage | 100 to 240 VAC |
| Supply Frequency | 50 to 60 Hz |
| Max Supply Current | 3.9 Amps |
| Ingress Protection | IPX4 |
| Electrical Protection | Class II Double Insulated |
| Low Voltage Electrical System | |
| Operating Voltage | 24 V |
| Battery Specifications | |
| Battery Type | Lithium Ion |
| Battery Output Voltage | 25.9 V |
| Battery Capacity | 2.25 Ah |
| Duty Cycle | 5% (1 minute continuous, 19 minutes off) |
| Charging Time | Approx. 10 hours |
| LED Indicator | Solid yellow charging, no light fully charged, flashing yellow error during charge |
| Storage Recharge | First recharge no later than 12 months after production date on label, thereafter recharge at least every 12 months |
