ShowerBuddy Tubbuddy Tilt Transfer Range: SB2T

---

Accessible and Barrier-Free in Minutes

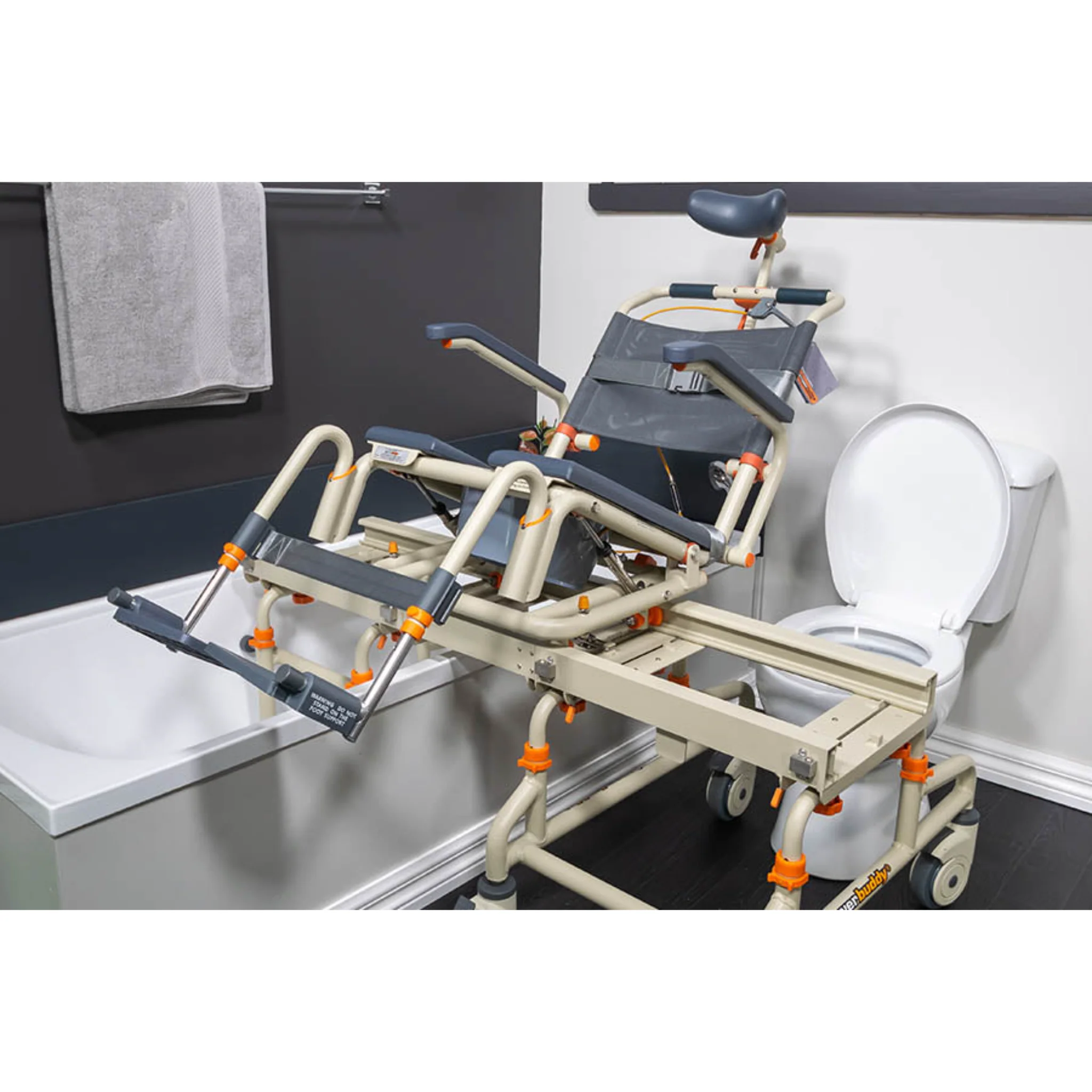

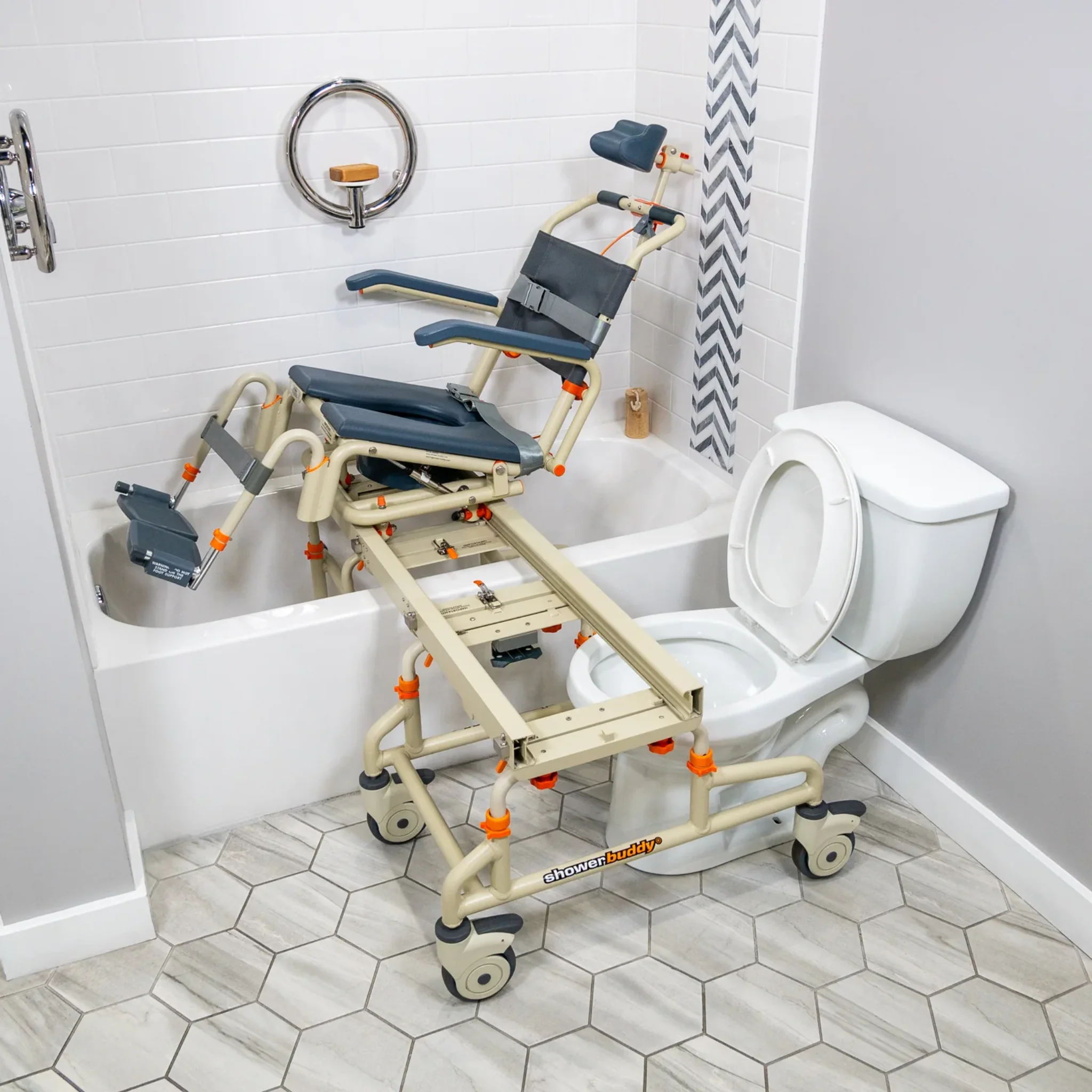

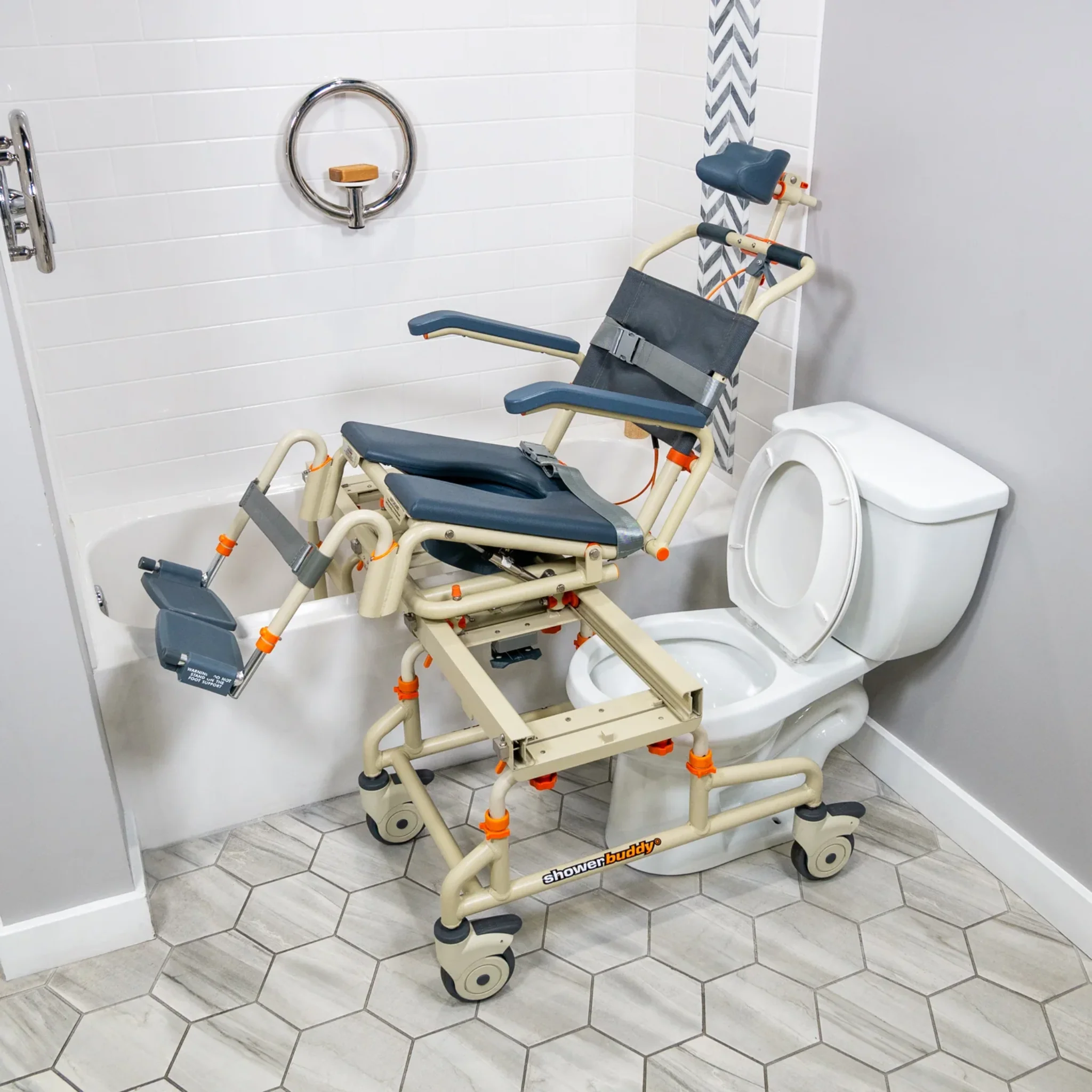

The TubBuddy with Tilt (SB2T) transfer system will transform your existing bathtub or curbed shower into an accessible, barrier-free bathroom in minutes. This chair allows the user to enjoy showering again without the high cost, delay, and stress of a complete bathroom remodel. The TubBuddy SB2T alleviates multiple transfers and heavy lifting.

Innovative and Versatile Design

Composed of three sections: rolling base (shower chair), bridge, and tub base, the SB2T is designed for maximum convenience. The rolling base can double as a bedside commode and can roll around the house like a wheelchair, allowing users easy transfer. Once in the bathroom, the SB2T can roll over most toilets to be used as an over-toilet commode. When toileting is complete, the rolling base and shower base are connected using the bridge, allowing the chair to slide in a tilted position with legs raised, ready to move over the tub.

Unique Tilt Feature for Comfort and Safety

The 30-degree infinite tilt feature provides pressure relief, increased comfort, and easy-reach bathing. This unique feature is exclusive to the SB2T and not found on any other shower transfer system. Once over the tub/shower, the rolling base and bridge can be disconnected and removed so that the shower curtain can be closed for privacy or to allow the caregiver space to move closer to the patient.

Safety and Convenience

A custom bridge may be required if the toilet is too close or too far from the tub. The SB2T features a secondary safety mechanism to prevent the chair from sliding off the tracks and causing injury. The SB2T chair comes equipped with a standard front-opening cushion, neck rest, swing-away and removable footrests with calf strap, flip-back/lockable and removable armrests, 5" lockable casters, a removable commode bucket with lid, chest belt, lap belt, and height adjustability.

Perfect for Safe Transfers

The TubBuddy with Tilt (SB2T) is the perfect solution for individuals who can no longer safely step over the bathtub. With its innovative tilt function, the TubBuddy Tilt makes transferring into bathtub showers effortless and safe, providing comfort and ease for both users and carers. The SB2T weighs 66.62 lbs with a weight capacity of 350 lbs.

Advantages

• No Remodeling Required: Set up in under an hour without any permanent changes to the bathroom.
• Pressure Relief and Comfort: The 0-30 degree tilt provides pressure relief and makes transfers easier for carers.
• Flexible Configuration: The tilt release handle can be adjusted to either side, accommodating any bath setup.
• Universal Compatibility: Rolls over most toilets and includes a commode system, making life easier and more hygienic.

How It Works

Showering:

1. Preparation: The seated user is prepared for bathing with the help of a carer.
2. Safety: Secure the user with comfortable safety belts.
3. Tilt Function: Using the tilt release, the carer leans the user back to clear the footrest over the bathtub edge.
4. Transfer: The user is transferred across into the bath and then leaned forward into a comfortable resting position.
5. Showering: Once the shower is complete, the carer repeats the process in reverse to transfer the user out.

Toileting:

1. Positioning: Place the TubBuddy Tilt over the home toilet and adjust the height if needed.
2. Secure Positioning: Lock the TubBuddy Tilt into place with the sturdy locking caster wheels.
3. Cleaning: The seat and frame are easy to clean, ensuring hygiene.
4. Commode System: Includes a complete commode system for use away from the home bathroom toilet.

SB2T Overview Video

Watch the Tutorial Video

What's in the box?

Includes:

• Cushion
• Lap belt
• Tub base
• Calf strap
• Chest belt
• Splash guard
• Neckrest assembly
• Castors, 5” locking
• Bridge, SB2/T (11.8”)
• Commode bucket with lid
• Armrest, L&R, Swing-back, removable
• Footrests, L&R, Swing-away, removable

Features

• Tilt angle 0 to 30 degrees, infinite positioning
• Rolls over most standard toilets
• Arms - removable, lockable, flip-back
• Height adjustable

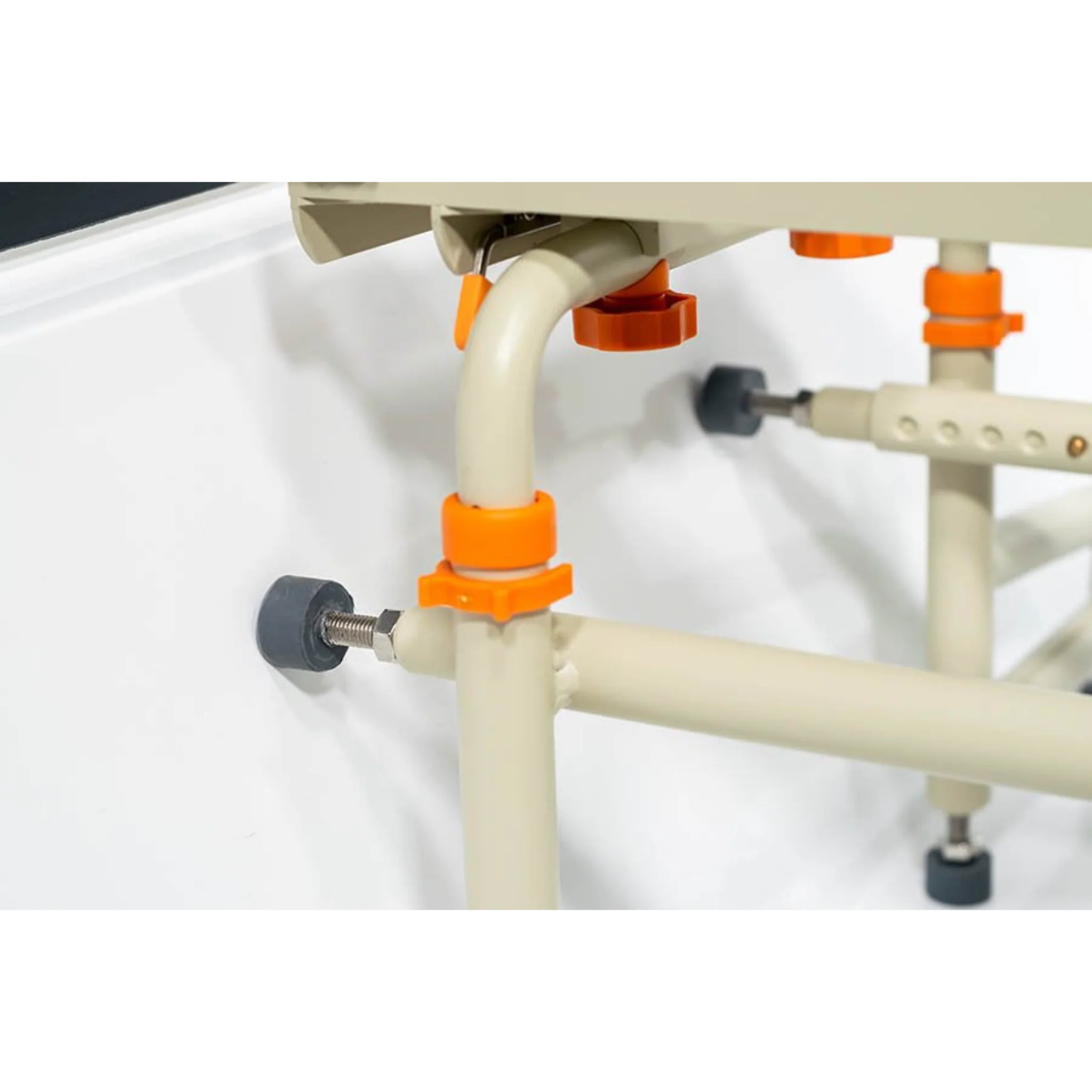

• Safety mechanisms and side stabilizers on bath base

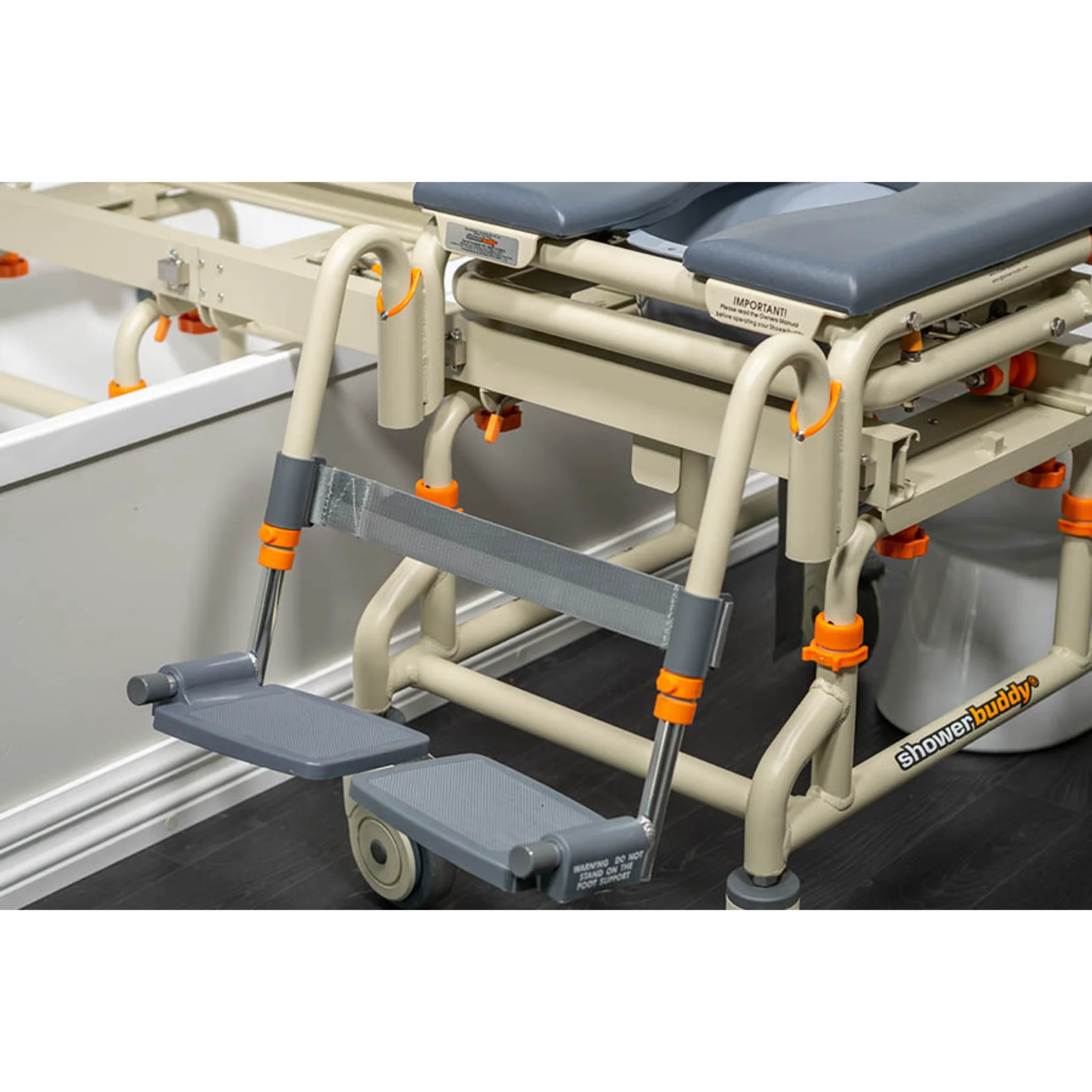

• Footrests - removable and swing-away
• No rust aluminum frame (Grade 6061 T6)
• Stainless steel parts and hardware (Grade 304)
• Safety belts - lap and chest belts plus calf strap
• Caster wheels - 125mm (5") all locking
• Commode system
• Neck rest, fully adjustable
• Tool-free assembly

Specifications and Manuals

• Weight Capacity: 160 kg (350 lb)
• Height Adjustable: Seat height from floor 630 mm (24.75") to 730 mm (28.75")
• Caster Wheels: 125 mm (5"), all locking

Dimensions

Chair Width:

• Over caster wheels: 490 mm (19.25")
• Over arms: 570 mm (22.5")
• Inside arms: 475 mm (18.75")

Chair Length:

• Including footrest: 1100 mm (43.5")
• Footrest rotated inwards: 940 mm (37")

• Backrest Width: 460 mm (18")
• Backrest Height: 440 mm (17") from cushion to top
• Toilet Height Clearance: 500 mm (19.5")
• Toilet Width Clearance: 375 mm (14.5") at casters
• Seat Cushion Dimensions: 460 mm (18") W x 430 mm (17") D
• Seat Height from Floor: 630 mm (24.75") to 730 mm (28.75") (adjustable)
• Bath Tub Base Unit Width over Feet: 335 mm (13")
• Bath Tub Height from Floor: 500 mm (20") maximum
• Bath Tub Depth: Up to 530 mm (21") maximum
• Bath Tub Width for Stabilizers: 440 mm (17") – 680 mm (27")
• Box Dimensions: 840 mm x 580 mm x 860 mm (33" x 23" x 34")
• Box Gross Weight: 38.2 kg (84 lb)

The TubBuddy SB2T User Manual includes a full parts list as well as assembly, setup and operation instructions.

SB2T USER MANUAL

SB2T SPECS PDF

IMPERIAL DIAGRAM

METRIC DIAGRAM
