ShowerBuddy TubBuddy Transfer Range: SB2

---

Enjoy Easy Seated Access for Bath-Style Showers

The TubBuddy (SB2) transfer system will transform your existing bathtub or curbed shower into an accessible, barrier-free shower in minutes. Enjoy showering again without the high cost, delay, and stress of a full bathroom remodel. The SB2 alleviates heavy lifting and multiple transfers, providing ease and comfort.

Innovative Three-Section Design

This chair is separated into three sections: rolling base (shower chair), bridge, and tub base. The rolling base can double as a bedside commode and rolls around the house like a wheelchair, allowing users to transfer comfortably. It also rolls over most toilets to be used as an over-toilet commode. After toileting, the rolling base and tub base connect using the bridge, enabling the unit to slide over the tub lip or curbed shower. Once over the tub/shower, the rolling base and bridge can be disconnected and removed, allowing the shower curtain to be closed or giving the caregiver more space.

Safety and Comfort Features

A custom bridge may be required if the toilet is too close or too far from the tub. The SB2 features a secondary safety mechanism that prevents the chair from rolling off the tracks and causing injury. The SB2 chair comes equipped with a standard front-opening cushion, footrests, flip-back, lockable and removable armrests, 5" lockable casters, a removable commode bucket with lid, chest belt, lap belt, and height adjustability.

Caregiver-Assisted Use

The TubBuddy (SB2) is a caregiver-assisted product; it is not intended for independent use. Weighing 59.5 lbs and supporting up to 350 lbs, the TubBuddy SB2 allows for seamless transfer into and out of a bathtub-style shower, all while remaining comfortably seated. This innovative system requires no bathroom modifications, making it a cost-effective and convenient solution for individuals with mobility challenges.

Safe and Simple Access

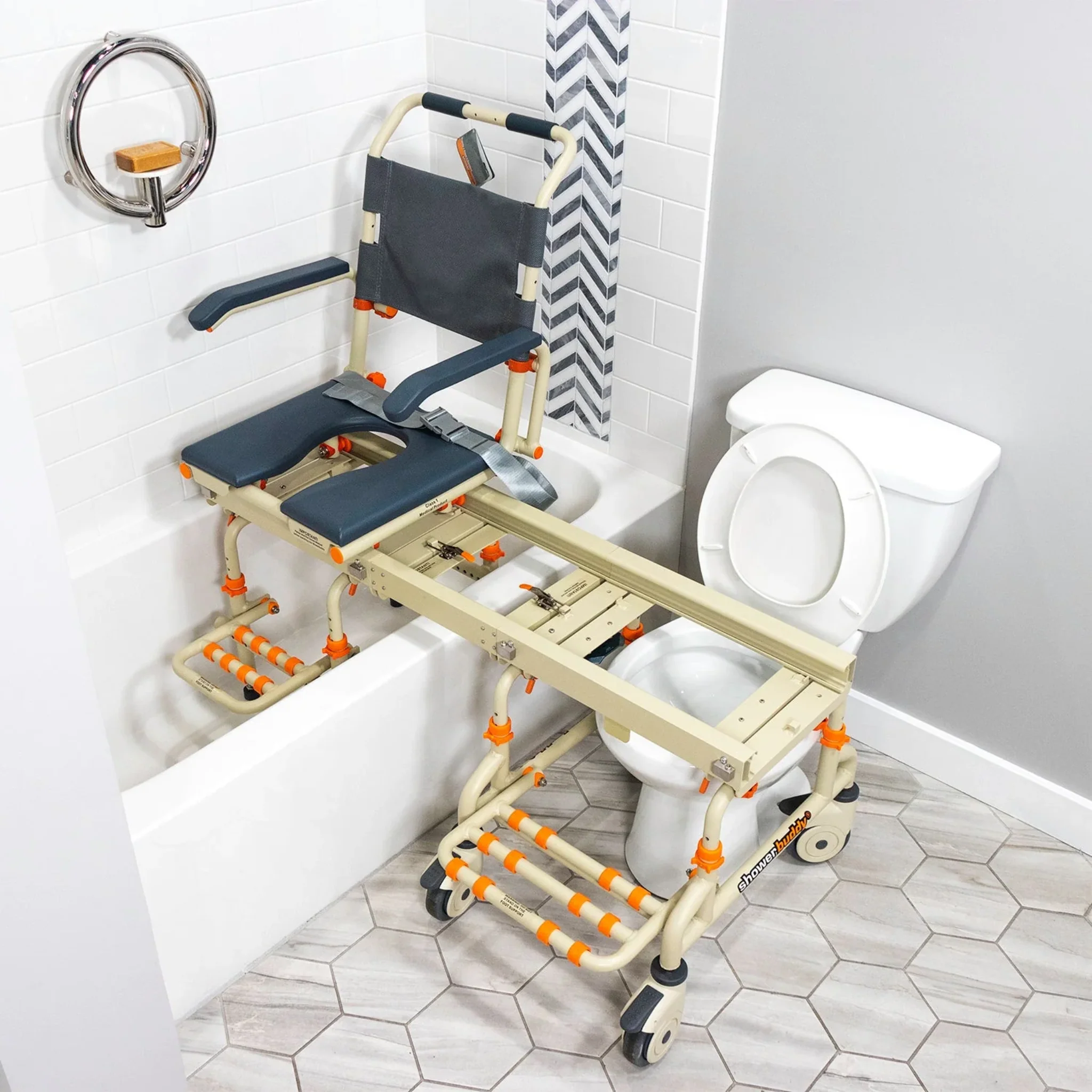

For individuals with a shower/bath combo at home, maneuvering over the edge of the bathtub can be challenging. The TubBuddy SB2 transfer system from Showerbuddy allows safe and simple access to a shower bath with the help of a carer, without any permanent changes to the bathroom fixtures. This system includes a comfortable chair and an elevated bridge capable of clearing most regular bathtub sides, reducing the need for extra transfers between the toilet and showering.

How It Works

Showering:

1. Setup: The TubBuddy’s rolling base connects to the elevated tub base.
2. Transfer: The carer transfers the user across the bridge and into the bathtub for showering.
3. Stabilization: The tub base has anti-slip stabilizing feet and side stabilizers that grip onto the side of the tub for added support.
4. Completion: After showering, the carer transfers the user back out of the bathtub.
5. Multi-Function Use: When not in use for bathing, the TubBuddy serves as a comfortable day chair, toilet chair, and bedside commode.

Toileting:

1. Positioning: Place the TubBuddy over the toilet and adjust the height if necessary.
2. Secure Positioning: Lock the TubBuddy securely with the stable locking caster wheels.
3. Hygiene: Non-corrosive, water-resistant materials make the TubBuddy easy to clean.
4. Commode System: Includes a complete commode system for use away from the home bathroom toilet.

Tubbuddy SB2 Demo Video

How to Install

What's in the box?

Includes:

• Cushion
• Lap belt
• Chest belt
• Tub base
• 5" locking castors
• Bridge, SB2/T (11.8")
• Footplate, tub base, SB
• Commode bucket with lid
• Footplate, fold-up, rolling base, SB2
• Armrest, L&R, Swing-back, removable

Features

• Weight capacity 250kg
• Rolls over most standard toilets
• Arms - removable, lockable, flip-back
• Height adjustable
• Safety mechanisms and side stabilizers on bath base
• No rust aluminum frame (Grade 6061 T6)
• Stainless steel parts and hardware (Grade 304)
• Footrest - fold-up foot rest on rolling base and on bath base
• Safety belts - lap and chest belts
• Caster wheels - 125mm x 4 locking
• Commode system
• Tool-free assembly

Specifications and Manuals

• Weight Capacity: 165 kg (350 lb)
• Height Adjustable: Seat height from floor 575 mm (22.5") to 675 mm (26.5")
• Caster Wheels: 125 mm (5"), all locking

Dimensions

Chair Width:

• Over caster wheels: 490 mm (19")

• Over arms: 570 mm (22.5")

• Inside arms: 475 mm (18")

• Chair Length:

• Including footrest: 845 mm (33")

• Footrest folded up: 745 mm (29.5")

• Backrest Width: 460 mm (18")

• Backrest Height: 440 mm (17") from cushion to top

• Toilet Height Clearance: 535 mm (21")

• Toilet Width Clearance: 375 mm (14.75") at casters

• Bridge Length:

• Standard: 300 mm (12")

• Accessory: 200 mm (8") or customized

• Seat Cushion Dimensions: 460 mm (18") W x 430 mm (17") D

• Bath Tub Base Unit Width Over Feet: 335 mm (13")

• Bath Tub Height from Floor: 535 mm (21") maximum

• Bath Tub Depth: Up to 530 mm (20.75") maximum

• Bath Tub Width for Stabilizers: 440 mm (17") – 680 mm (26.5")

• Box Dimensions: 680 mm L x 580 mm W x 810 mm H (27" x 23" x 32")

• Box Gross Weight: 32.4 kg (71.5 lb)

The TubBuddy SB2 User Manual includes a full parts list as well as assembly, setup and operation instructions.

SB2 USER MANUAL

SB2 SPECS PDF

IMPERIAL DIAGRAM PDF

METRIC DIAGRAM PDF
