ShowerGlyde Sliding Transfer Bench SG3

---

Advanced Sliding Transfer Bench for Tight Bathroom Spaces

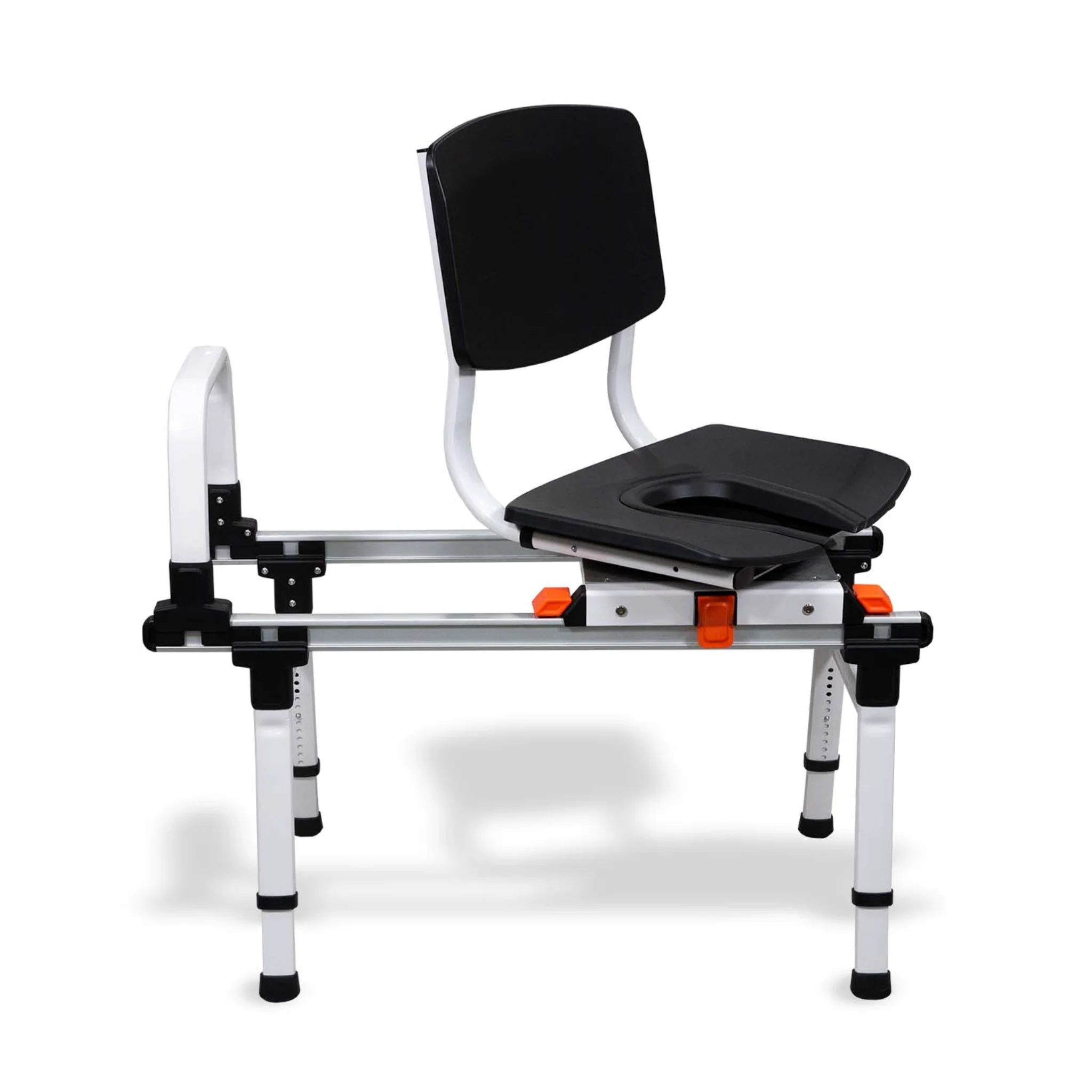

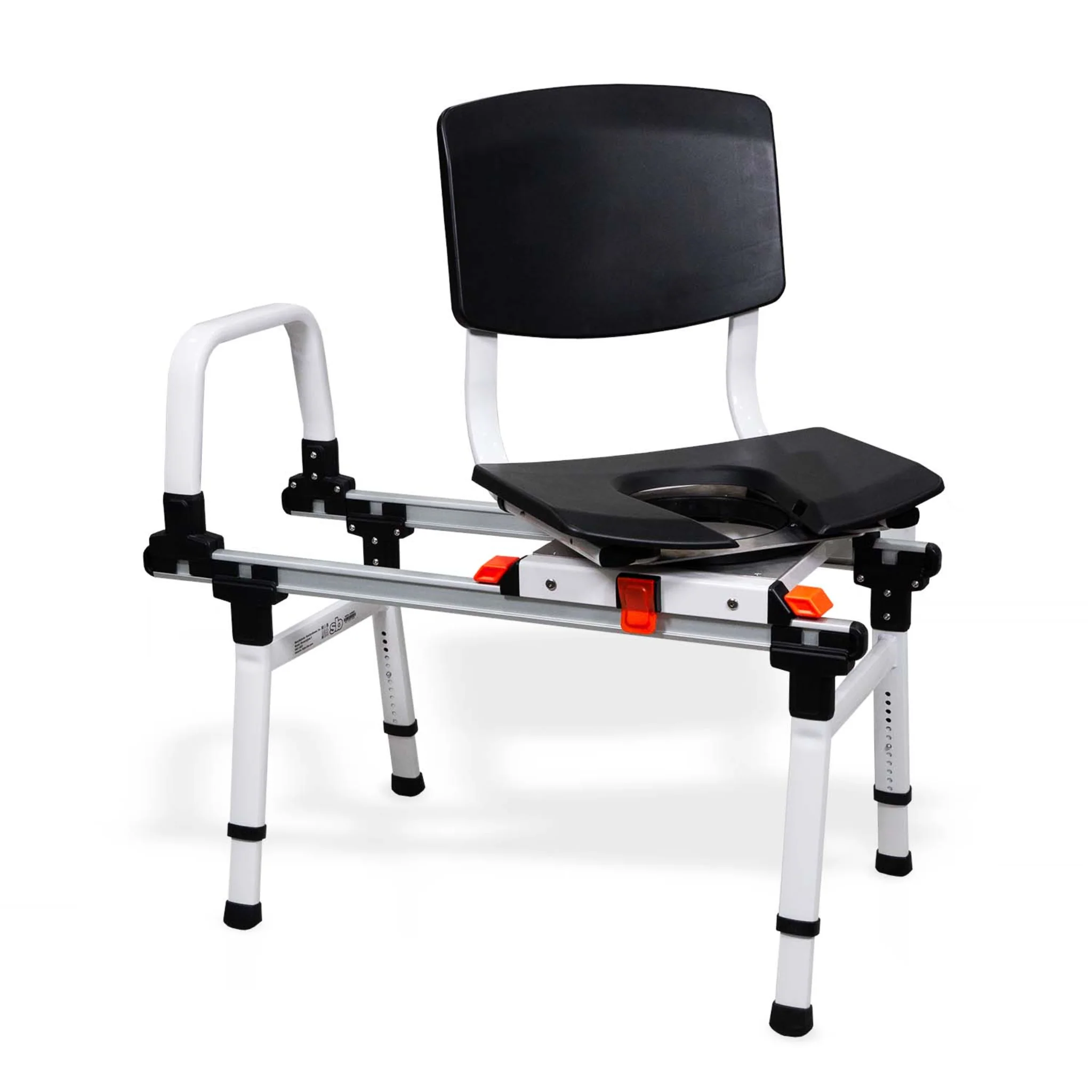

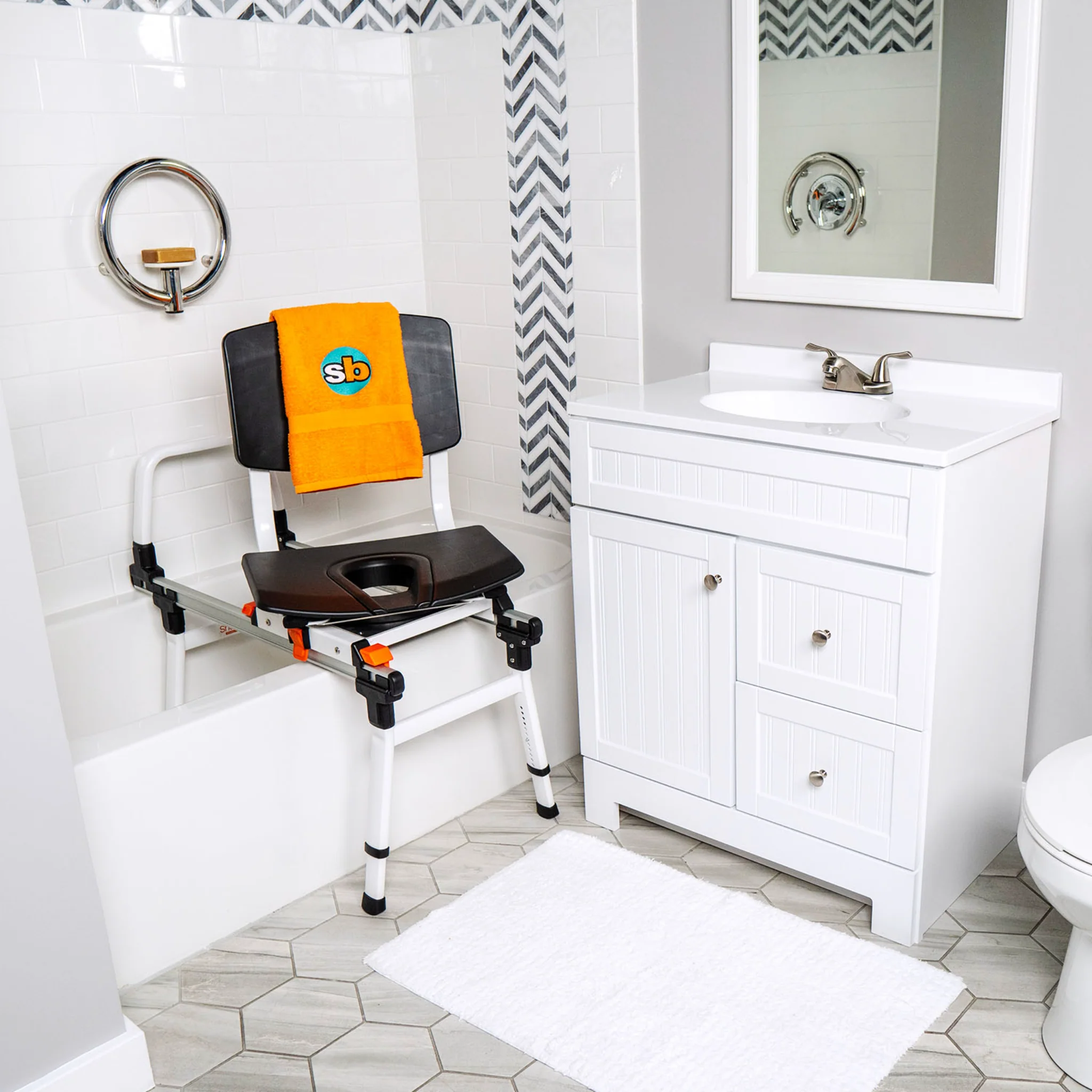

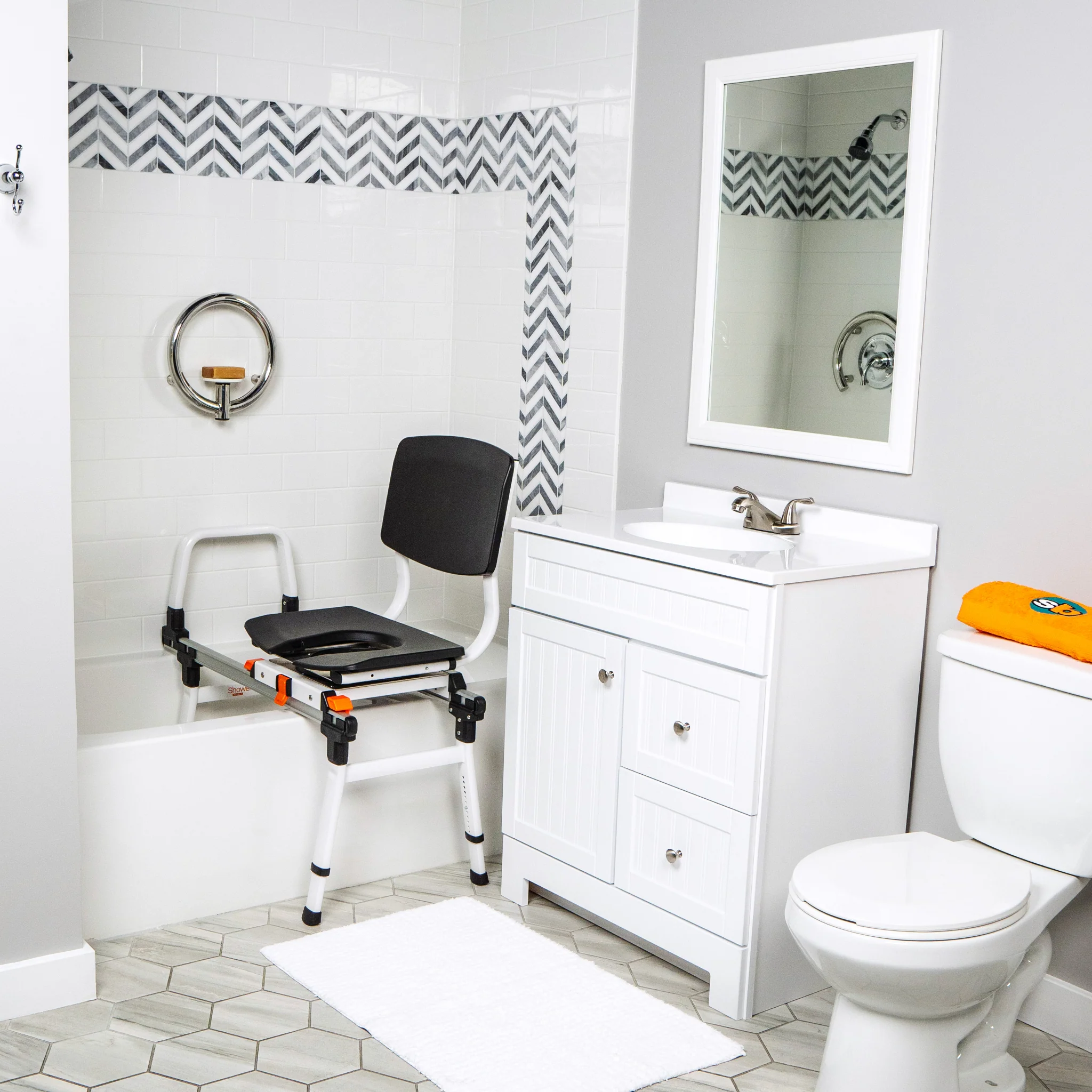

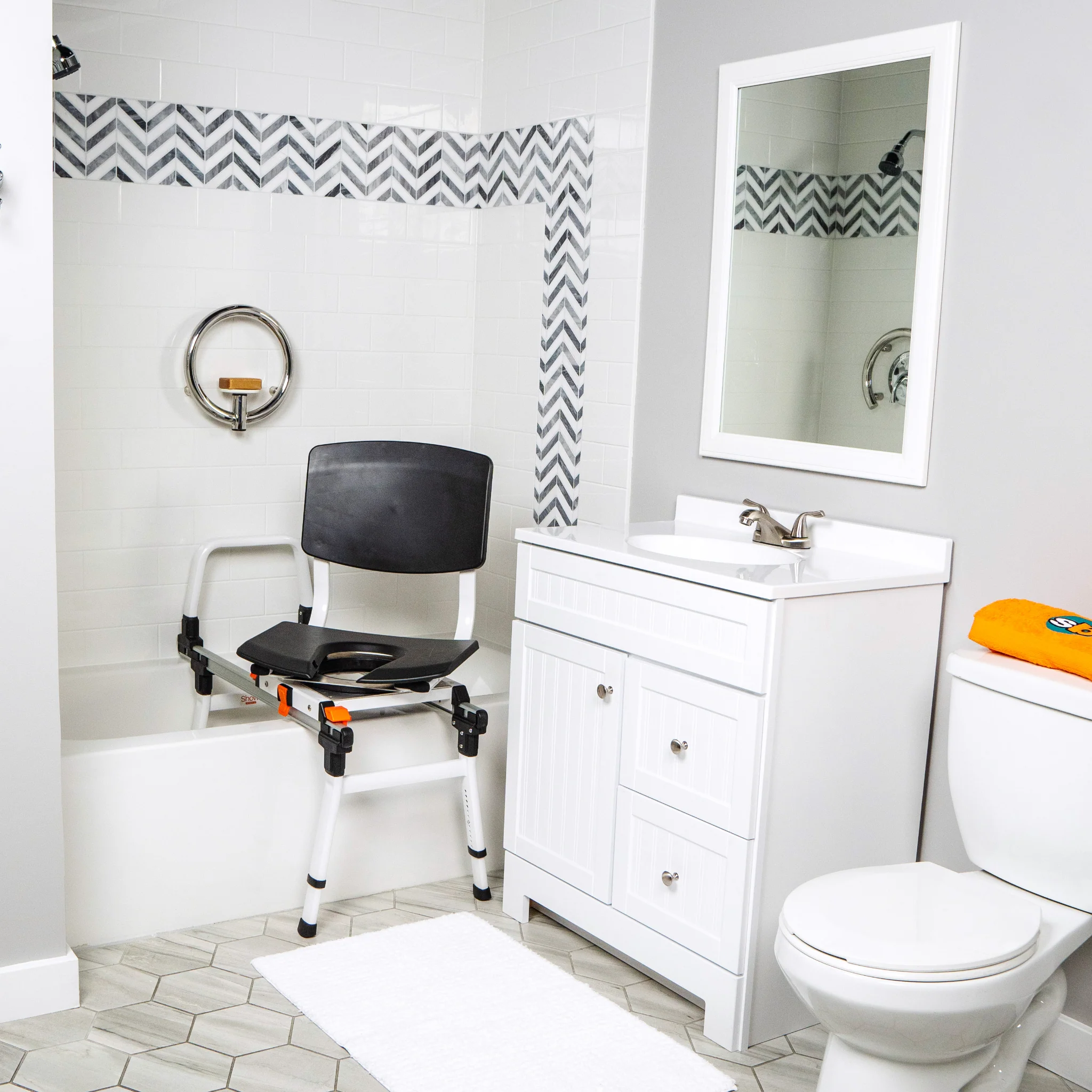

The ShowerGlyde Model SG3 is a state-of-the-art sliding transfer bench designed to fit in tighter environments or bathrooms with a vanity adjacent to the tub. This innovative model features shorter rails and a swivel option, enabling the bench to clear obstructions or tight spaces without sacrificing comfort or ease of use. The SG3 is perfect for users who require safe, secure, and convenient transfers in compact bathroom settings.

Innovative Design

The ShowerGlyde SG3 is built with a robust, compact design tailored for tight spaces. Its shorter rails and swivel seat option allow the bench to clear obstacles and fit seamlessly in bathrooms with limited space. The SG3 slides easily in and out of the tub and locks in two points—inside and outside of the tub—ensuring maximum stability and safety.

Interchangeable Assembly

The SG3 can be assembled as either a left or right-hand unit, providing flexibility to fit various bathroom layouts. This versatility ensures that the SG3 can be adapted to meet the specific needs of different users and bathroom configurations.

How It Works

Showering:

1. Setup: Assemble the SG3 and adjust it to the appropriate height for your tub. The bench is height adjustable, allowing clearance of up to a 19.5" tub height, with optional extension legs available for taller tubs up to 25".

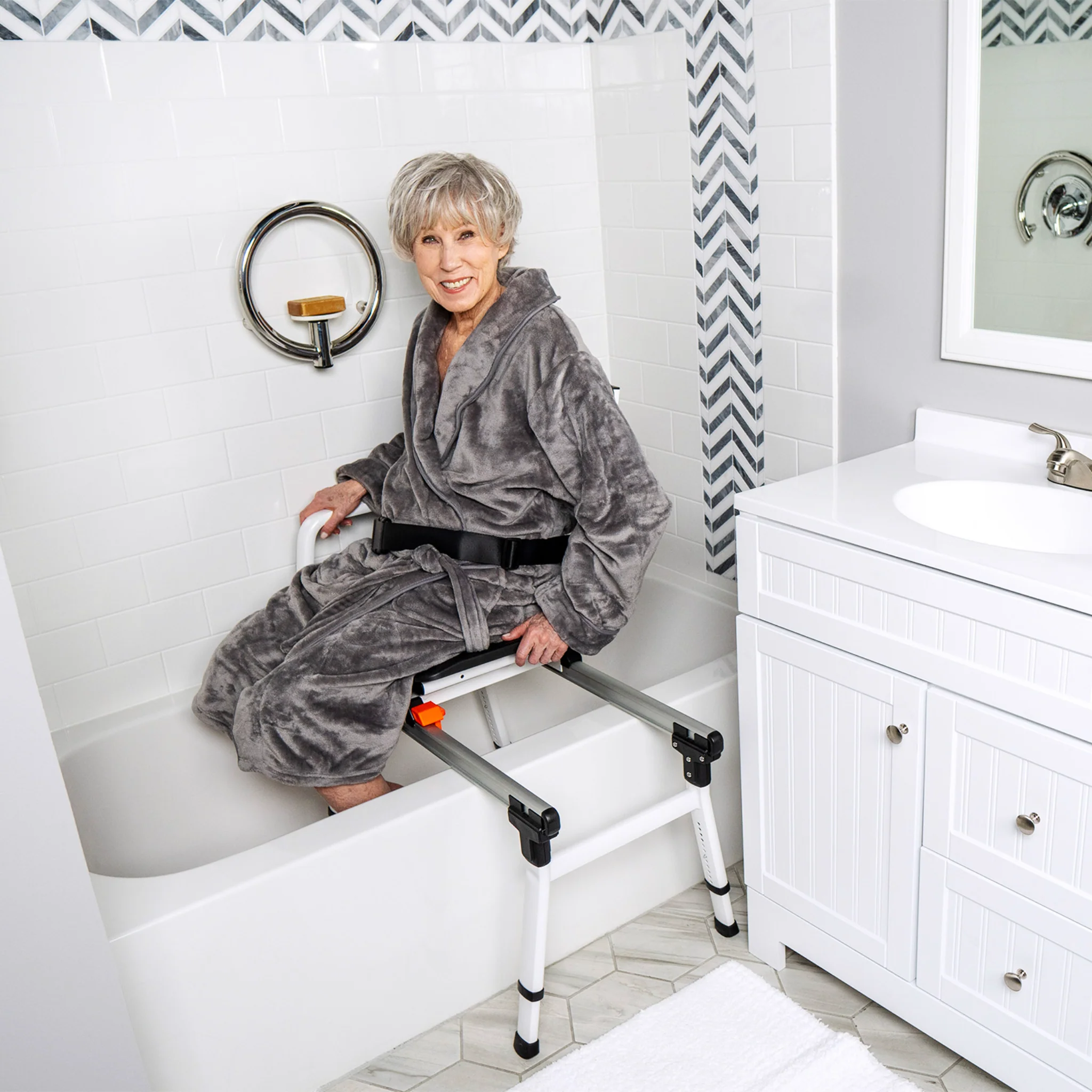

2. Positioning: The user can sit comfortably and use the grab bar to pull or push themselves along the rails.
3. Locking: Once positioned, the bench locks securely in two points, ensuring safe transfers.

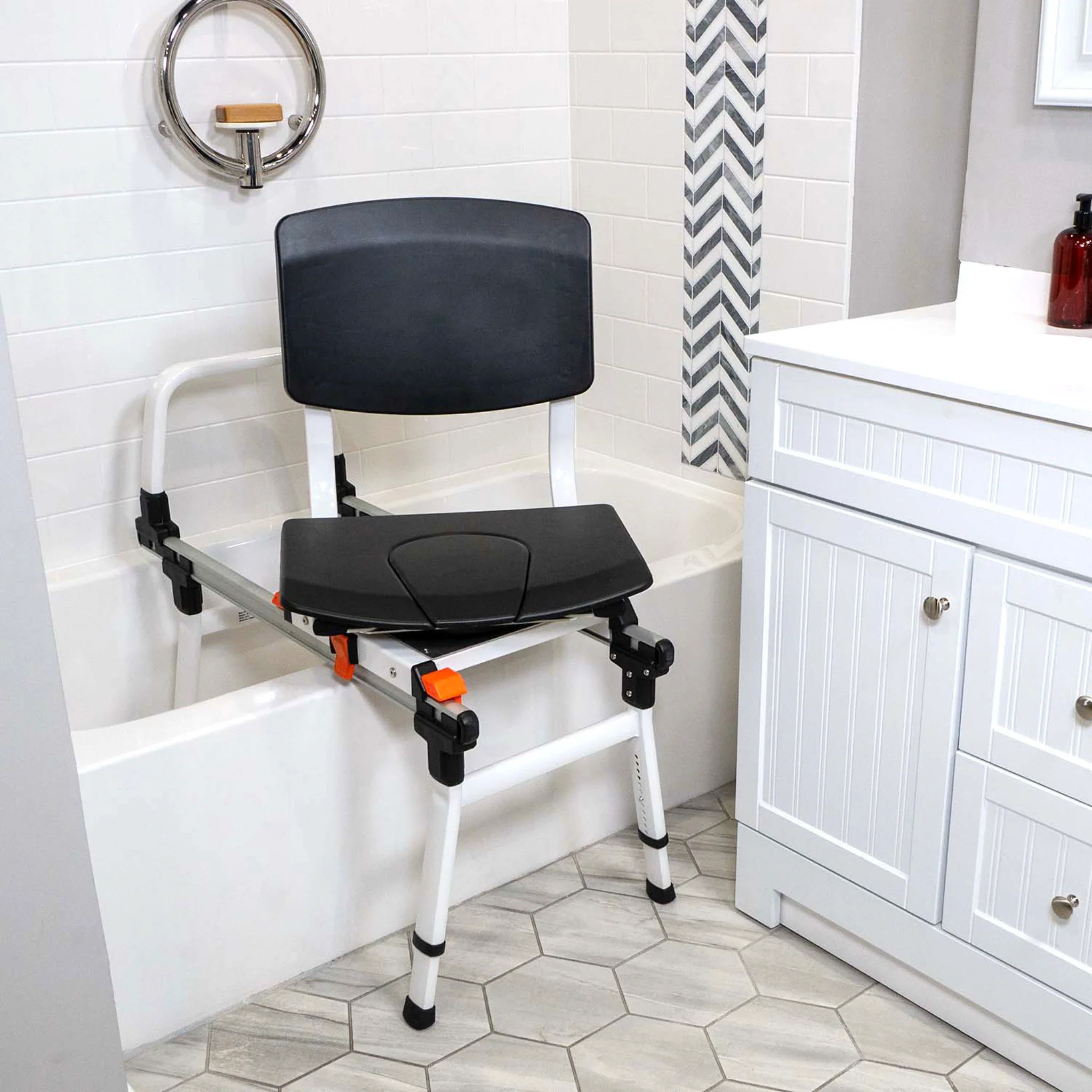

4. Flexibility: The shorter rails and swivel option allow the bench to clear obstructions, making it ideal for bathrooms with tight spaces.

Toileting:

1. Positioning: Place the bench over the toilet if needed.
2. Secure Positioning: Lock the bench in place for stable and secure use.
3. Cleaning: The SG3 is made from easy-to-clean materials, ensuring hygiene and low maintenance.

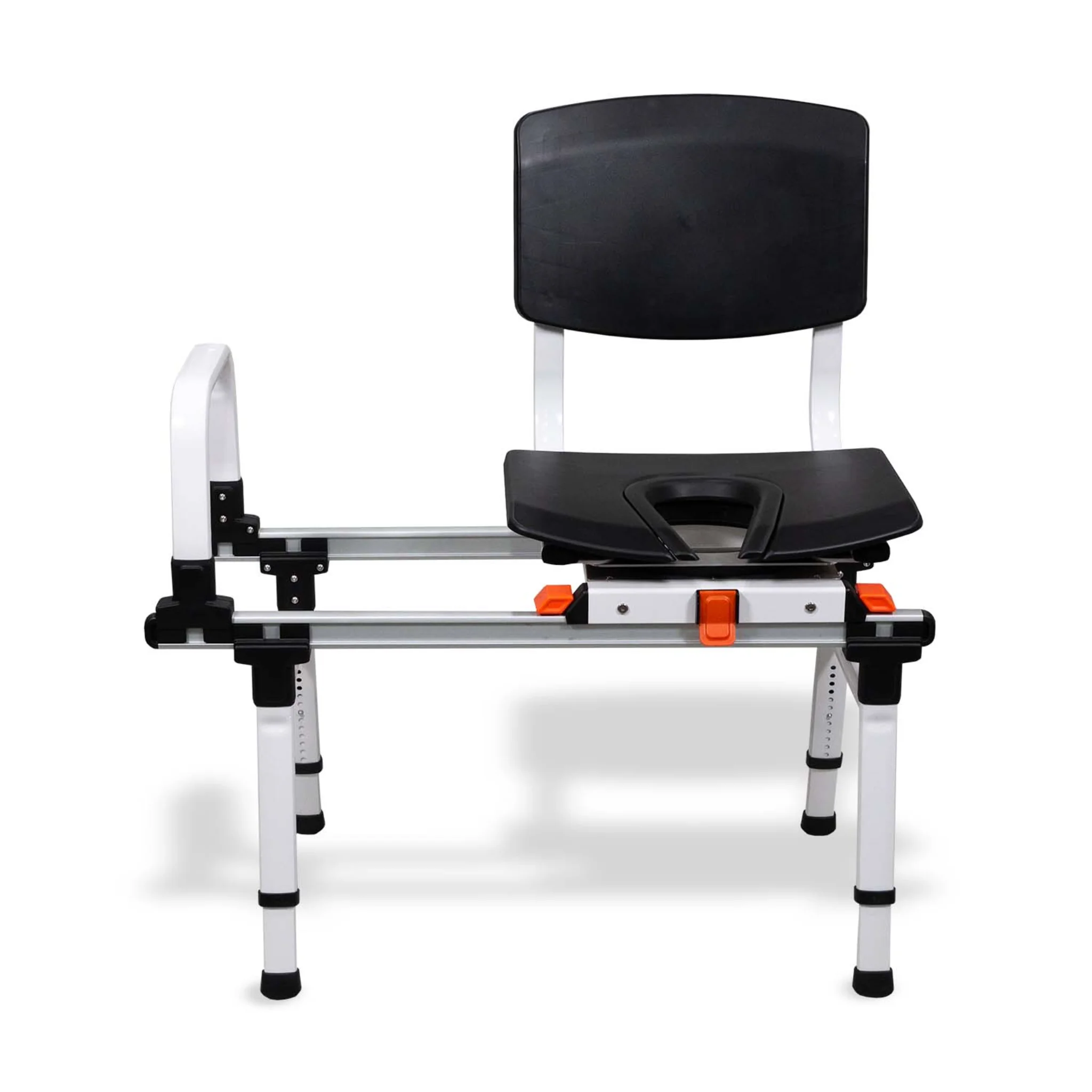

Meet the ShowerGlyde SG3

Installing your Swivel Seat on ShowerGlyde

Padded Seat Cover

Inclusions

With the ShowerGlyde Model SG3, you receive a complete set of components designed to enhance your bathroom experience:

• Grab Bar: Installed at the wall side of the rails for added stability and ease of movement.

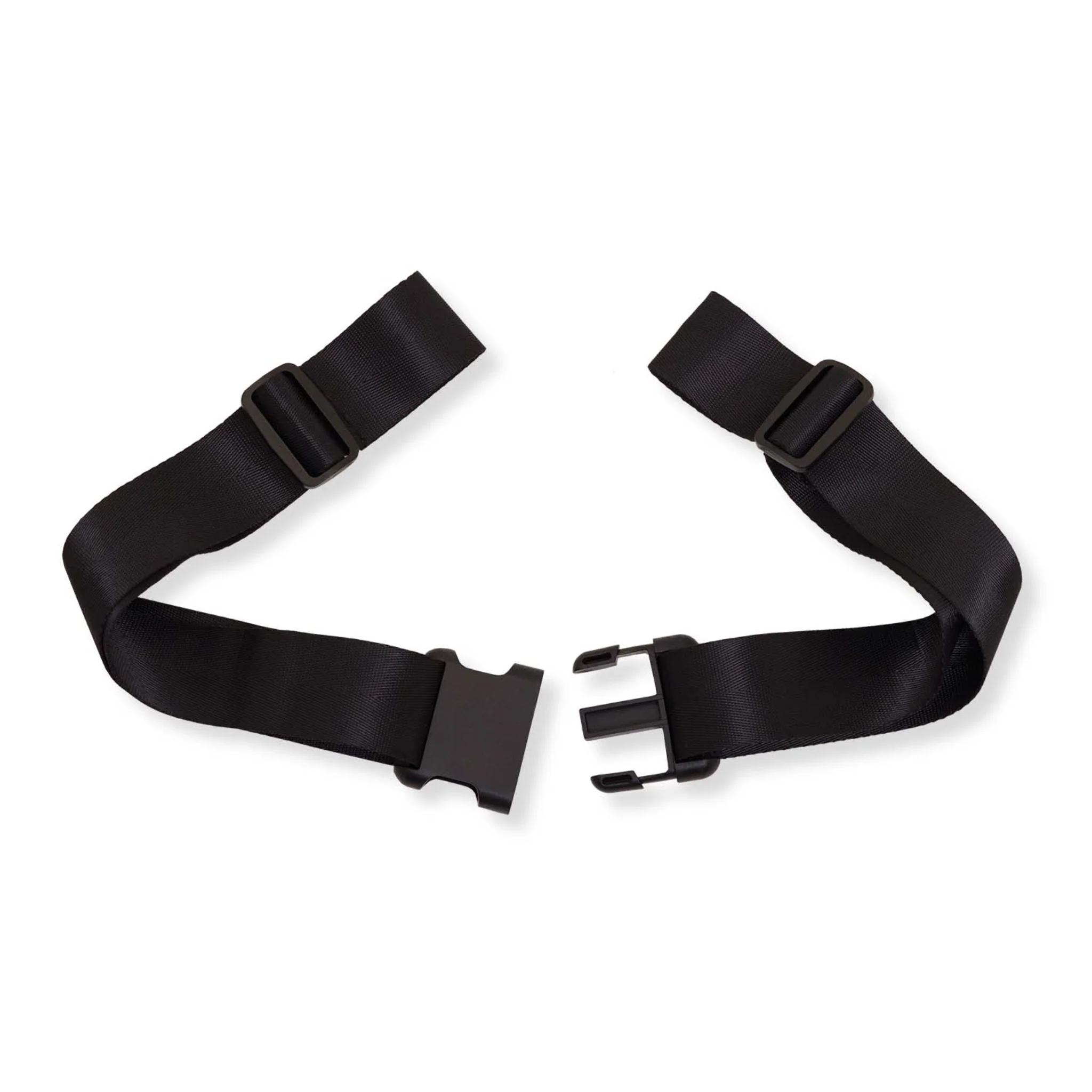

• Seat Belt: Ensures safety and security during transfers.
  19.5" Tub Clearance: Standard clearance accommodating most tub heights.

• Commode Seat: Versatile seat with three configurations:

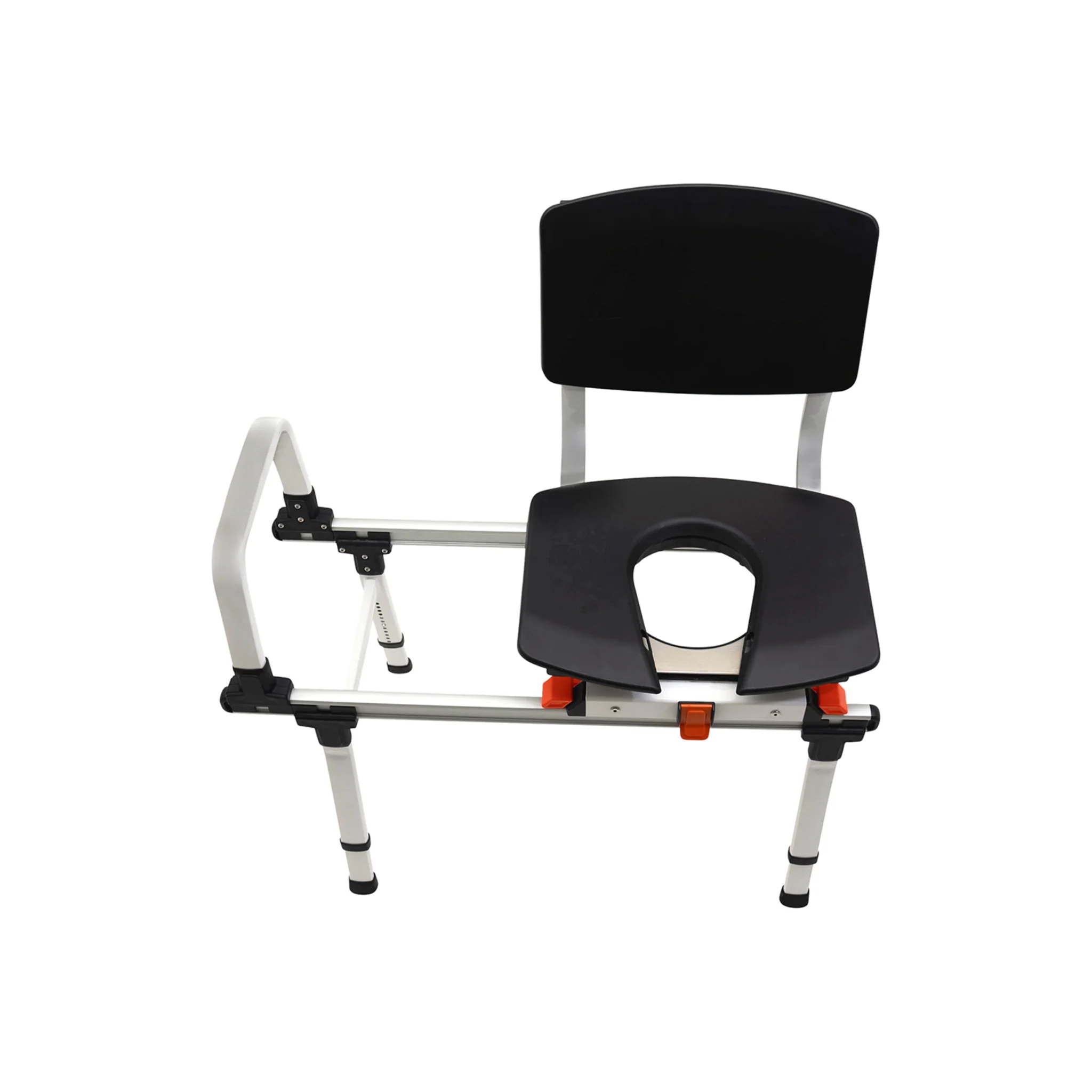

• Open Commode Seat: Ideal for easy washing.

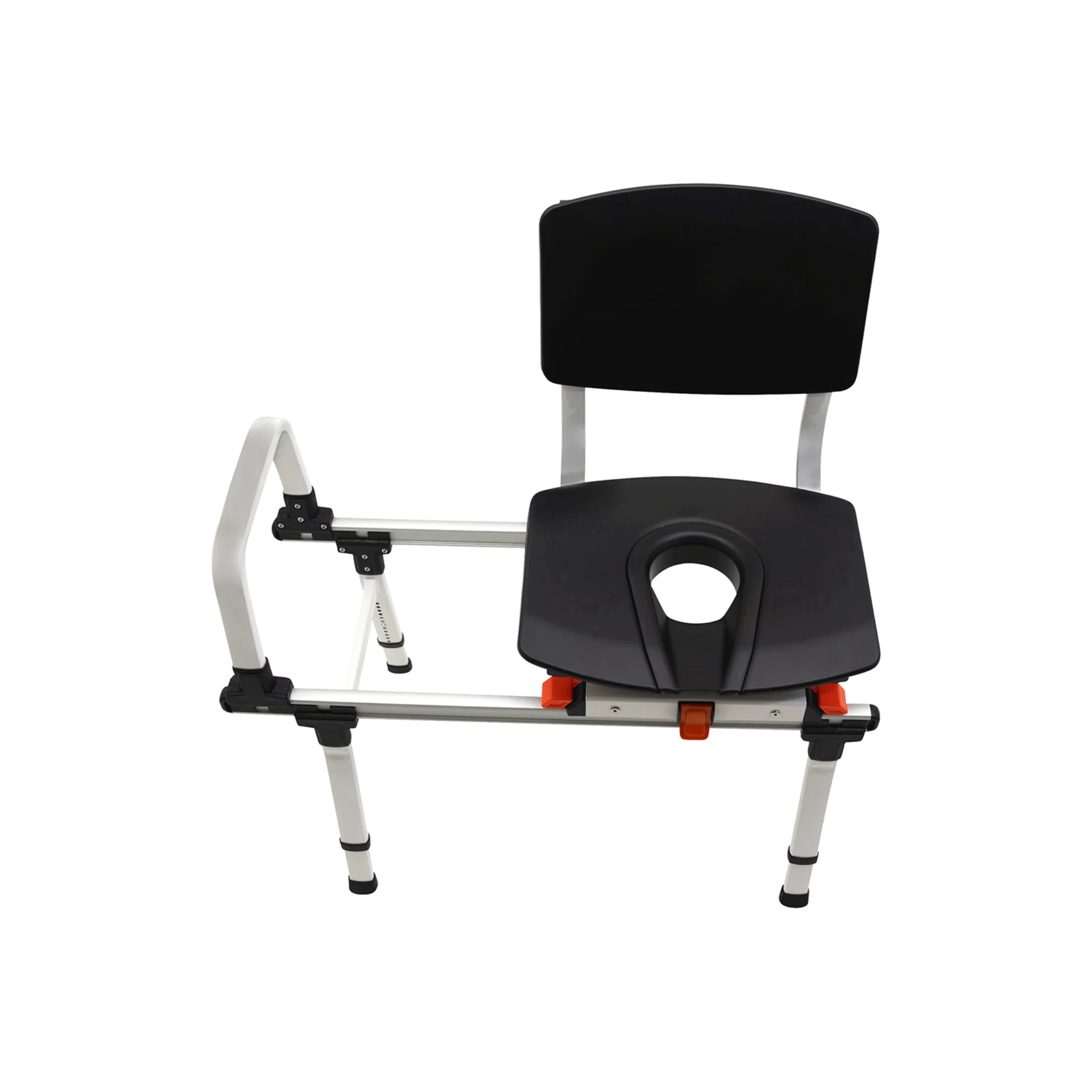

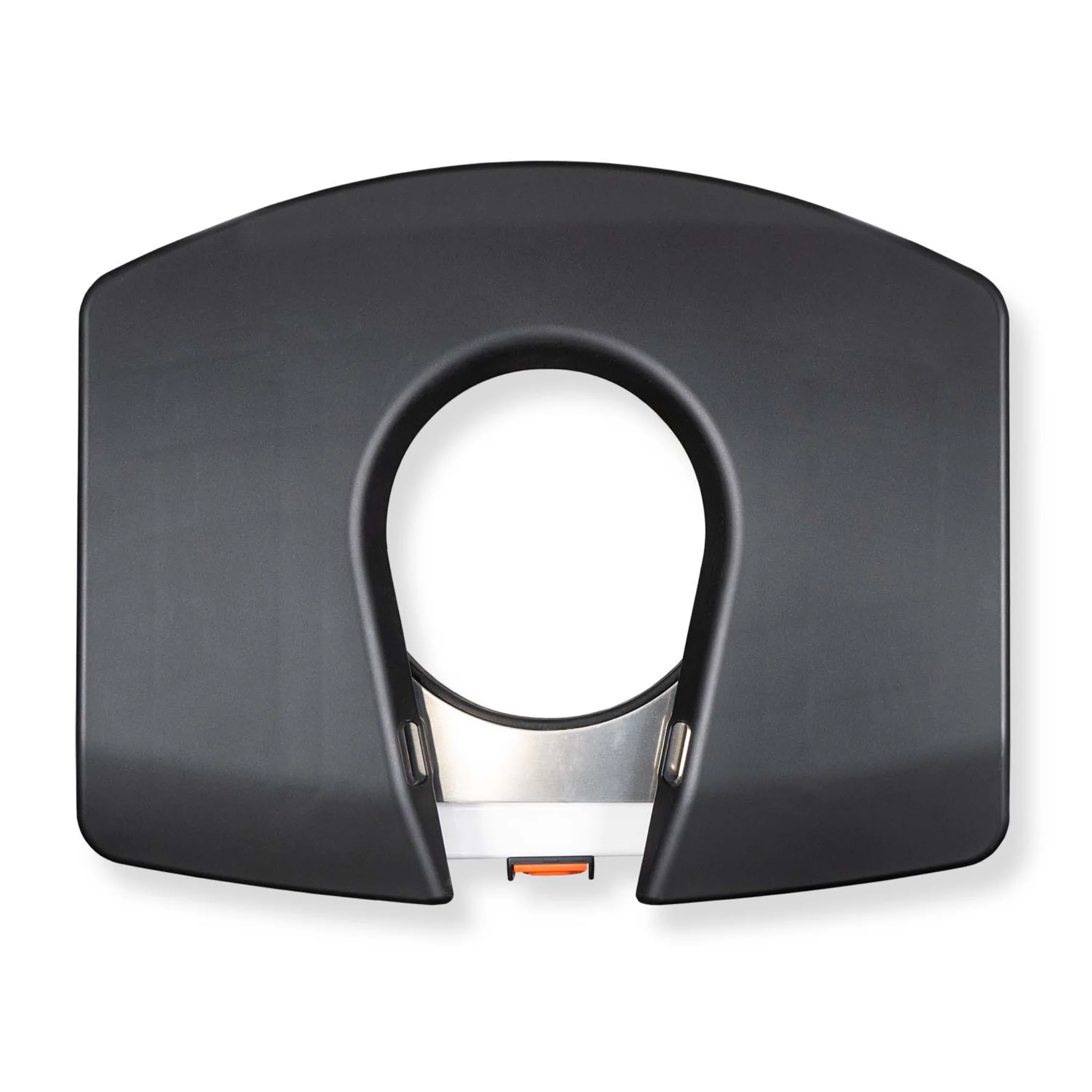

• Reducer Ring Insert: Reduces the size of the commode opening for additional support.

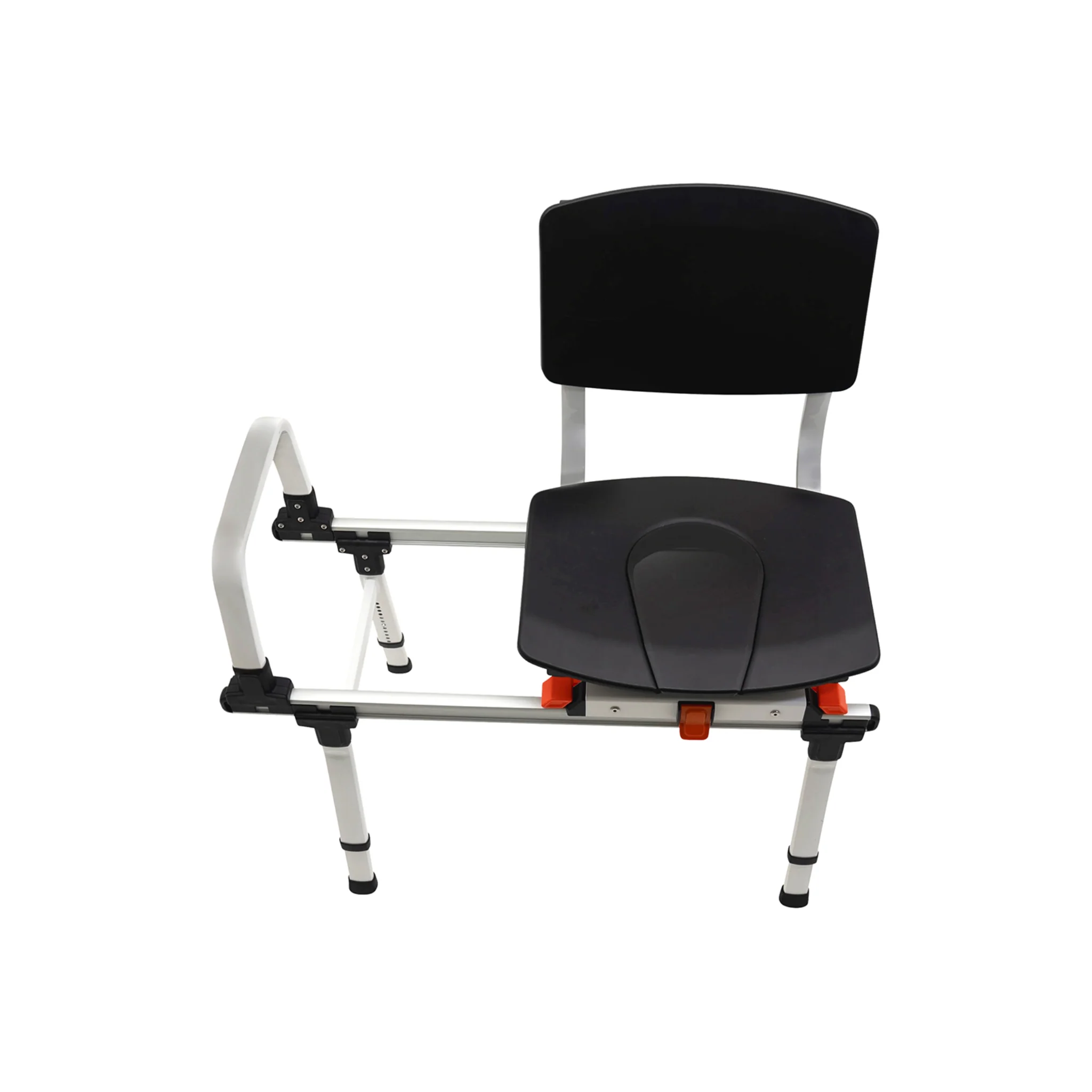

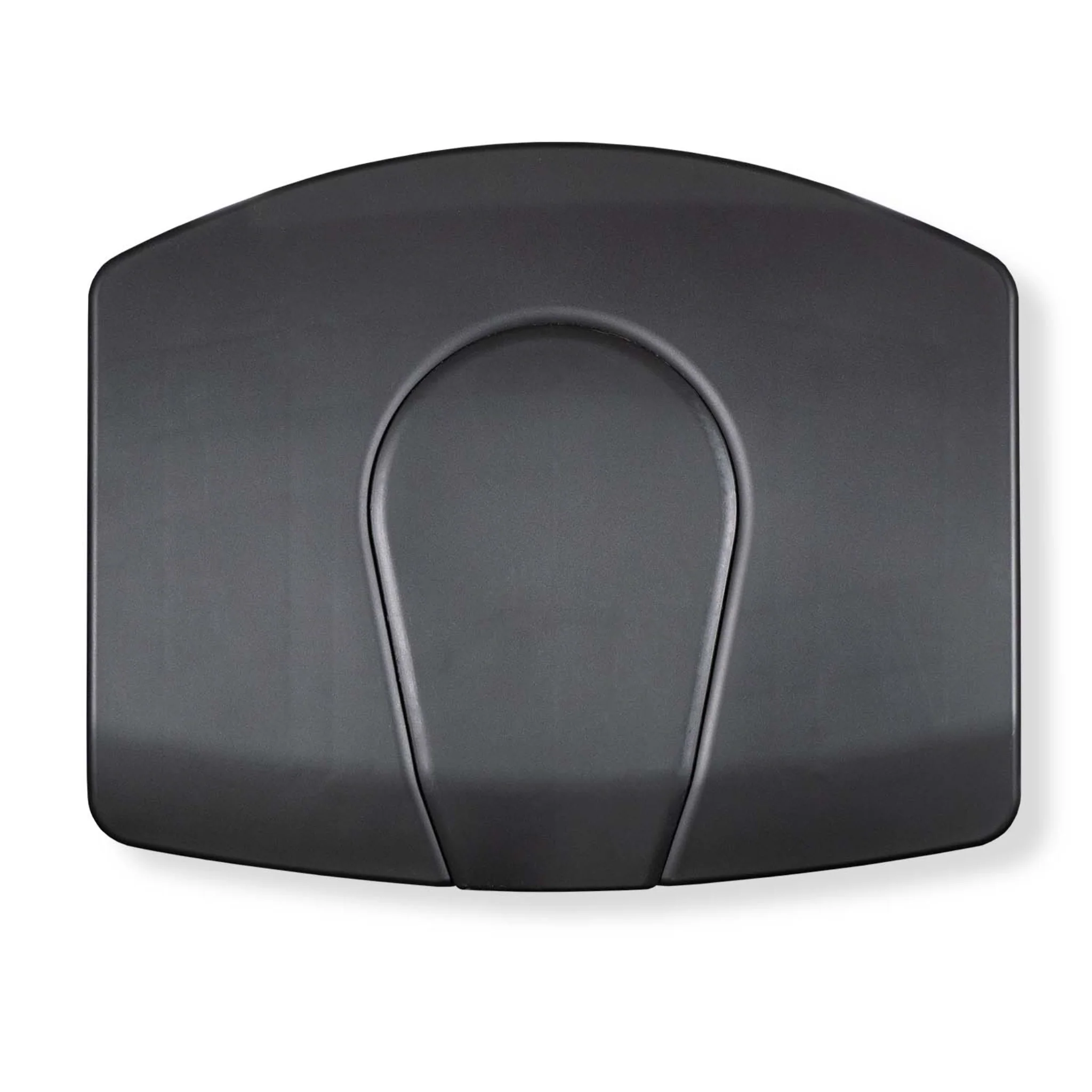

• Solid Seat Insert: Closes the commode opening completely for a solid platform.

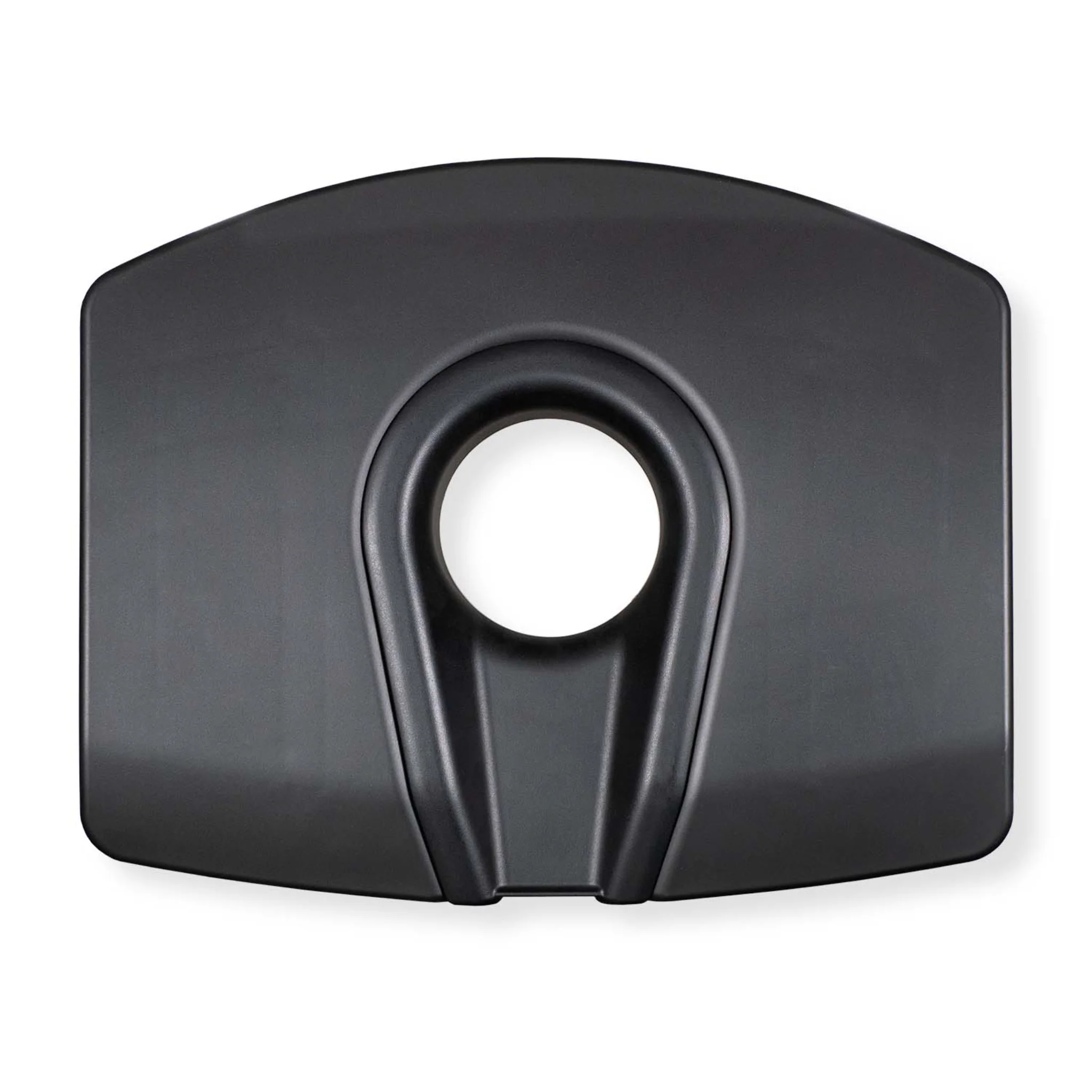

• Splatter Guard Insert: For additional hygiene and cleanliness.

• Swivel Seat: Allows for easier positioning and transfer in tight spaces.

Features

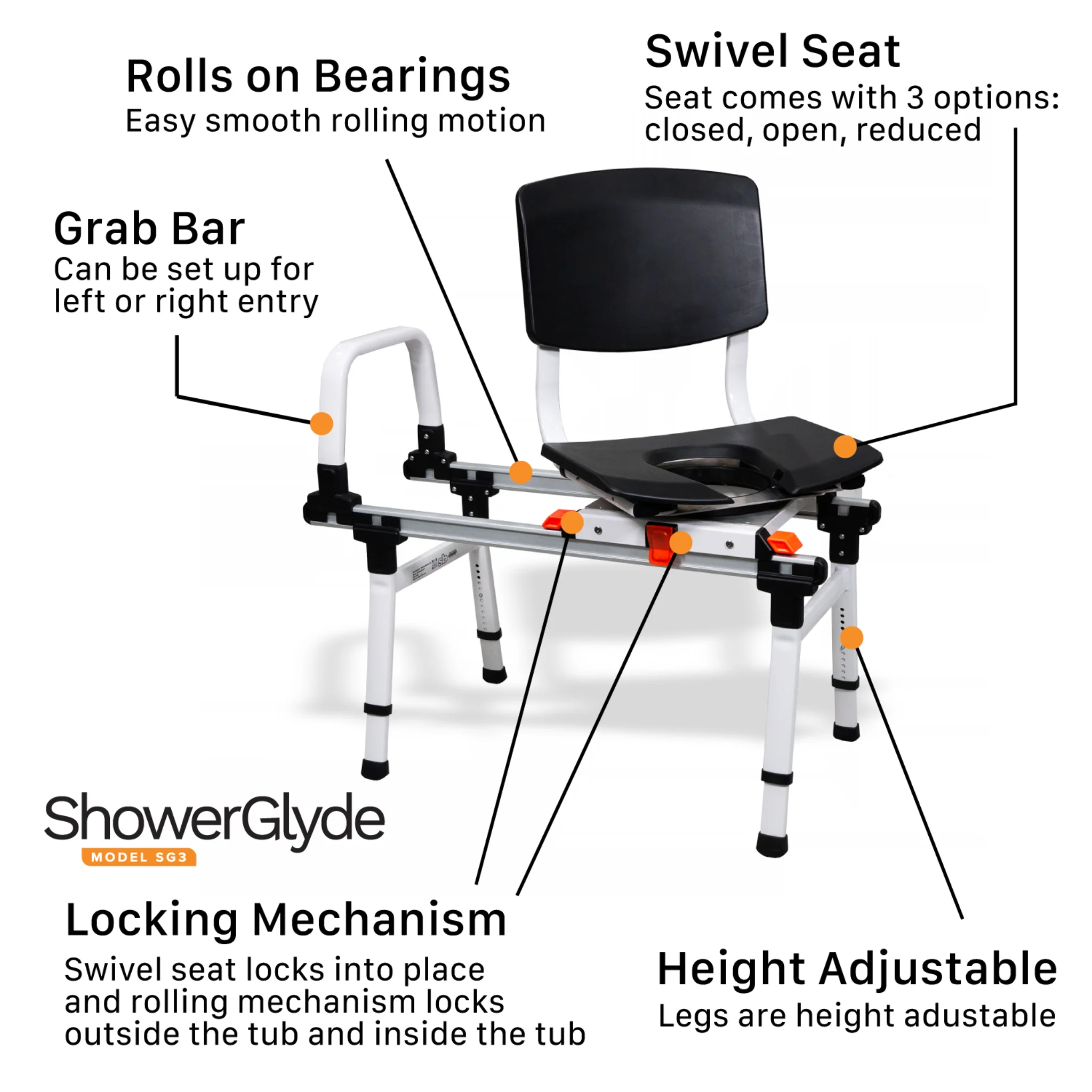

• Smooth sliding over the tub with locking points inside and outside the tub.
• Configurable for left or right-hand use, enhancing adaptability.
• Accommodates tubs up to 19.5" high, with optional extension legs for tubs up to 25".
• Includes a seat belt, grab bar, and a commode seat with three options (open, reducer ring, solid insert).
• Made from high-quality, non-corrosive materials, including aluminum and stainless steel, ensuring longevity and reliability.
• Shorter rails and swivel seat option for fitting into tighter spaces.


Specifications and Manuals

• Weight Capacity: 300 lbs

• Weight: 16 lbs

• Seat Width: 18"

• Seat Depth: 16"

• Seat Height: 18.9" to 24.4

Commode Seat Options:

• Open Commode Seat: For easy washing.
• Reducer Ring: To reduce the size of the commode opening.
• Solid Seat Insert: To close the commode opening completely.
• Splatter Guard Insert: For additional cleanliness.

• Swivel Seat: For easier positioning and transfer in tight spaces.
• Assembly: Can be configured for left or right-hand use.
• Safety Features: Includes safety belts and stable locking mechanisms to ensure user safety during transfers.

SG3 USER MANUAL
