OXYREVO Apex36 1.5 ATA Portable Hyperbaric Chamber

Better Comfortable Use With A Bigger Size Portable Hyperbaric Chamber

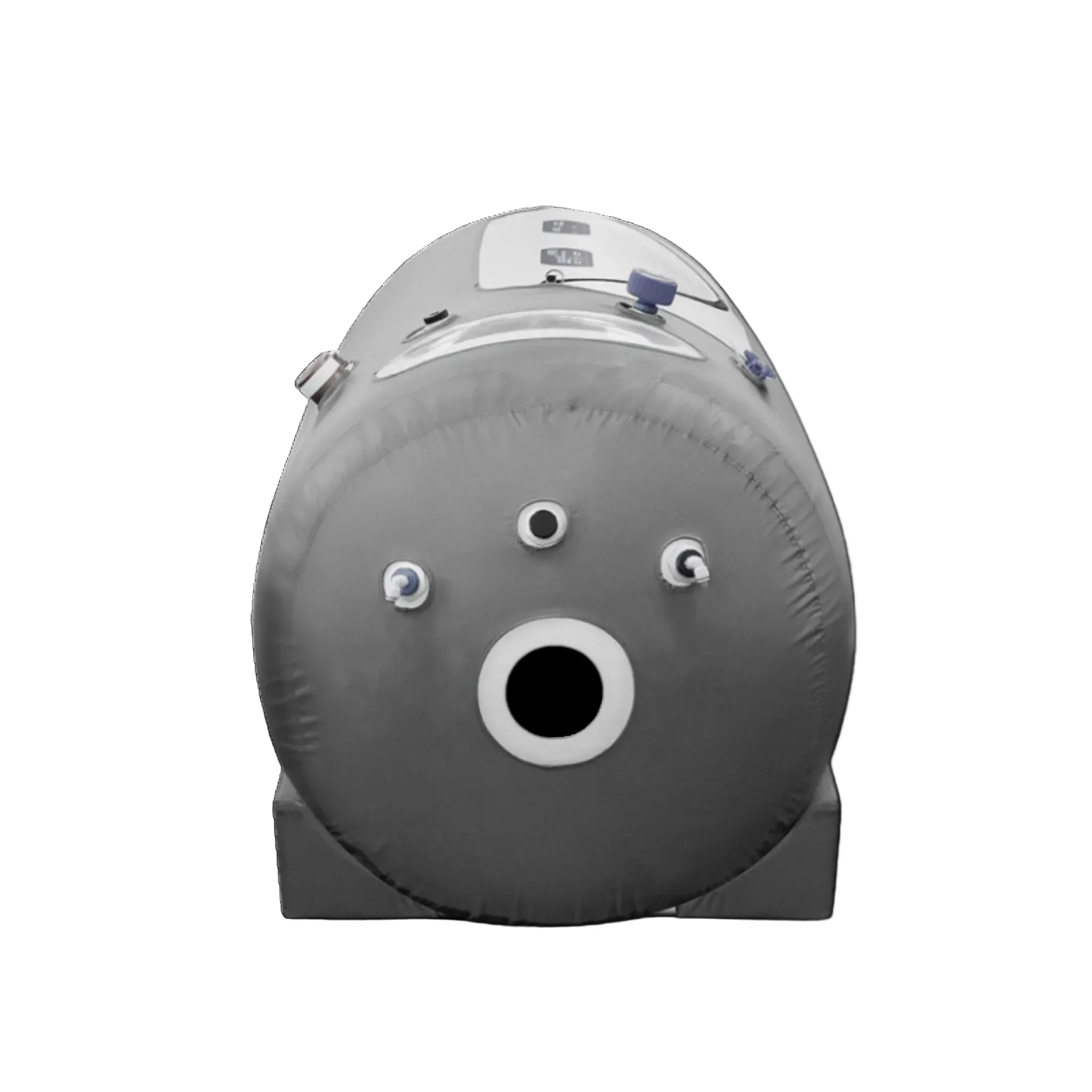

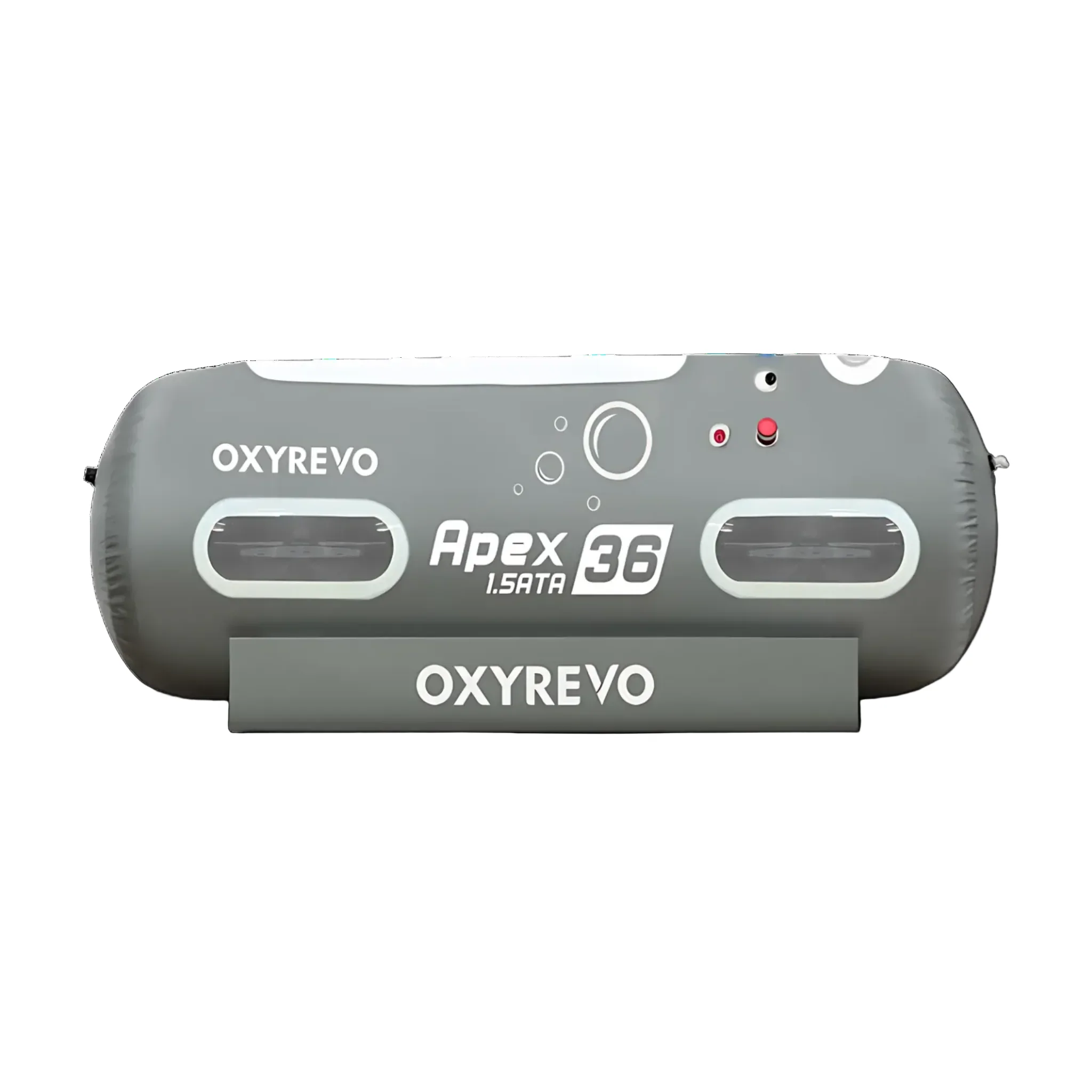

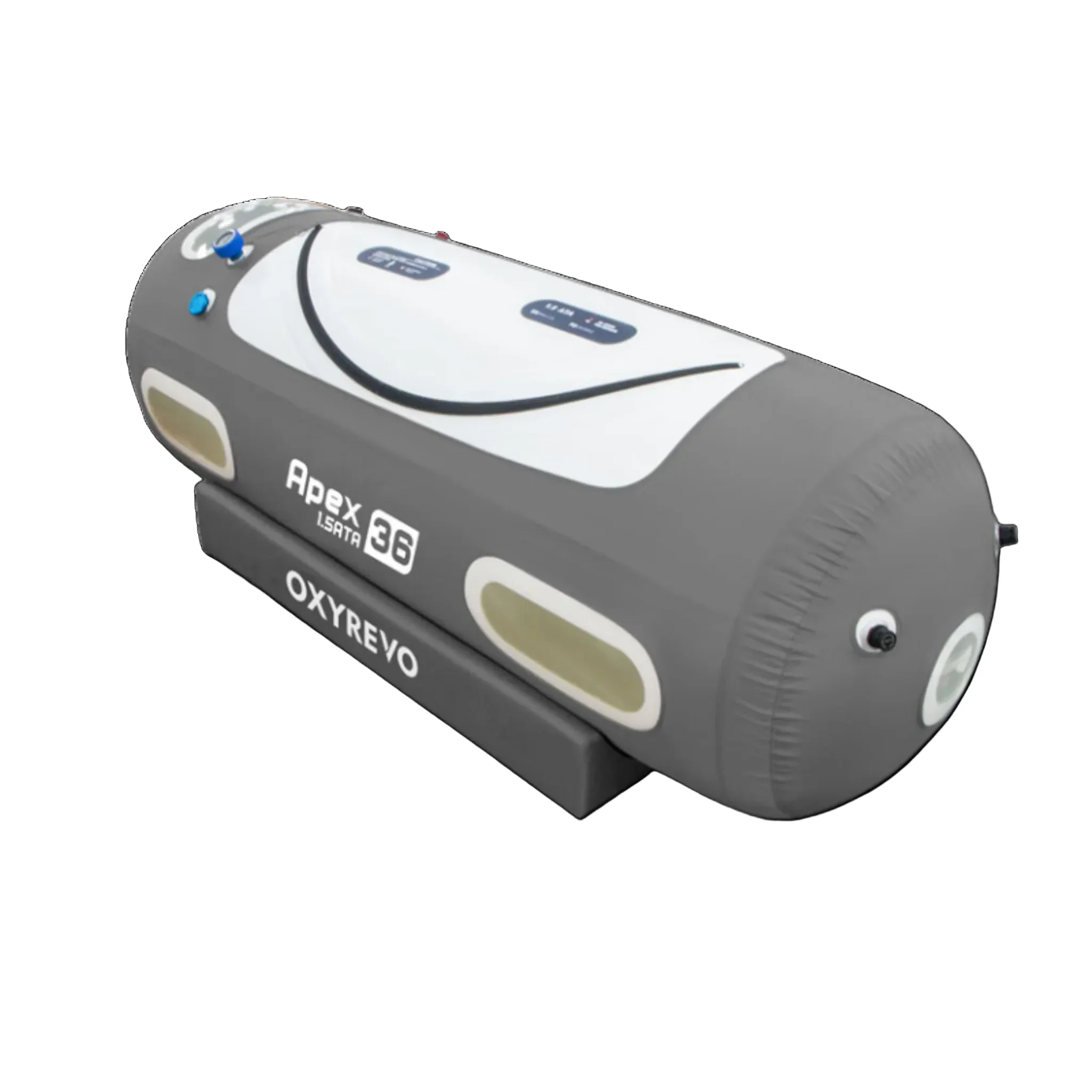

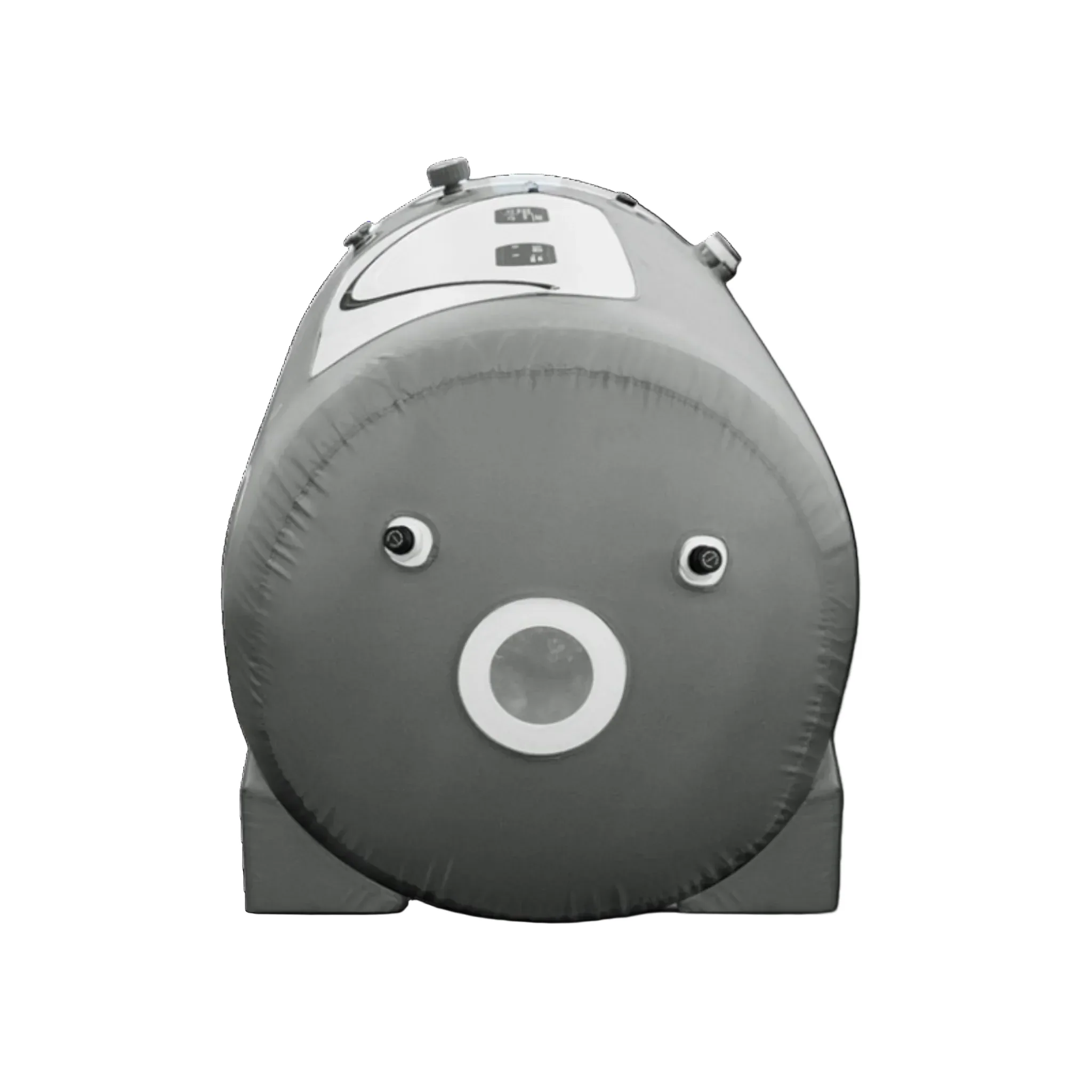

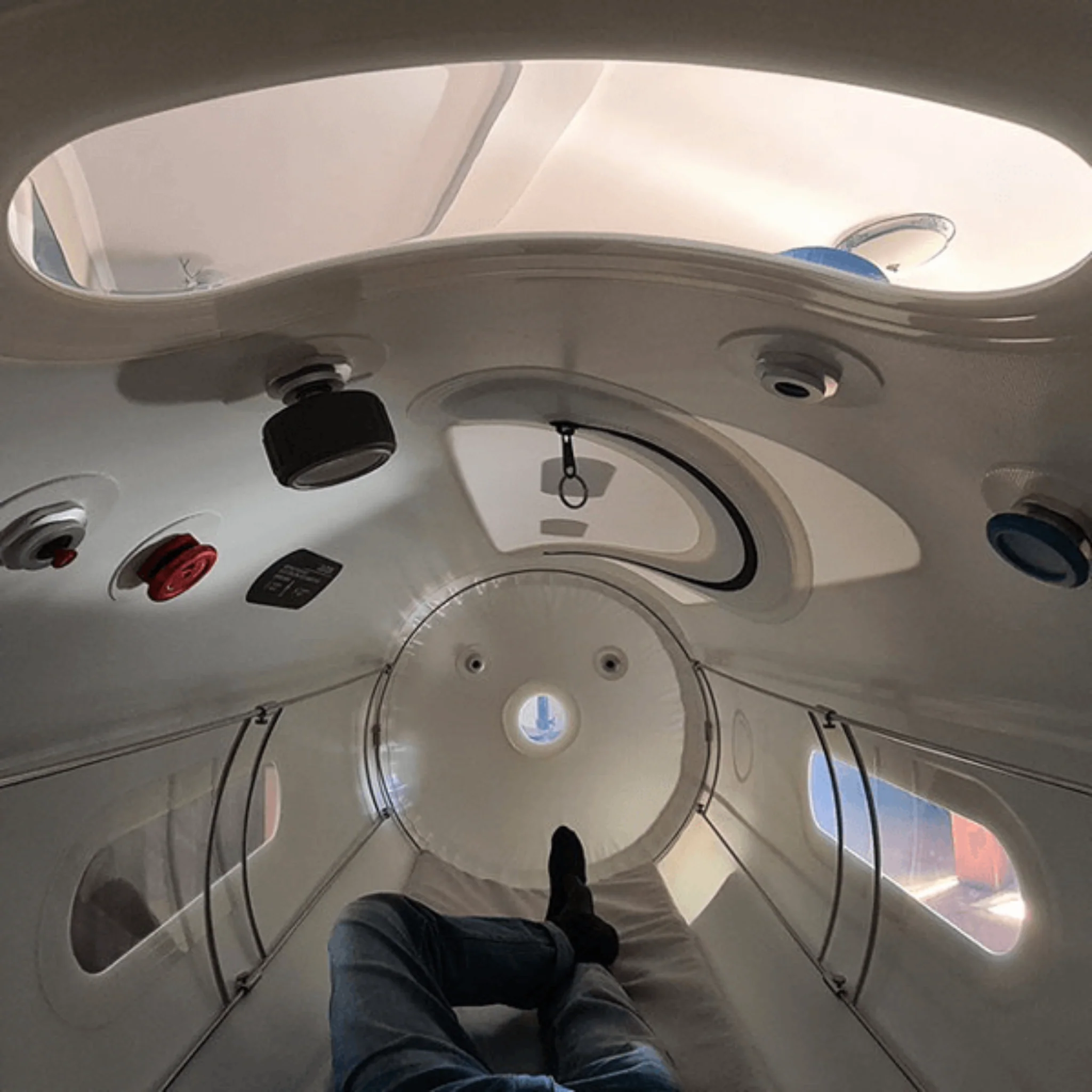

The OxyRevo Apex36 is our largest portable hyperbaric chamber, running at 1.5 ATA for safe and effective therapy. At 89” long and 36” wide, it provides plenty of room for one adult or an adult and child. Seven large windows help reduce claustrophobia.

Its curved zippers create a wide entrance for easy access, and dual zippers inside and outside let one person use the chamber without help. Built with eco-friendly, non-toxic materials, it ensures a clean therapy environment.

The Apex36 includes custom valves, dual air filters, and a memory foam mattress for added comfort. A 10L oxygen concentrator (90–97% purity) with dual pressure displays and controls makes therapy simple, safe, and effective.

What’s the AC Upgrade?
Your chamber includes a basic air cooler, keeping it just a bit cooler than room temperature (about 2–4°F warmer inside).

Upgrade to the Water Chiller AC Unit to:

• Control temperature actively
• Keep the chamber cool, even in warm rooms
• Stay comfortable during longer sessions

Want flexibility?
Choose “AC-Ready” ports are pre-cut so you can add AC later without modifications. Perfect backup for hot days.

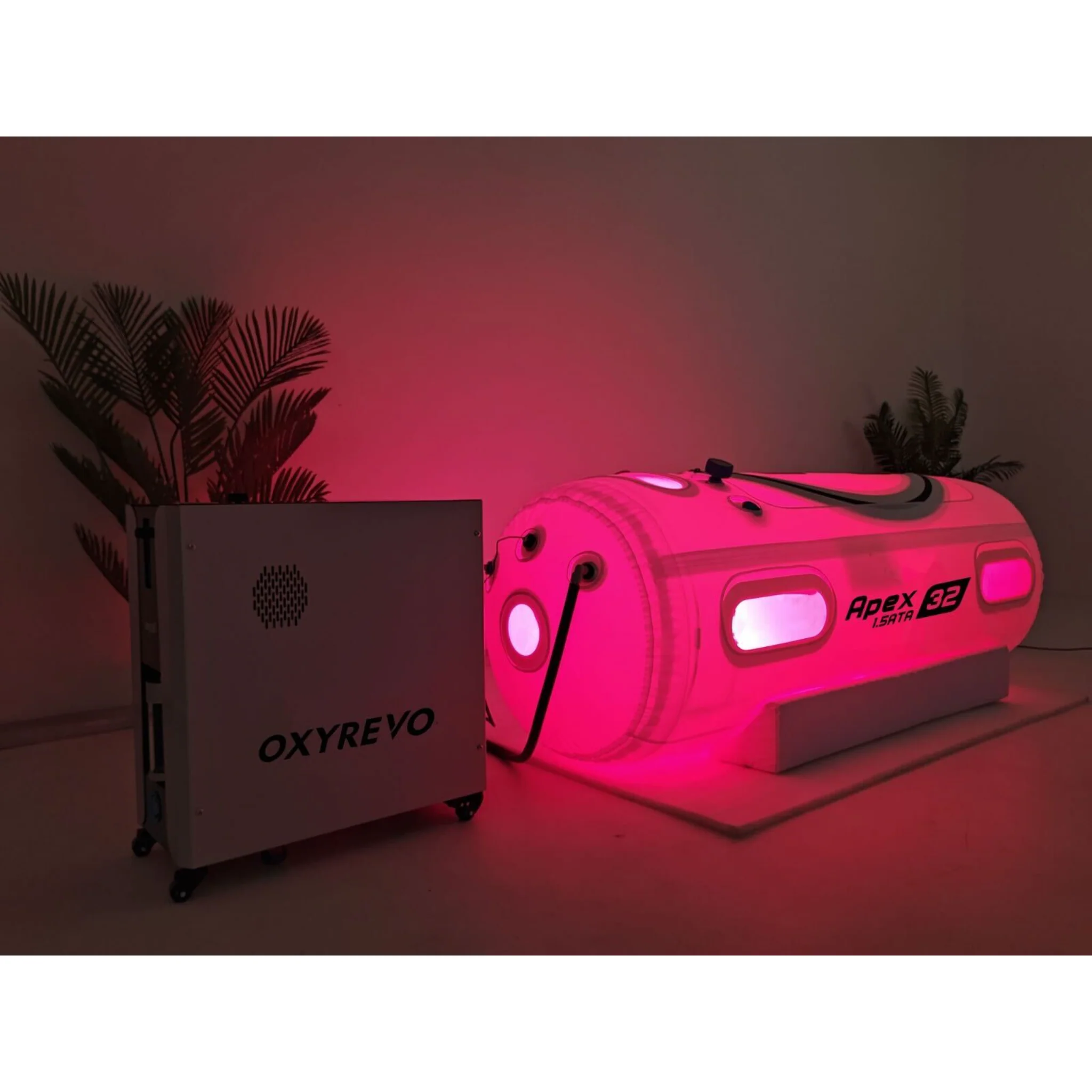

Why Combine Red Light Therapy and HBOT?

HBOT increases oxygen delivery to tissues, supporting repair, circulation, and reducing inflammation, while RLT stimulates mitochondria to boost energy production and collagen. When combined, they complement each other by improving oxygen use at the cellular level, leading to faster healing, better recovery, and more effective overall results.

Every chamber from Morelli Medical includes a free Protocol Book with step-by-step instructions, expert tips, and guidance for using your chamber safely for 20+ conditions.

Features, Benefits & Applications

• Unique Curved Zipper Shape Design
• Heat Welded, NO Toxic Glues Or Sewing
• Durable Laser Printing, NO Paper Glued
• 1.2-1.5ATA Pressure Adjustable
• Extra Quiet Pressure Relief Valves
• Dual Pressure Data Display In And Out

Specifications

Chamber
	Working Pressure: 1.5 ATA Weight: 37 lbs Length: 90" (7.5 ft) Diameter: 36" (3 ft) Windows: 7 large double-layered windows Sound Level: ≤50 dB Cover Color: Grey / OEM available
Standard Version
	Air Compressor: Model AE01, 110V/220V, 19.29" L × 11.42" W × 15.75" H, 550W, 72 L/min, 35 lbs Air Cooler: Model ZLA01, 110V/220V, 11.81" L × 7.48" W × 13.39" H, 210W, 120 L/min, 13 lbs Oxygen Concentrator: Model HG10, 110V/220V, 18.11" L × 17.32" W × 30.71" H, 500W, 10 L/min, 66 lbs Operation: Separate units require individual setup and control Efficiency: Effective dehumidifying and cooling, continuous oxygen production, double input/output filters Material: High-strength TPU Safety: Emergency valves, double-layer viewing windows, internal and external pressure release valves Pressure Gauges: High-precision display inside and outside for constant monitoring Unique Curved Zipper Design: Ergonomically designed for easier access and reduced effort in operation

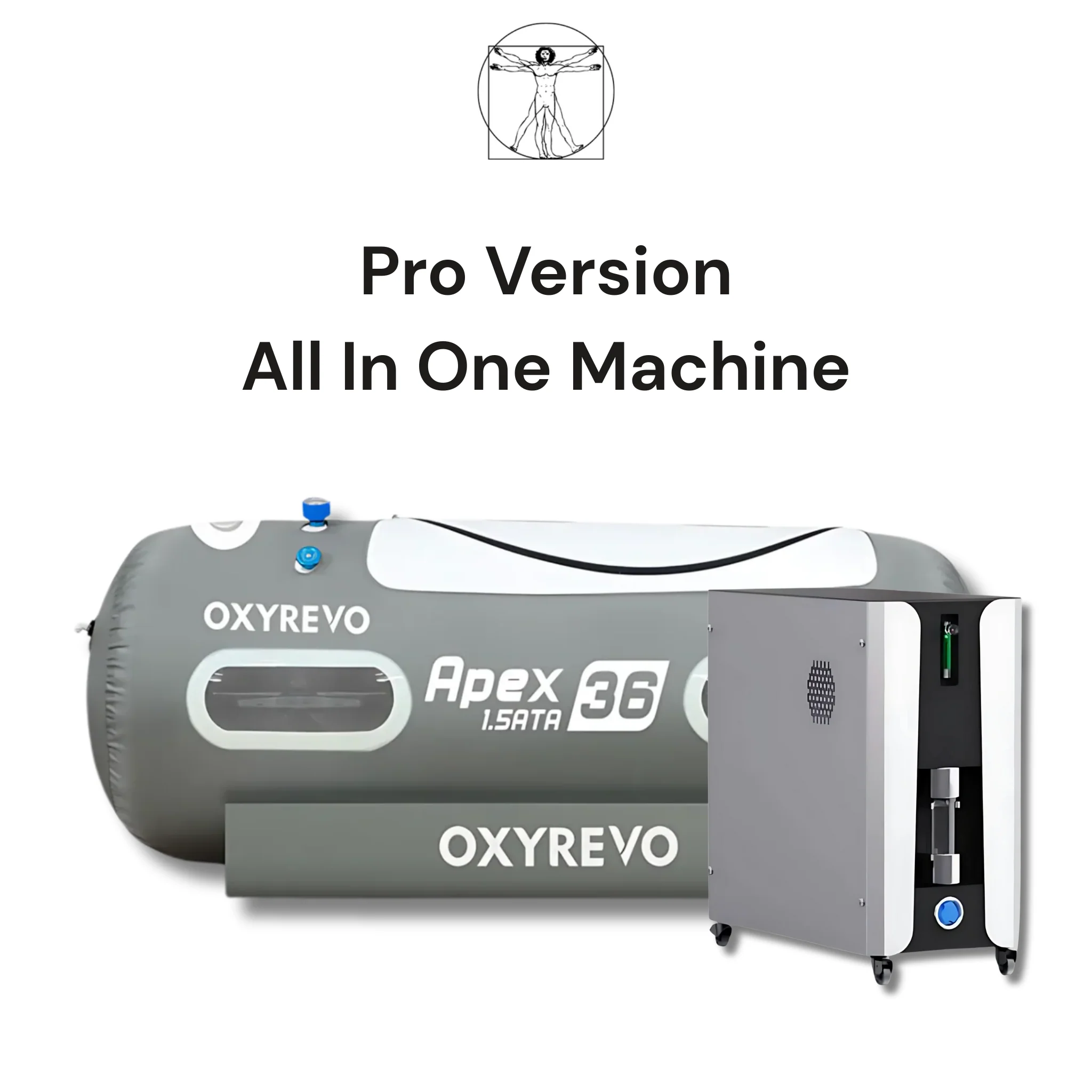

Pro Version
	All-in-One Machine Unit: Air Compressor: 1 unit, Oxygen Concentrator: 10L, Cooling Machines: 2 units, Anion Generator, Timing Alarm, Oxygen Meter, Water Container, Air Filters Dimensions & Weight: 27.56" L × 13.78" W × 29.53" H, 176.37 lbs Operation: All functions integrated into a single unit with one-press activation Efficiency: Enhanced dehumidifying and cooling, continuous oxygen production, double activated carbon filters Additional Features: Nano Water Ion Technology for clean air and disinfection, 99% virus sterilization rate Material: High-strength TPU Safety: Emergency valves, double-layer viewing windows, internal and external pressure release valves Pressure Gauges: High-precision display inside and outside for constant monitoring Unique Curved Zipper Design: Ergonomically designed for easier access and reduced effort in operation

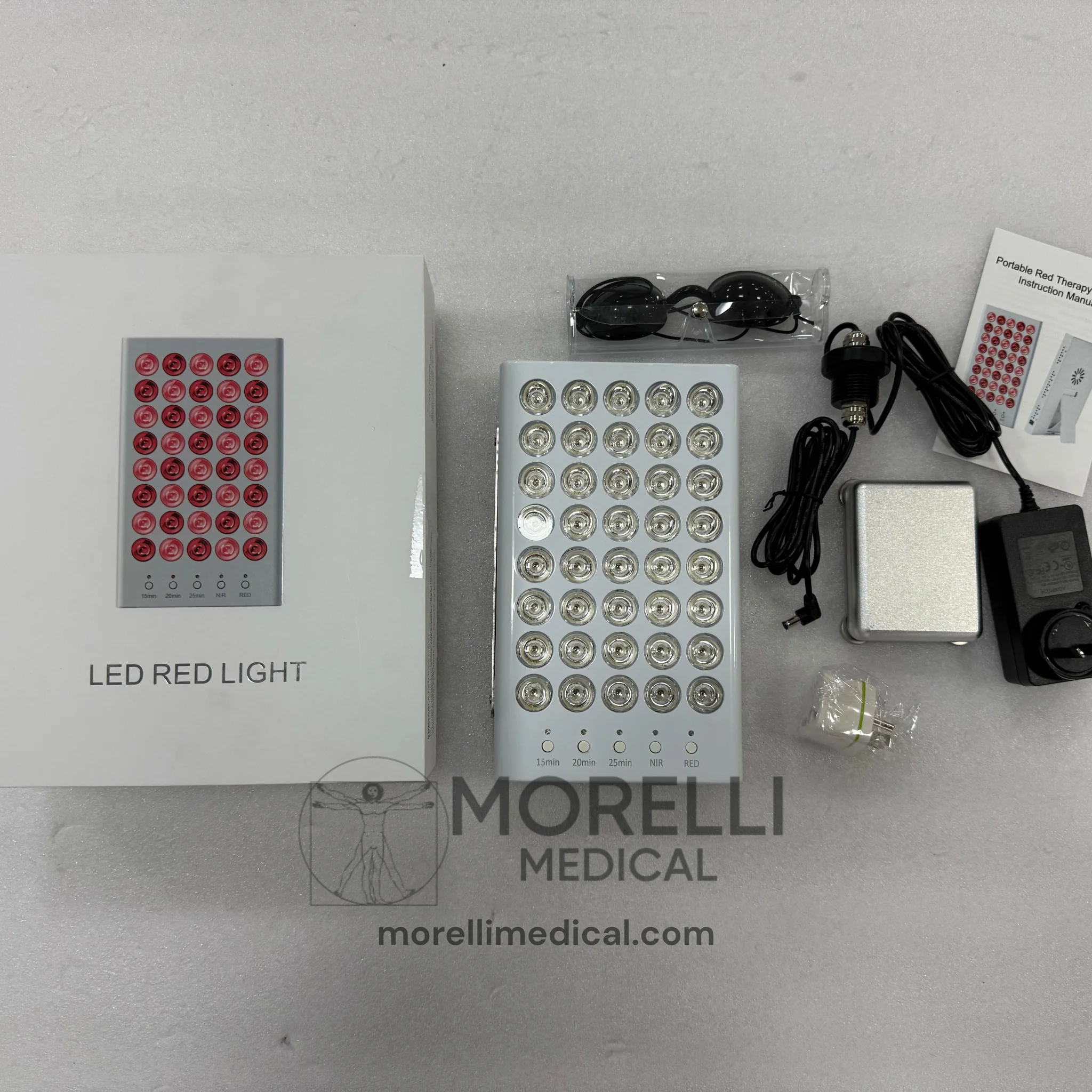

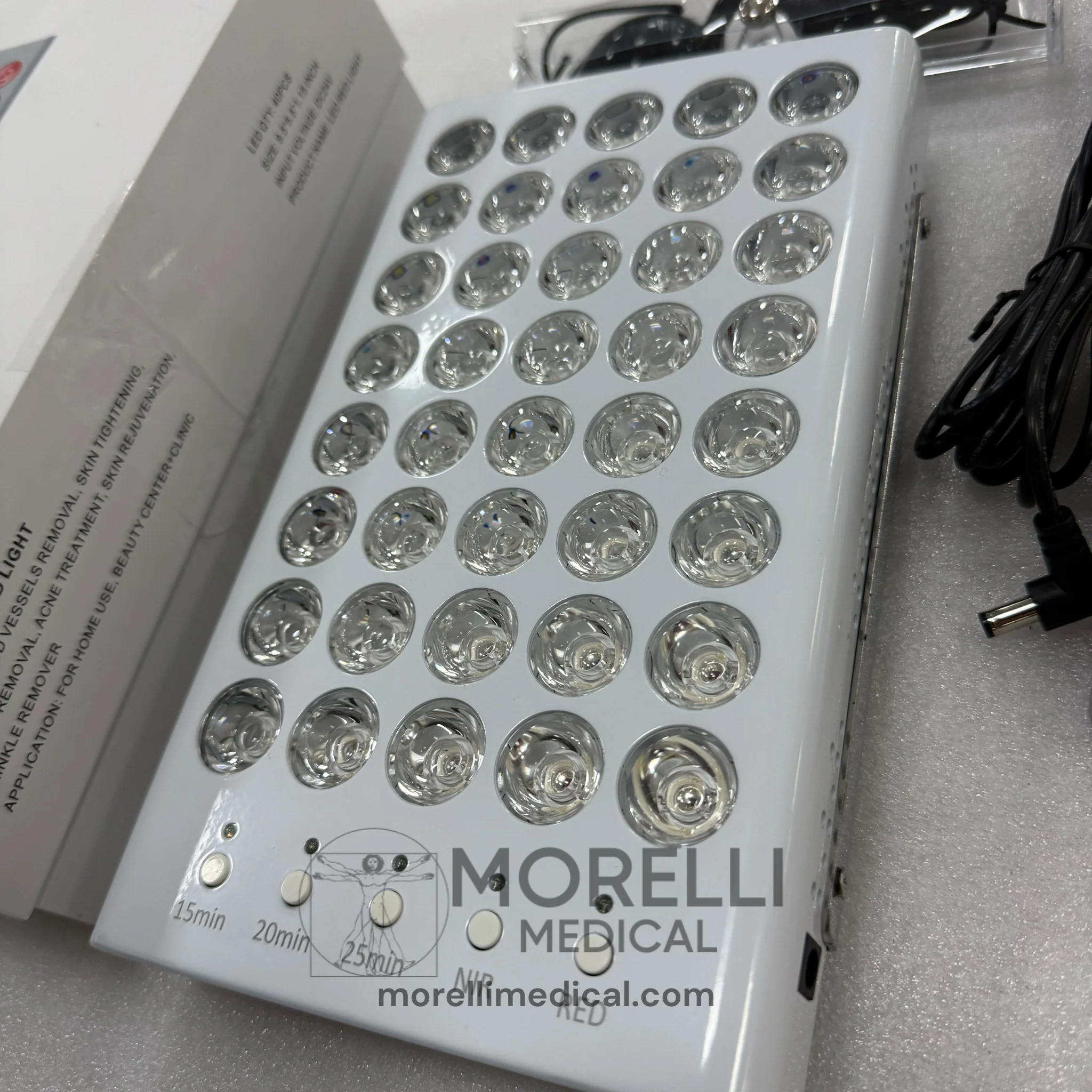

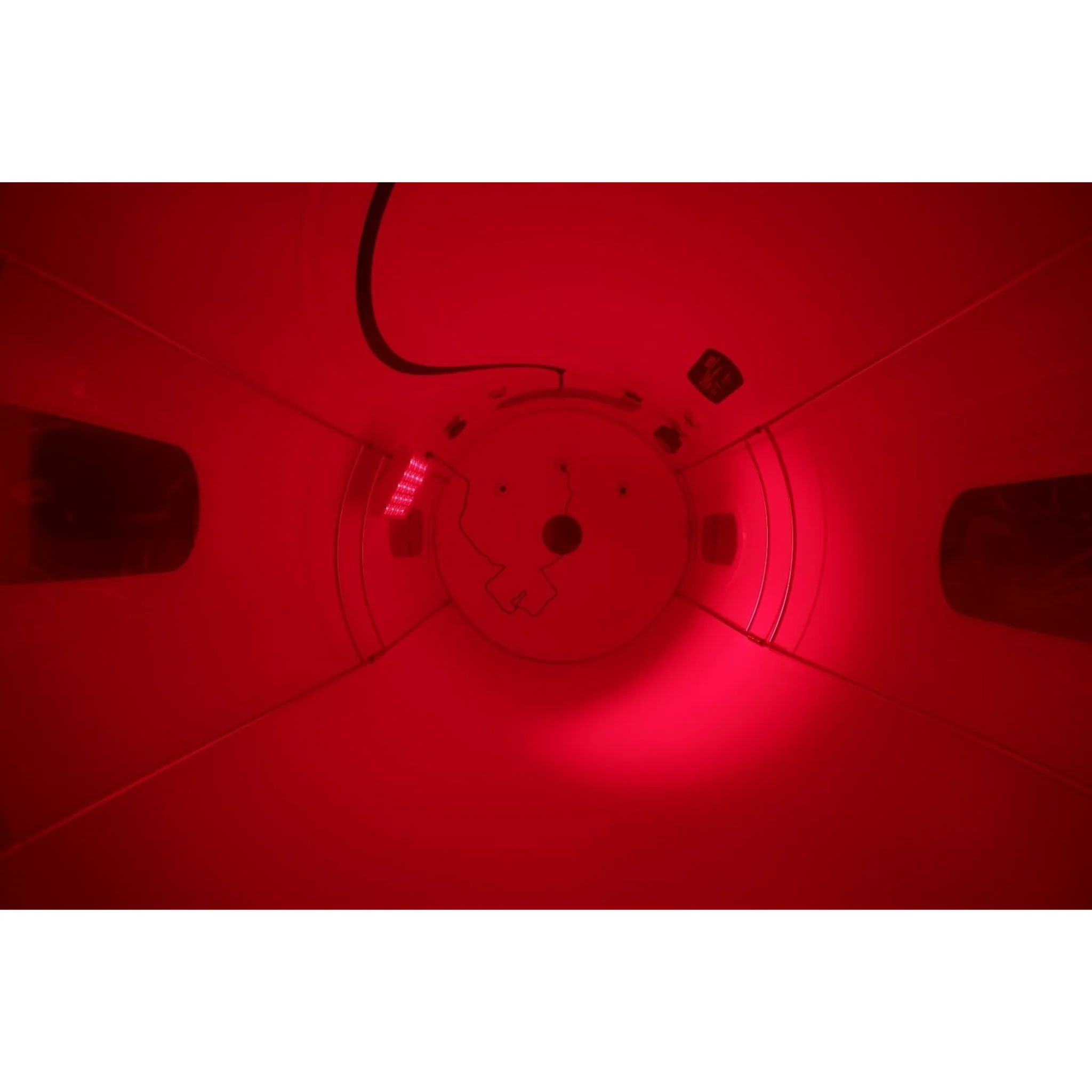

Optional Add-On: Red Light Therapy
	Red Light Wavelength: 660 nm Near-Infrared Wavelength: 850 nm Power Supply: DC 24V Power Rating: 200W LEDs: 40 pcs Panel Dimensions: 9.45" × 5.51" × 1.18"
Water Chiller AC
	Input Power: AC220V / 50Hz Total Power: 230W – 900W (varies by model) Tank Capacity: 4L – 5L (≈ 1.0 – 1.3 gallons) Cooling Capacity: 1,875 BTU – 6,480 BTU Temperature Control Range: 14°F to –40°F (model dependent) Accuracy: ±1.8°F (±1°C) Display Resolution: 0.1°F (0.1°C) Sensor Type: PT100 Flow Rate: 2.6 – 4.0 gallons/min (10 – 15 L/min) Lift Height: 10 – 23 ft (3 – 7 m) Cooling Tank Size: ~7" × 6" (Φ18×16 cm) up to 8.7" × 7" (Φ22×18 cm) Net Weight: 66 – 121 lbs (30 – 55 kg) Dimensions: 15.7" × 11" × 21" up to 18.5" × 14.5" × 26.8"

What's in the Box?

The OXYREVO Apex36 Portable Hyperbaric Chamber includes everything you need to start your hyperbaric oxygen therapy journey. The package includes:

Chamber:

• Internal/external pressure gauges
• Pressure deflate valves
• Control panels
• Display screen
• Communication system
• Pressure relief valves
• Mattress

Operating Unit:

• Oil-free air compressor
• 10L oxygen concentrator
• Cooling machines
• Anion air purifier
• Air sterilizer
• Air filter
• Humidity water container
• All-in-One Machine (For Pro Version)

Accessories:

• Oxygen mask
• Spare Activated Carbon Cotton Filters
• Fuses
• Air/oxygen tubes
• Power cable

Education:

• FREE Protocol Book ($1000 Value)
