Drive Medical Med-Aire Plus Low Air Loss Mattress Replacement System

---

Advanced Pressure Ulcer Management in a Flexible, Digital System

The Drive Medical Med-Aire Plus Mattress Replacement System is a robust solution for preventing, treating, and healing pressure ulcers in both home and long-term care settings. This active combination therapy system integrates alternating pressure and low air loss functions to optimize pressure redistribution, shear reduction, and microclimate control.

Combination Therapy for Enhanced Patient Care
The Med-Aire Plus system combines alternating pressure with low air loss to maintain skin integrity by providing optimal pressure redistribution and reducing friction. This system is designed to maximize immersion and envelopment with 20 individual air cells, ensuring effective pressure ulcer management.

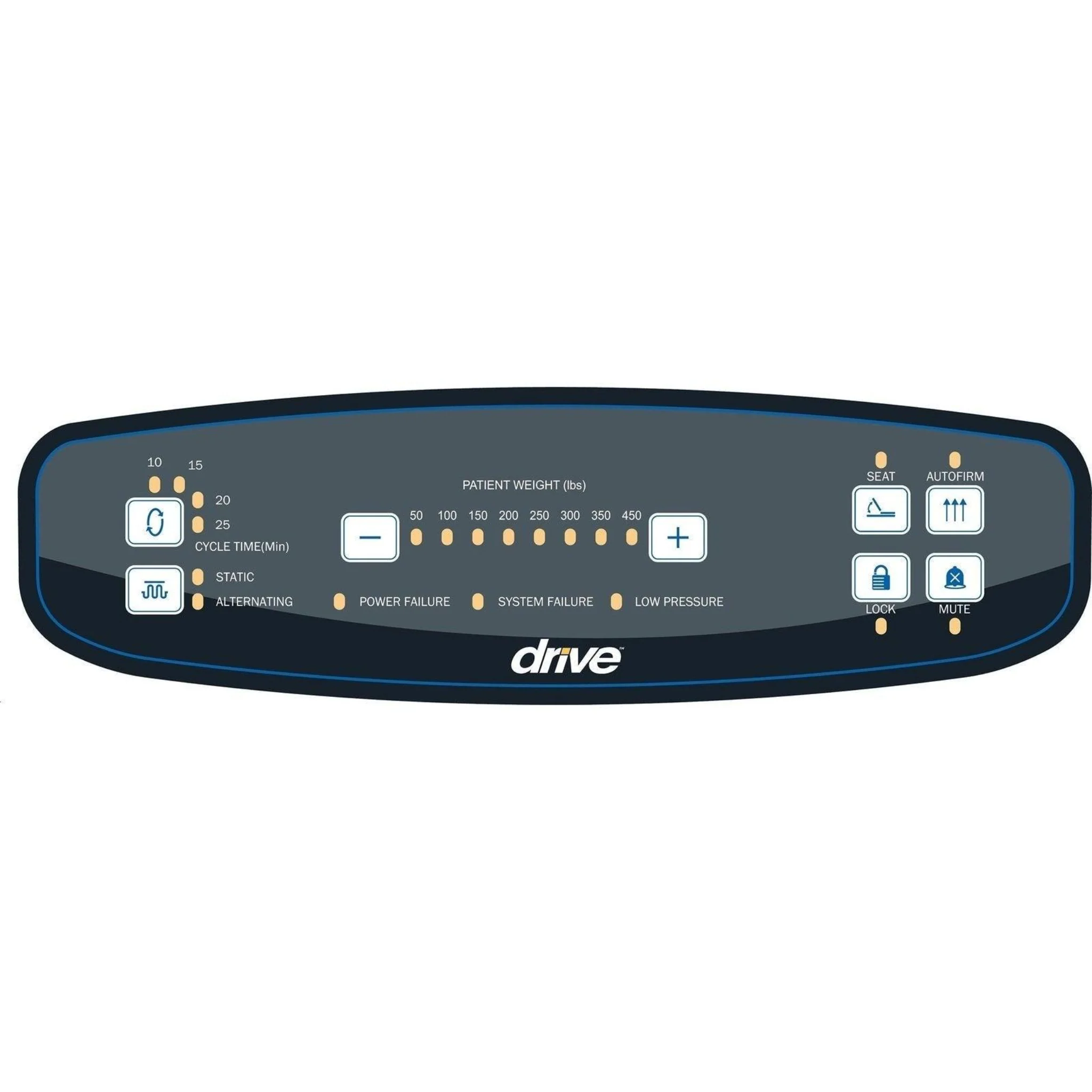

The digital control unit offers four cycle times and adjustable comfort weight settings, allowing for customized patient care and satisfaction. The advanced clinical features, including Auto-Firm, Seat Inflate, and microprocessing feedback, provide caregivers with precise control over the patient’s treatment.

Advanced Safety and Convenience Features

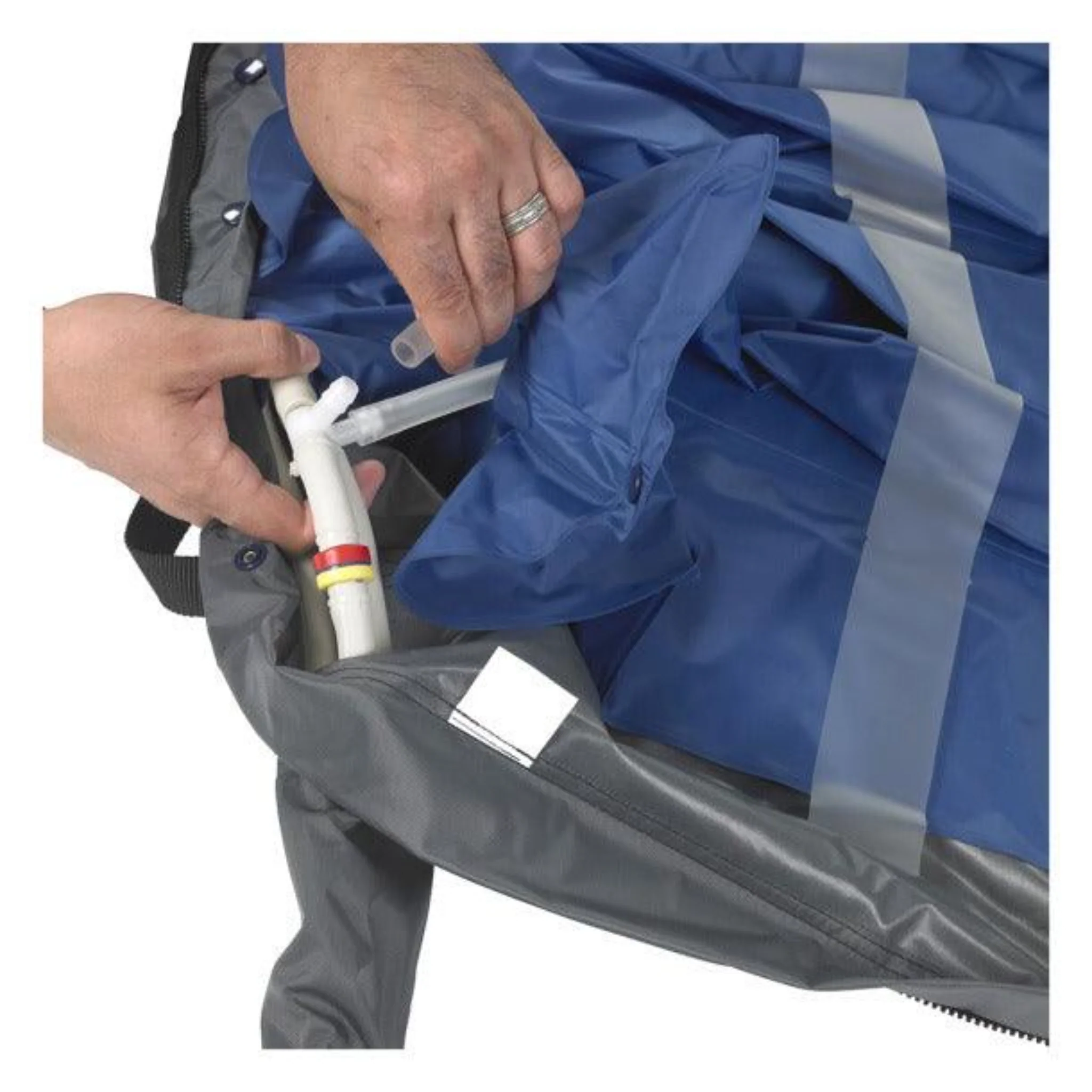

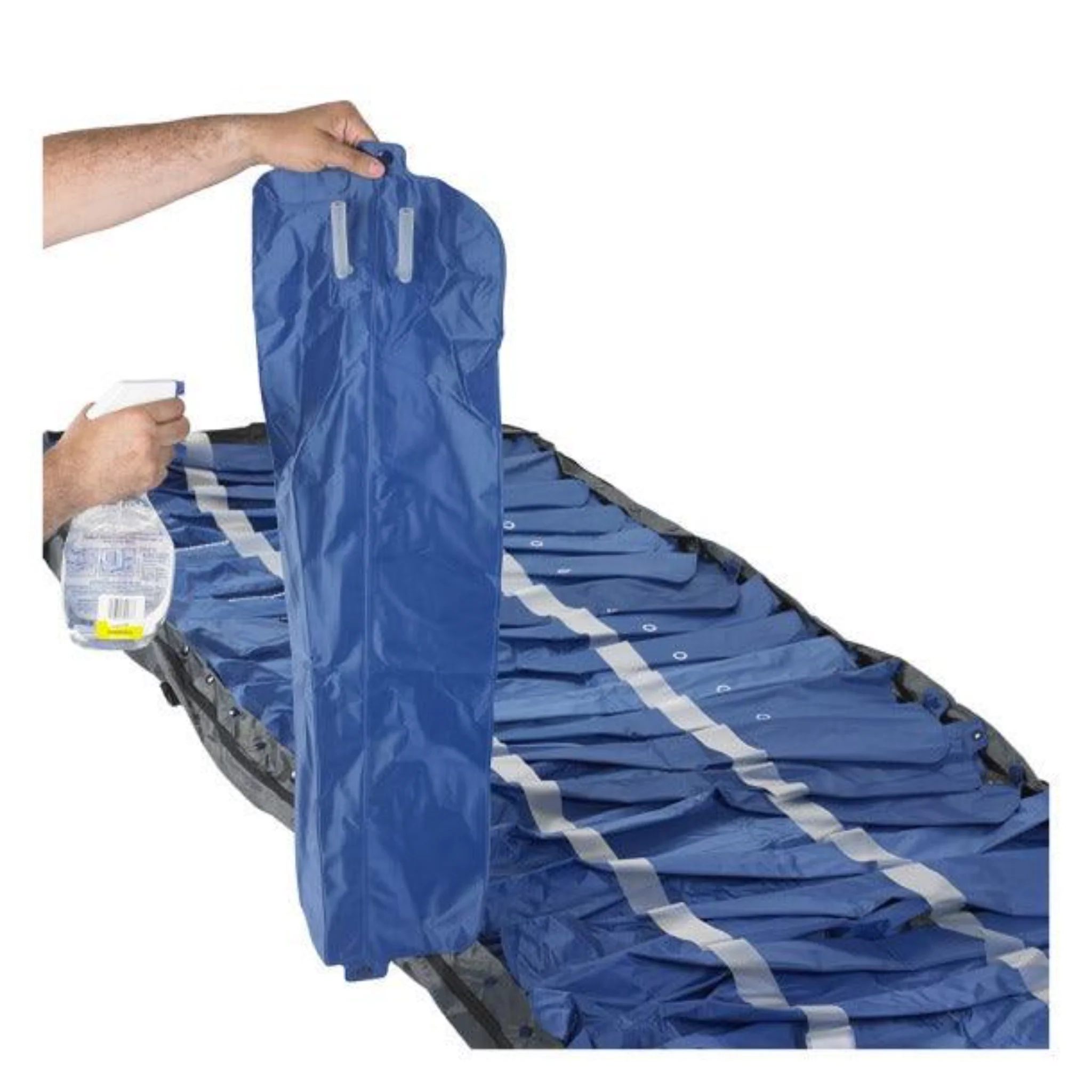

The system is equipped with cell-on-cell designed air cells that prevent "bottoming out" and provide up to 24 hours of protection during power outages. The 8" deep air cells are easily removed with quick disconnects for convenient servicing, ensuring uninterrupted care.

For immediate response in emergencies, the system includes a CPR valve for rapid deflation. Tubing is designed with an EZ Lock/Quick Release feature, allowing for quick and easy disconnection, while three diagnostic audio and visual alarms alert caregivers to issues with air pressure, the system, or power.

Optimal Microclimate Management

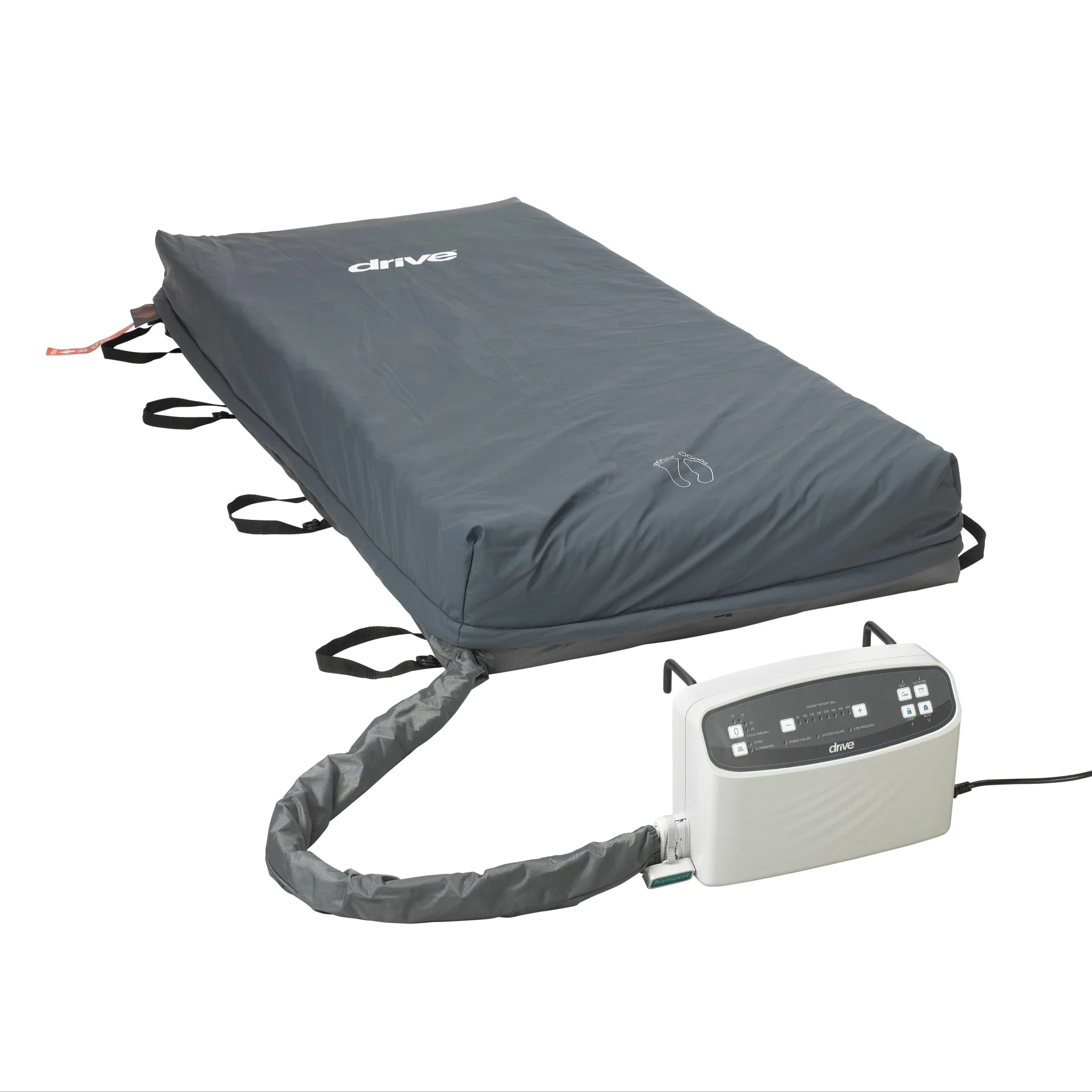

The removable 4-way stretch polyurethane (PU) cover is fluid-resistant, low shear, and vapor permeable, helping to protect the patient’s skin from friction and moisture. This advanced cover enhances the system’s ability to maintain a stable microclimate, keeping the skin dry and comfortable.

Features

• Combines alternating pressure and low air loss to optimize pressure redistribution and microclimate control.
• 20 individual air cells with a pillow feature for head stability and comfort.
• Digital control unit offers adjustable cycle times and comfort weight settings.
• Advanced clinical features include Auto-Firm, Seat Inflate, and microprocessing feedback.
• Cell-on-cell design provides up to 24 hours of power outage protection.
• Easily removable 8" deep air cells with quick disconnects for convenient servicing.
• Fluid-resistant, low shear, and vapor permeable PU cover protects the skin from friction and moisture.
• CPR valve for rapid deflation in emergencies.
• EZ Lock/Quick Release design for fast tubing disconnection.
• Three diagnostic alarms for air pressure, system issues, and power.

Specifications

• Dimensions: 36” (W) x 80” (L) x 8” (H)
• Weight Capacity: 450 lbs
• Control Unit Airflow: 8 LPM
• Control Unit Alarms: Visual/Audible
• Control Unit Cycle Time: 10, 15, 20, 25 Minutes
• Control Unit Type: Compressor
• Mattress Cover Material: Fluid-Resistant Stretch
• Warranty: 18 Month Limited
