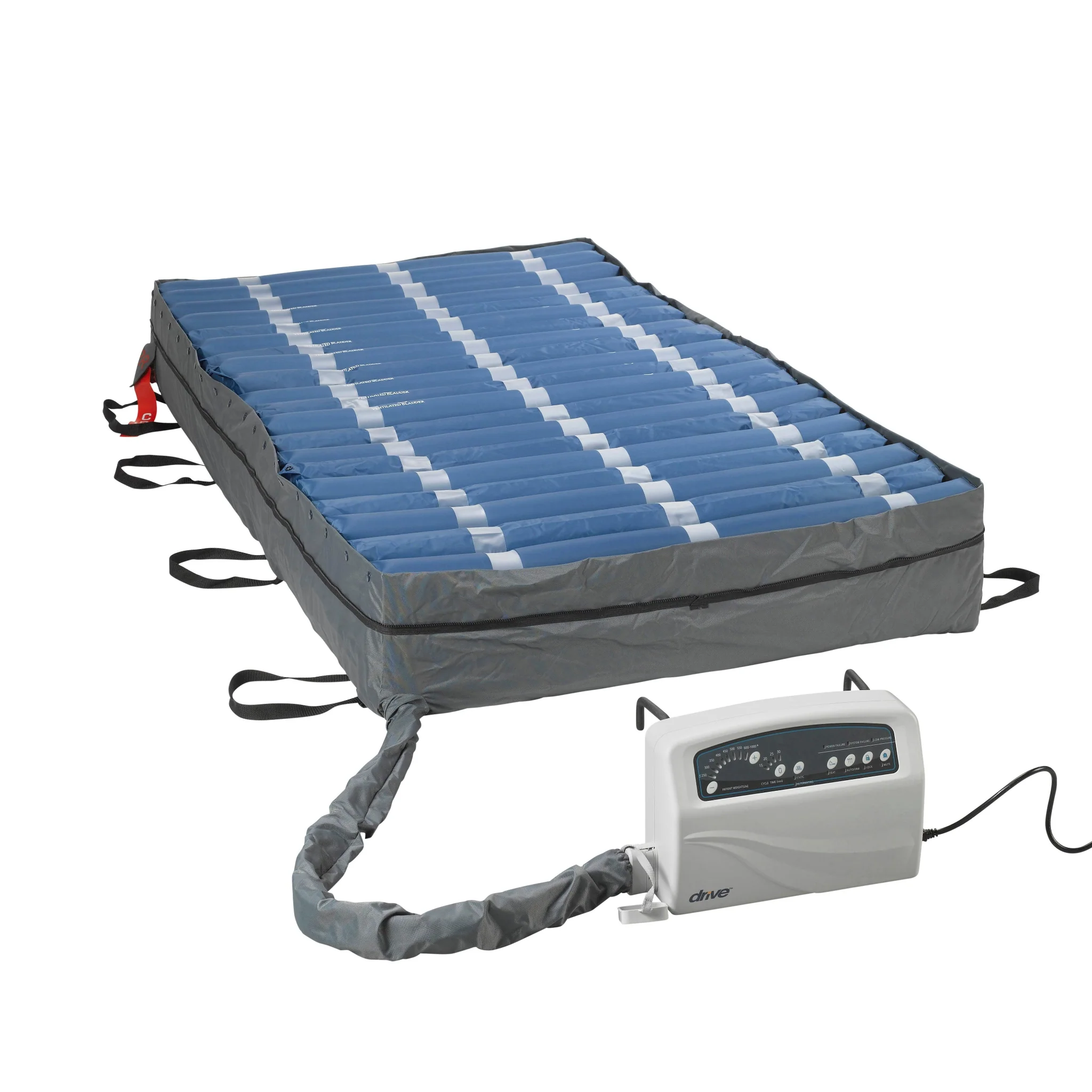

Drive Medical Med-Aire Plus 10" Bariatric Low Air Loss Mattress

---

Comprehensive Bariatric Care for All Stages of Pressure Ulcer Management

The Drive Medical Med-Aire Plus 10" Bariatric Low Air Loss Mattress is specifically designed to provide exceptional pressure ulcer prevention, treatment, and healing for bariatric patients in home or long-term care settings. This advanced combination therapy system incorporates alternating pressure and low air loss to enhance pressure redistribution, reduce shear and friction, and maintain an optimal microclimate.

Combination Therapy for Effective Bariatric Care
The Med-Aire Plus 10" Bariatric system integrates alternating pressure and low air loss to deliver maximum skin protection and comfort. The digital control unit allows for personalized care with four cycle times and adjustable comfort weight settings, ensuring optimal immersion and patient satisfaction.

With 20 individual air cells, including a pillow feature for head stability and comfort, the mattress provides effective immersion and envelopment. The system also includes advanced clinical features such as Auto-Firm, Seat Inflate, auto-recovery, and microprocessing feedback, offering caregivers enhanced control and patient care.

Reliable and Safe Bariatric Support
The cell-on-cell designed air cells prevent "bottoming out" and offer up to 24 hours of power outage protection, ensuring continuous care. The 10" deep air cells are easily removable with quick disconnects, facilitating easy servicing and maintenance.

In emergencies, the system is equipped with a CPR valve for rapid deflation. The tubing features an EZ Lock/Quick Release design for quick and secure disconnection, while three diagnostic audio and visual alarms alert caregivers to issues with air pressure, system performance, or power.

Advanced Microclimate Control
The removable quilted nylon cover is fluid-resistant, low shear, and vapor permeable, helping to protect the patient’s skin from friction and moisture while maintaining a stable and comfortable microclimate.

Features

• Combines alternating pressure and low air loss for effective pressure redistribution and microclimate control.
• 20 individual air cells with a pillow feature provide head stability and patient comfort.
• Digital control unit offers adjustable cycle times and comfort weight settings.
• Advanced clinical features include Auto-Firm, Seat Inflate, auto-recovery, and microprocessing feedback.
• Cell-on-cell design provides up to 24 hours of power outage protection.
• 10" deep air cells are easily removable with quick disconnects for convenient servicing.
• Fluid-resistant, low shear, and vapor permeable quilted nylon cover protects skin integrity.
• CPR valve allows for rapid deflation in emergencies.
• EZ Lock/Quick Release design ensures quick tubing disconnection.
• Three diagnostic alarms for air pressure, system issues, and power.

Specifications

Item 14030

• Size: 42” W x 80” L x 10” H

• Maximum Weight Capacity: 600 lbs


Item 14048

• Size: 48” W x 80” L x 10” H

• Maximum Weight Capacity: 750 lbs


Item 14054

• Size: 54” W x 80” L x 10” H

• Maximum Weight Capacity: 1,000 lbs


Item 14060

• Size: 60” W x 80” L x 10” H

• Maximum Weight Capacity: 1,000 lbs

Additional Features:

• Top Cover: Quilted Nylon / PU coating quilted stretch with zipper
• Air Cells: Nylon / PU Lamination
• Base Material: 800D Nylon/PVC
• Quantity & Height of Air Cells: 20 EA x 10” air cells
• Cell on Cell Design prevents “bottoming out” and provides up to 24 hours of power outage protection
• CPR Valve for emergency procedures
• Pillow Function and Low Air Loss for enhanced comfort and reduced pressure points
• Quick Connectors for easy setup and maintenance
