Drive Medical Med-Aire Plus Bariatric Heavy Duty Low Air Loss Mattress

---

Comprehensive Bariatric Care for All Stages of Pressure Ulcer Management

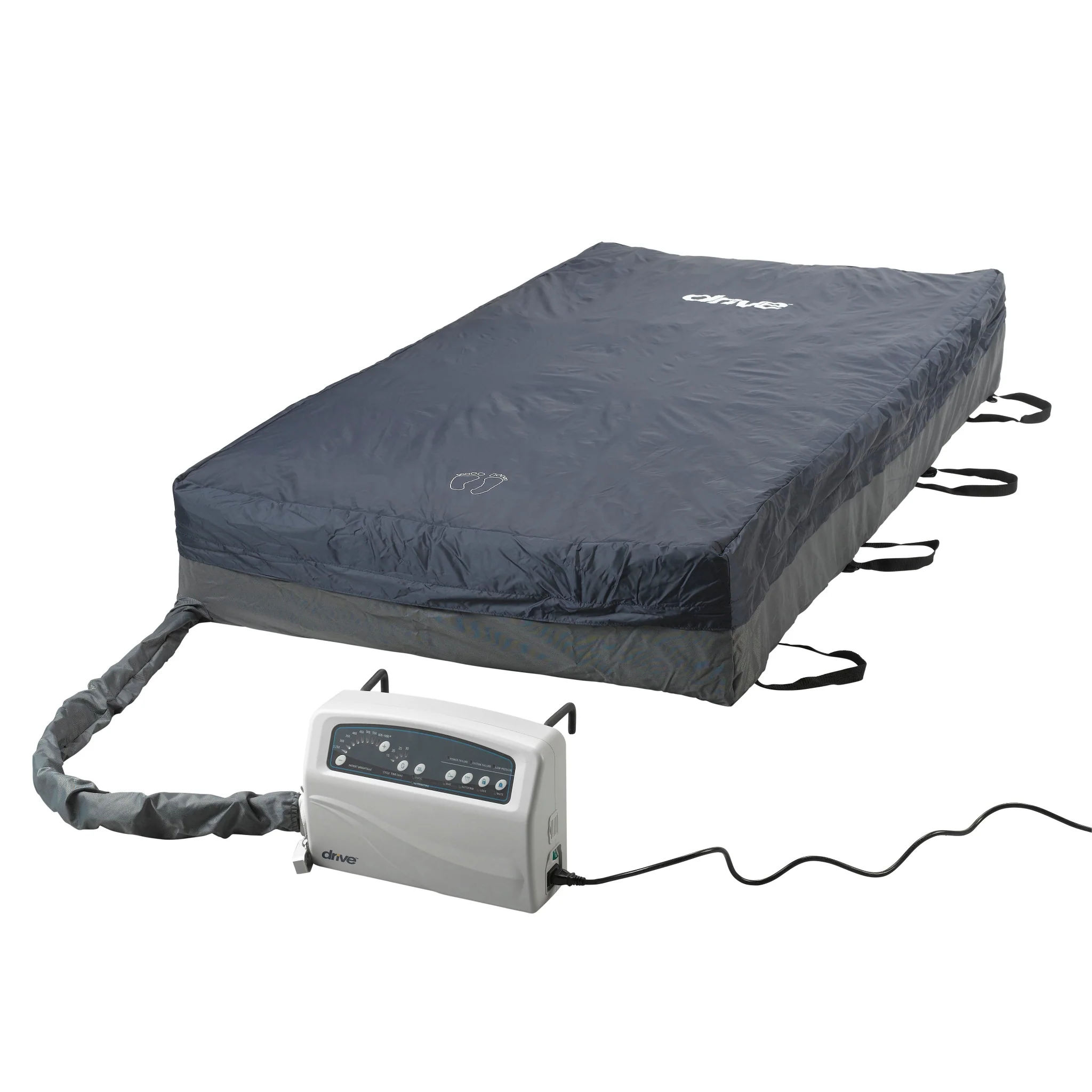

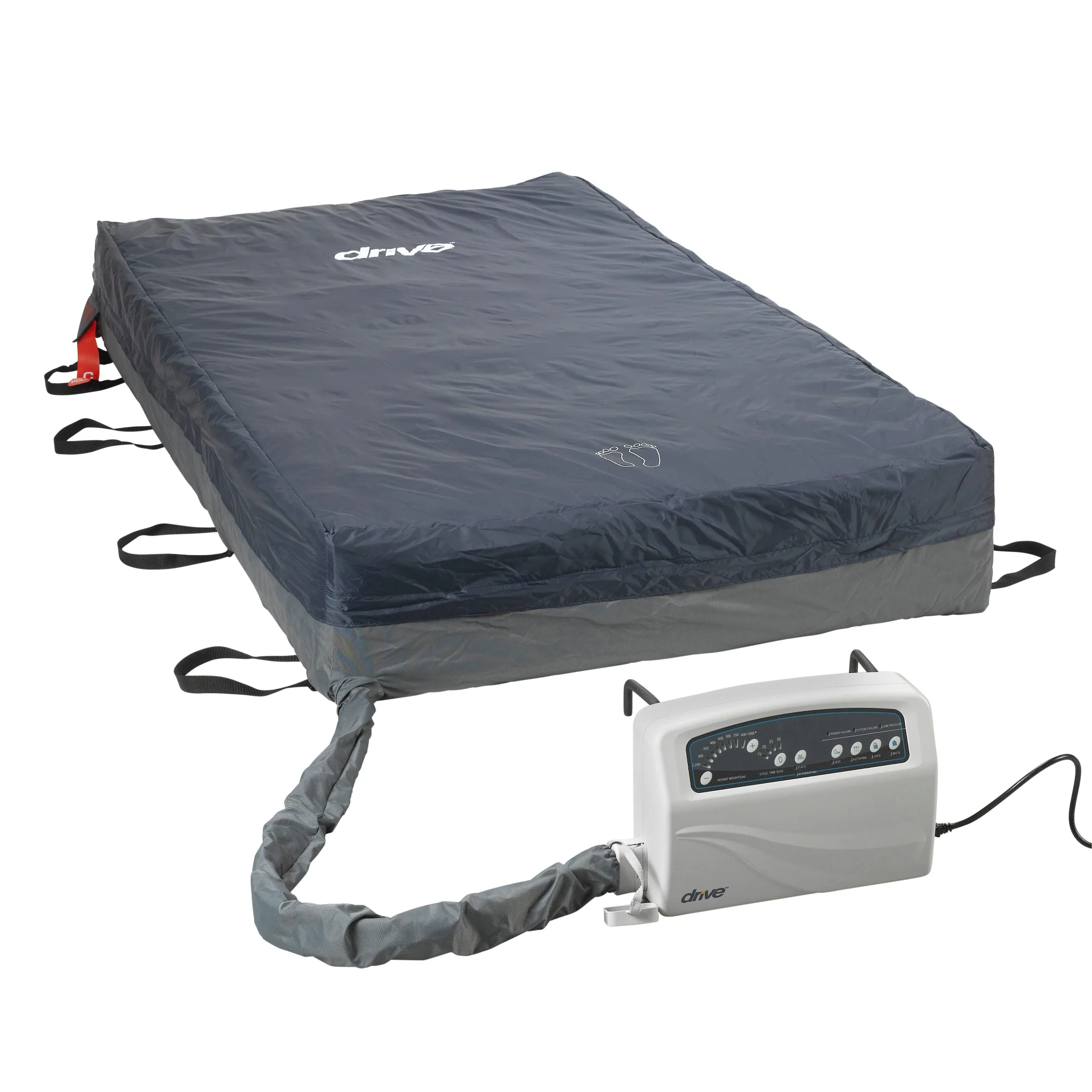

The Drive Medical Med-Aire Plus Bariatric Heavy Duty Low Air Loss Mattress is engineered to deliver exceptional care for bariatric patients, providing advanced pressure ulcer prevention, treatment, and healing in both home and long-term care settings. This active combination therapy system integrates alternating pressure and low air loss to optimize pressure redistribution, reduce shear and friction, and maintain an optimal microclimate.

Combination Therapy for Effective Bariatric Care
The Med-Aire Plus Bariatric Heavy Duty system offers both alternating pressure and low air loss functions, ensuring maximum skin protection and comfort for bariatric patients. The digital control unit allows for customizable care with four cycle times and adjustable comfort weight settings, tailored to meet individual patient needs.

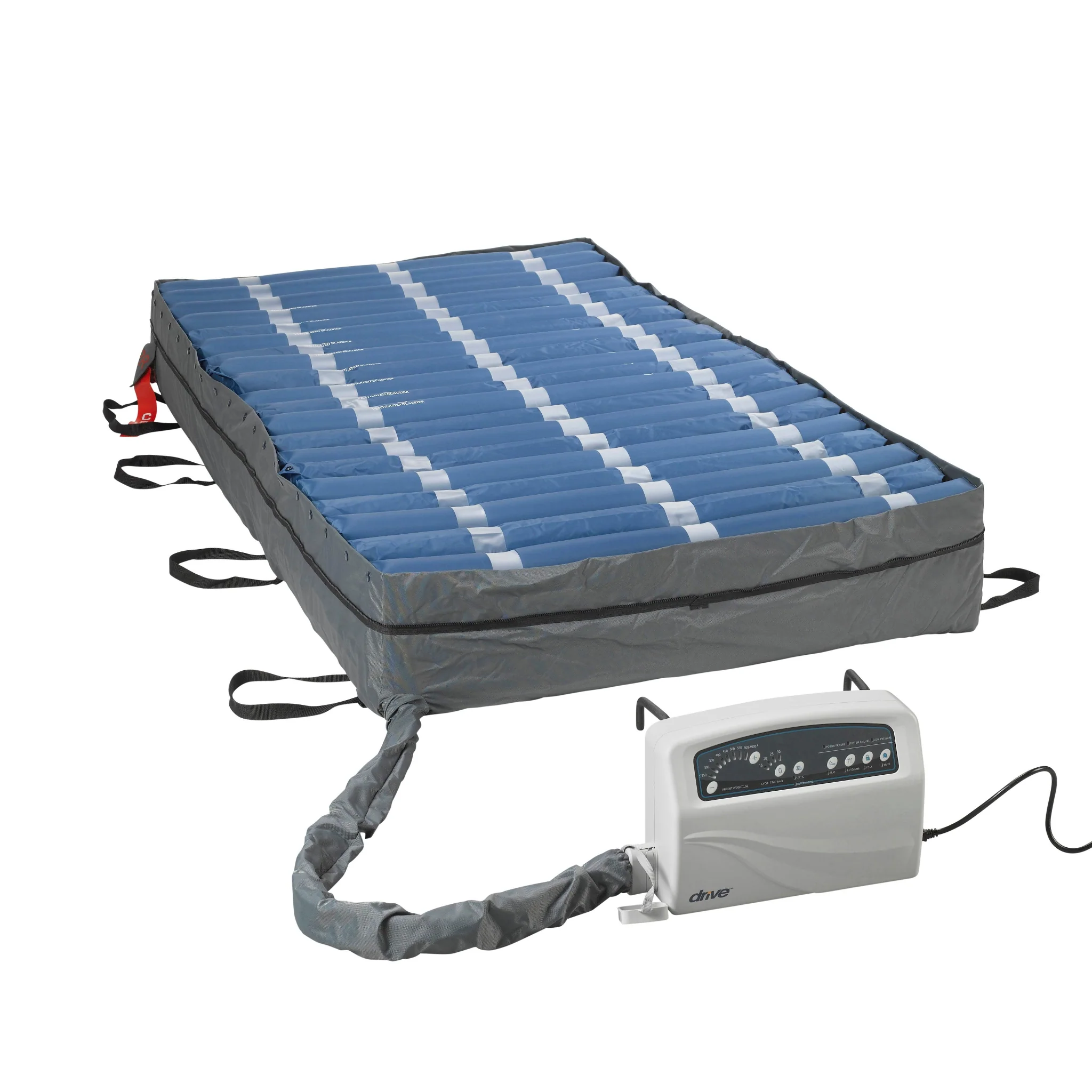

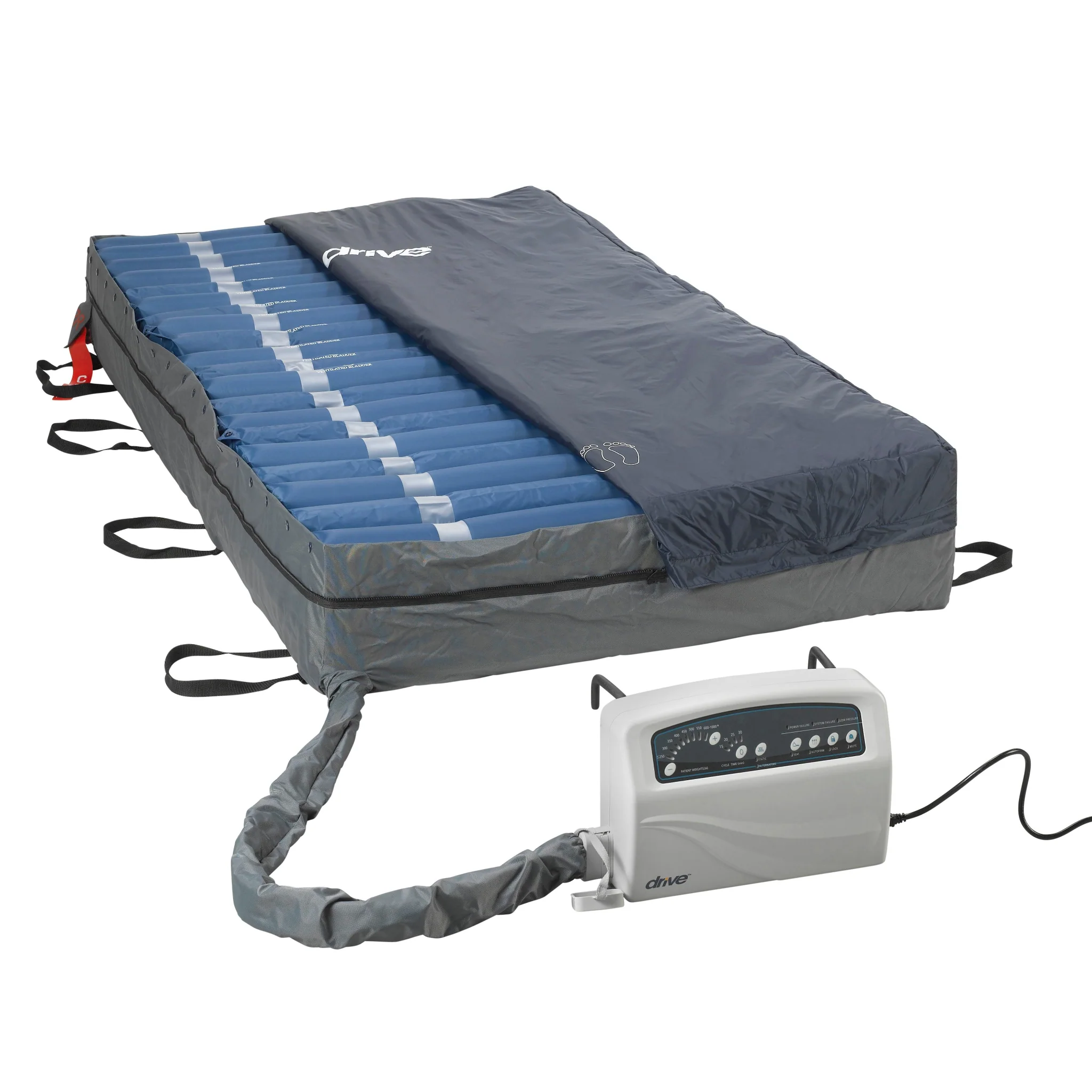

This system features 20 individual air cells, including a pillow feature for head stability and comfort, ensuring effective immersion and envelopment. Advanced clinical features such as Auto-Firm, Seat Inflate, auto-recovery, and microprocessing feedback enhance caregiver control and patient satisfaction.

Safety and Reliability in a Heavy-Duty Design
The cell-on-cell designed air cells prevent "bottoming out" and provide up to 24 hours of protection during power outages, ensuring continuous care. The 10" deep air cells are easily removable with quick disconnects, facilitating convenient servicing and maintenance.

In emergencies, the system includes a CPR valve for rapid deflation. The tubing is designed with an EZ Lock/Quick Release feature for fast and secure disconnection. Additionally, three diagnostic audio and visual alarms promptly alert caregivers to issues with air pressure, system performance, or power.

Advanced Microclimate Control
The removable quilted nylon cover is fluid-resistant, low shear, and vapor permeable, protecting the patient’s skin from friction and moisture while maintaining a comfortable and stable microclimate.

Features

• Alternating pressure and low air loss functions optimize pressure redistribution and microclimate control.
• 20 individual air cells with a pillow feature provide head stability and patient comfort.

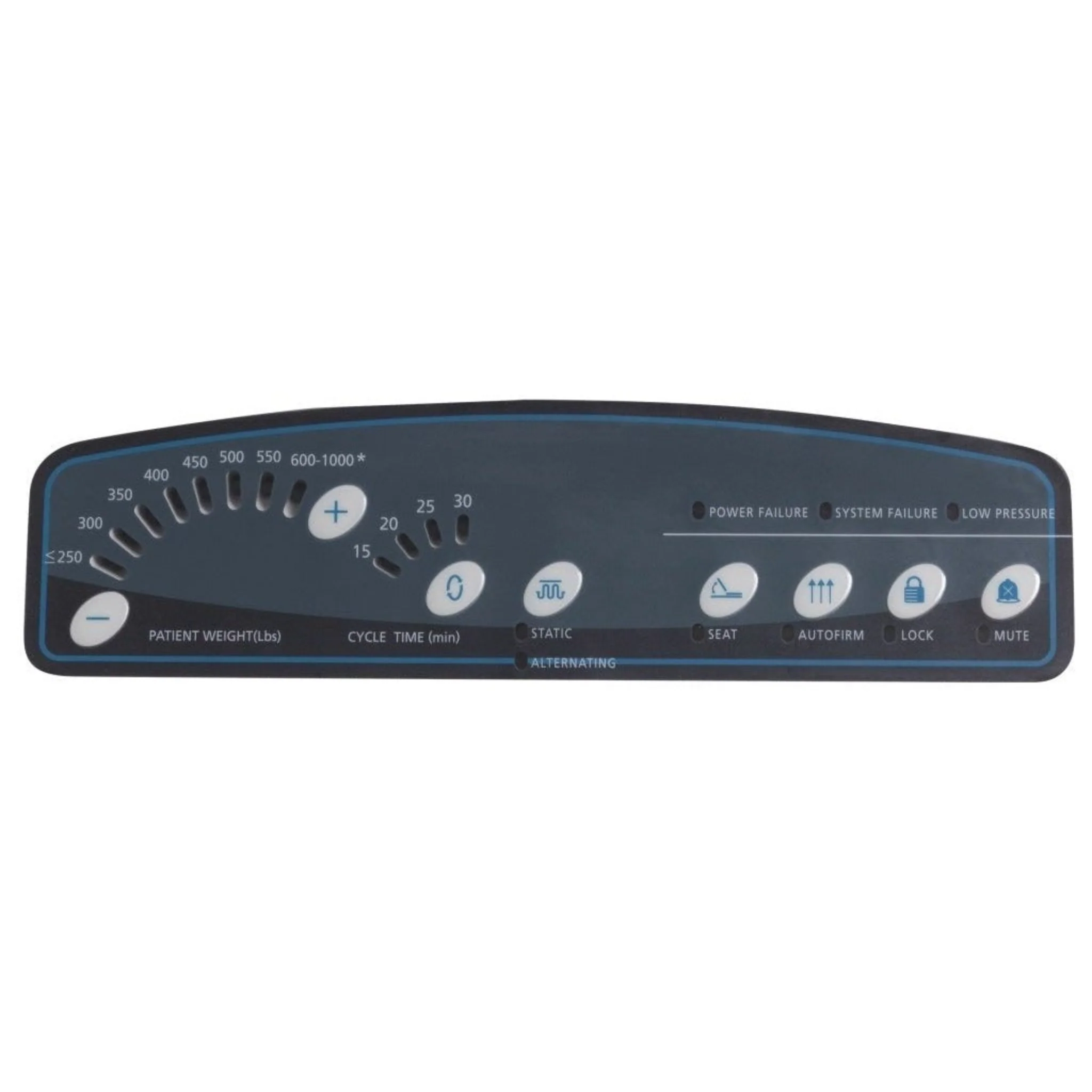

• Digital control unit offers adjustable cycle times and comfort weight settings.
• Advanced clinical features include Auto-Firm, Seat Inflate, auto-recovery, and microprocessing feedback.
• Cell-on-cell design provides up to 24 hours of protection during power outages.
• 10" deep air cells are easily removable with quick disconnects for convenient servicing.
• Fluid-resistant, low shear, and vapor permeable quilted nylon cover protects skin integrity.
• CPR valve allows for rapid deflation in emergencies.
• EZ Lock/Quick Release design ensures quick tubing disconnection.
• Three diagnostic alarms for air pressure, system issues, and power.

Specifications

Item 14030MN

• Size: 42” W x 80” L x 10” H

• Maximum Weight Capacity: 600 lbs


Item 14048MN

• Size: 48” W x 80” L x 10” H

• Maximum Weight Capacity: 750 lbs


Item 14054MN

• Size: 54” W x 80” L x 10” H

• Maximum Weight Capacity: 1,000 lbs


Item 14060MN

• Size: 60” W x 80” L x 10” H

• Maximum Weight Capacity: 1,000 lbs

Additional Features:

• Top Cover: Quilted Nylon / PU coating quilted stretch with zipper
• Air Cells: Nylon / PU Lamination
• Base Material: 800D Nylon/PVC
• Quantity & Height of Air Cells: 20 EA x 10” air cells
• Cell on Cell Design prevents “bottoming out” and provides up to 24 hours of power outage protection
• CPR Valve for emergency procedures
• Pillow Function and Low Air Loss for enhanced comfort and reduced pressure points
• Quick Connectors for easy setup and maintenance
