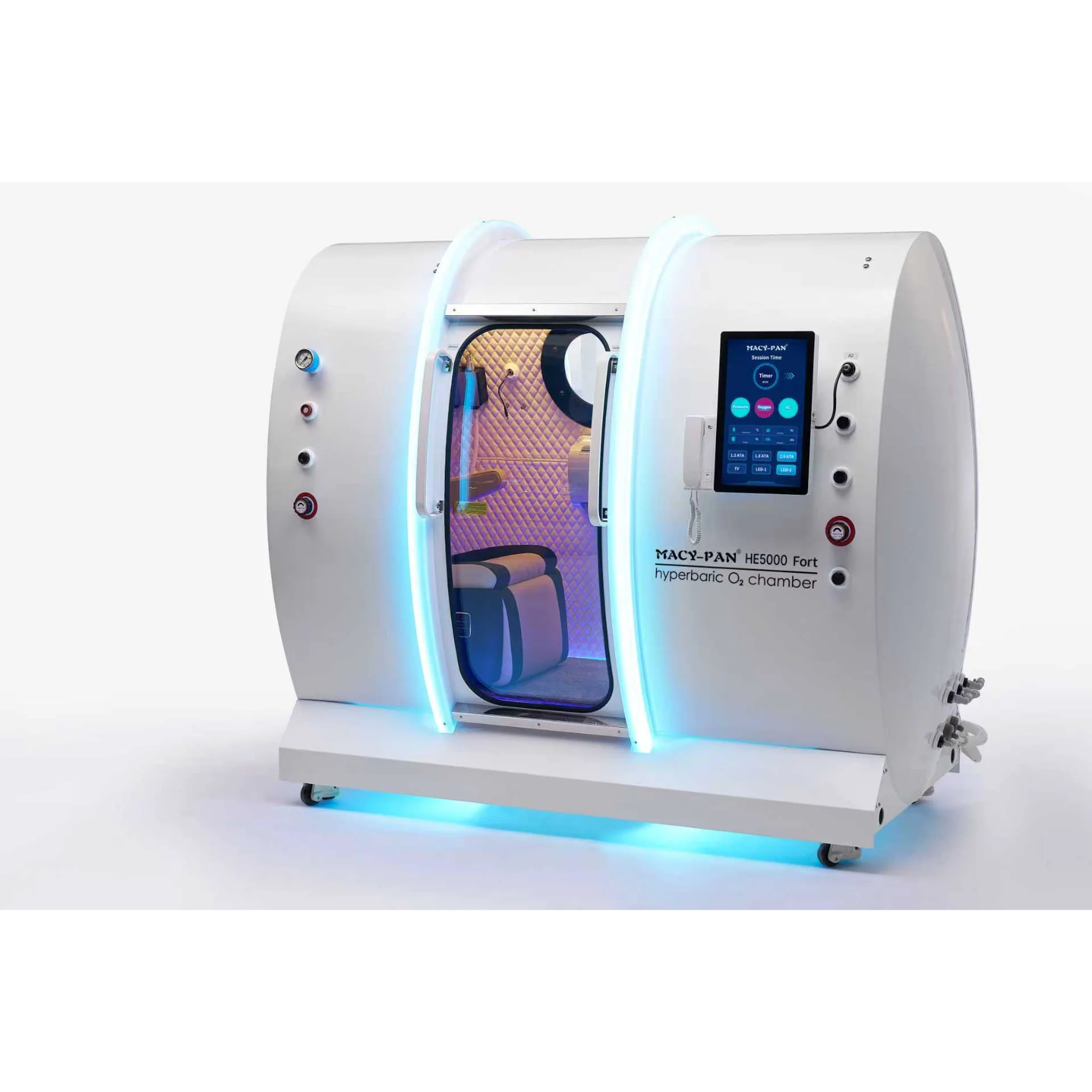

Macy-Pan Hyperbaric Oxygen Therapy Chamber Hard Type - HE5000 Fort

**WE CAN TAKE INITIAL DEPOSIT TO GET ORDER STARTED AND RECEIVE REST OF PAYMENT BEFORE SHIPPING THE PRODUCT OUT**

The NEWEST Macy Pan HE5000 Model - 2025

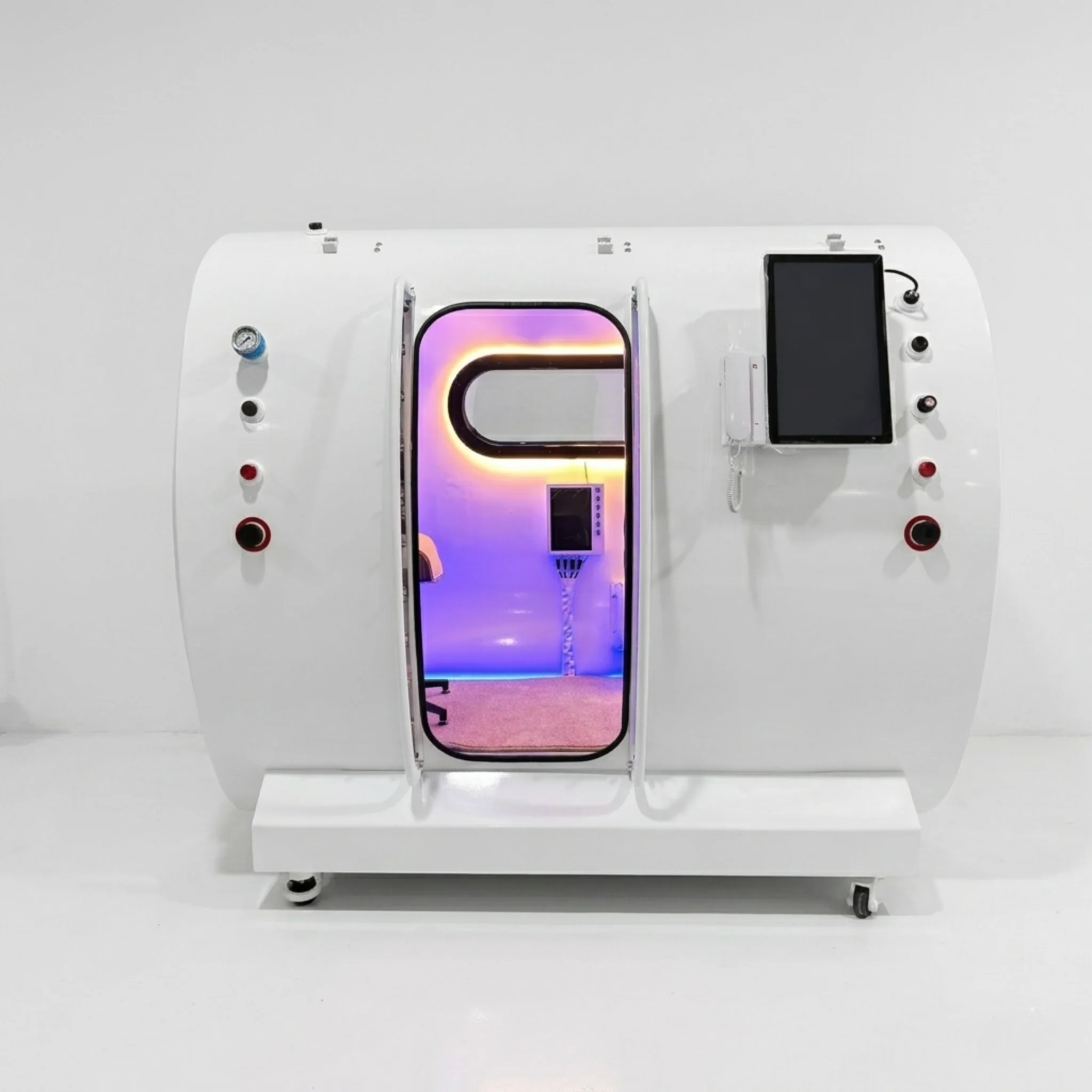

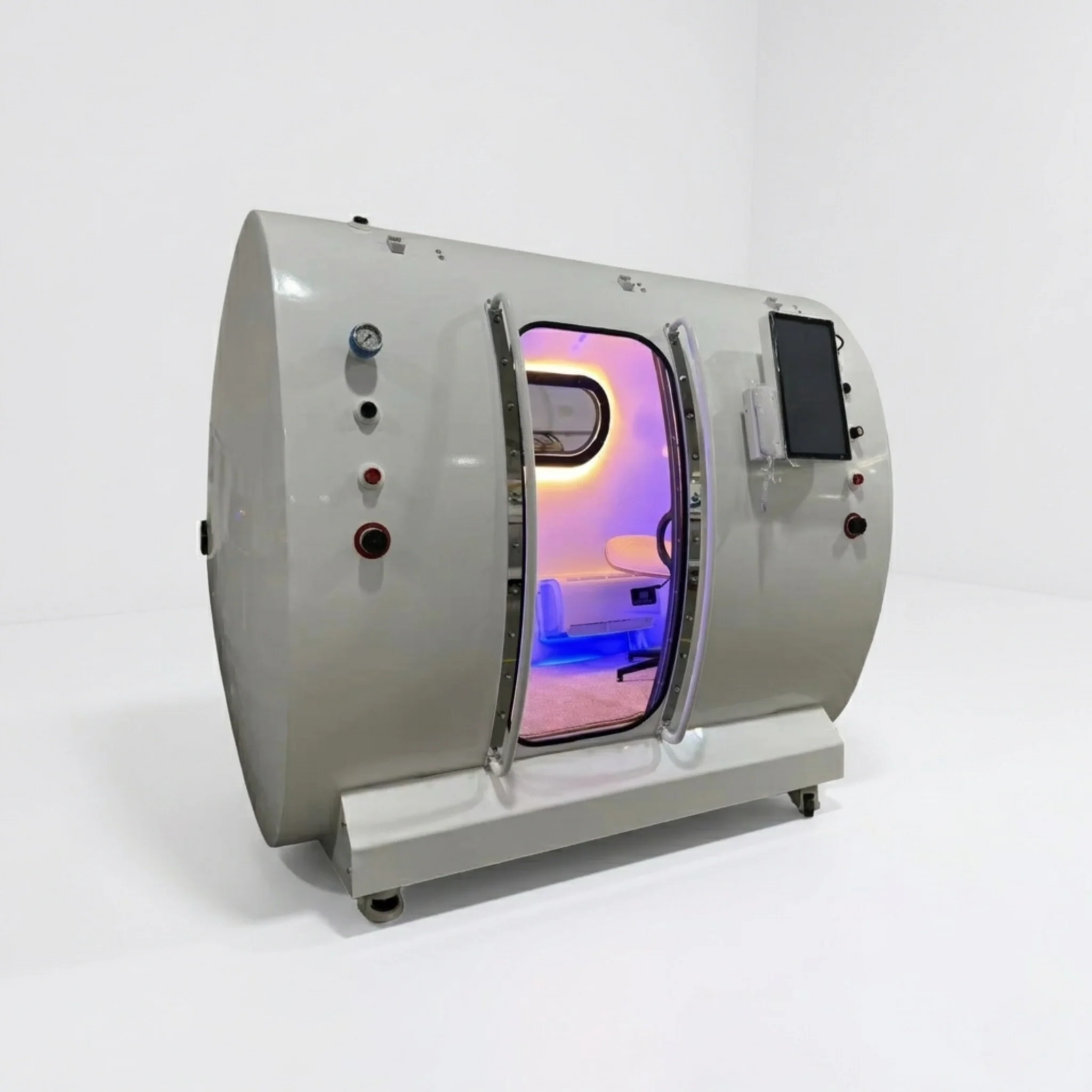

The HE5000 Fort is slimmer than other HE5000 models and built for two-person use. Modeled after the popular Mini series, it features a symmetrical interior designed to maximize space and comfort.

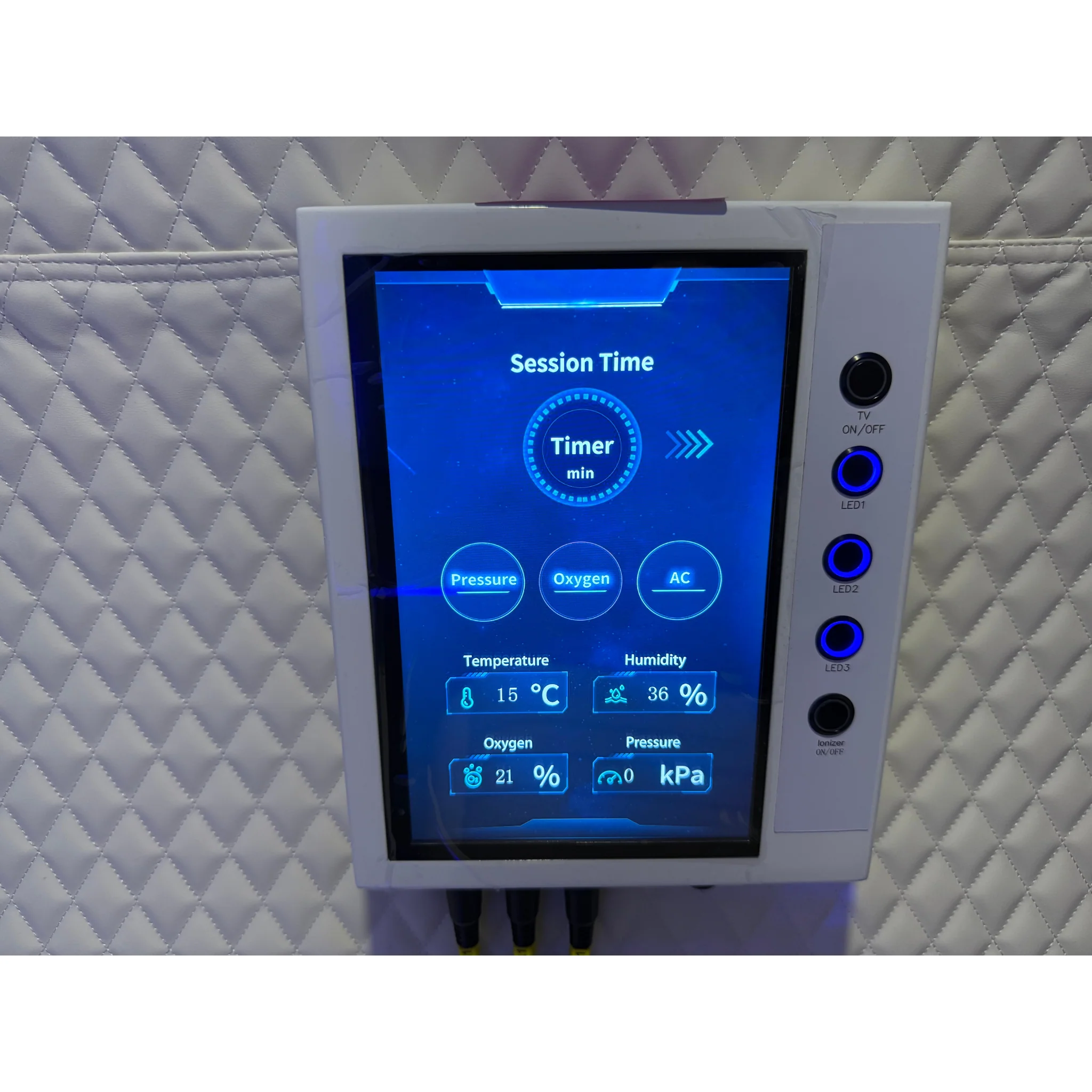

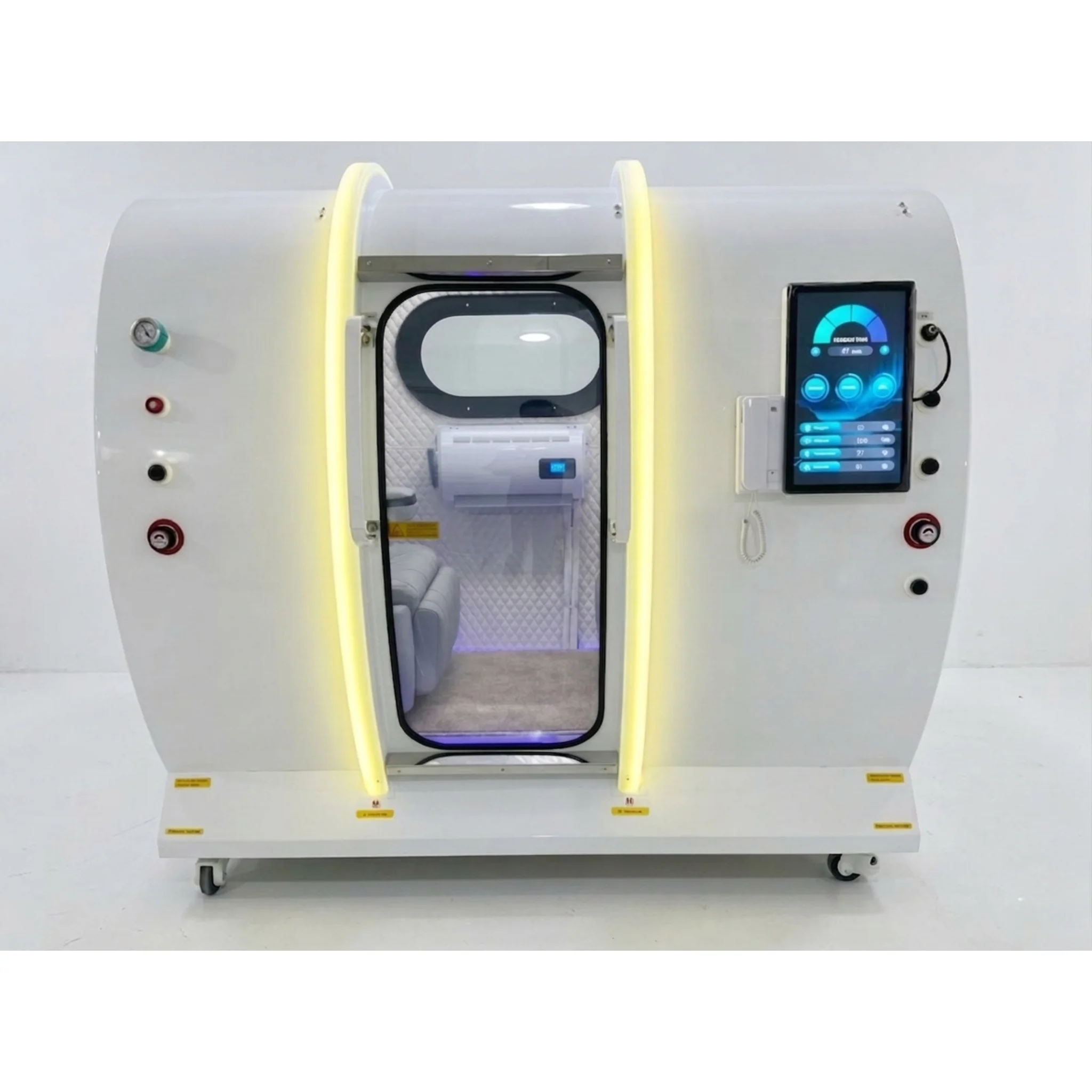

With its 87” (L) × 44” (W) × 77” (H) interior and 23” × 45.5” sliding doors, the Fort delivers safe, versatile HBOT sessions. Adjustable pressure up to 2.0 ATA, dual LCD touchscreens (inside and outside), built-in AC, LED lighting, and advanced safety systems ensure peace of mind.

We also provide the best U.S.-based support, with assistance from our professional hyperbaric technicians and White Glove Delivery Team.

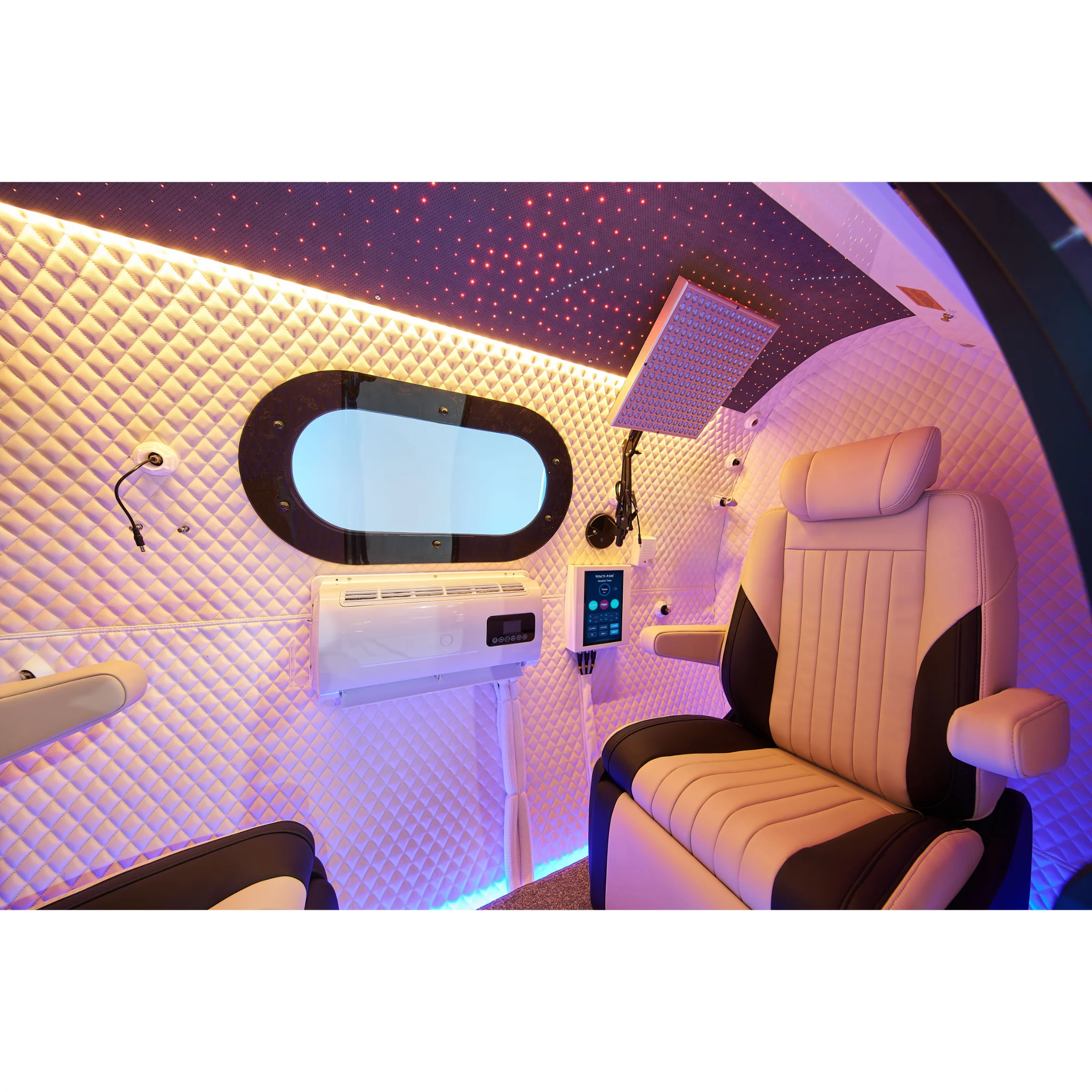

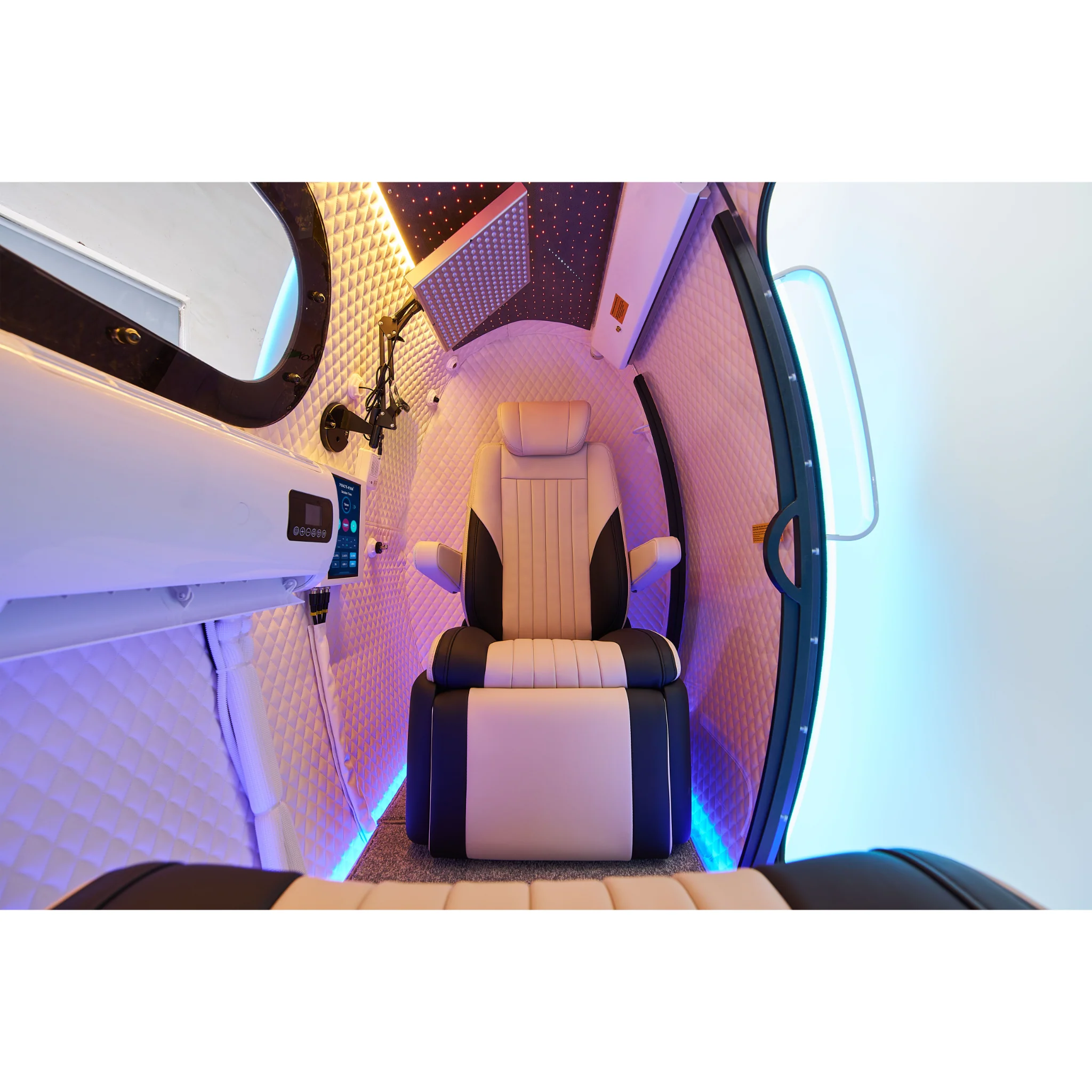

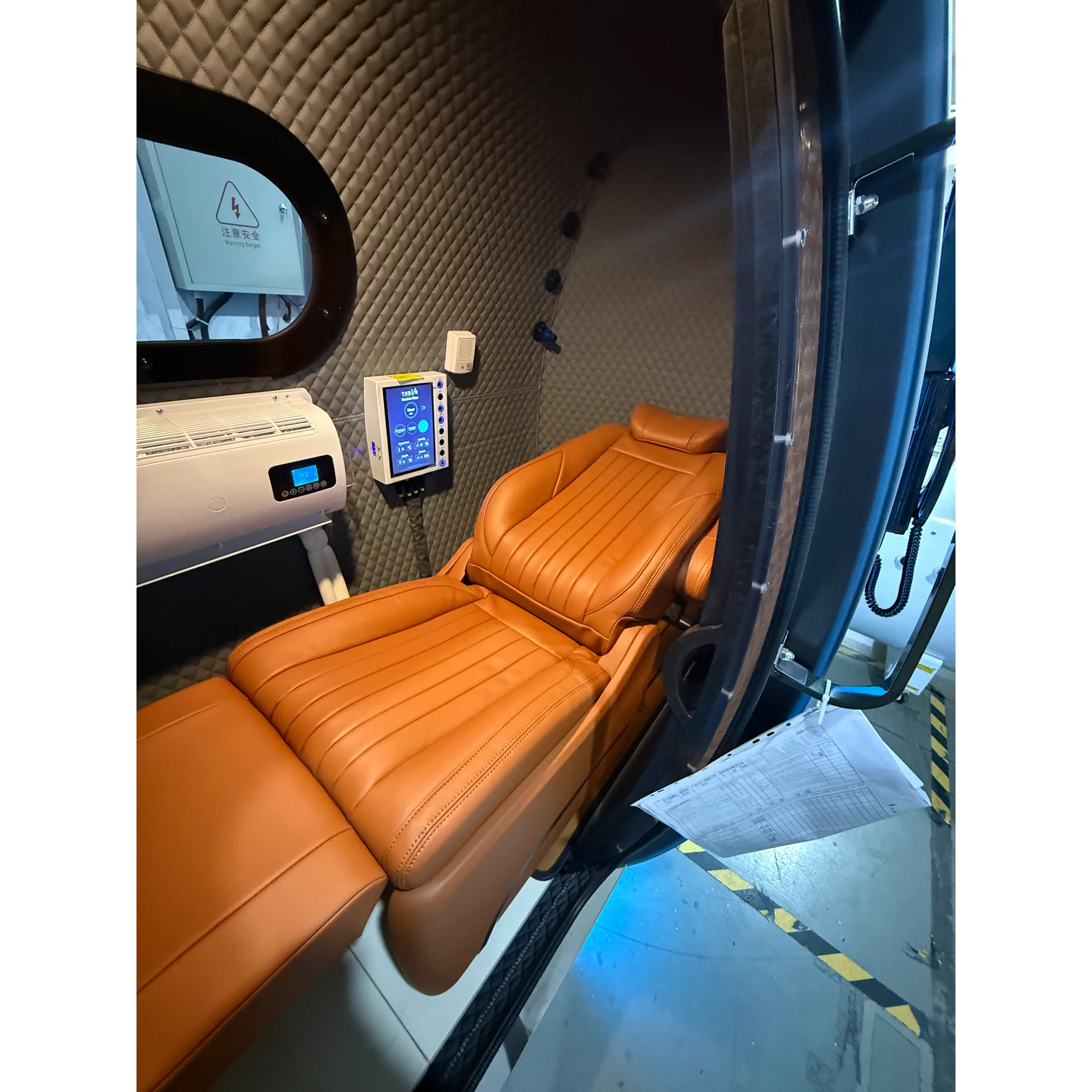

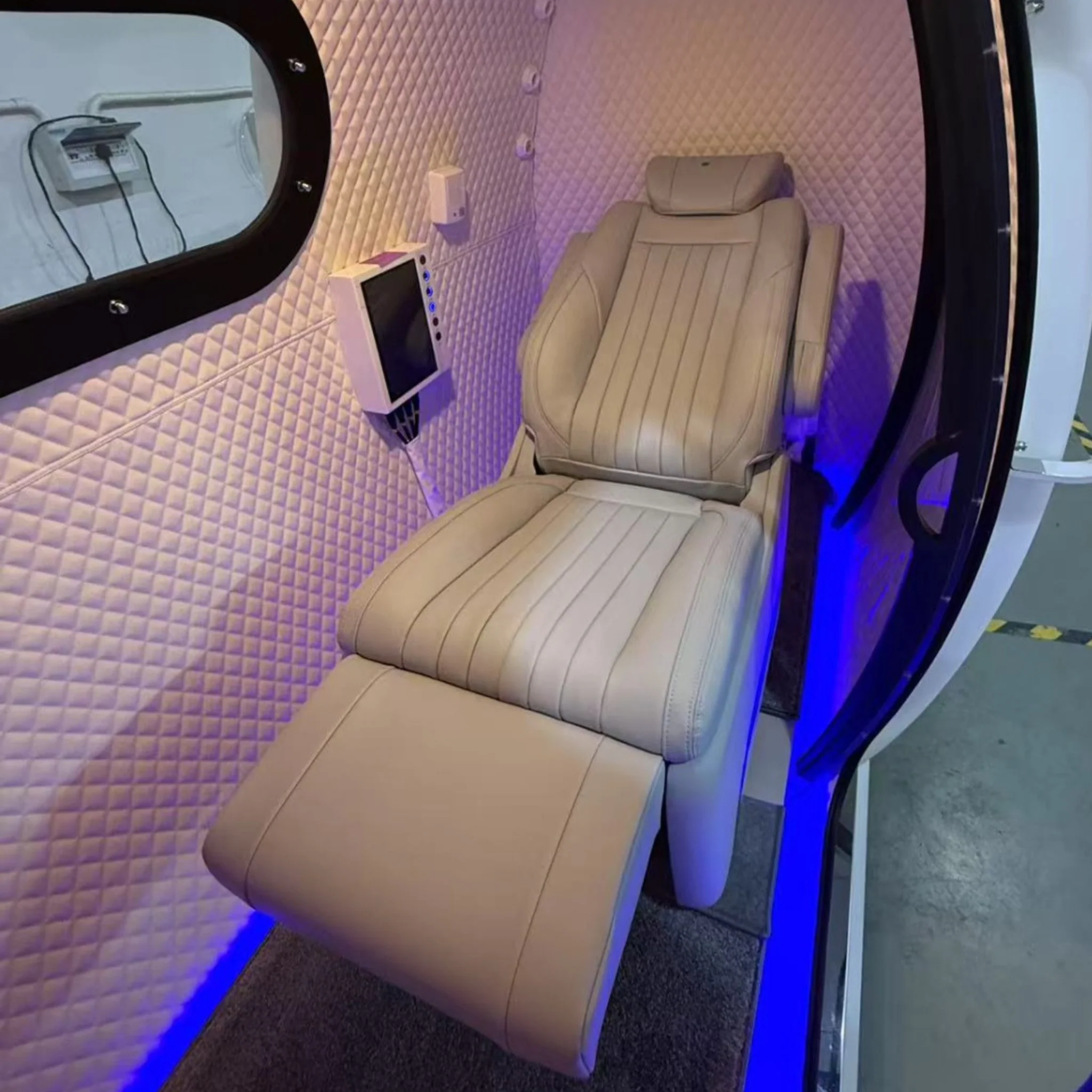

Inside, the HE5000 is fully customizable, offering multiple seating configurations to fit your needs. We’ll provide sample layouts, and our team will be happy to help design your ideal hyperbaric chamber.

Built to last up to 25–35 years, Macy Pan chambers are tested beyond industry limits, over 43,000 hours at 3x rated pressure with zero faults.

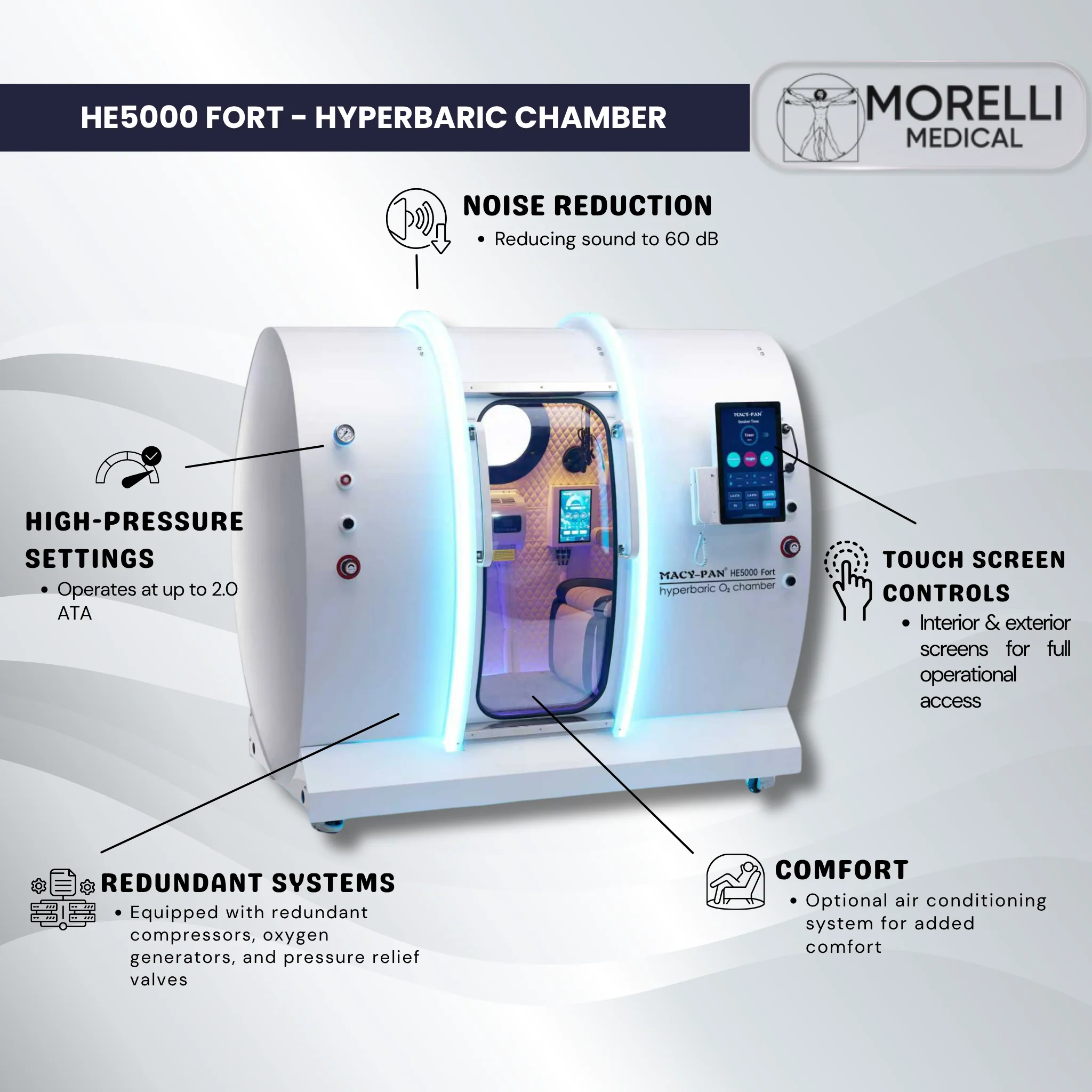

Features

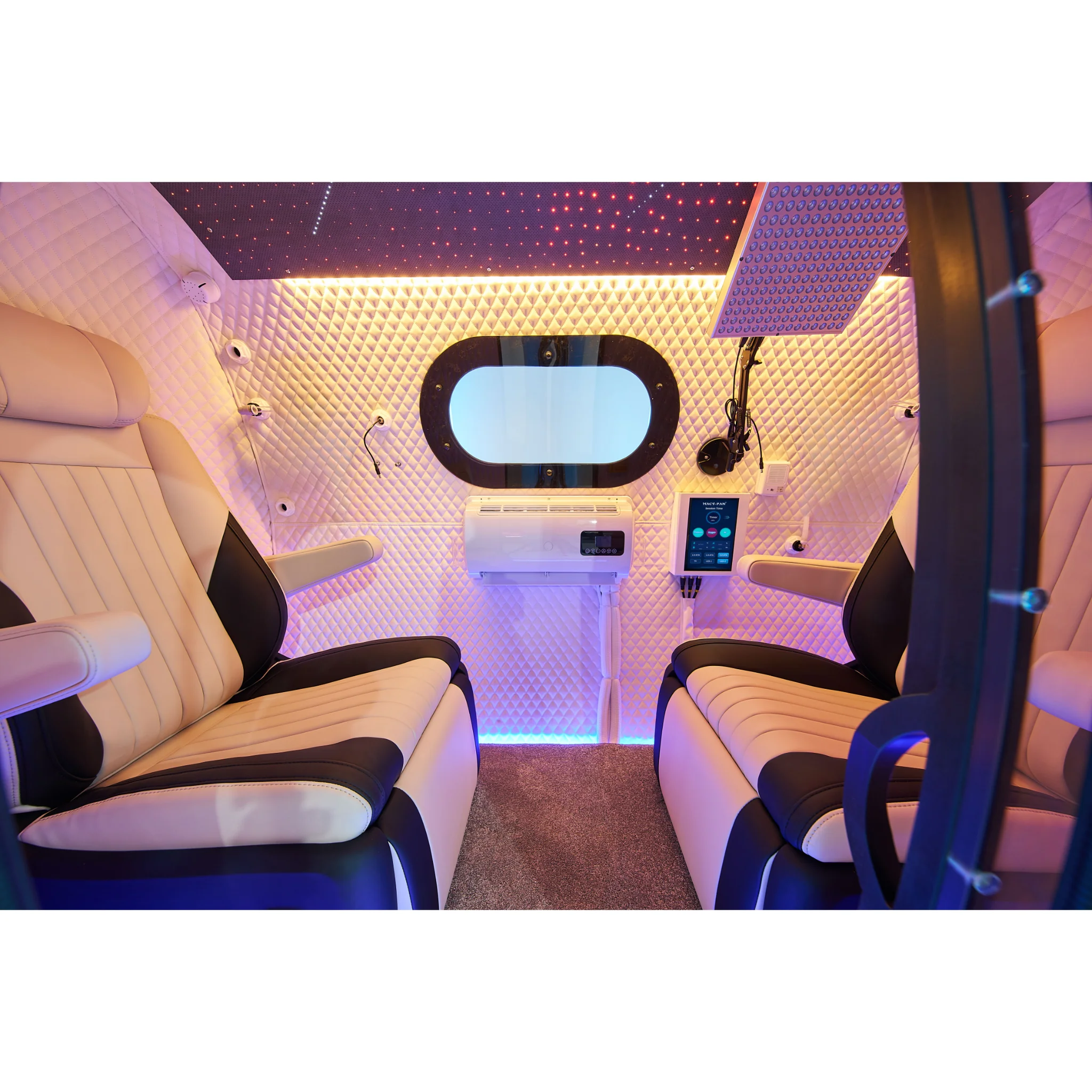

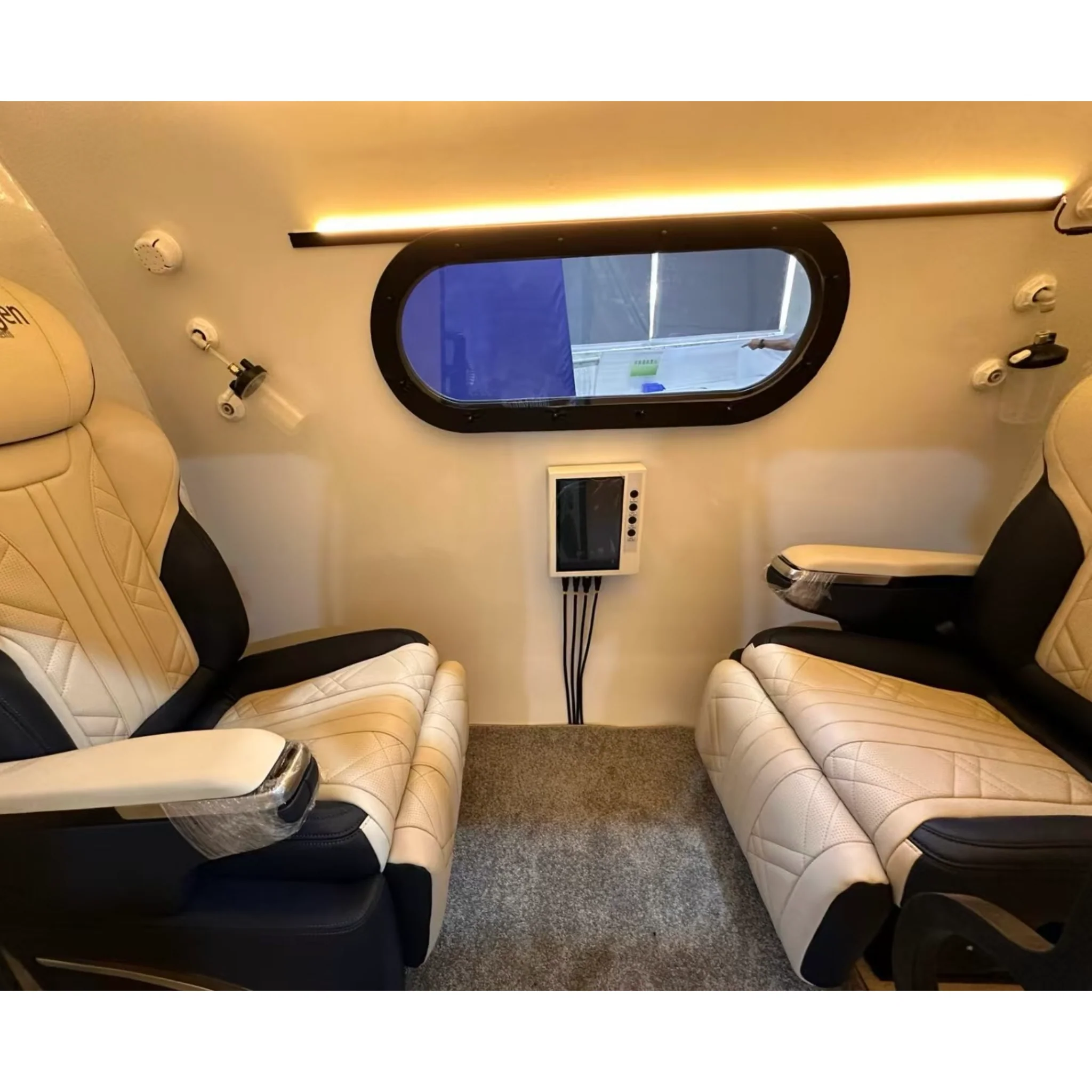

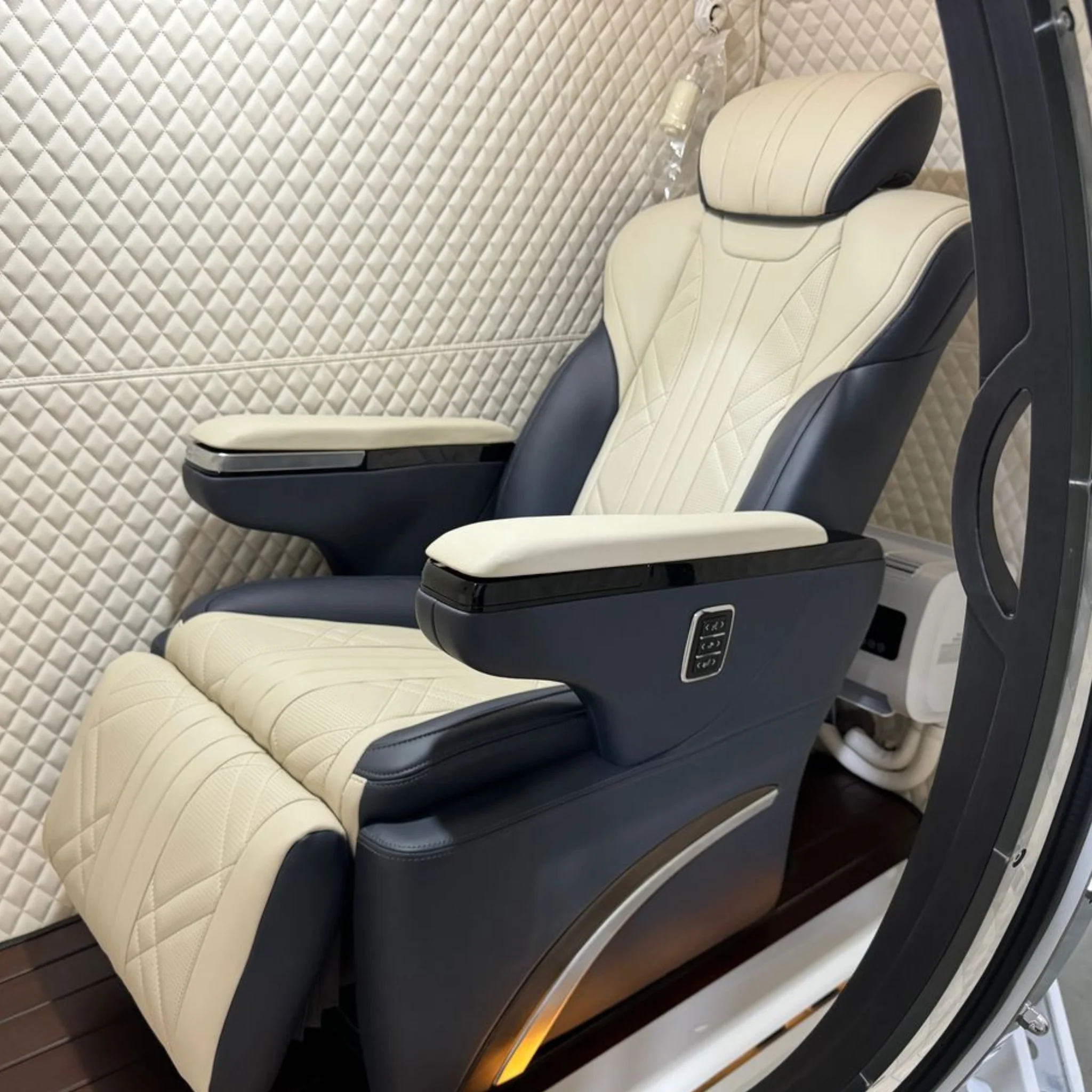

• Capacity: Accommodates two people with high-end chairs or a single chair system with a 12V TV.
• Redundancy: Equipped with redundant compressors, oxygen generators, and pressure relief valves.
• Venting: No special venting required, maintaining stable oxygen levels in the room.
• Pressure Options: Supports 1.3, 1.6, 1.8, and 2.0 ATA.
• Controls: Interior and exterior controls for easy operation.
• Safety: Multiple oxygen generators included, eliminating the need for oxygen tanks.
• Installation: White glove delivery available.
• Noise Reduction: Noiseless pressure relief valves, reducing sound to 60 dB.
• Comfort: Optional air conditioning system for added comfort.
• Operation: Easy to operate with low running costs, requiring only electricity.


Specifications

Chamber Specifications

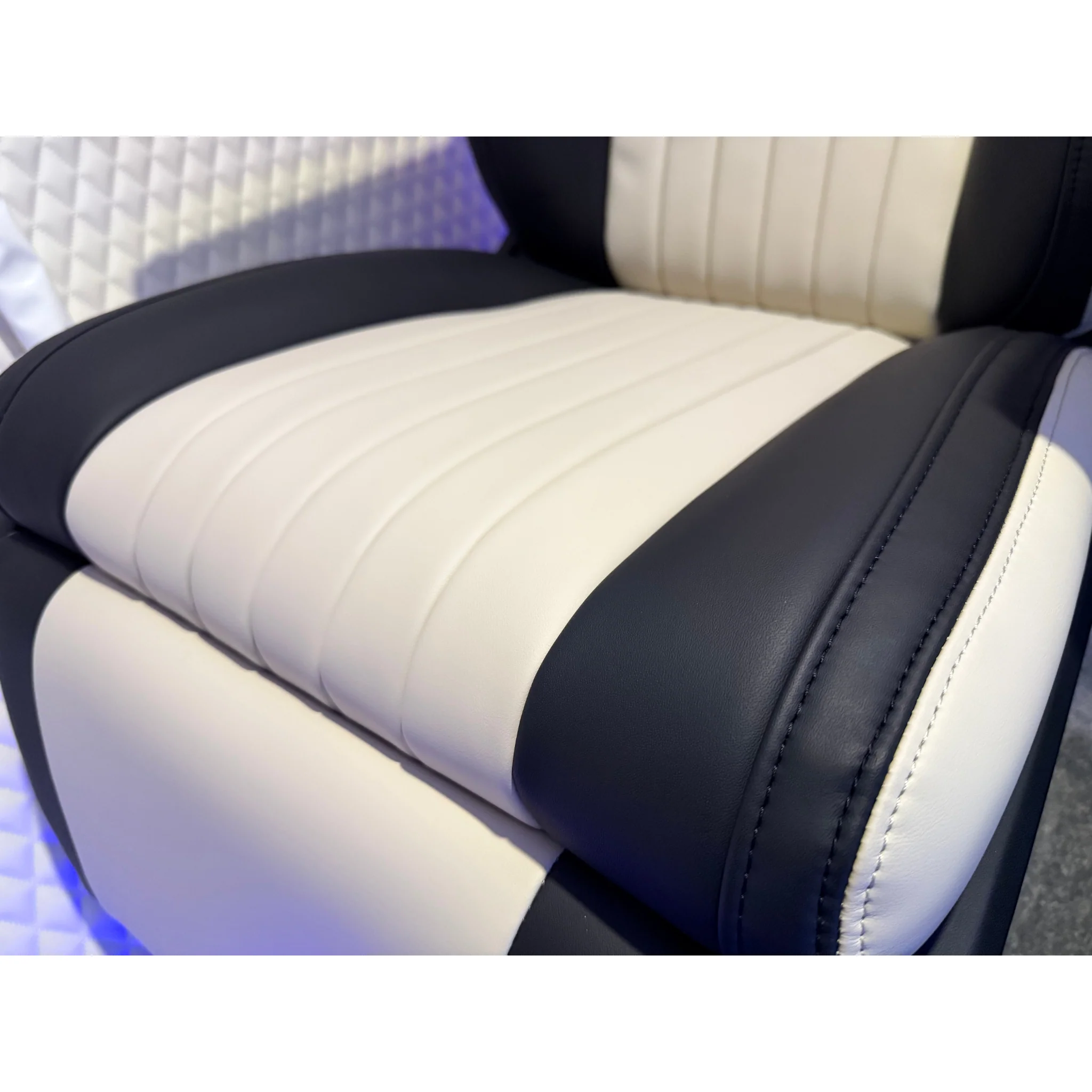

	Dimensions: 87" L × 44" W × 77" H (2200 × 1110 × 1845 mm) Weight: 1150.81 lbs Material: Stainless steel, polycarbonate Door Size: 23" W × 45.5" H (arc length 47.5") Capacity: Up to 2 users Operating Pressure: Adjustable, up to 2.0 ATA Noise Level: ~60 dB Display: Internal & external LCD/touch screens Air Conditioning: Built-in, adjustable temperature, fan speed, swing Dehumidification: Integrated dehumidifier and water collection Lighting: LED lighting Optional Features: Electric/massage seating, RGB lighting, starry ceiling, negative ion unit, red light therapy
All-In-One Machine (Air Cooling + Compressor)
	Voltage: 110V 60Hz Current: 15A Machine Size: 49.72″ × 12.60″ × 24.84″ Packaging size: 51.57″ × 17.72″ × 29.53″ Net weight: ≈170.9 lbs Gross weight: ≈261.2 lbs Power: Power A: 920VA Power B: 570VA Fuze: 110V 15A Air flow: 230 L/min Noise level: <62 dB
Oxygen Concentrators (x2)
	Dimensions (per unit): 30" L × 18.5" W × 28.5" H (775 × 465 × 720 mm) Flow Rate: 0–20 L/min each Oxygen Purity: Up to 96% Power: 1600 W per unit Voltage: 110 V / 220 V / 240 V Fuse: 20 A

Maintenance Guide

Maintenance is simple: just replace the air filter every 6–12 months, depending on usage. Clear instructions and step-by-step videos are provided.

What’s In the Box?

HE5000 Fort Hard Hyperbaric Oxygen Therapy Chamber package includes a complete set up:

• HE5000 Fort Chamber (87” L × 44” W × 77” H)
• All-in-One Machine
• 2 × 10L Oxygen Concentrators
• Air & Drainage Tubes, Water Bucket, Pedal, Filter Cotton
• Y-Type Connector, Mask, Headset, Nasal Oxygen Tube
• Toolbox & Remote Control
• Optional: TV Holder, Large Screen Display
• FREE Protocol Book ($1000 Value)

• 24-Month Manufacturer's Warranty


(All packaged in wooden shipping crates for safe transport.)
