Infinium - OMNI III High Acuity Patient Monitor

High Acuity Monitoring

The Infinium OMNI III High Acuity Patient Monitor is designed for continuous monitoring in critical care and fast-paced clinical environments. The system integrates a 15-inch high-resolution touchscreen display with an adaptable user interface that allows clinicians to access patient information and configure vital sign parameters directly from the main screen.

The monitor supports rapid adjustment of patient data fields, alarm parameters, and vital sign configurations to accommodate changing patient conditions. Its interface architecture allows efficient navigation between monitoring functions while maintaining clear visualization of physiological data required in high-acuity care settings.

Engineered for hospital use, the OMNI III provides compatibility with multi-parameter monitoring configurations and centralized clinical workflows. The touchscreen system enables quick configuration of monitoring parameters, supporting accurate observation of patient status in intensive care units, emergency departments, and other high-dependency clinical environments.

Features

• Advanced Touchscreen Monitoring
  The Infinium Omni III features a 15-inch high-resolution touchscreen with an intuitive, customizable interface for quick adjustments. It supports flexible screen configurations and stores up to 72 hours of patient data for efficient critical care monitoring.
• Vital Sign Monitoring Capabilities
  The Omni III provides comprehensive monitoring, including NIBP/optional IBP, ECG with arrhythmia detection, SpO₂, temperature, pulse, and respiration. Optional modules add EtCO₂, anesthesia, cardiac output, and BIS monitoring, making it suitable for basic, bedside, or operating room use across multiple care settings.
• Field-Upgradeable Monitoring System

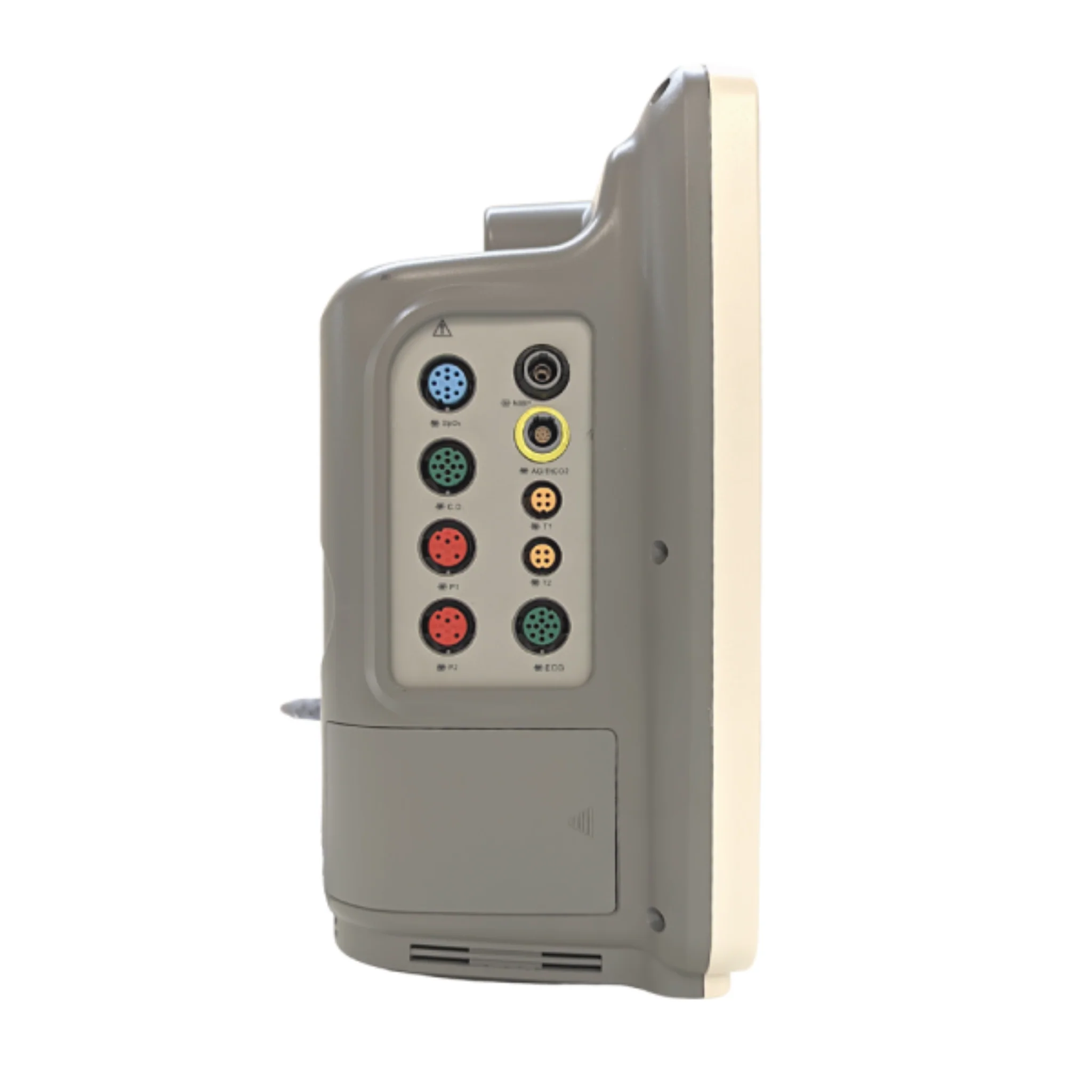

  The Infinium Omni series features a modular, field-upgradable design with standard monitoring (NIBP, ECG, SpO₂, temperature, respiration) and optional plug-in modules for advanced parameters such as EtCO₂, anesthesia, cardiac output, and IBP, allowing flexible adaptation to changing patient needs.
• HL7 Connectivity & Central Monitoring
  The Omni III supports HL7-compliant network integration via Ethernet and RS-232 for seamless data transfer to hospital systems. It also connects to the Infinium Omniview Central Station, enabling real-time monitoring of up to 32 devices with data storage, printing, and trend review.

Specifications

Performance Specifications
Application	Adult, Pediatric, Neonatal
Display	15" color touch screen
Waveform Display	3, 6, 8, 10, or 12 waveforms
Indicators	Alarm and power indicators with QRS beep and alarm sound
Trend Storage	120 hours
Recorder	Built-in thermal array, 3 channels, 48 mm paper width, 50 mm/sec speed

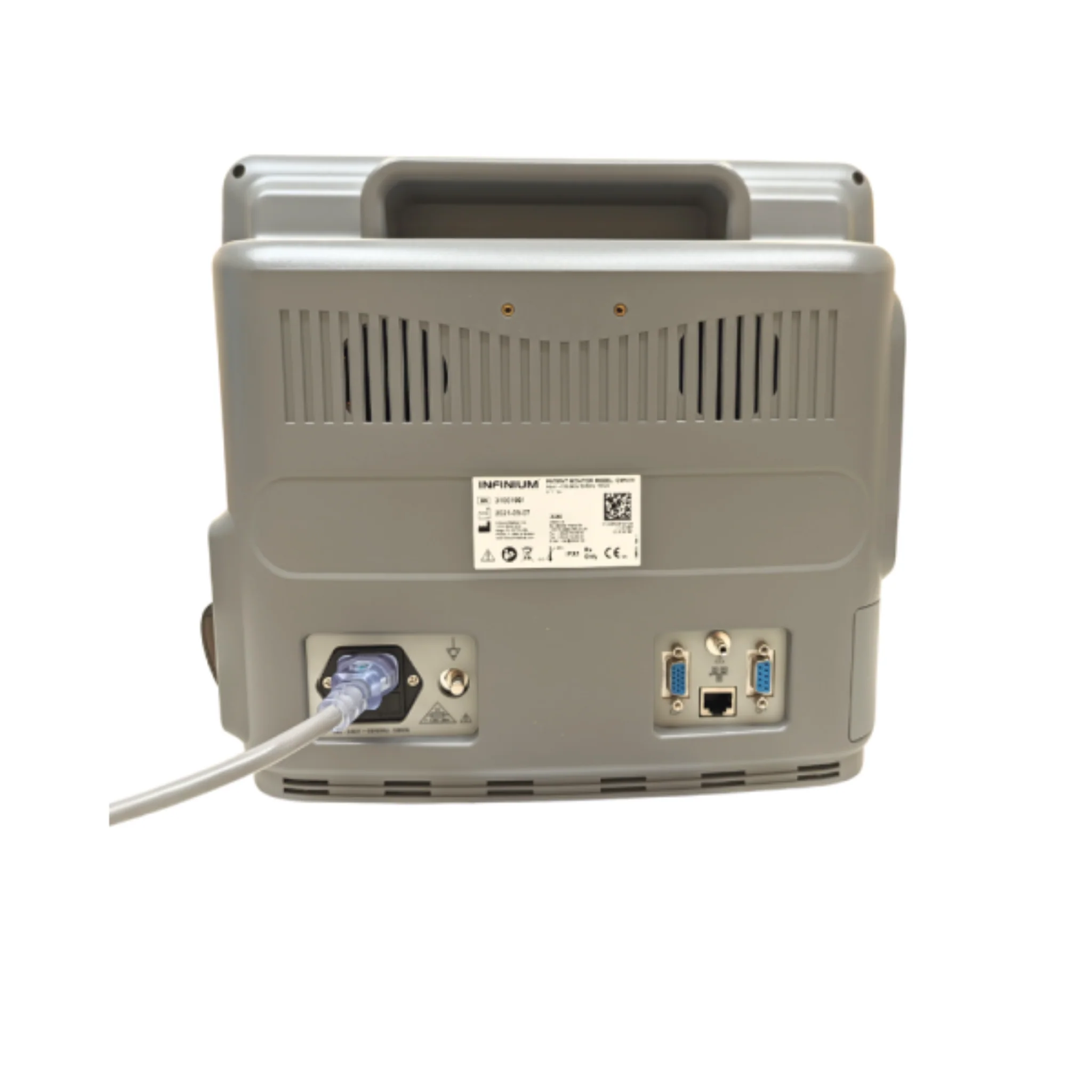

Networking	RJ45 port, HL7 compatible
AC Power	100–240 VAC, 50/60 Hz, 150 VA
Battery	Rechargeable lithium-ion
Environmental
Temperature	Operating 0–40°C, Storage -20–60°C
Humidity	Operating 15–95%, Storage 10–95% (non-condensing)
Standard Features
Parameters	ECG (cascading), Respiration, NIBP (up to 250 readings), Temperature, Masimo SpO2, Pulse, Perfusion Index
System Features	OxyCRG, Drug dose calculation, user settings memory, arrhythmia detection, ST segment analysis
ECG
Input	3, 5, or 12-lead ECG cable, AAMI standard
Lead Selection	I, II, III, aVR, aVL, aVF, V1–V6, Test
Gain Options	×0.5, ×1, ×2, ×4
Frequency Response	0.05–35 Hz
Heart Rate Range	30–300 bpm
Accuracy	±1 bpm or ±1%
Respiration
Method	RA-LL impedance
Range	0–120 rpm
Accuracy	±3 rpm
NIBP
Method	Automatic oscillometric measurement
Modes	Manual, Auto, STAT, Average
Pulse Range	30–300 bpm
Resolution	1 mmHg
Temperature
Range	25–50°C
Resolution	0.1°C
Channels	2 channels
Masimo SET SpO2
Range	1–100%
Resolution	1%

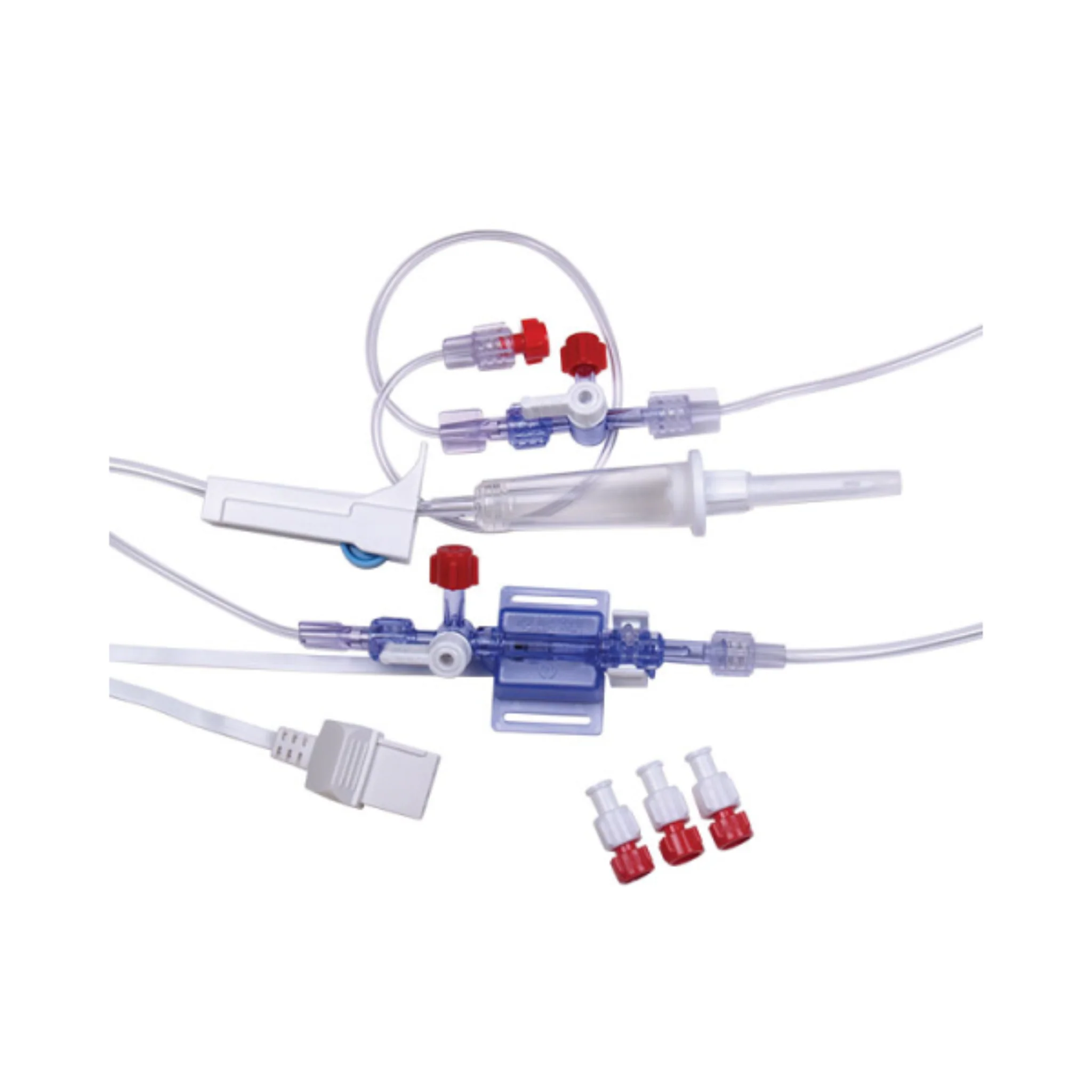

IBP (Optional)
Range	-10–300 mmHg
Channels	2 channels
EtCO2 (Optional)
CO2 Range	0–150 mmHg
Sampling Rate	50 ml/min
