Infinium - Cleo Compact EtCO2 Monitor with Vitals

Modular Vitals Monitor

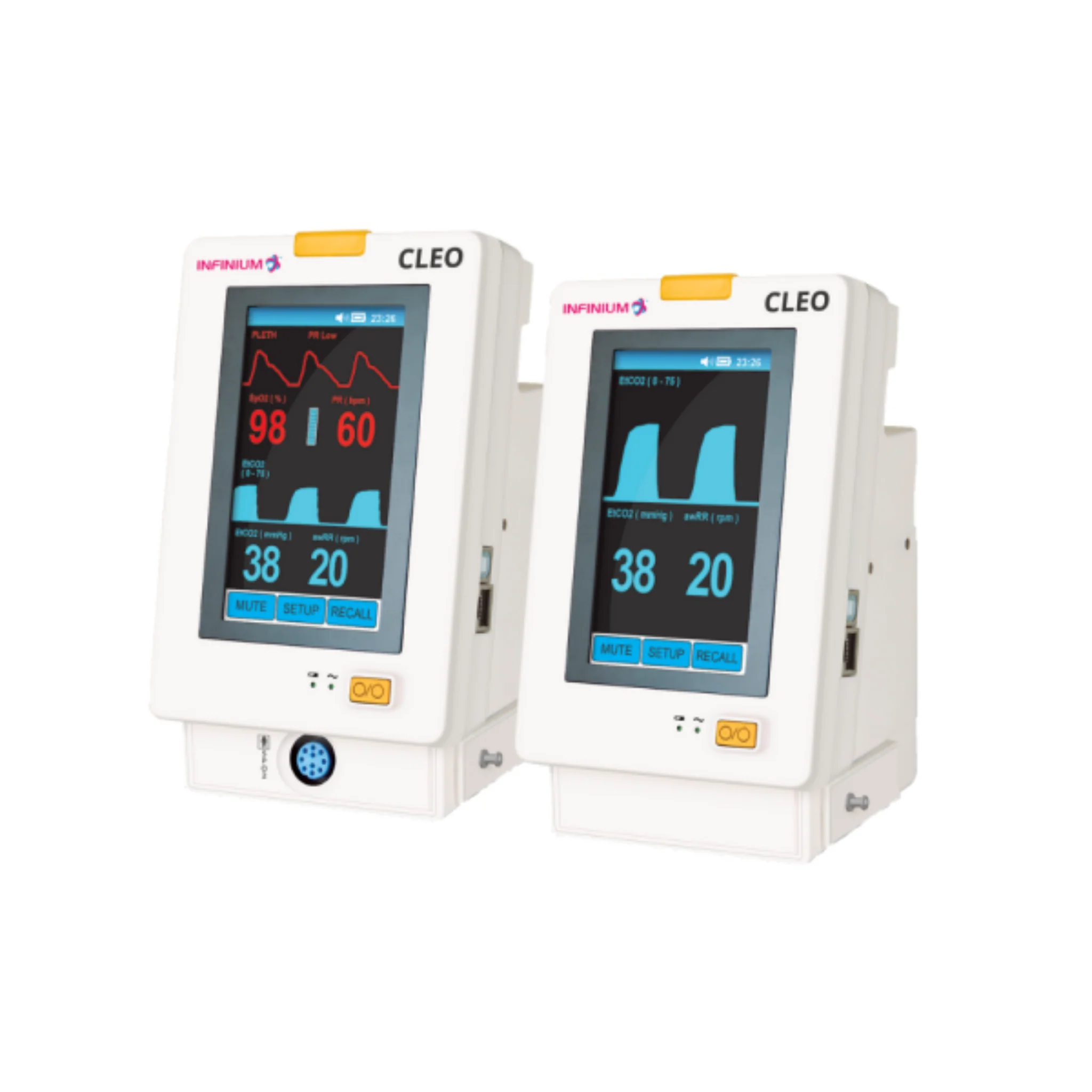

The Cleo Compact EtCO2 Monitor with Vitals is a configurable patient monitoring device designed for capnography and essential vital sign measurement. The unit supports end-tidal CO2 capnography (EtCO2) and can be configured to measure non-invasive blood pressure (NIBP), oxygen saturation (SpO2), and rapid temperature. It functions as a stand-alone capnograph or as a multi-parameter monitor combining EtCO2 with SpO2 and NIBP monitoring depending on clinical requirements.

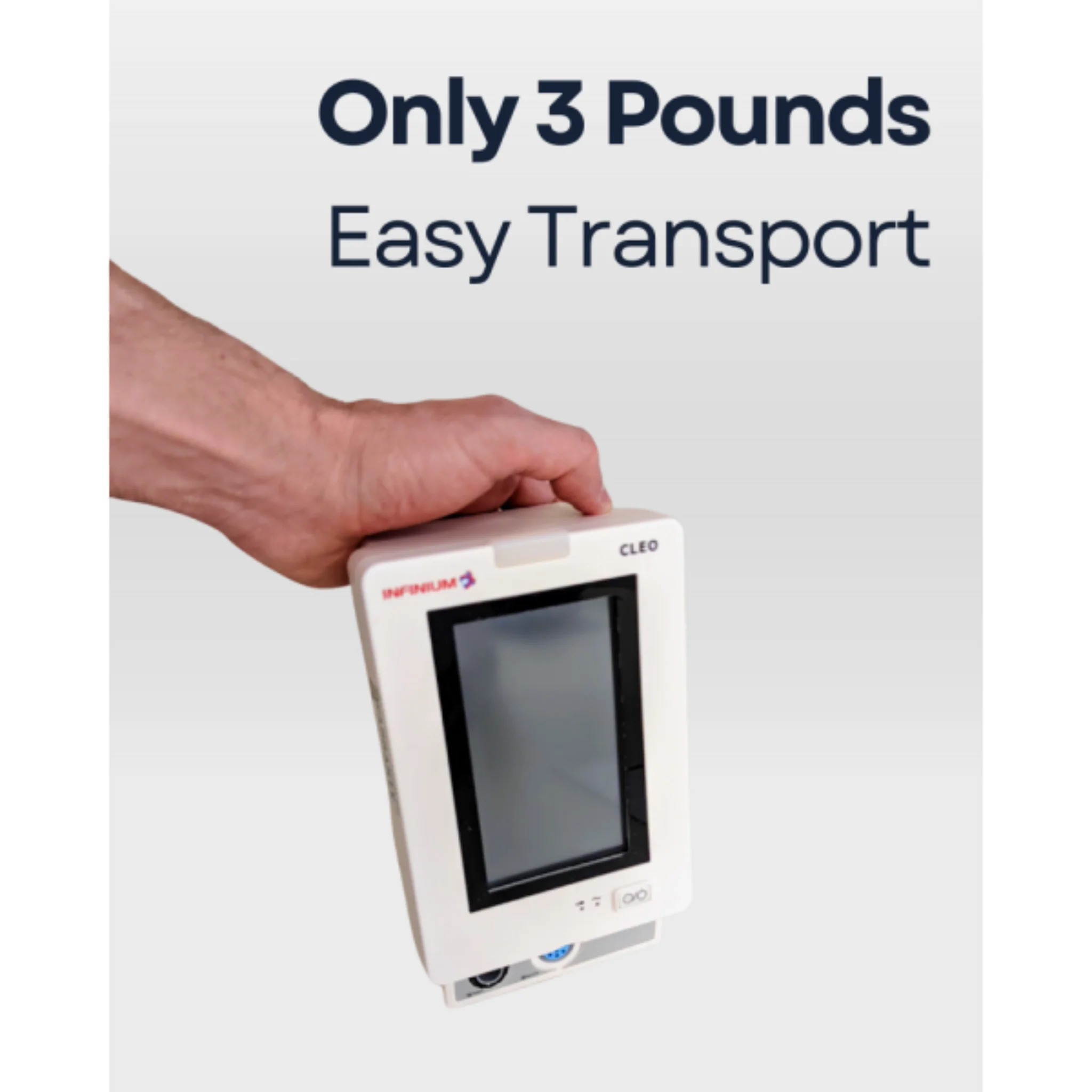

Weighing under 3 lbs, the Cleo monitor supports bedside and mobile spot-check monitoring in clinical environments. The device can operate as a basic pulse oximeter or as a combined NIBP, SpO2, and temperature spot-check monitor. A touchscreen interface provides direct configuration and parameter access, while a lithium-ion battery enables portable operation across care settings.

The monitor supports multiple configuration modes including stand-alone capnography, pulse oximetry monitoring, or combined vital signs monitoring. Mounting options enable mobile deployment in patient care areas. The Cleo Compact EtCO2 Monitor integrates capnography and standard vital measurements into a compact monitoring platform designed for flexible clinical compatibility.

Features

Flexible Vital Signs Monitoring

The Cleo is a compact patient monitor designed for flexible vital signs measurement. It can be configured to monitor NIBP, SpO₂, rapid temperature, and end-tidal CO₂ (EtCO₂) capnography.

Weighing less than 3 lbs, it supports bedside monitoring and mobile spot-check applications. A touchscreen interface enables quick parameter adjustments, while the lithium-ion battery and mounting options allow portable clinical deployment.

Covidien Filac 3000™ Temperature Module

The optional Filac 3000™ plug-in thermometer module provides temperature measurements accurate to ±0.3 °C with results displayed in approximately 4 seconds.

Designed for infection control, the system uses single-use probe covers and an integrated probe isolation chamber to maintain hygienic operation in clinical environments.

Infinium Entide® Capnography

The Entide® capnography system uses a low-flow 50 ml/min sidestream sampling method to provide accurate end-tidal CO₂ (EtCO₂) monitoring.

Non-proprietary sample lines help reduce monitoring costs, while the filter cell connection system minimizes the risk of cross-contamination for both intubated and non-intubated patients.

Exclusive NIBP Features

• Adjustable Inflation Pressure: Allows clinicians to set the initial cuff inflation level based on patient requirements and clinical protocols.
• Inflation Memory: Automatically recalls the patient’s most recent systolic measurement and adjusts the next inflation pressure to improve comfort and measurement efficiency.
• Auto Inflation Intervals: Programmable measurement intervals from 1 to 240 minutes in 1-minute increments for continuous monitoring.
• Historical Data Storage: Stores and recalls up to 300 previous NIBP readings to support patient trend review and clinical documentation.

The Cleo Compact EtCO2 Capnography is beneficial in:

Clinical scenarios where EtCO₂ monitoring improves safety.

‹

Pain Management

Suppressed respiratory function can occur during patient-controlled analgesia (PCA). Monitoring End-Tidal CO₂ helps clinicians detect respiratory depression early and intervene before severe complications like coma or cardiac arrest occur.

Minor Procedure Sedation

The American Society of Anesthesiologists recommends monitoring ventilation during sedation through clinical observation and exhaled carbon dioxide monitoring. EtCO₂ provides one of the earliest indicators of respiratory complications.

Sedation Dentistry

The American Association of Oral and Maxillofacial Surgeons recommends continuous monitoring of ventilation during sedation and anesthesia. Monitoring exhaled carbon dioxide ensures adequate breathing during procedures.

›

Specifications
