EZ Carrier Bike Lift – Manual Fold - EZCBL

---

Effortless E-Bike Transport: The Hitch-Mounted Manual Bike Lift

EZ Carrier USA makes lifts and carriers that attach to your hitch receiver, so you can take your wheelchair, power chair, or scooter with you!

Our EZ Carriers products are designed for quality and durability and are our most economical options.

Always American Made. Designed and manufactured in Westland, Michigan.

Features

• Electric lift system with 12V power and 90-amp actuator for effortless loading and unloading

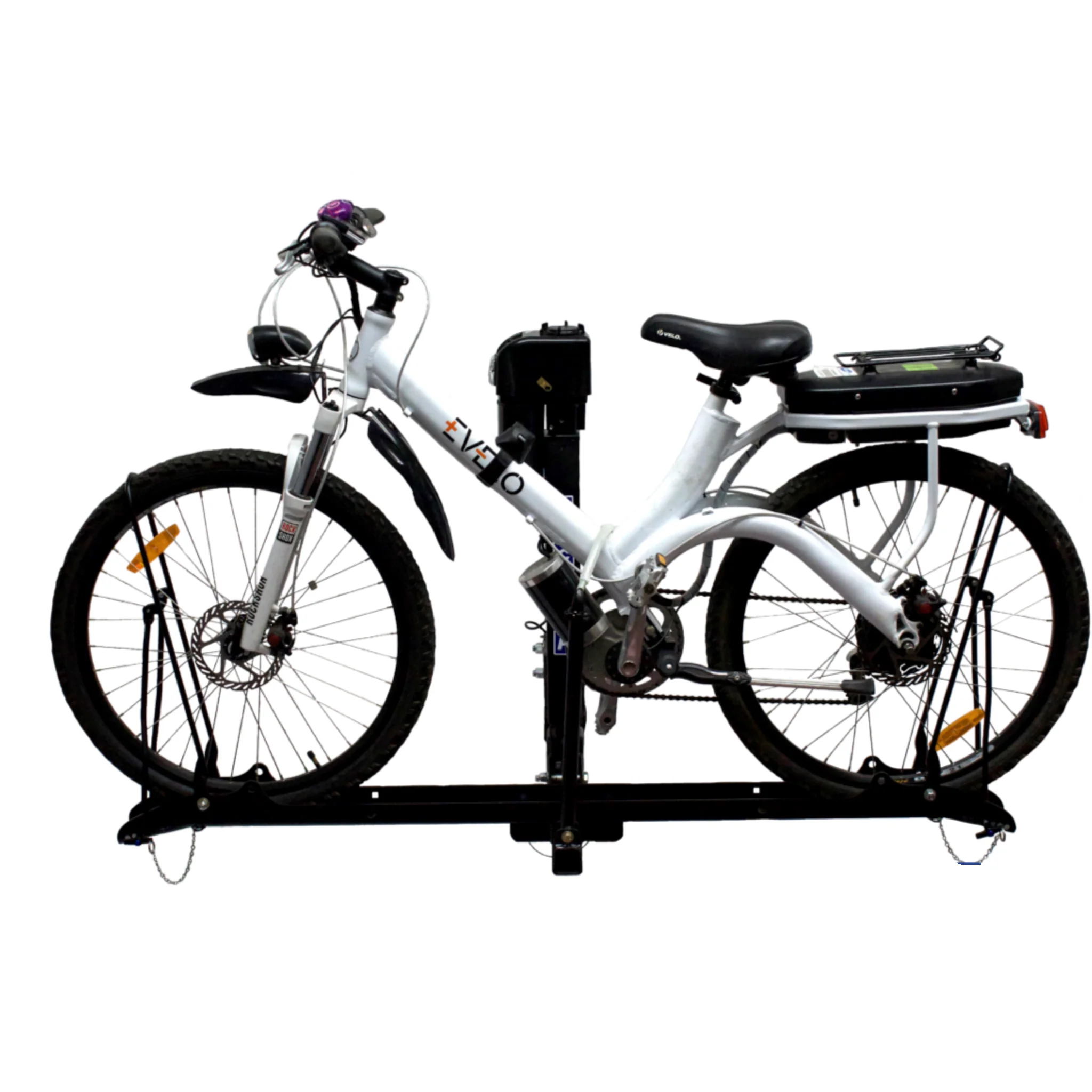

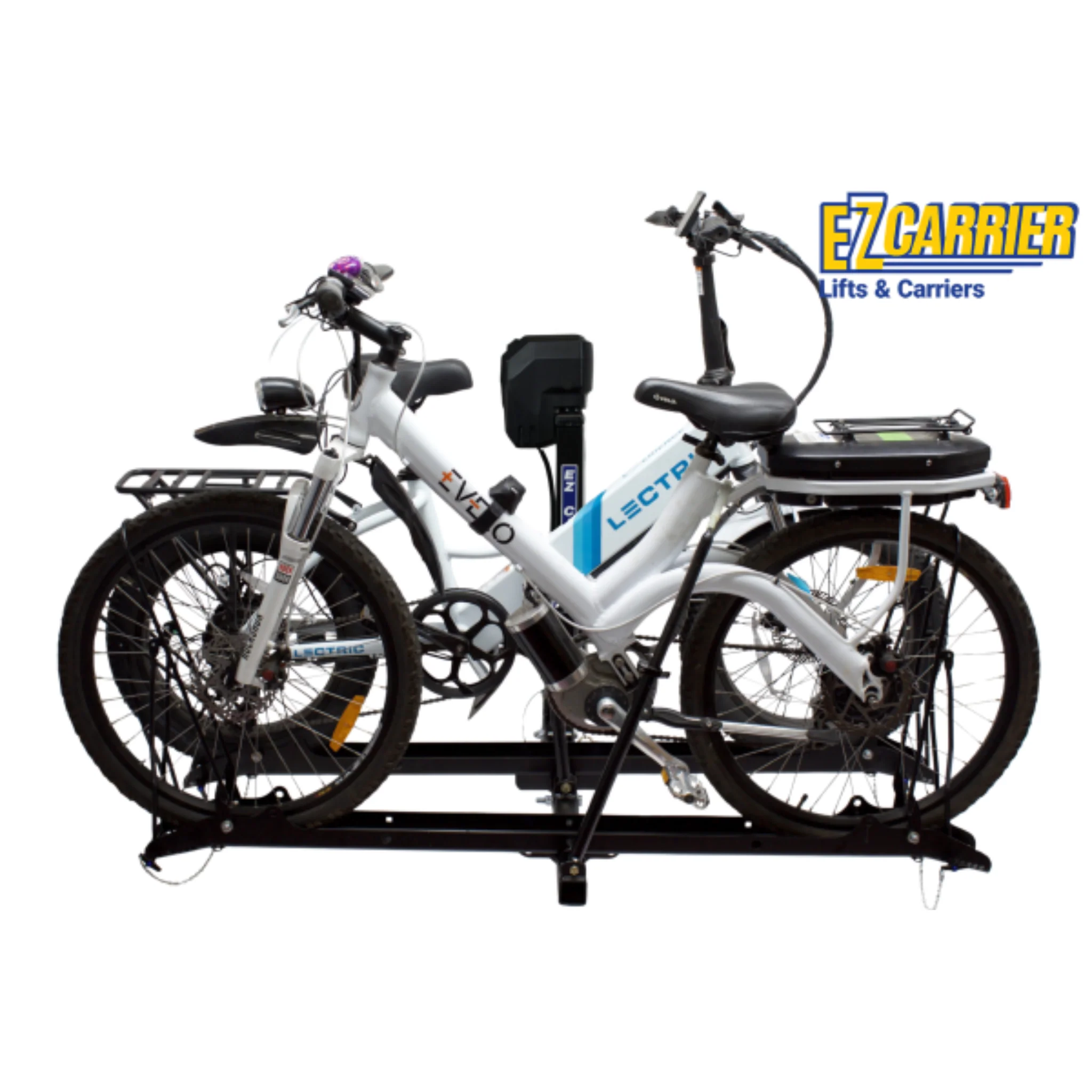

• Supports single or dual bike configurations with sturdy steel construction
• Compatible with Class II, III, and IV hitch receivers
• Integrated telescoping hook system for secure bike attachment
• Optional Swing-Away Extension (SAE) for easy rear vehicle access
• Folds into compact storage position when not in use
• Includes quick-connect wire harness and 30-amp inline fuse for safe, simple installation

Specifications

Platform
Hitch Class	2 or 3
Platform Size	Single Platform, Double Platform & Triple Platform
Construction	Powder-coated all-steel platform
Receiver Weight Capacity (Class II)	350 lbs (varies depending on vehicle)
Receiver Weight Capacity (Class III)	500 lbs
Tongue Weight Capacity	Verify with vehicle manufacturer for safe application
Locking Hitch Pin (Class III)	Included
Warranty
Coverage	3 year limited factory warranty

What's Included?

Platform
	Type: Platform Vehicle Receiver Class: Class 2 | Class 3 Actuator: 18" (EZCBL 2-1, EZCBL 3-1, EZCBL 2-2) Actuator: 24" (EZCBL 3-2, EZCBL 2-3, EZCBL3-3) Compatible parts: EZCBL 2-1, EZCBL 2-2, EZCBL 3-1, EZCBL 3-2
Electric Motor
	Type: Electric Motor - 17-1S Vehicle Receiver Class: Class 2 | Class 3 Compatible parts: EZCBL 2-1, EZCBL 3-1, EZCBL 3-2, EZCBL 2-3 Type: Electric Motor - 55-1S Vehicle Receiver Class: Class 3 Compatible parts: EZCBL 2-2, EZCBL3-3
Adjustable Hitch Connector
	Type: Adjustable Hitch Connector Vehicle Receiver Class: Class 2 | Class 3 Compatible parts: EZCBL 2-1, EZCBL 3-2, EZCBL 3-1, EZCBL 2-2, EZCBL 2-3, EZCBL3-3
Cargo Buckles (Pair)
	Type: Cargo Buckles (Pair) Compatible parts: EZCBL 2-2, EZCBL 3-2, EZCBL 2-3, EZCBL3-3
Wiring Harness
	Type: Wiring Harness Compatible parts: EZCBL 2-1, EZCBL 3-1, EZCBL 2-2, EZCBL 3-2, EZCBL 2-3, EZCBL3-3
Hitch Pins — Class 2
	Type: Hitch Pins Vehicle Receiver Class: Class 2 Compatible parts: EZCBL 3-2
Hitch Pins — Class 3
	Type: Hitch Pins Vehicle Receiver Class: Class 2 | Class 3 Compatible parts: EZCBL 2-1, EZCBL 3-1, EZCBL 2-2, EZCBL 2-3, EZCBL3-3
