ShowerBuddy SB7e Folding Shower Chair

---

Lightweight, Space-Saving Shower Chair

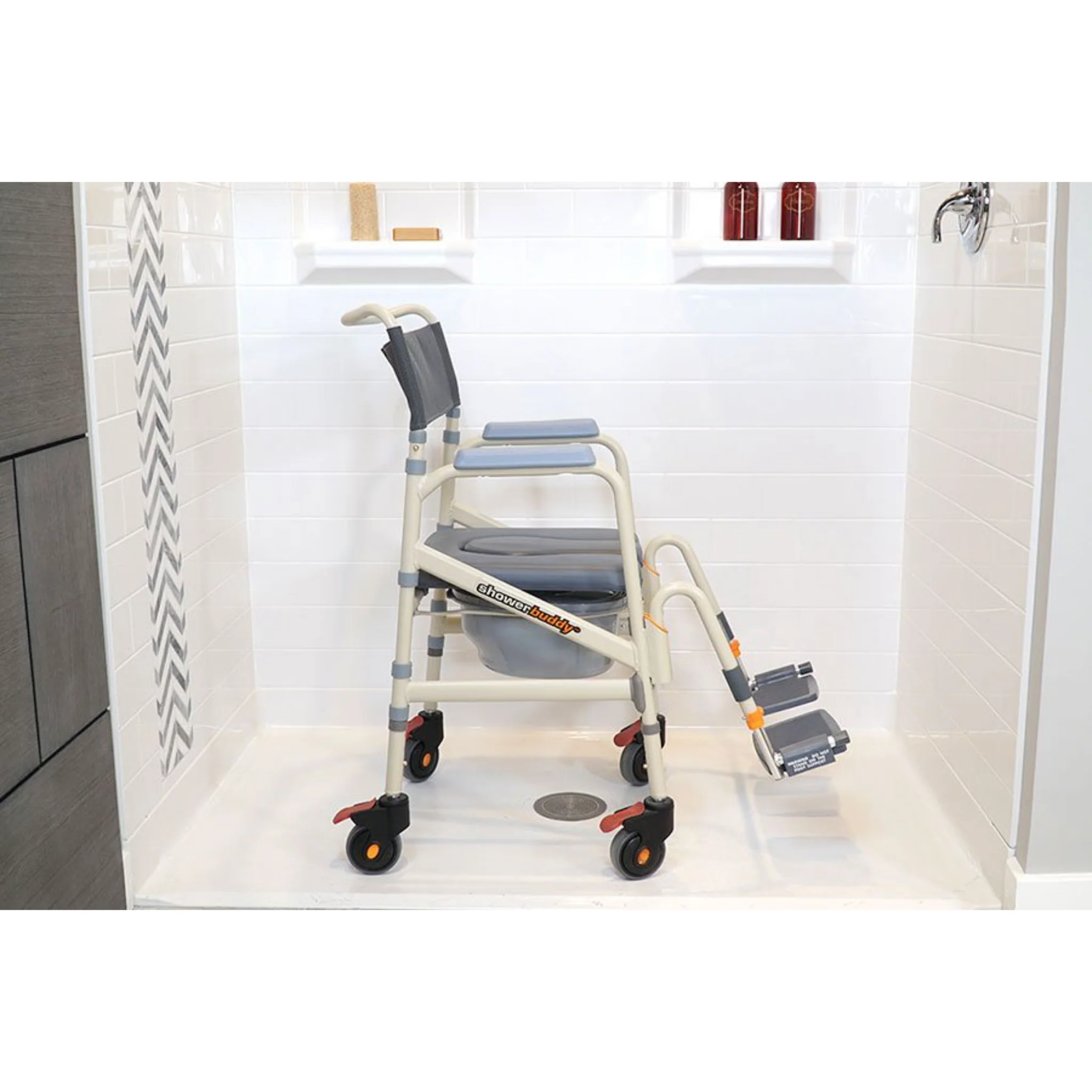

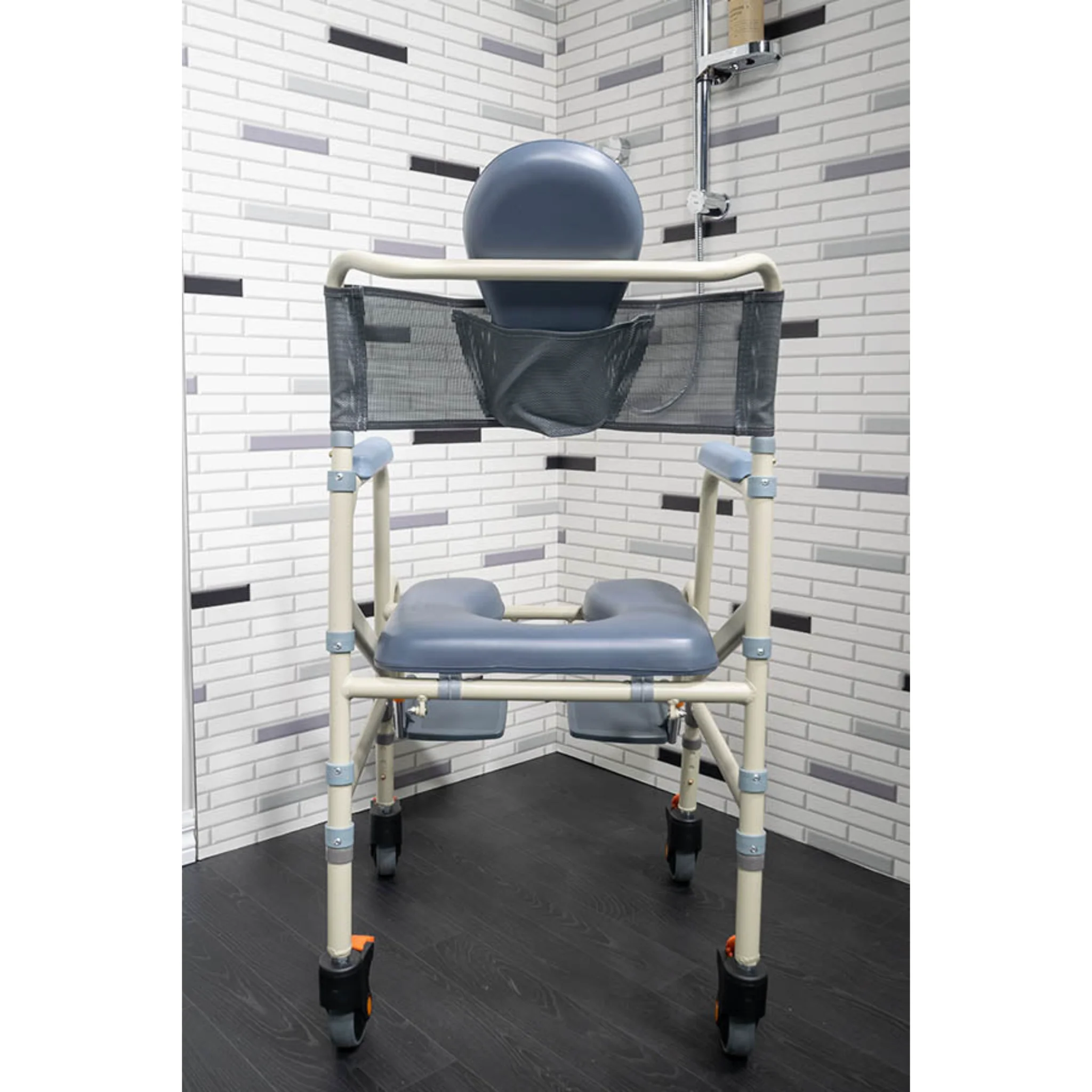

The ShowerBuddy Eco Traveler (SB7E) is your ultimate companion for accessible bathing in curbless or roll-in shower stalls. This versatile unit is designed to roll over most toilets, making it an ideal over-toilet commode, and it can also function as a bedside commode. Crafted from a robust yet lightweight aluminum frame, the SB7E is perfect for home use and travel alike. Its compact design allows it to fold neatly into a travel bag (sold separately) or a closet for easy storage.

Despite its small size, the SB7E is packed with premium features. It boasts 4-inch locking casters for easy maneuverability, a commode bucket with a lid, swing-away, height-adjustable footrests, and a convenient clip-on calf strap. It is a caregiver-assisted product, ensuring safety and ease of use without requiring independent operation.

How It Works

Showering:

1. Setup: Quick and tool-free assembly.
2. Positioning: Fold the unit down for easy setup and lock the four caster wheels.
3. Transfer: Move the user onto the chair from the front.
4. Mobility: Unlock the brakes and roll into the shower.
5. Bathing: Lock the chair back in place for a comfortable shower.
6. Post-Shower: Fold the unit down for easy travel and storage.

Features

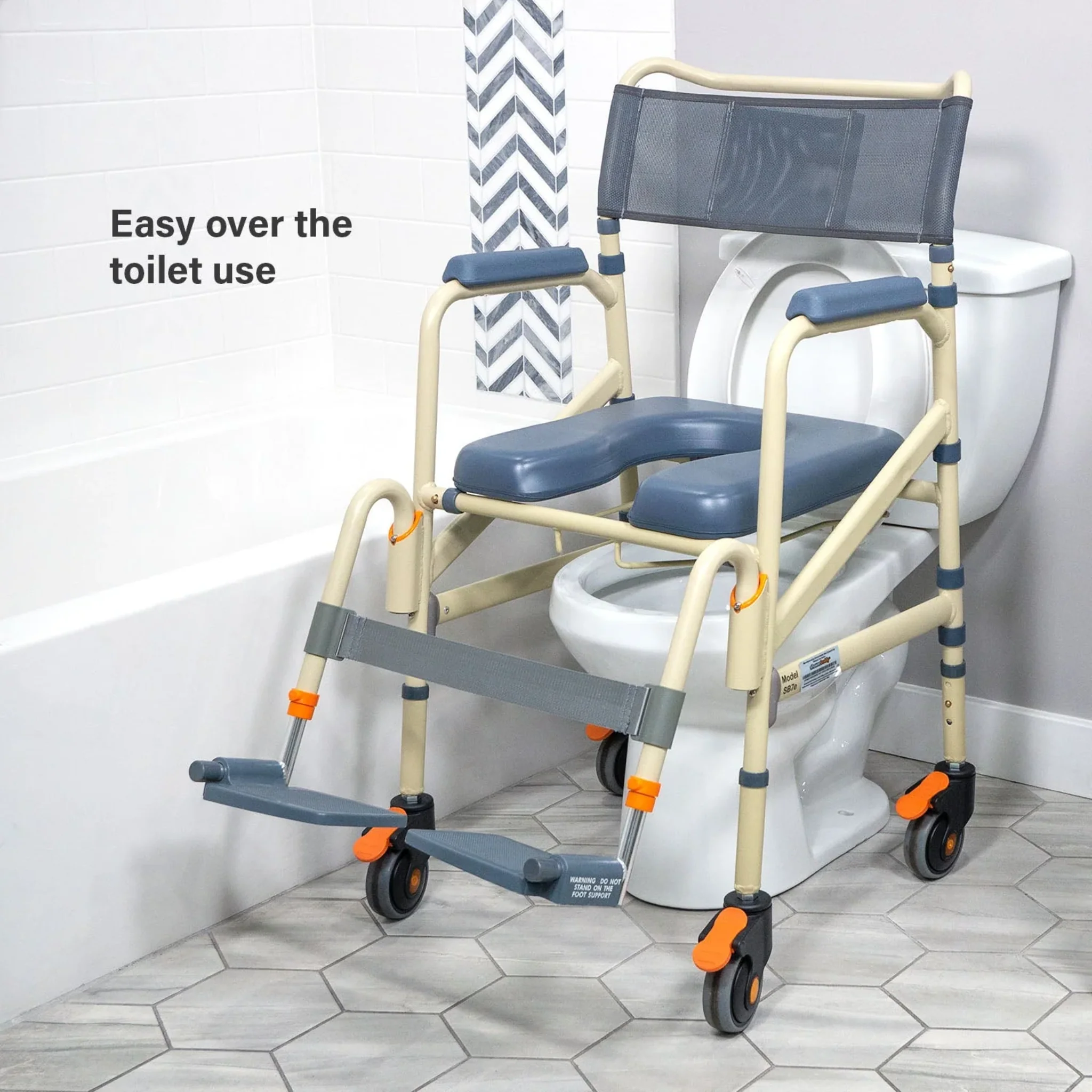

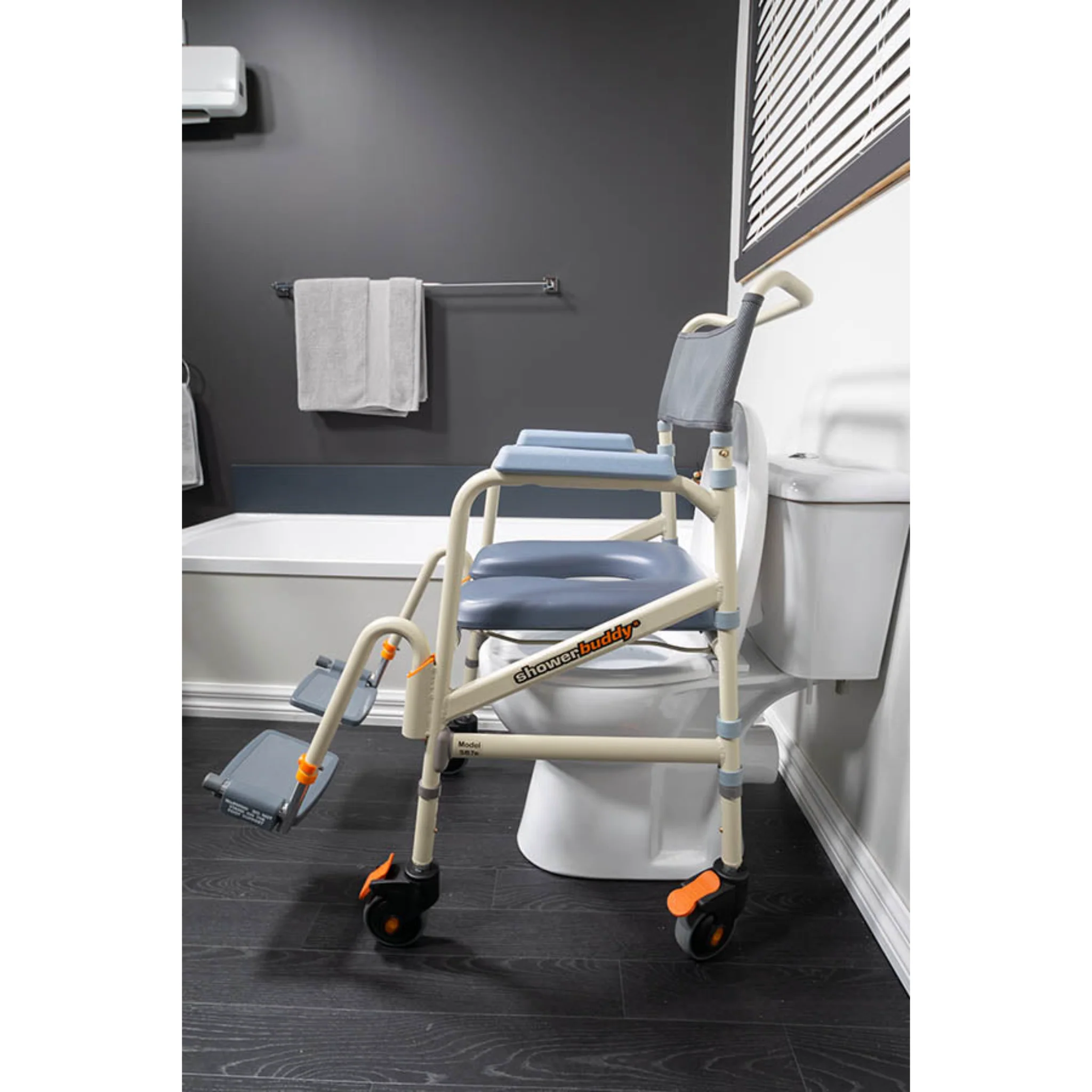

• Mobility: Rolls over most standard toilets

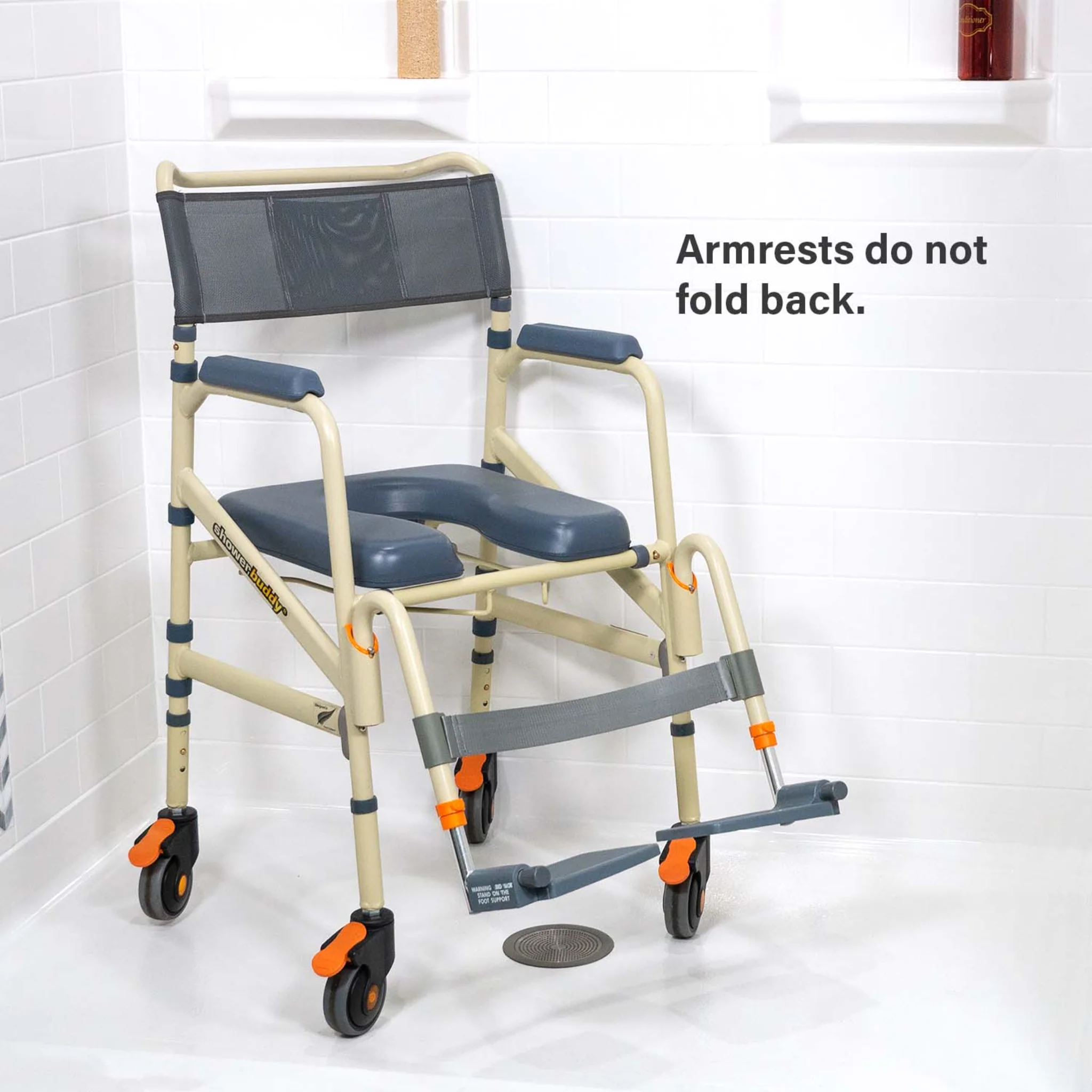

• Arms: Fixed, do not flip back

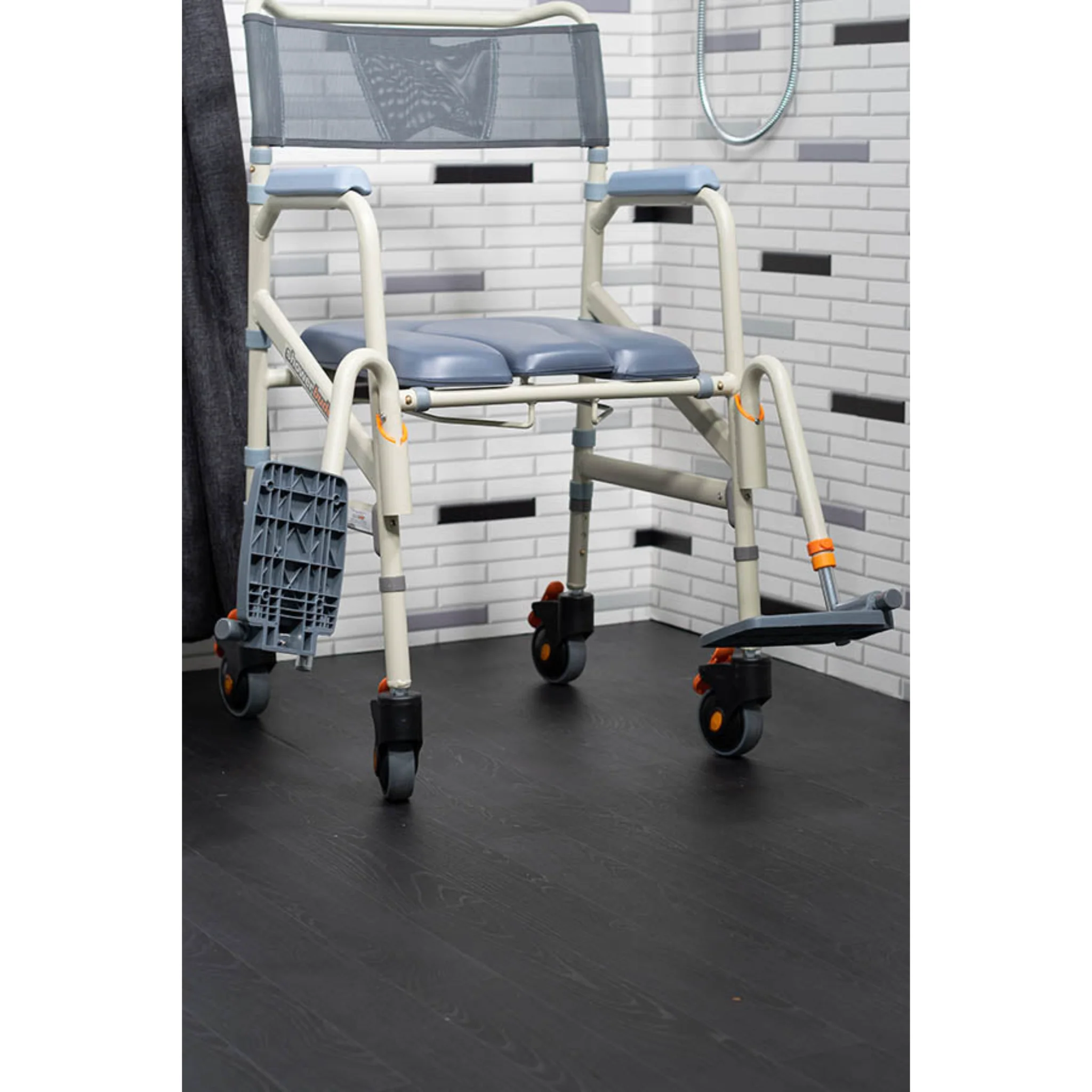

• Footrests: Removable, swing-away, height-adjustable

• Frame: No rust aluminum (Grade 6061 T6)

• Parts and Hardware: Stainless steel (Grade 304)

• Commode System: Fits without the user standing
• Folds Down for Travel: Easily collapsible for convenient transportation.

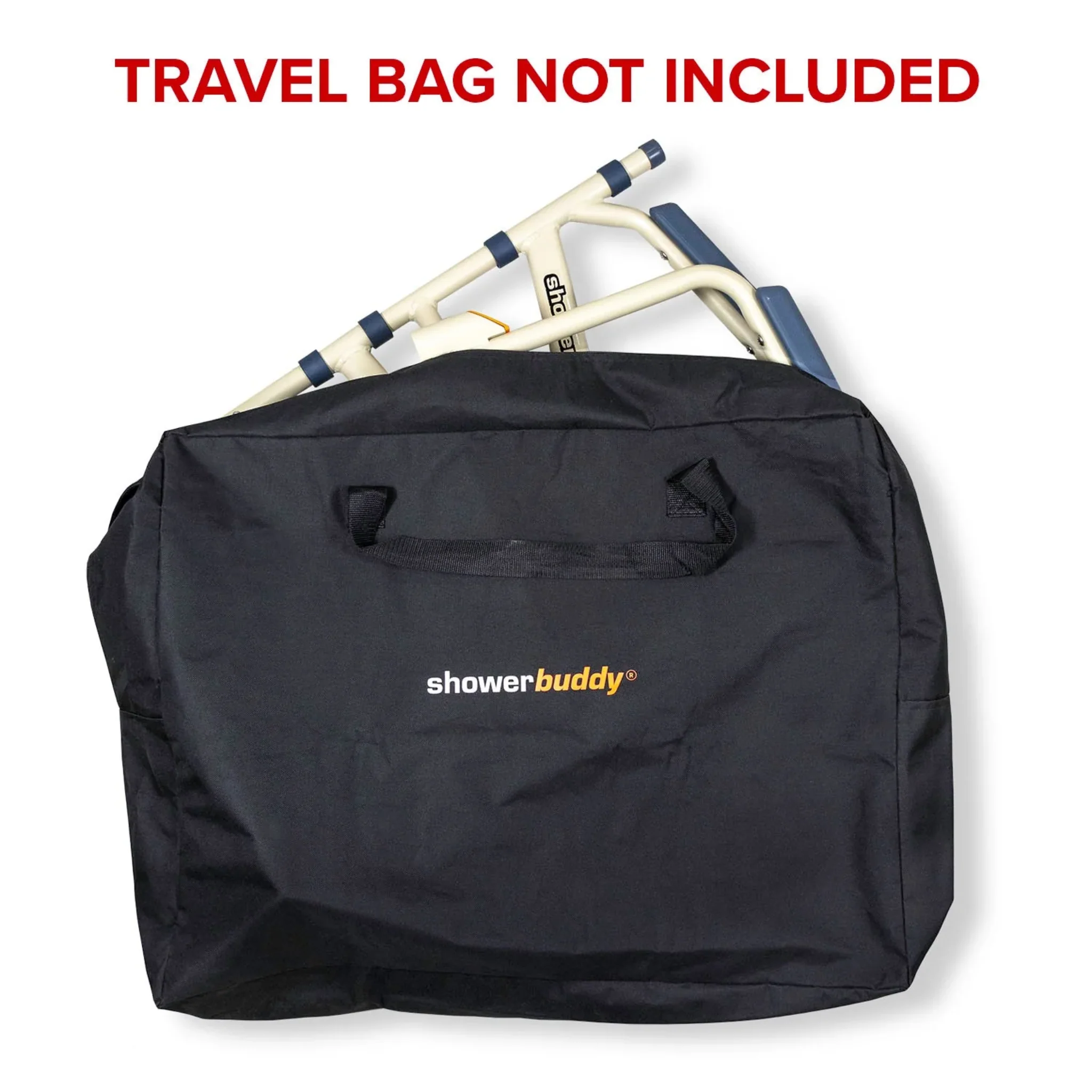

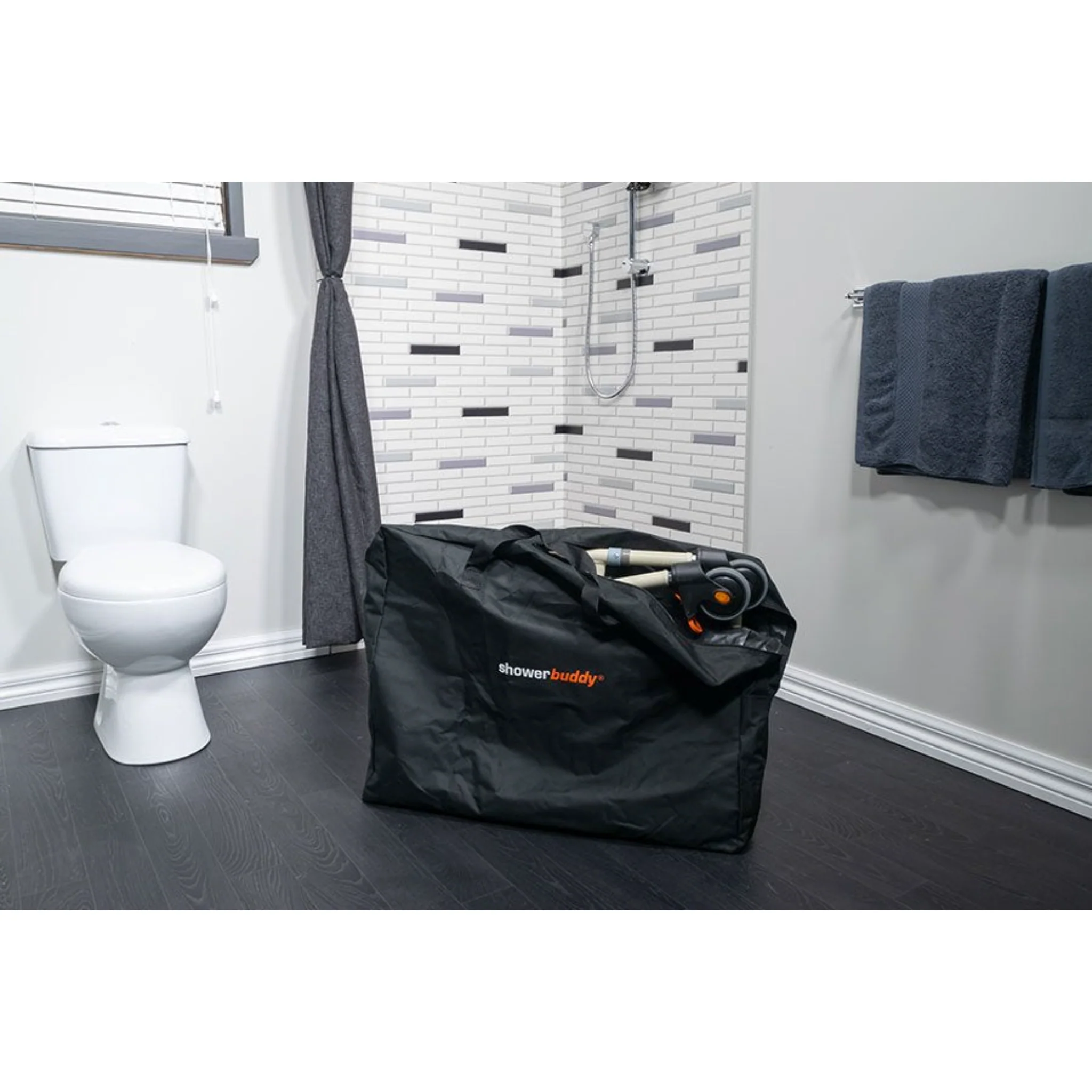

• Optional Accessory Travel Bag: Available for purchase to enhance portability.
• 120 kg (265 lb) Weight Capacity: Strong enough to support most users.
• Ultra-Compact Design: Perfect for tight spaces and travel.
• Versatile Use: Suitable for roll-in or accessible showers.

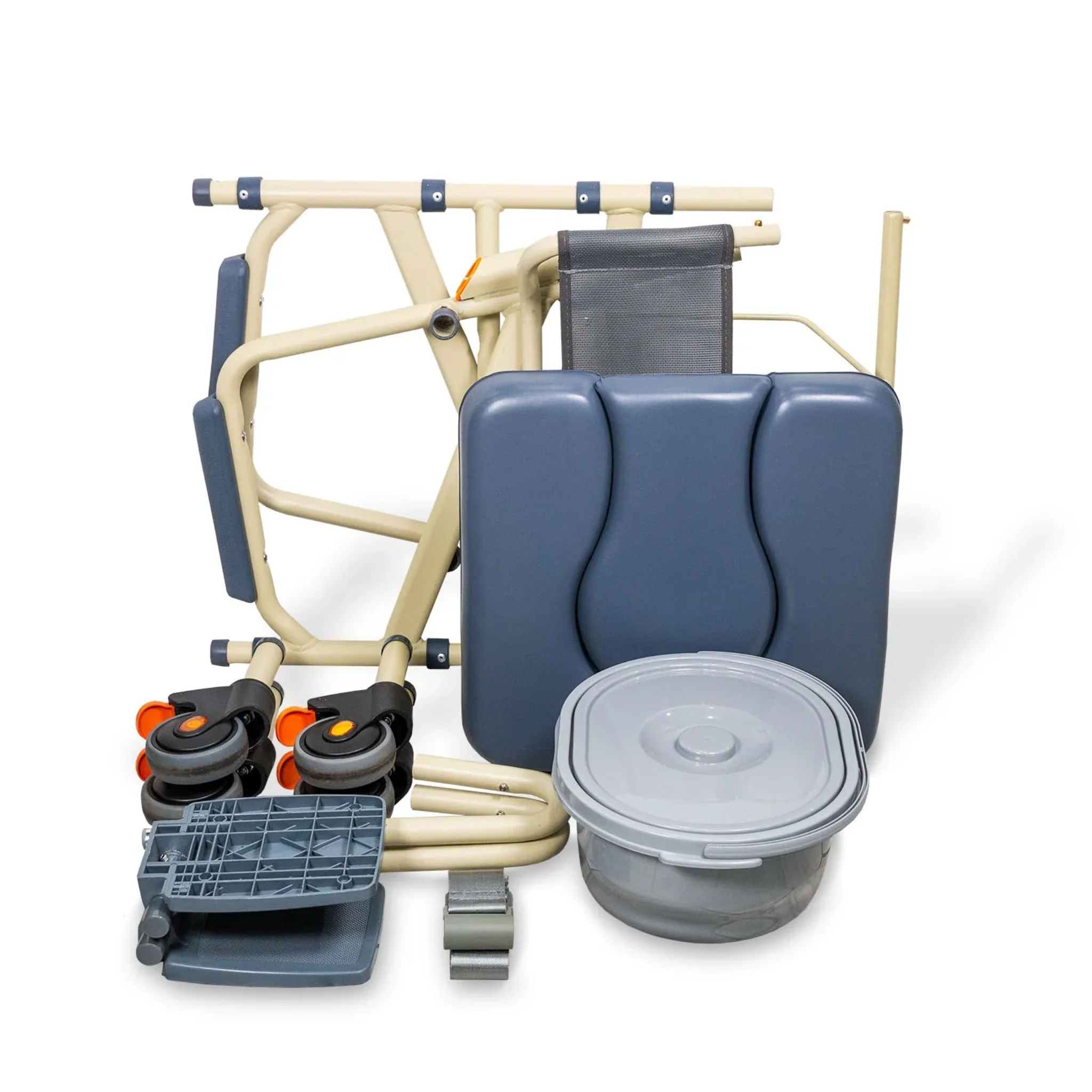

• Portable Commode Bucket System: Includes a complete commode system.



Specifications and Manuals

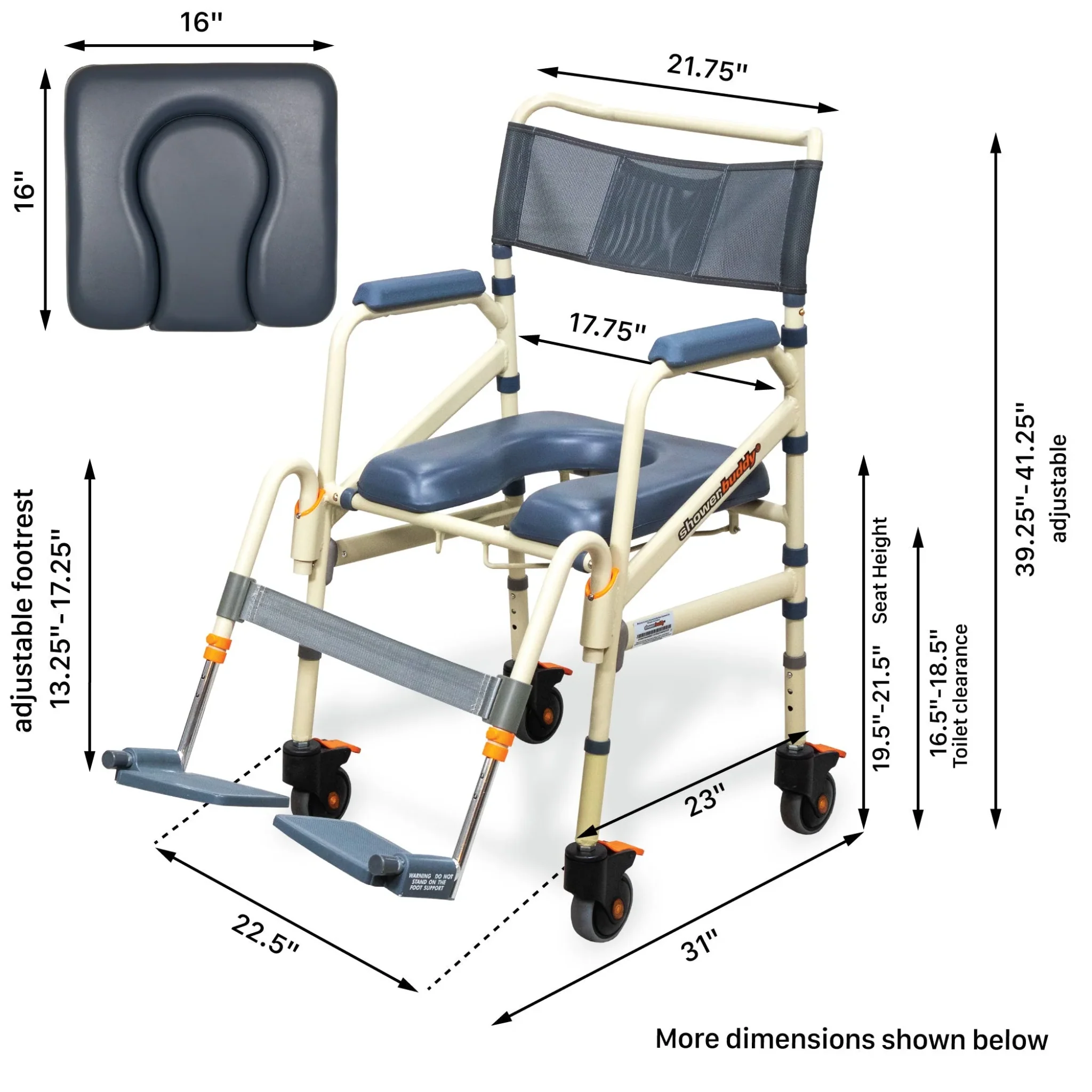

Chair Width:

• 21.65” over caster wheels
• 21.65” over arms
• 17.71” inside arms
• Chair Length: 33” (including footrest)
• Backrest Width: 17.63”
• Backrest Height (from cushion to top): 15.74”
• Toilet Height Clearance (maximum): 18.50”
• Toilet Width Clearance (at narrowest): 17.51” (at casters)
• Seat Cushion Dimensions: 17.51” W x 16.53” D
• Seat Height from Floor: 20.86" to 22.83" (adjustable)
• Seat Cushion Opening: 6.88” W x 13.18” L
• Weight Capacity: 120 kg (265 lb)

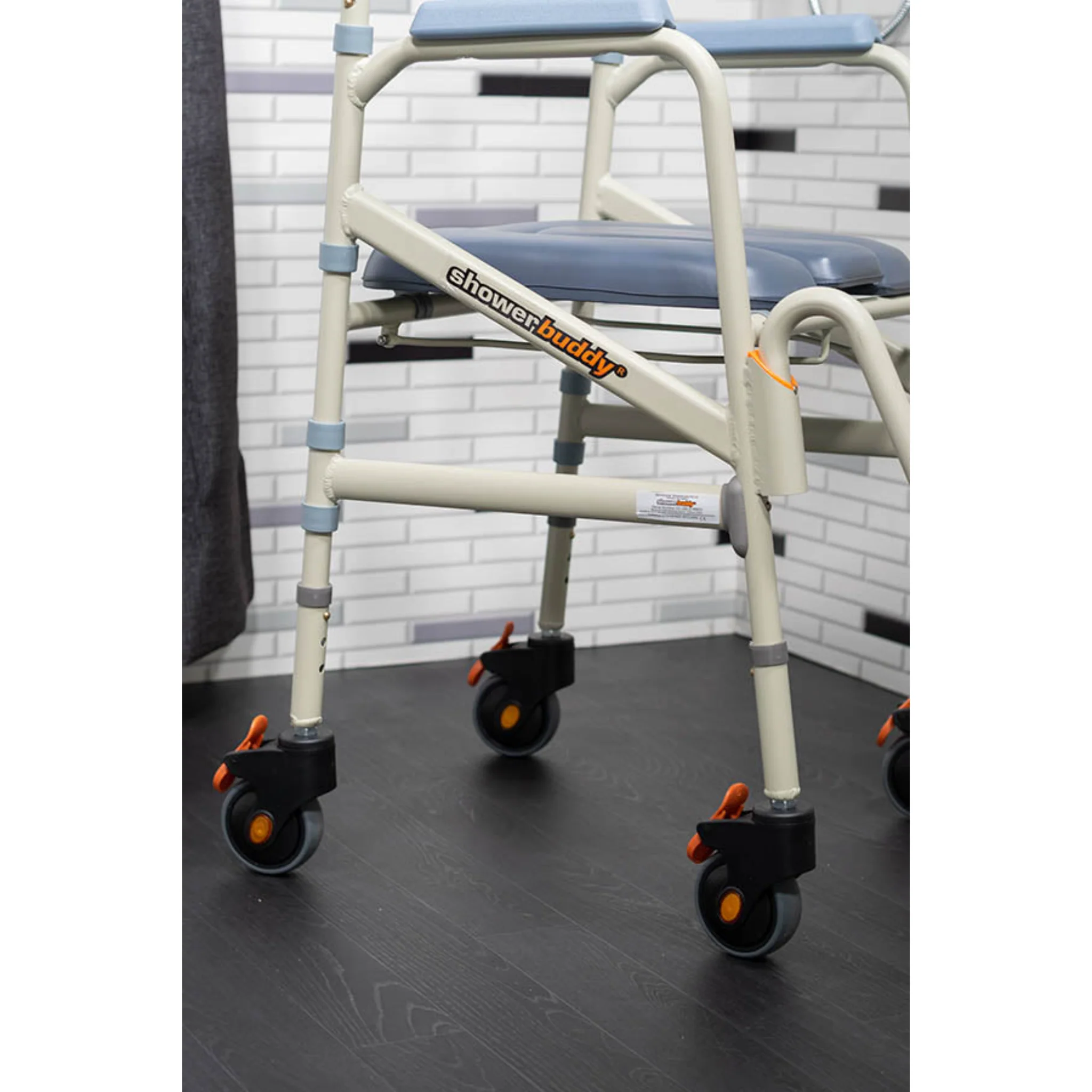

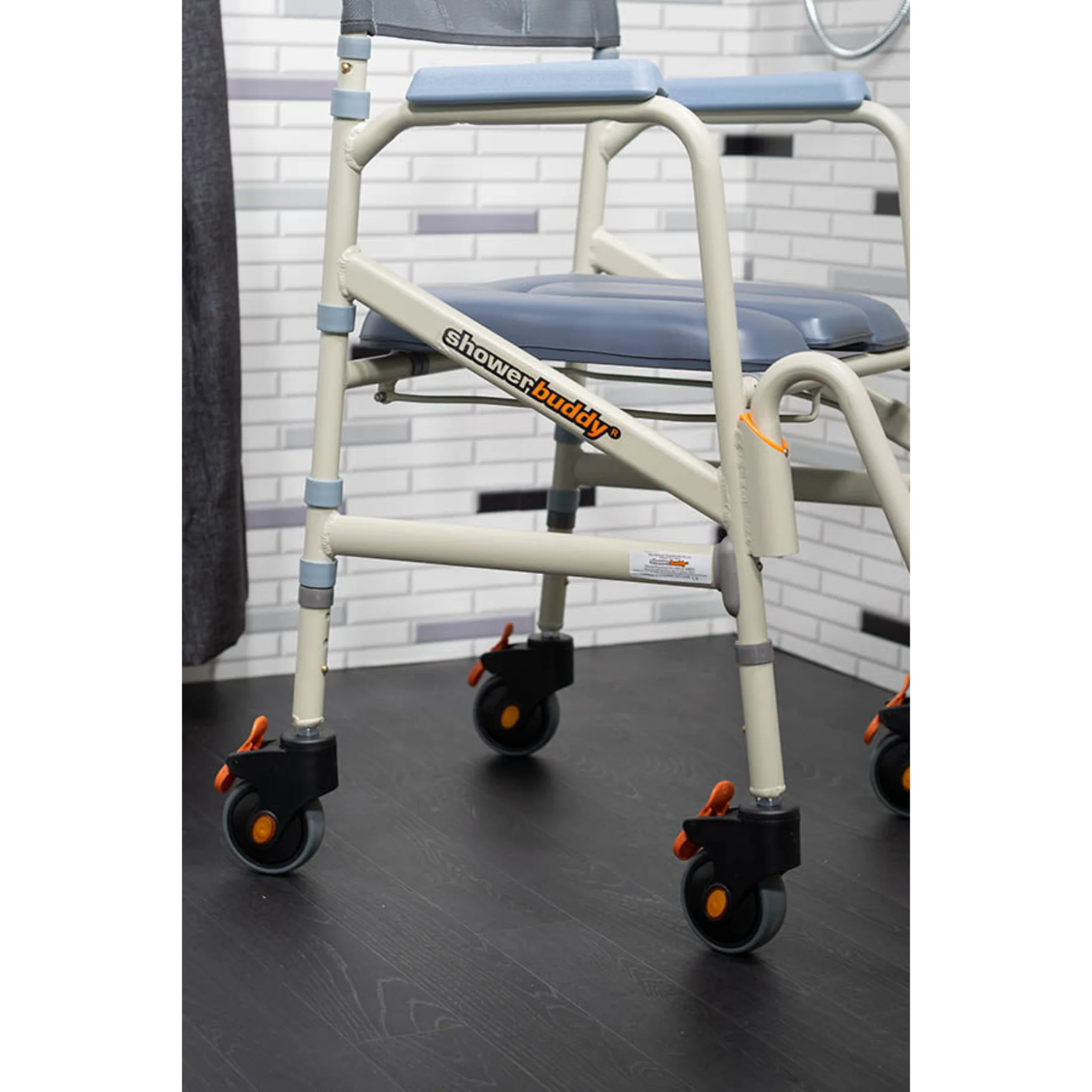

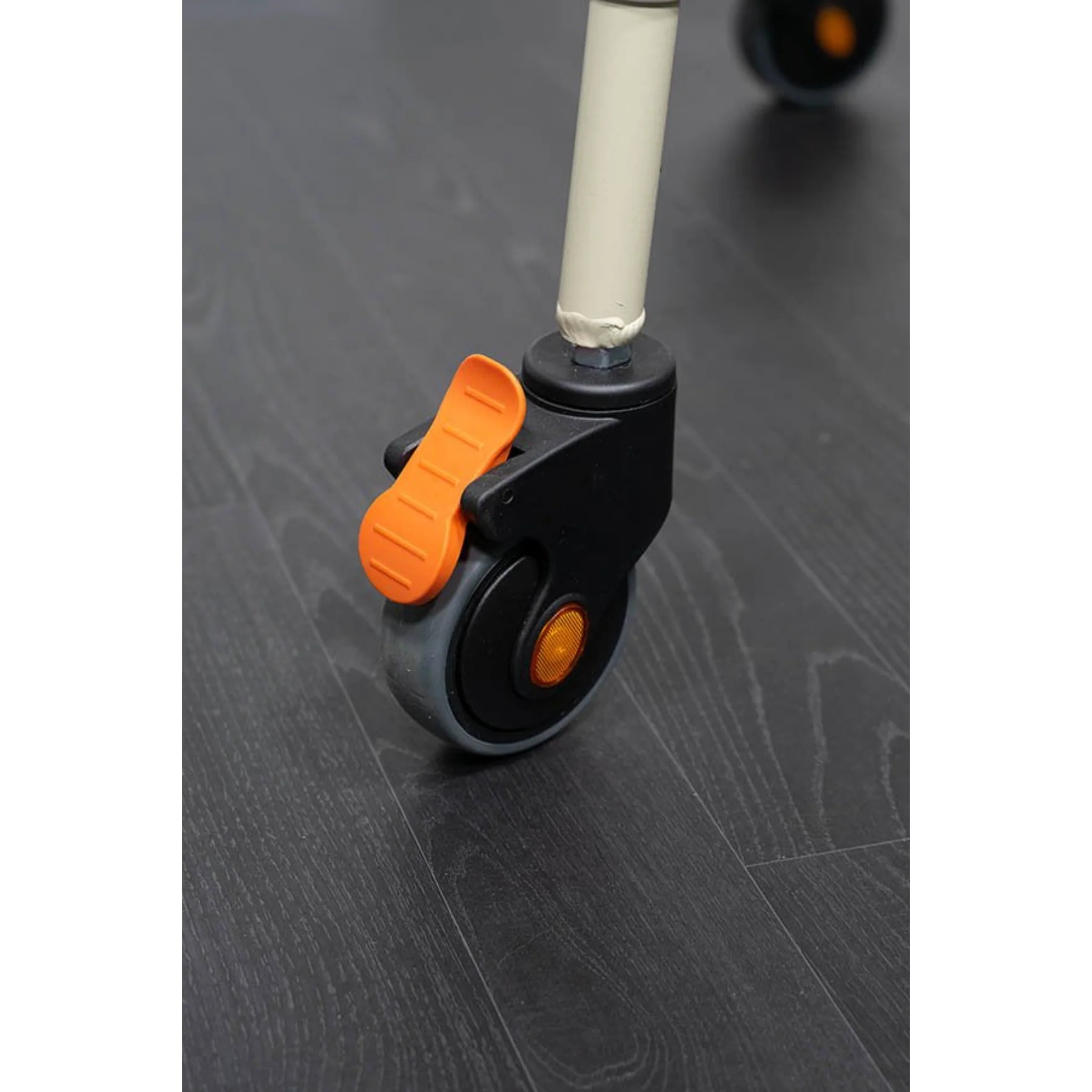

• Caster Wheels: 100 mm (4"), all locking
• Actual Weight of Unit: 19.62 lbs

Dimensions

• Seat Height: 500 - 550 mm (20" - 22")

Chair Width:

• Over caster wheels: 550 mm (21.5")

• Over arms: 550 mm (21.5")

• Inside arms: 450 mm (18")

• Chair Length: 860 mm (34"), including footrest

• Backrest Width: 450 mm (18")

• Backrest Height: 400 mm (16") from cushion to top

• Toilet Height Clearance: 440 mm (17.5")

• Toilet Width Clearance: 445 mm (17.5") at narrowest (casters)

• Seat Cushion Dimensions: 420 mm (16.5") W x 420 mm (16.5") D

• Box Dimensions: 780 mm x 550 mm x 210 mm (31" x 22" x 9")

• Box Gross Weight: 9.5 kg (21 lb)

• Unit Weight: 8.9 kg (20 lb)

The Eco Traveller SB7e User Manual contains a complete parts list along with detailed instructions for assembly, setup, and operation.

SB7e USER MANUAL

The SB7e Assessment Form can be used by Occupational therapists (OTs), physical therapists (PTs) and distributors during consultations with the end user.

Other resources

ASSESSMENT FORM

SB7e Specifications PDF

Imperial Diagram PDF

Metric Diagram PDF
