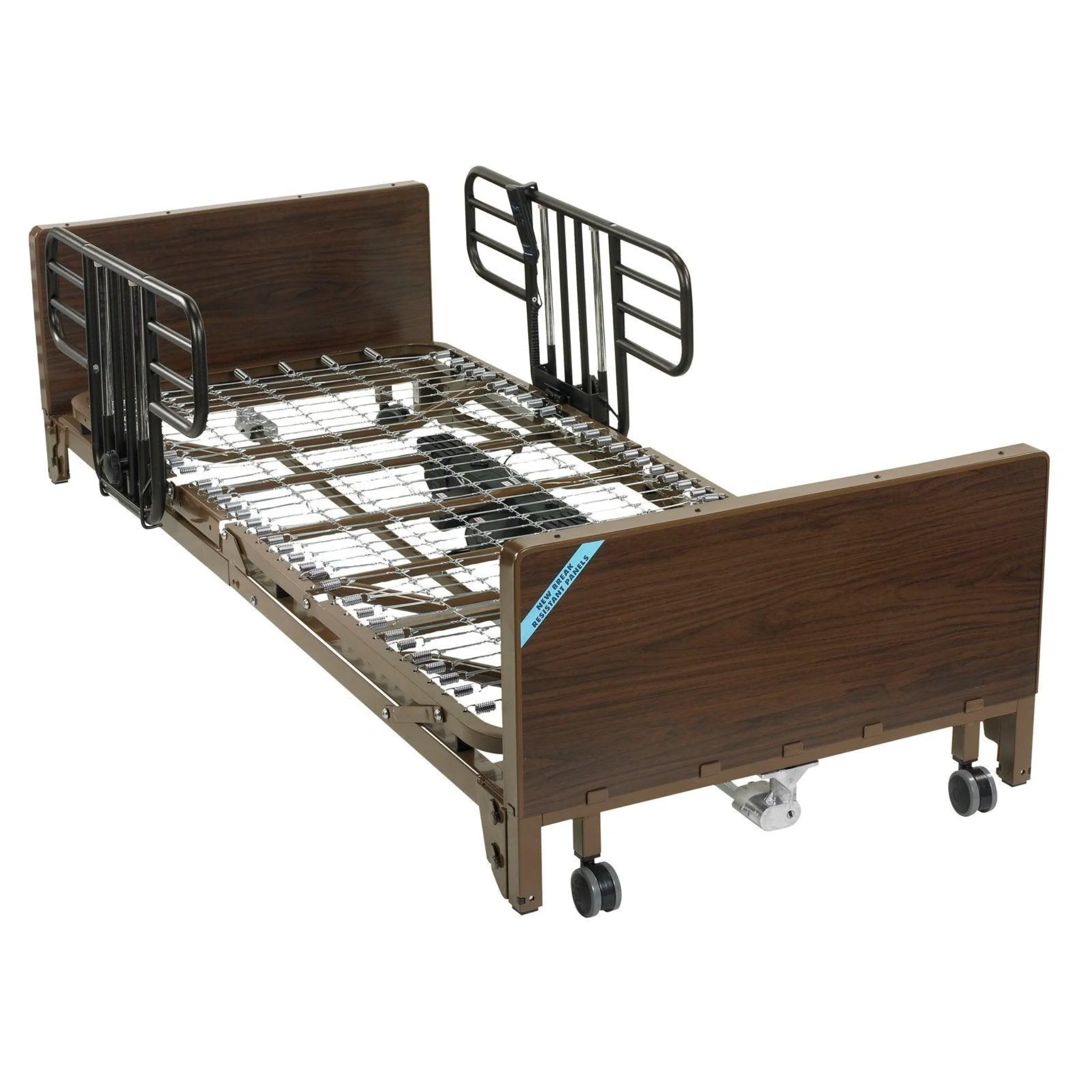

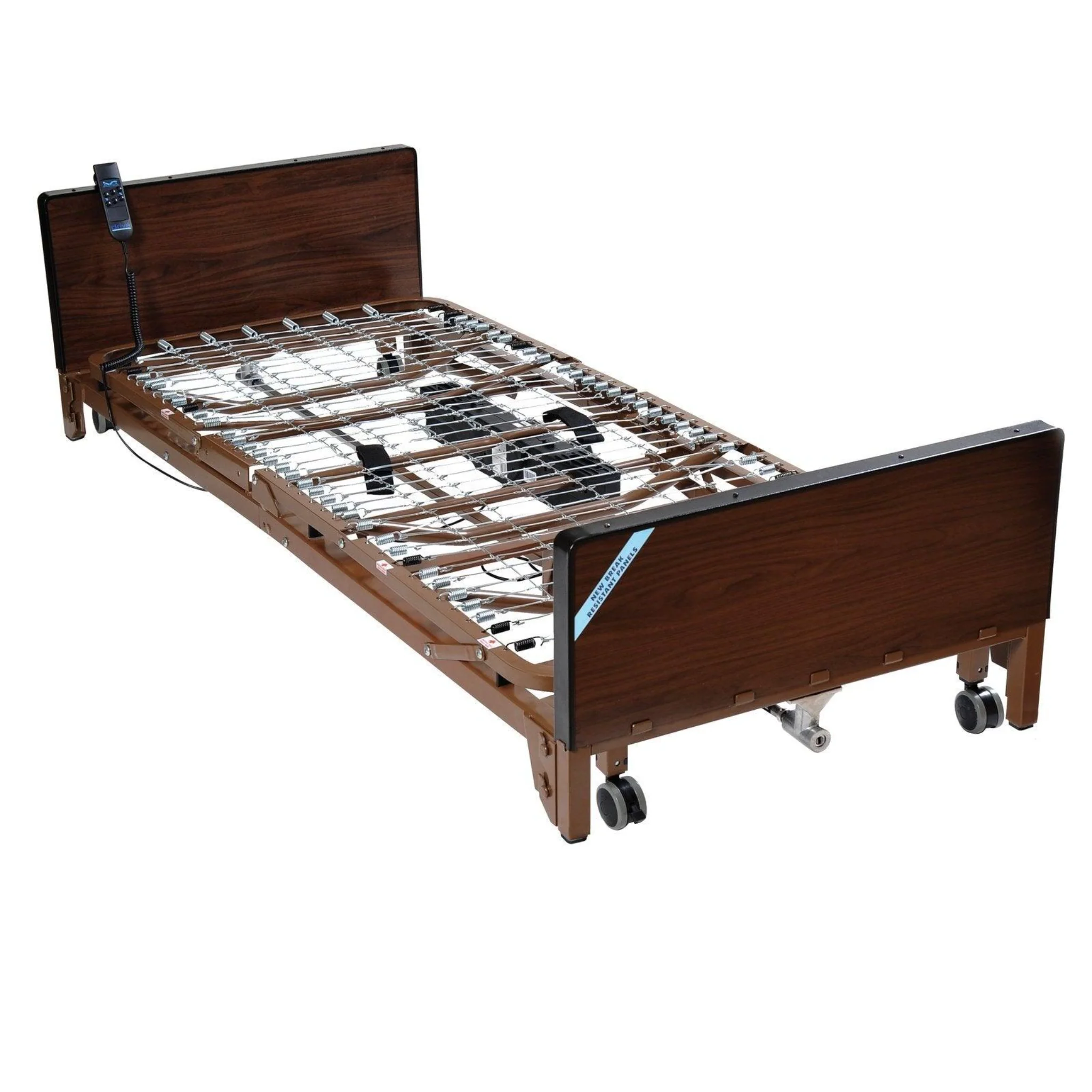

Drive Medical Delta Low Ultra Light Full Electric Bed

---

Versatile, Durable, and Easy-to-Use for Optimal Patient Care

The Drive Medical Delta 1000 Low Ultra Light Full Electric Bed is a truly universal solution, designed for compatibility with Drive's and most other manufacturers' bed ends, whether old or new. This bed is perfect for home care settings, combining practicality, durability, and ease of use to meet a wide range of patient needs.

Universal Compatibility
The Delta 1000 bed frame can be used with Drive's bed ends and most other manufacturers' bed ends, making it a highly versatile option. The transition box mounted on the foot section is key to this interchangeability, allowing for easy rotation changes of the high/low shaft.

Home-Friendly Design

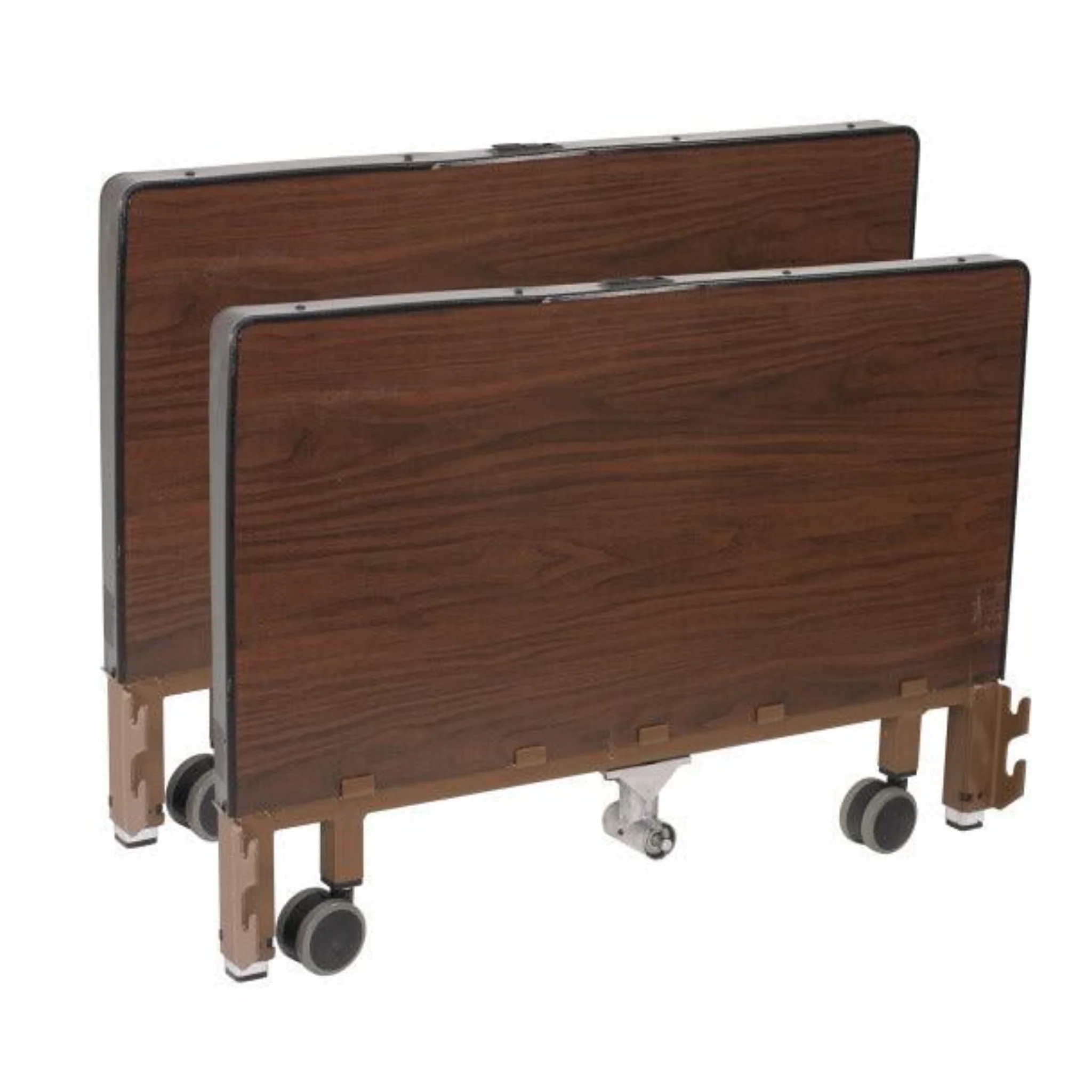

The headboard is taller than the footboard, allowing it to blend seamlessly with home decor. The wood grain panels are not only aesthetically pleasing but also break and scratch-resistant, ensuring longevity.

Convenient Features for Caregivers

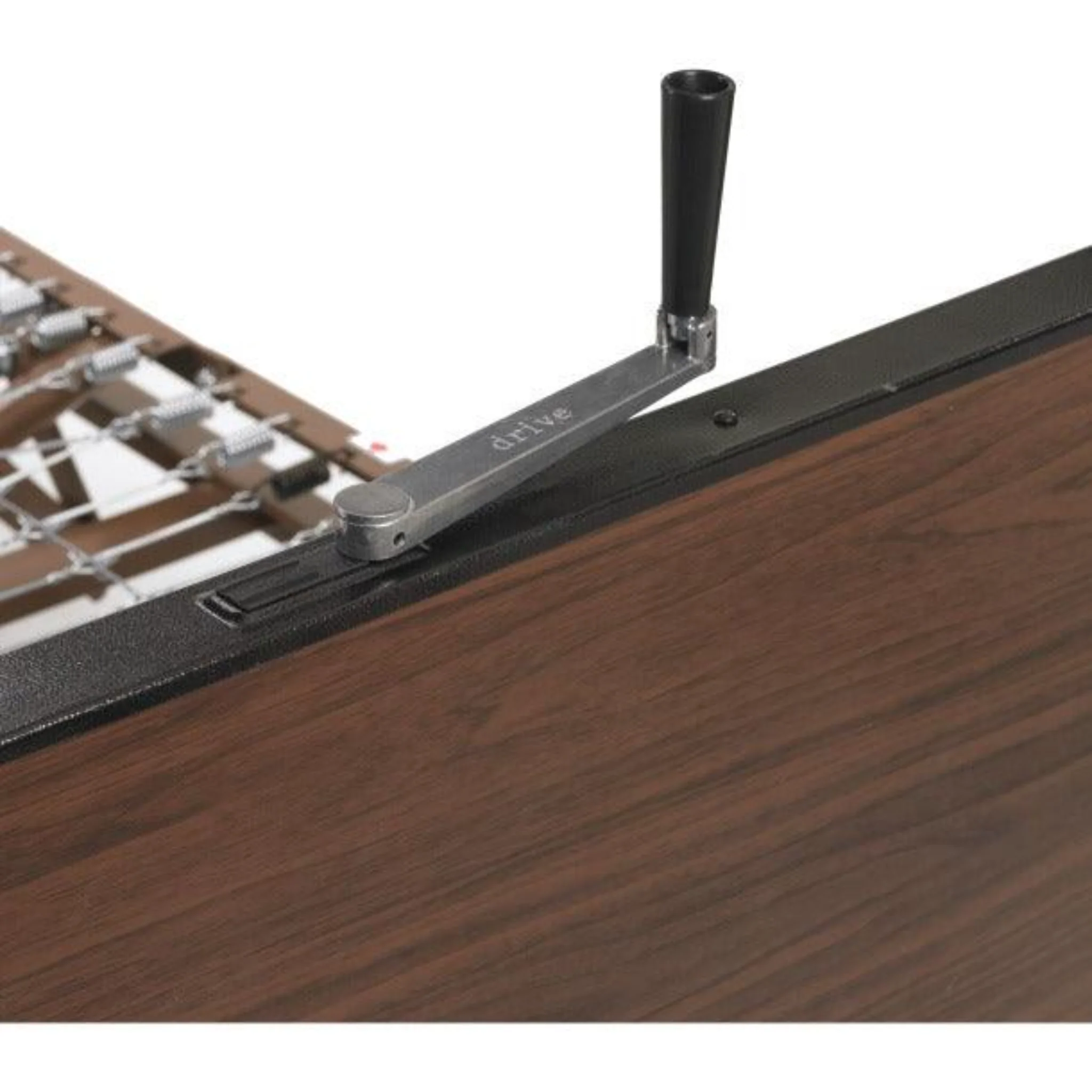

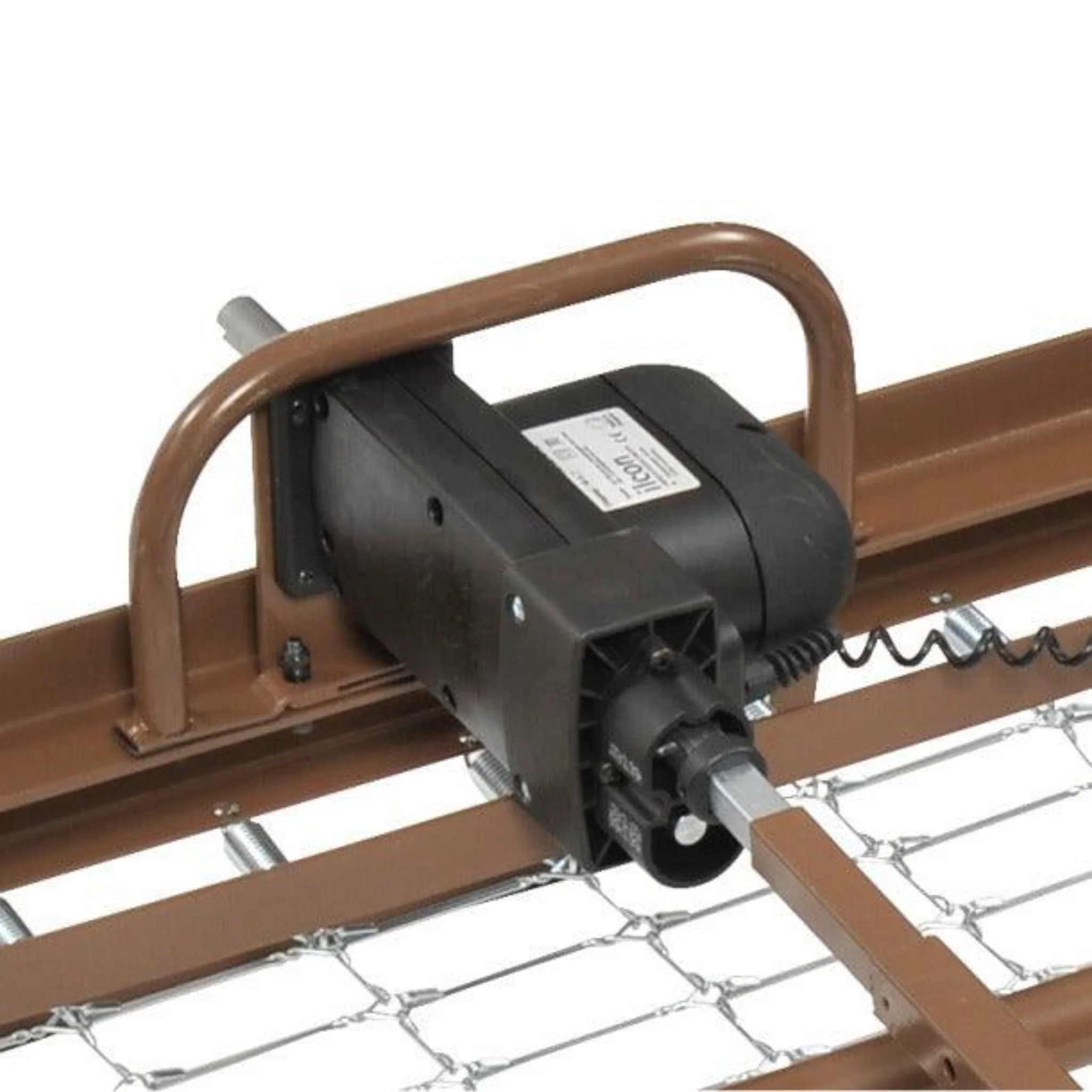

The bed is designed with ease of use in mind, featuring a top-mounted Hi/Lo crank for easy accessibility and a height-adjustable motor pre-installed on the foot section. The motor assembly can be installed and removed with the patient in bed, reducing the need for extra handling.

Enhanced Patient Safety

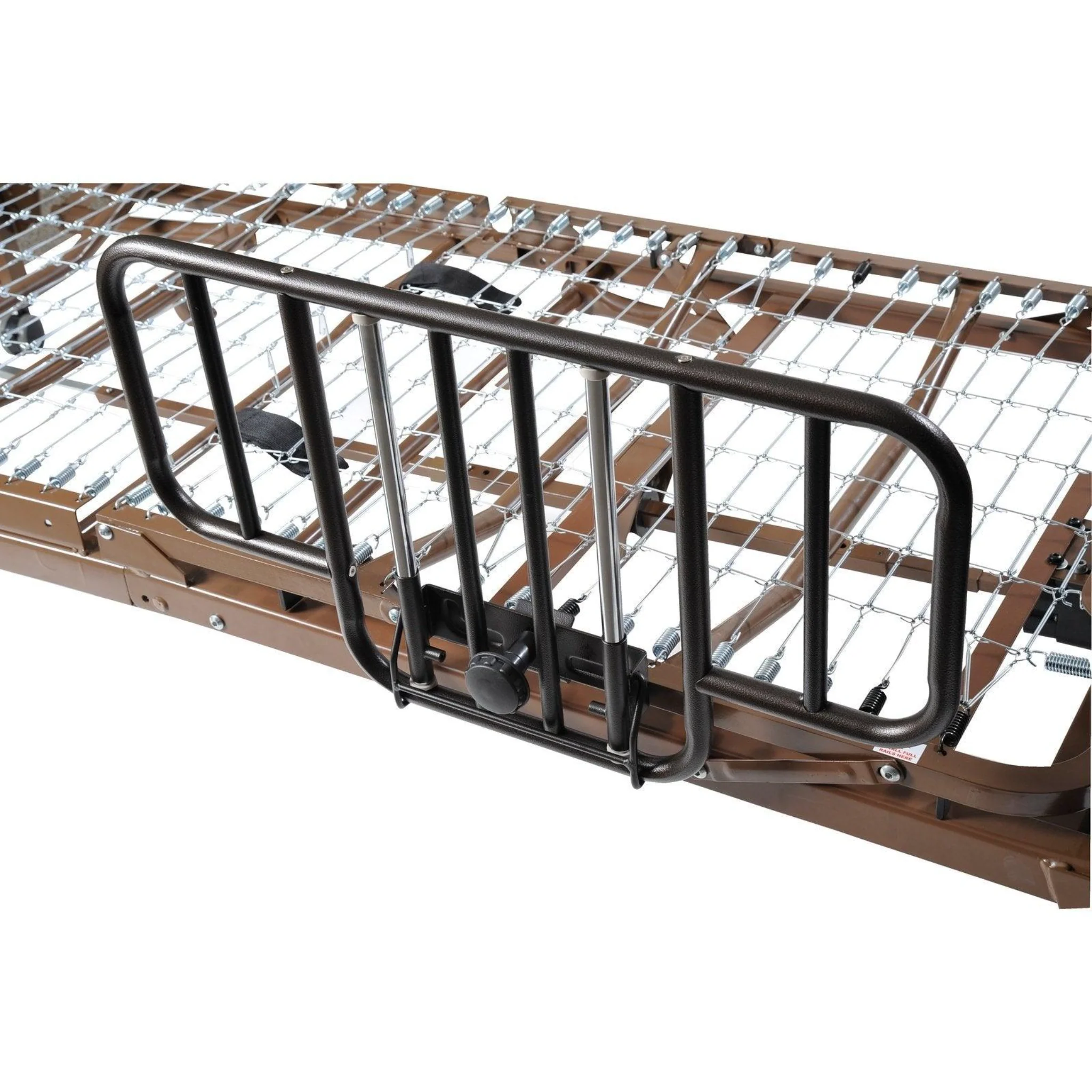

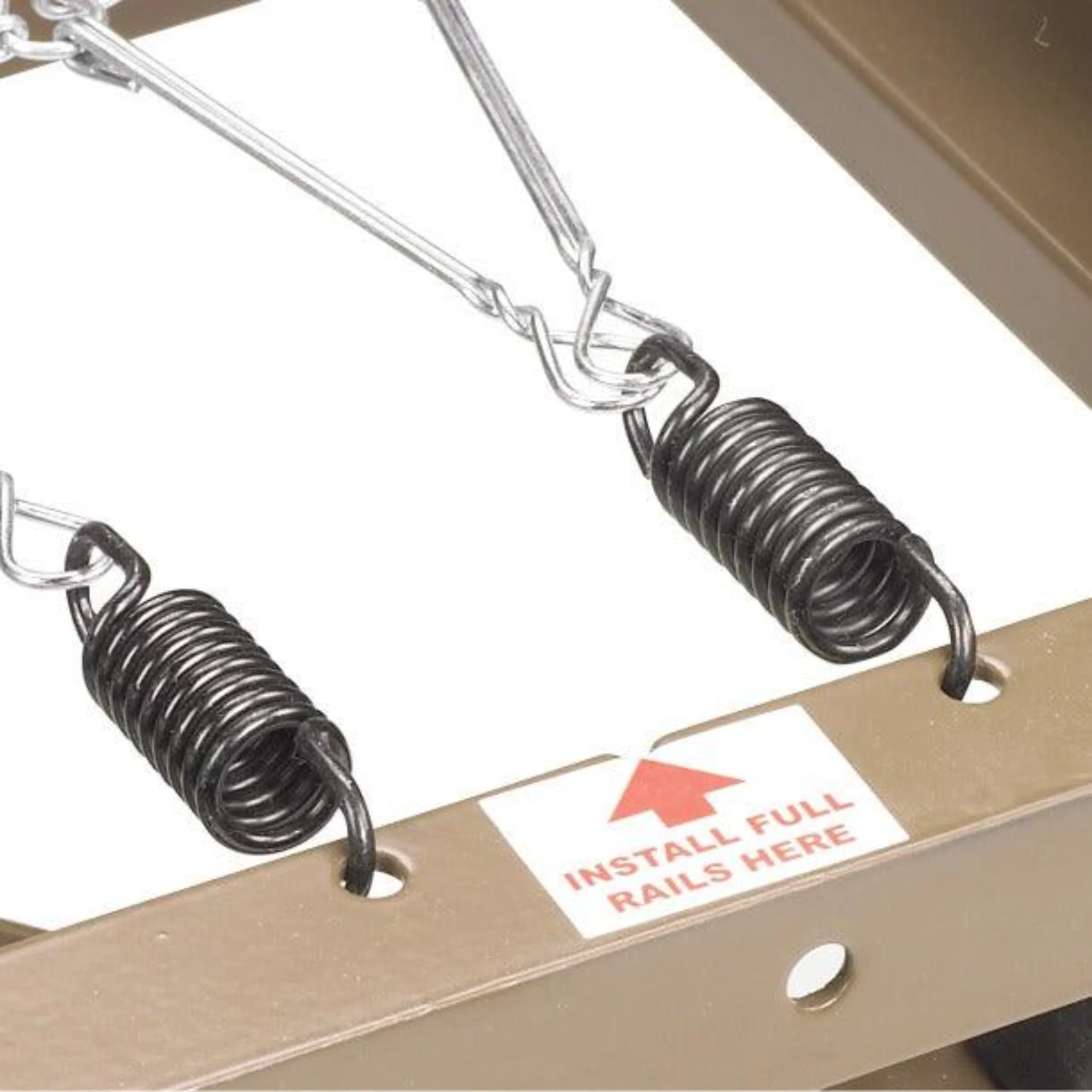

Labels and color-coded springs ensure accurate installation of side rails, promoting patient safety. The bed, side rails, and mattress have been safety-tested by SGS, a nationally recognized testing facility, and meet all applicable FDA entrapment guidelines.

Reliable and Quiet Operation

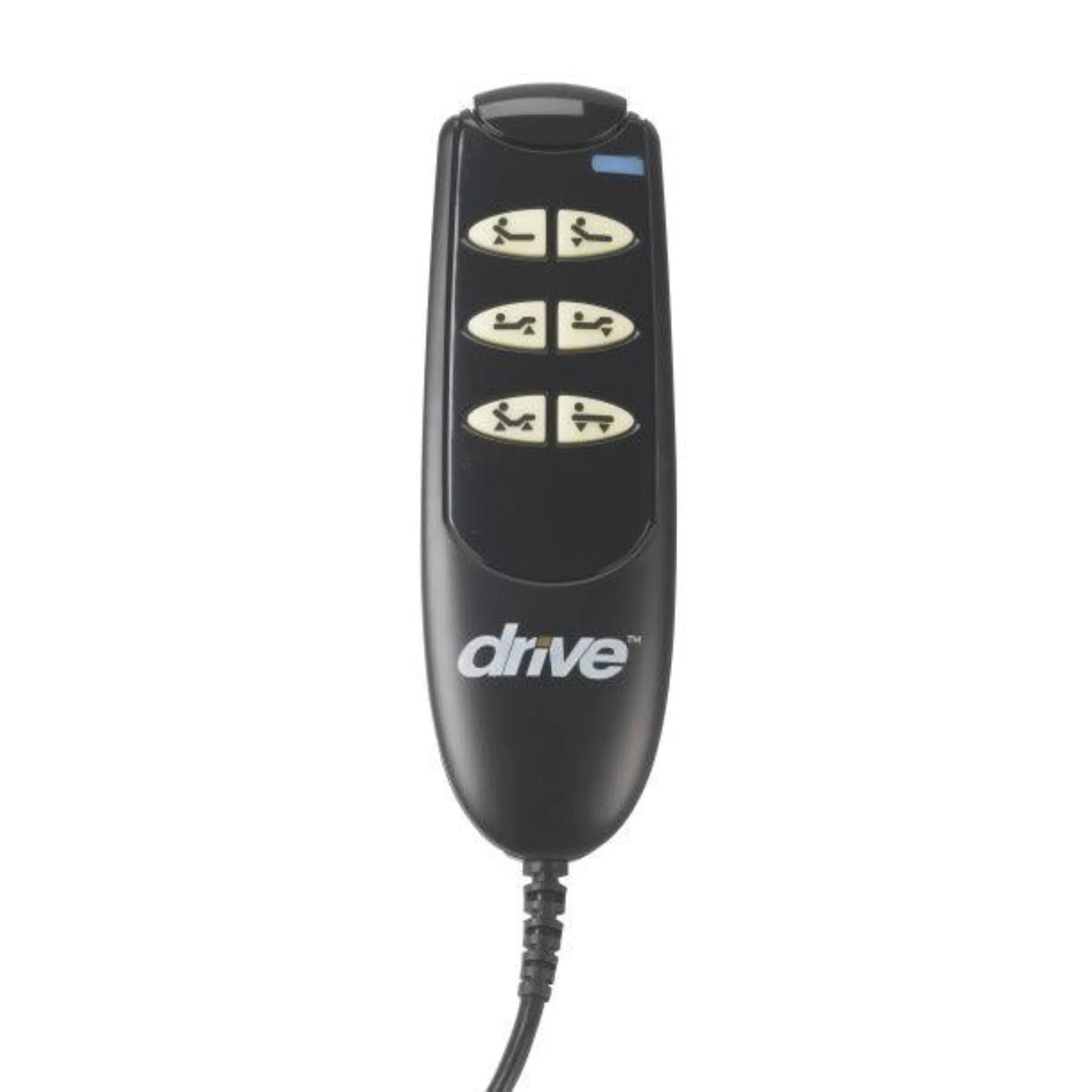

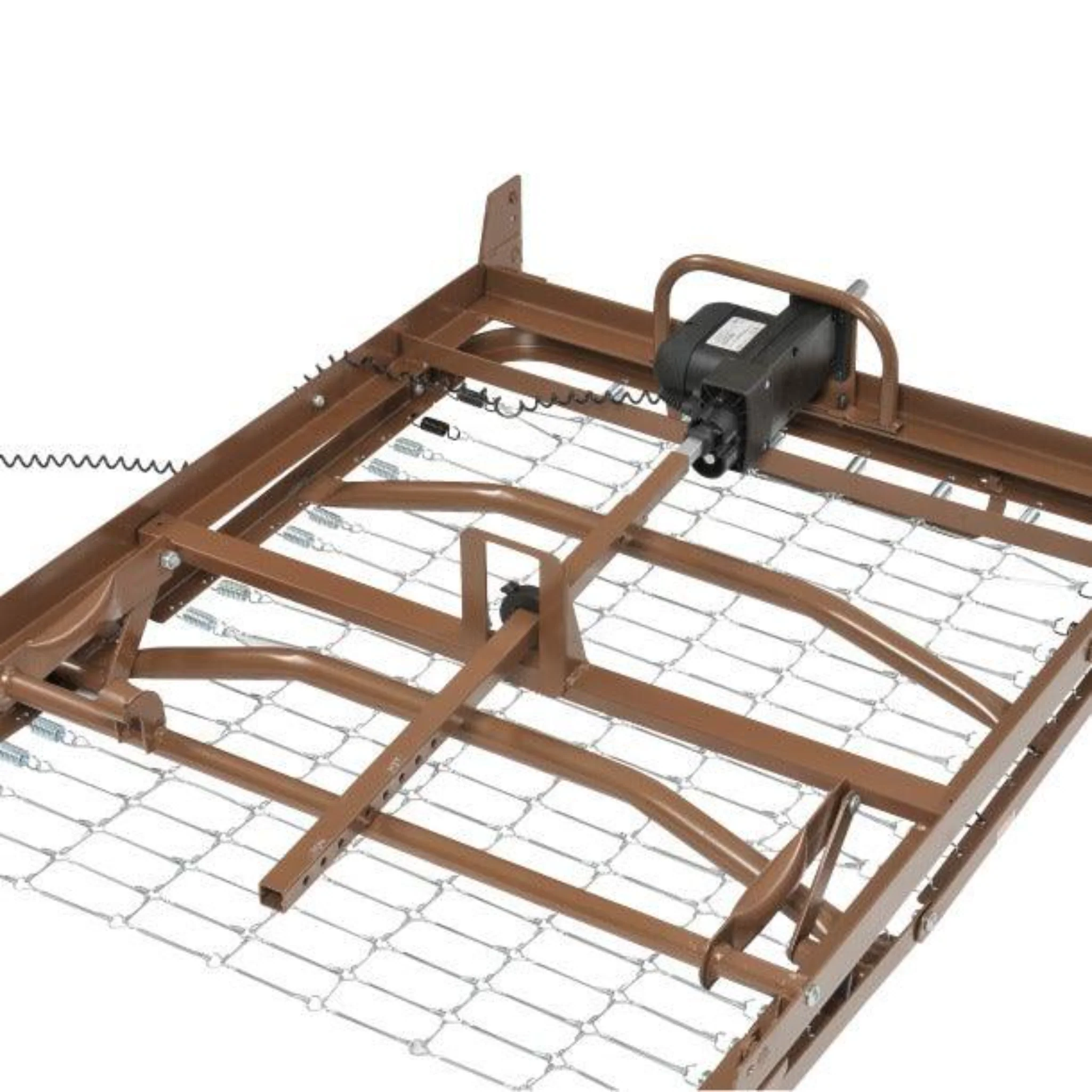

The unique motor is completely self-contained, reducing both weight and noise. In the event of a power failure, a 9-volt battery located in the hand control allows for lowering the head and foot sections up to nine times.

Durable Construction
The bed features channel frame construction for superior strength and reduced weight, along with a zinc-coated spring deck for added durability. An extension kit (model #15030EXTKIT) is available to extend the bed length from 80" to 84".

Features

• Universal bed frame compatibility with most bed ends.
• Transition box allows easy rotation of the high/low shaft.
• Taller headboard fits home decor; wood grain panels are break and scratch-resistant.
• Easy setup with top-mounted Hi/Lo crank and height-adjustable motor.
• Motor assembly can be installed/removed with the patient in bed.
• Labels and color-coded springs ensure accurate side rail installation.
• Bed, side rails, and mattress safety-tested by SGS, meeting all FDA entrapment guidelines.
• UL-approved motor with quiet, self-contained operation.
• 9-volt battery backup lowers head and foot sections during power failure.
• Patent-pending design with channel frame construction for strength.
• Zinc-coated spring deck and available extension kit for added versatility.

Specifications

• Deck Height: 9 ½" to 23 ½"
• Weight Capacity: 450 lbs (including weight of the occupant)
• Carton Shipping Weight: 191 lbs
• Bed Weight: 175 lbs
• Warranty: 5 Years on Motor and Hand Control, Limited Lifetime on Welds and Frame, 1 Year on All Other Parts and Components
