Drive Medical Balanced Aire Powered Alternating Pressure Mattress

---

Versatile Pressure Redistribution for Comprehensive Ulcer Management

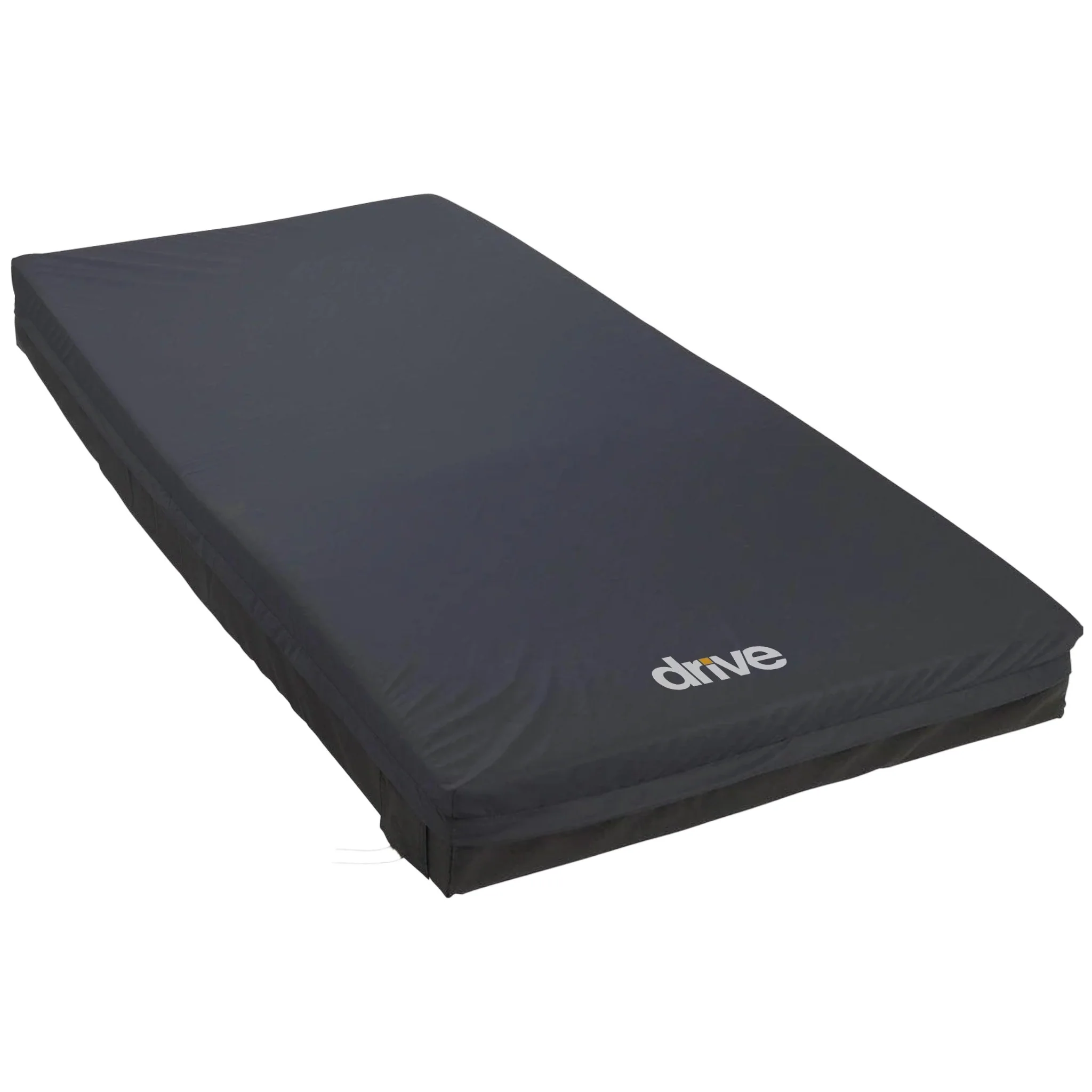

The Drive Medical Balanced Aire Powered Alternating Pressure Mattress is a highly adaptable mattress replacement system designed to provide outstanding pressure redistribution, shear reduction, and enhanced patient comfort. Perfect for both home and long-term care settings, this reactive mattress system features self-adjusting air/foam cells to effectively prevent, treat, and heal pressure ulcers.

Versatile Pressure Management
The Balanced Aire mattress is engineered for flexibility, with self-adjusting air cells that respond to body weight and pressure, reducing interface pressure and enhancing patient comfort. The system can easily convert to a dynamic powered system by adding an alternating pressure pump (14005E or BA9600-PUMP), making it suitable for a wide range of patient needs.

Premium Comfort and Support
A 2.5" hybrid Visco foam top layer offers superior immersion, comfort, and heat dissipation, while the high-density foam perimeter provides firm edge support, facilitating safe patient transfers. The heel slope design redistributes pressure away from vulnerable heels, ensuring comprehensive protection against pressure ulcers.

Advanced Self-Adjusting Technology

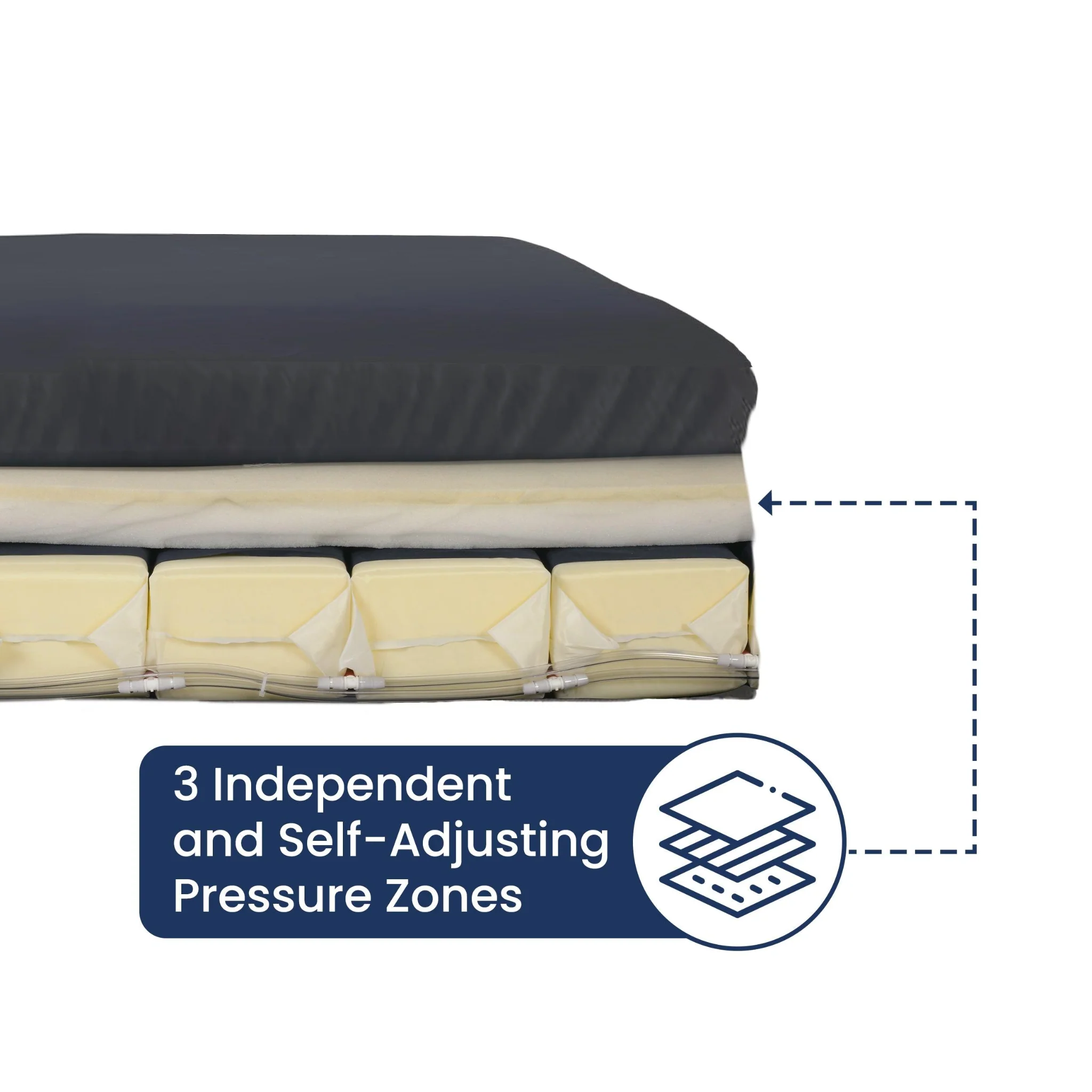

The mattress features eight non-circular cylinders that prevent "rolling" or "gapping," ensuring consistent support and pressure relief. The self-adjusting air cells can be configured as either open or closed cell, adapting to the individual needs of each patient for optimized care.

Convenient and Protective Design
The removable 4-way stretch polyurethane (PU) cover is fluid-resistant, low shear, and vapor permeable, protecting the skin from friction and moisture. The foam and cover are antimicrobial, antifungal, and latex-free, ensuring a clean and safe environment for the patient.

Ready for Immediate Use
The Balanced Aire mattress arrives patient-ready and is easy to deliver, set up, and transport, making it a practical choice for caregivers. It meets flammability standards CFR1632 and CRF1633, offering added safety and peace of mind.

Features

• Self-adjusting air/foam cells provide versatile pressure redistribution and comfort.
• Easily converts to a dynamic powered system with an alternating pressure pump.
• 2.5" hybrid Visco foam top layer ensures premium comfort and heat dissipation.
• High-density foam perimeter provides firm edge support for safe transfers.

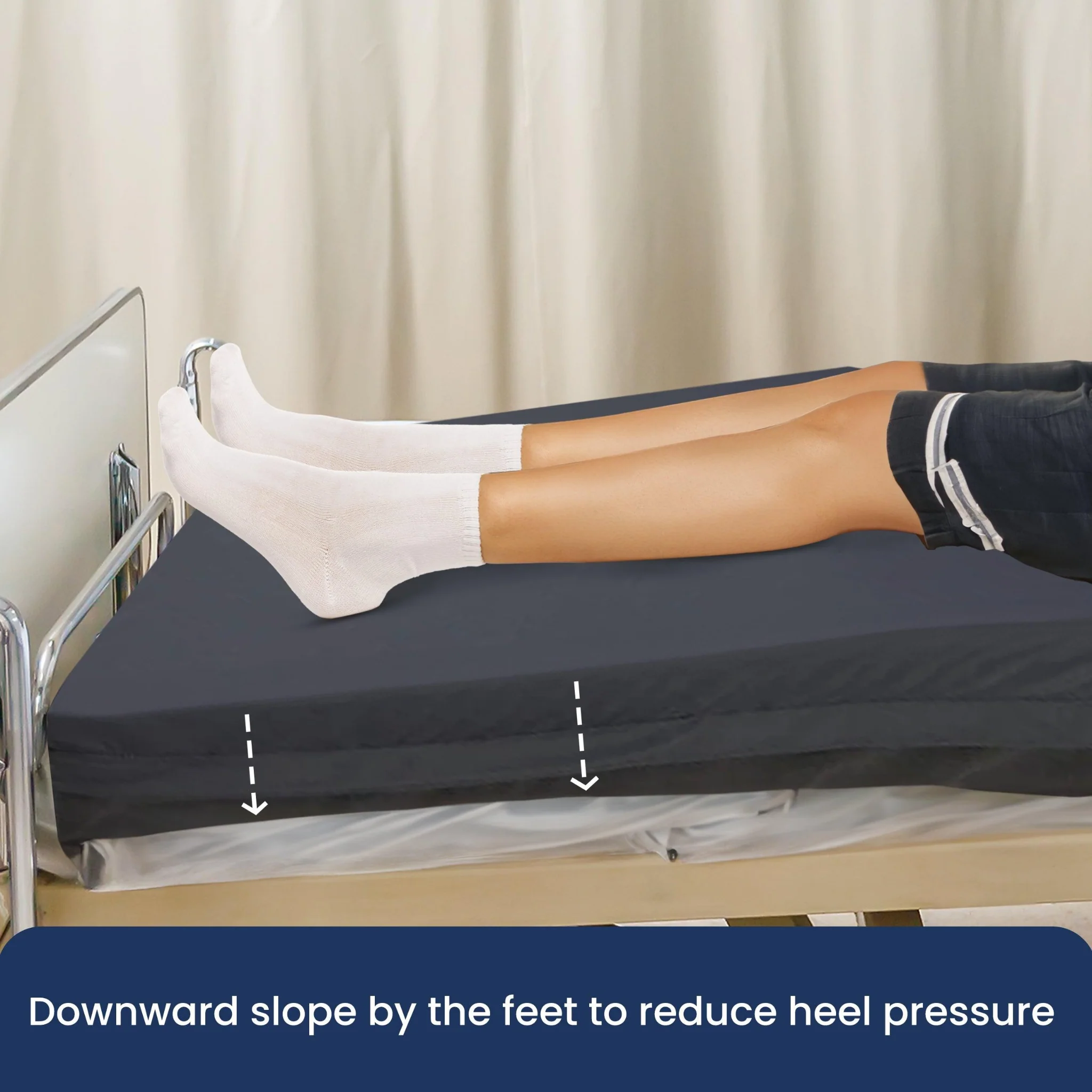

• Heel slope design reduces pressure on vulnerable heels.
• Eight non-circular cylinders prevent rolling and gapping.
• Fluid-resistant, low shear, and vapor permeable PU cover protects skin integrity.
• Foam and cover are antimicrobial, antifungal, and latex-free.
• Arrives patient-ready for easy delivery, setup, and transport.
• Meets flammability standards CFR1632 and CRF1633.

Specifications

• Control Unit Airflow: 4 LPM (when used with power source)
• Control Unit Cycle Time: 5 Minutes (when used with power source)
• Control Unit Type: Compressor (when used with power source)
• Mattress Cover Material: Fluid-Resistant Stretch

Mattress Specifications:

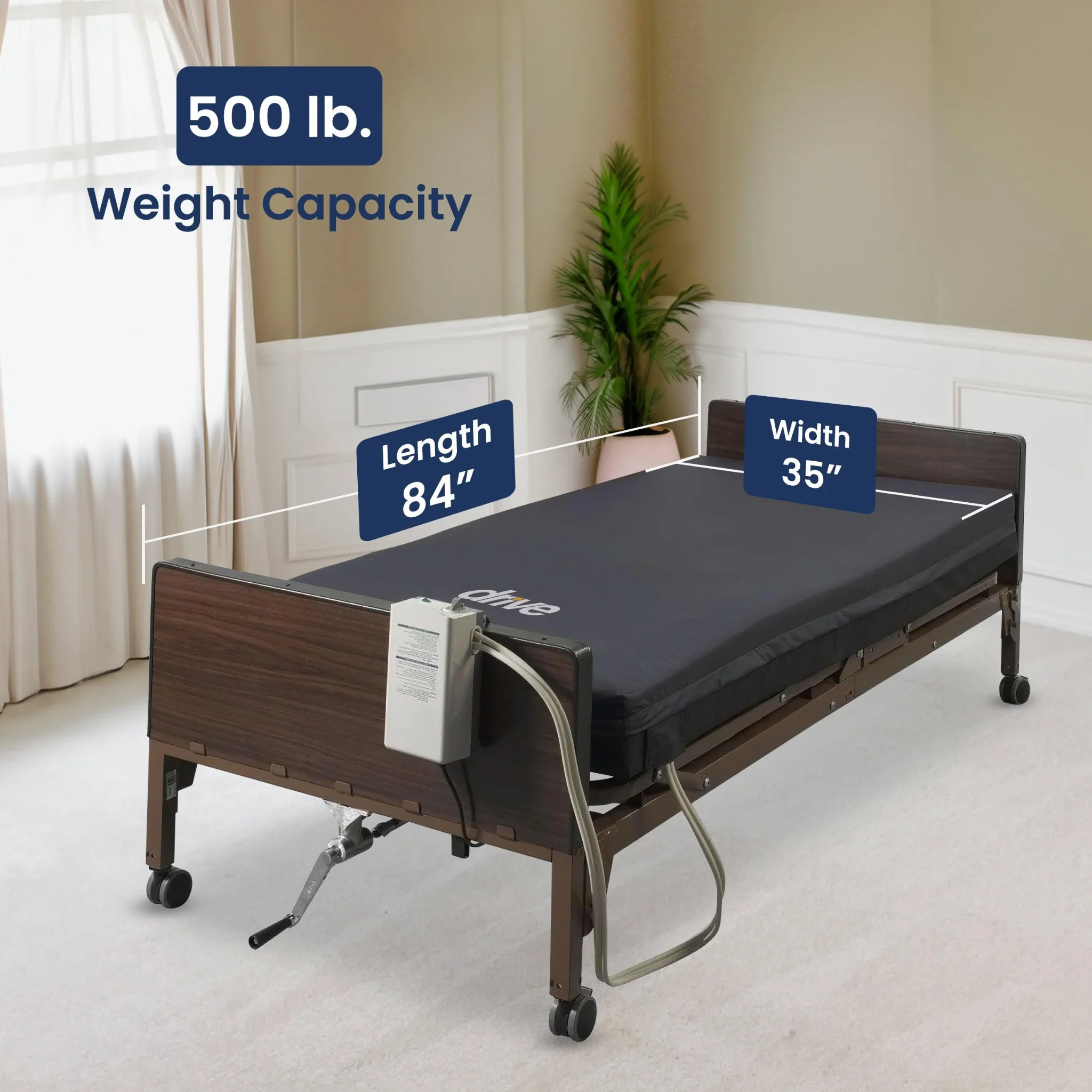

Item#	Dimensions (W x L x H)	Weight of Mattress	Weight Capacity
BA9600-NP	35”W x 80”L x 7”H	40 lbs	500 lbs
BA9600-P**	35”W x 80”L x 7”H	40 lbs	500 lbs
BA9600-NP-84	35”W x 84”L x 7”H	43 lbs	500 lbs
BA9600-P-84**	35”W x 84”L x 7”H	43 lbs	500 lbs
BA9600-NP-42	42”W x 80”L x 7”H	52 lbs	750 lbs
BA9600-P-42**	42”W x 80”L x 7”H	52 lbs	750 lbs
BA9600-P-KIT*	35”W x 80”L x 7”H	40 lbs	500 lbs

Note:

• Item #’s ending with -P or -P-42 are for powered systems and include control unit #14005E.
• Item # BA9600-P-KIT includes control unit #BA9600-PUMP.

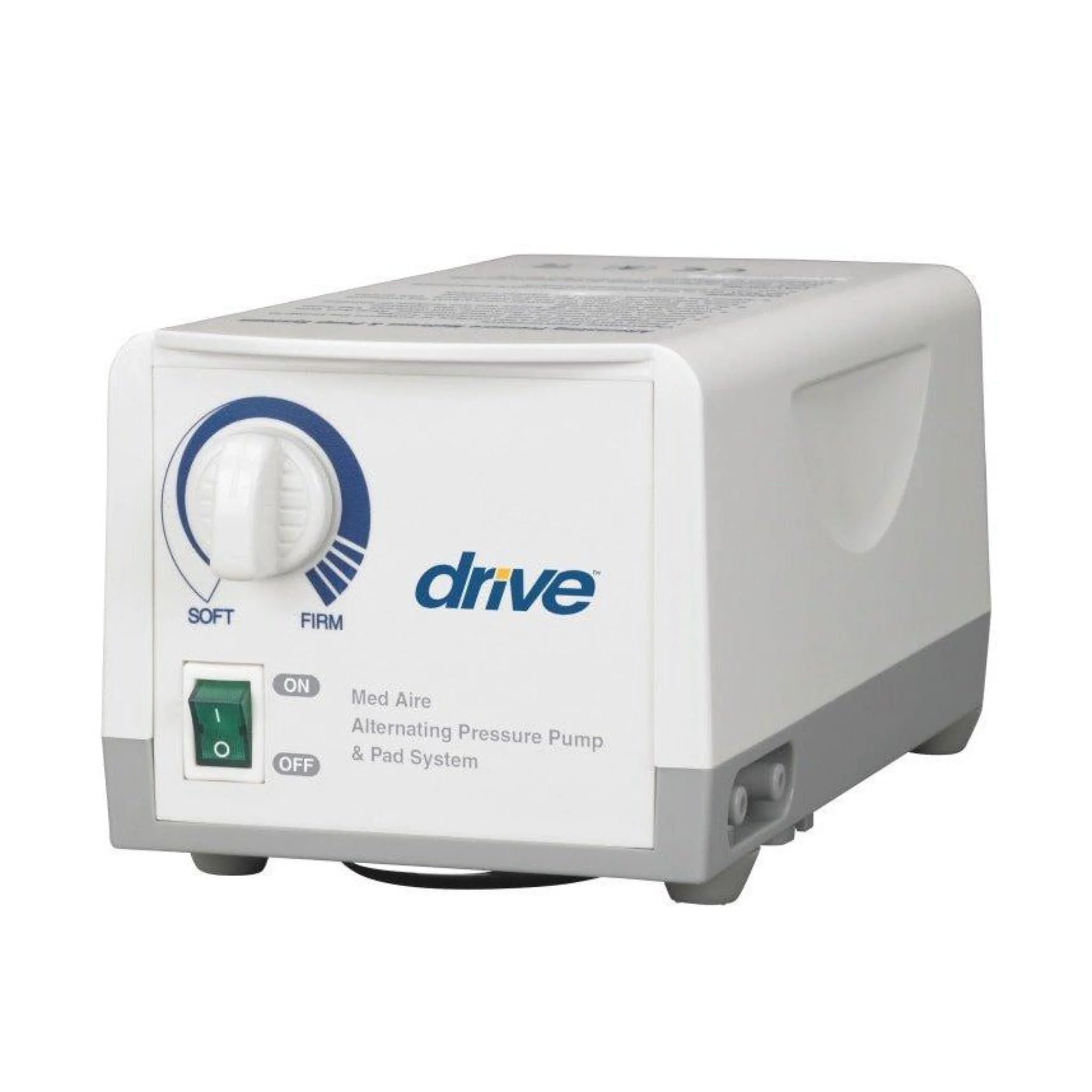

Control Unit #14005E:

• Power Supply: 120V/60Hz
• Air Output: 4 liters/min
• Pressure Range: 45 mmHg – 110 mmHg
• Cycle Time: 5 min
• Power Consumption: 7W
• Fuse: 1A
• Size: 10.2” x 4.7” x 3”
• Weight: 3.1 lbs

Control Unit #BA9600-PUMP:

• Power Supply: 120V/60Hz, 1A
• Air Output: 8 liters/min
• Pressure Range: 30mmHg – 60mmHg (±10)
• Cycle Time: 10 min
• Power Consumption: 7W
• Fuse: 250V, 1A
• Size: 11” (L) x 8” (W) x 4” (H)
• Weight: 5 lbs
