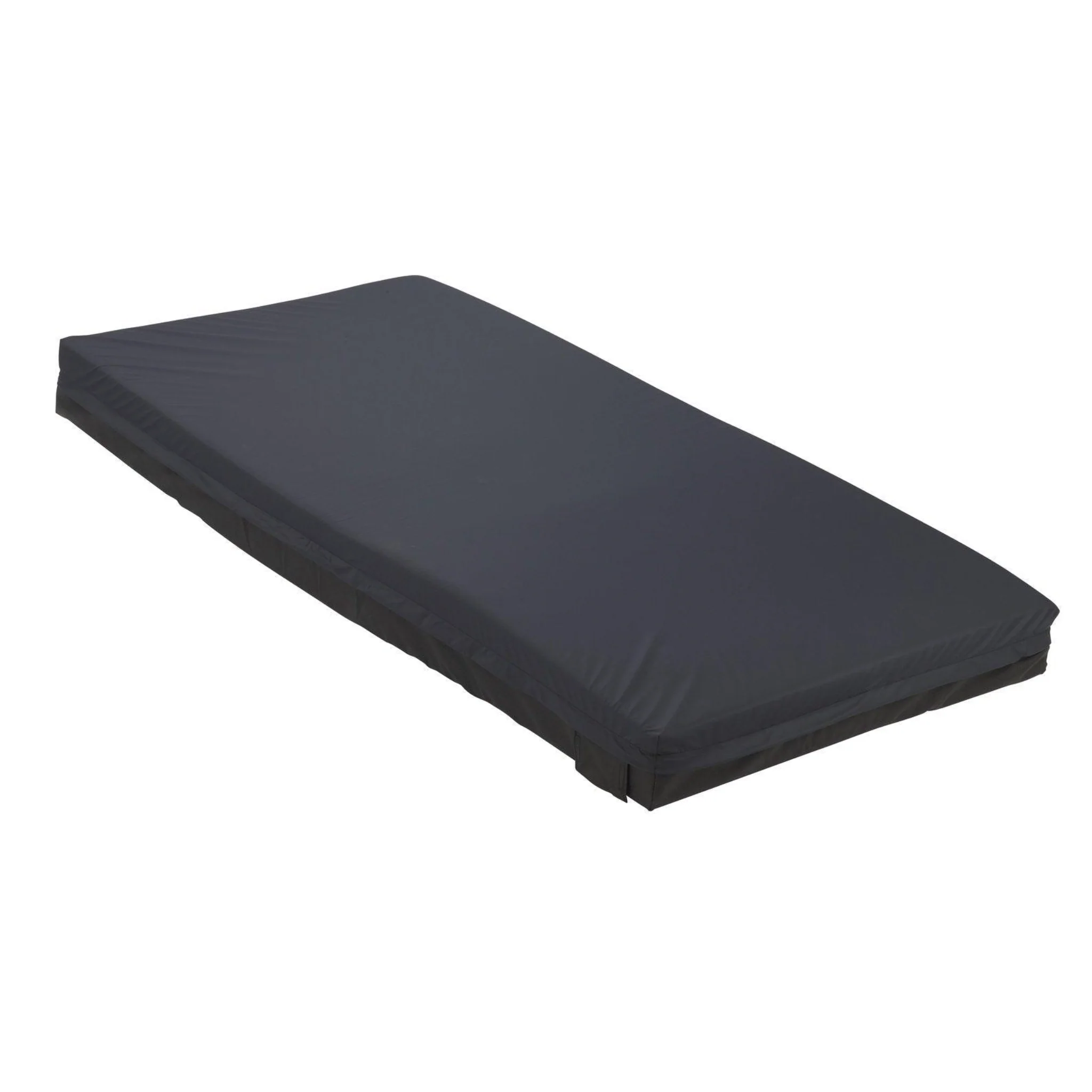

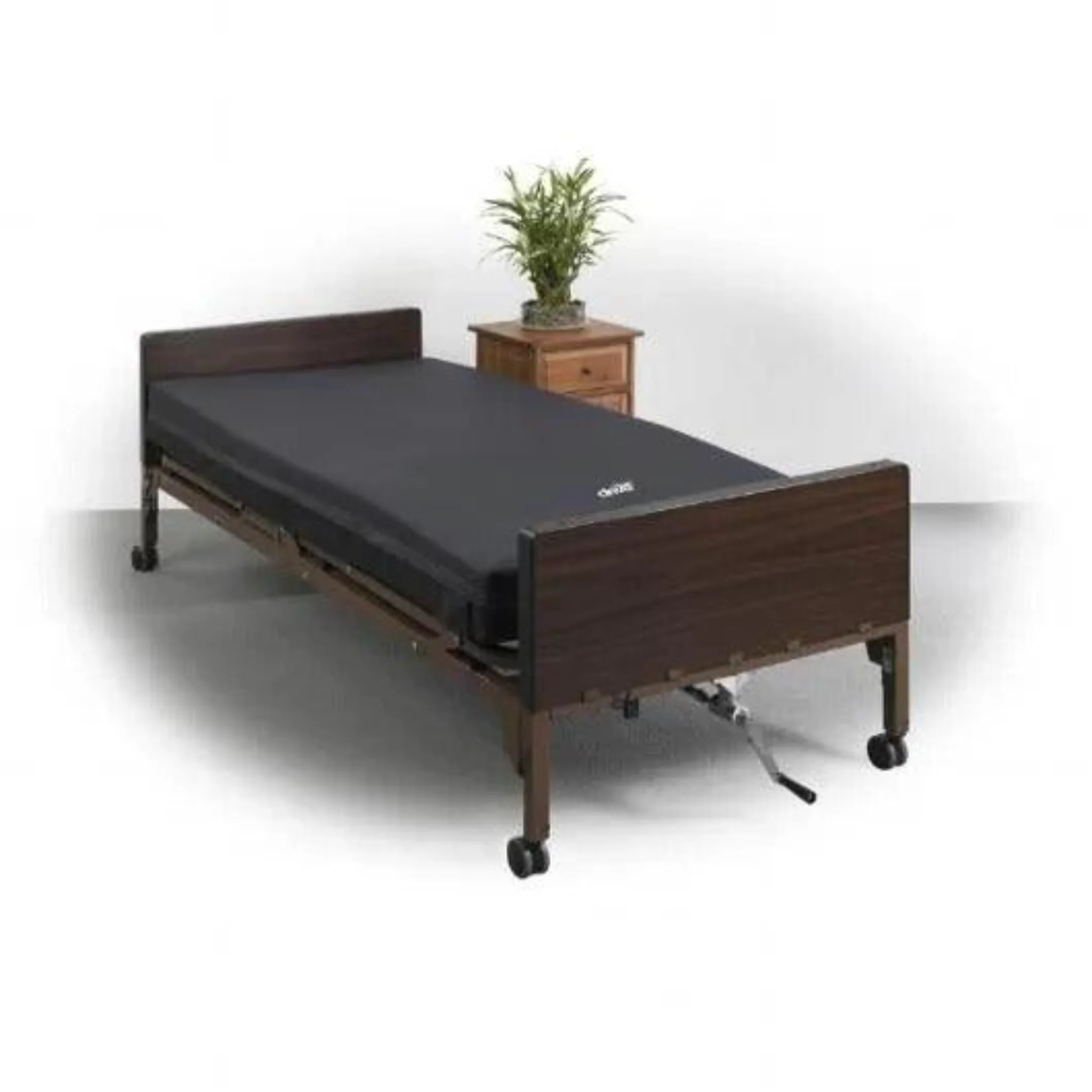

Drive Medical Balanced Aire Non-Powered Convertible Mattress

---

Versatile Comfort and Pressure Relief for Optimal Patient Care

The Drive Medical Balanced Aire Non-Powered Convertible Mattress is a versatile and reactive mattress replacement system designed to provide outstanding pressure redistribution, shear reduction, and enhanced patient comfort. Ideal for use in both home and long-term care settings, this mattress is engineered to prevent, treat, and heal pressure ulcers effectively.

Adaptive Pressure Management

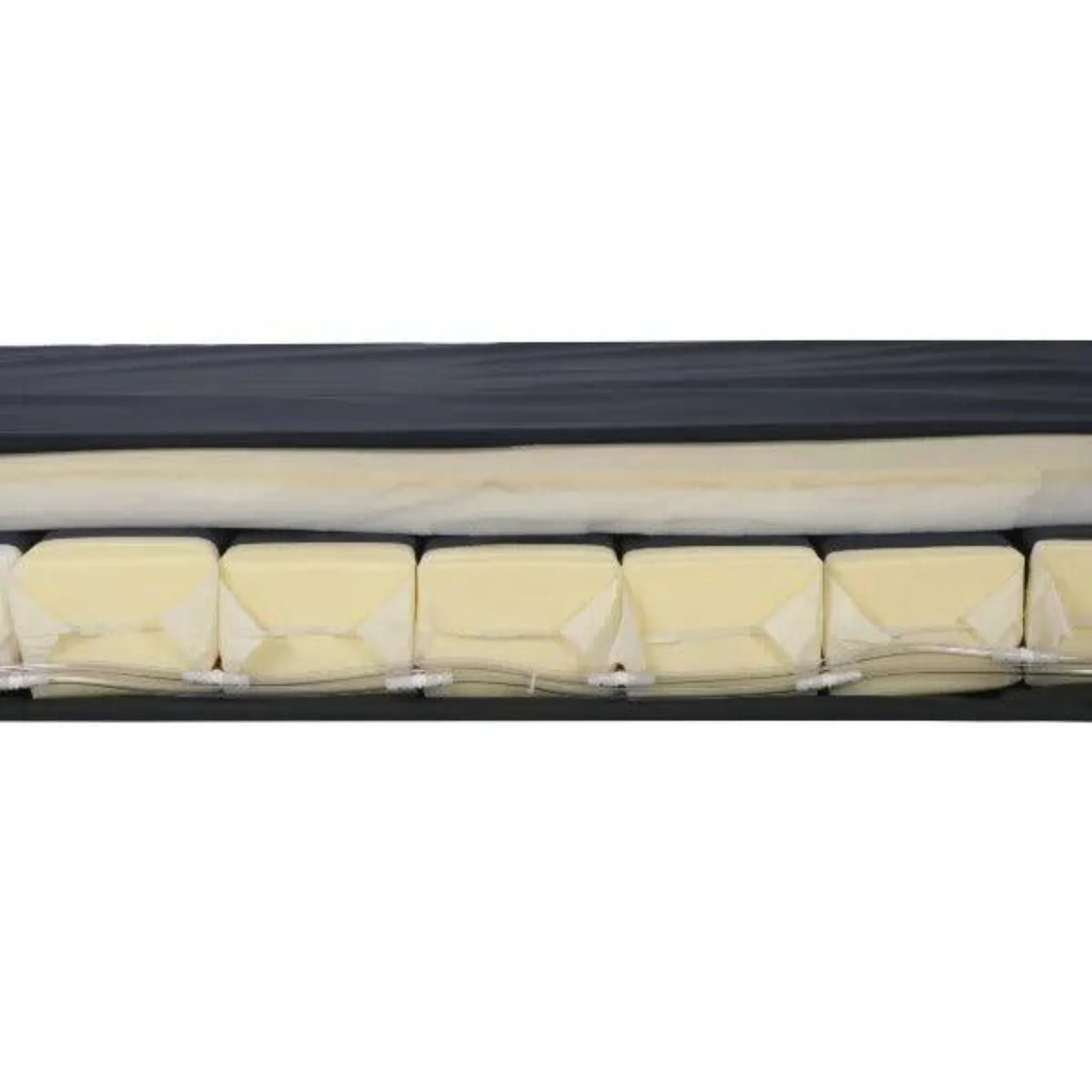

The Balanced Aire mattress features self-adjusting air/foam cells that automatically adapt to the patient’s body weight and pressure, reducing interface pressure and improving overall comfort. This system can function with open or closed cells to meet individual needs.

Convertible Design
The mattress can be easily converted to a dynamic powered system by adding an alternating pressure pump (14005E or BA9600-PUMP), providing additional therapeutic benefits for enhanced pressure redistribution.

Features

• Self-adjusting air/foam cells for adaptive pressure management and patient comfort.
• Convertible to a dynamic powered system with the addition of an alternating pressure pump.
• 2.5" hybrid Visco foam top layer for premium comfort and heat dissipation.
• High-density foam perimeter for firm edge support and safe patient transfers.

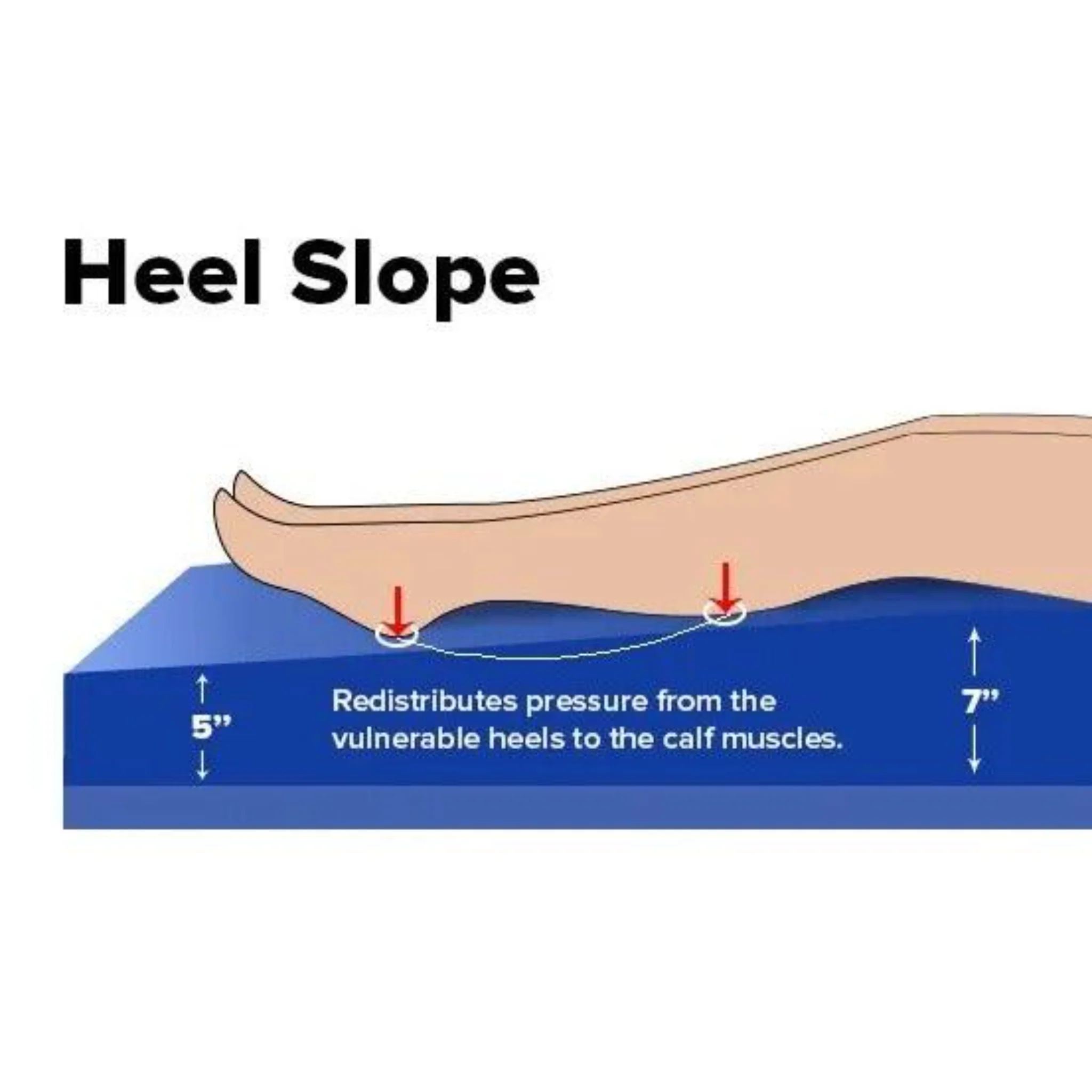

• Heel slope design reduces pressure on the heels, preventing ulcers.
• Eight non-circular cylinders to prevent rolling and gapping.
• Fluid-resistant, low shear, and vapor permeable PU cover for skin protection.
• Foam and cover are antimicrobial, antifungal, and latex-free.
• Arrives patient-ready, meeting flammability standards CFR1632 and CRF1633.

Specifications

• Control Unit Airflow: 4 LPM (when used with power source)
• Control Unit Cycle Time: 5 Minutes (when used with power source)
• Control Unit Type: Compressor (when used with power source)
• Mattress Cover Material: Fluid-Resistant Stretch

Mattress Specifications:

Item#	Dimensions (W x L x H)	Weight of Mattress	Weight Capacity
BA9600-NP	35”W x 80”L x 7”H	40 lbs	500 lbs
BA9600-P**	35”W x 80”L x 7”H	40 lbs	500 lbs
BA9600-NP-84	35”W x 84”L x 7”H	43 lbs	500 lbs
BA9600-P-84**	35”W x 84”L x 7”H	43 lbs	500 lbs
BA9600-NP-42	42”W x 80”L x 7”H	52 lbs	750 lbs
BA9600-P-42**	42”W x 80”L x 7”H	52 lbs	750 lbs
BA9600-P-KIT*	35”W x 80”L x 7”H	40 lbs	500 lbs

Note:

• Item #’s ending with -P or -P-42 are for powered systems and include control unit #14005E.
• Item # BA9600-P-KIT includes control unit #BA9600-PUMP.

Control Unit #14005E:

• Power Supply: 120V/60Hz
• Air Output: 4 liters/min
• Pressure Range: 45 mmHg – 110 mmHg
• Cycle Time: 5 min
• Power Consumption: 7W
• Fuse: 1A
• Size: 10.2” x 4.7” x 3”
• Weight: 3.1 lbs

Control Unit #BA9600-PUMP:

• Power Supply: 120V/60Hz, 1A
• Air Output: 8 liters/min
• Pressure Range: 30mmHg – 60mmHg (±10)
• Cycle Time: 10 min
• Power Consumption: 7W
• Fuse: 250V, 1A
• Size: 11” (L) x 8” (W) x 4” (H)
• Weight: 5 lbs
